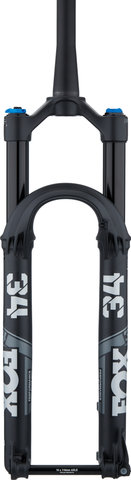

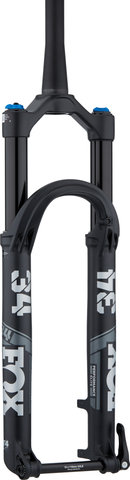

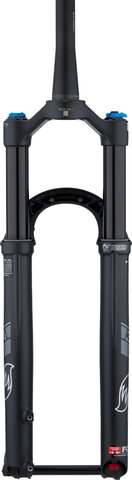

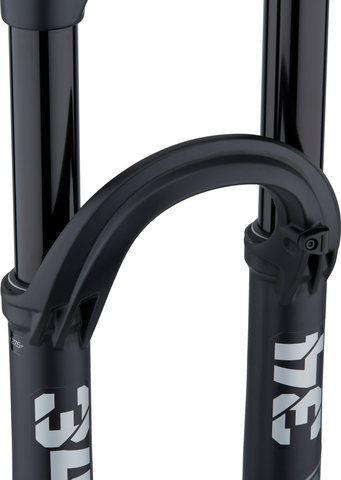

Fox Racing Shox 34 FLOAT 29" FIT4 Performance Elite Boost Suspension Fork - 2022

Specifications:

Application:

All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

264 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

544 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

High-Speed, Low-Speed

Rebound:

High-Speed, Low-Speed

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

203 mm

Weight Limit:

121 kg (system weight)

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• FIT4 damping cartridge with 3-position lever and fine adjustment of low speed compression damping in open mode

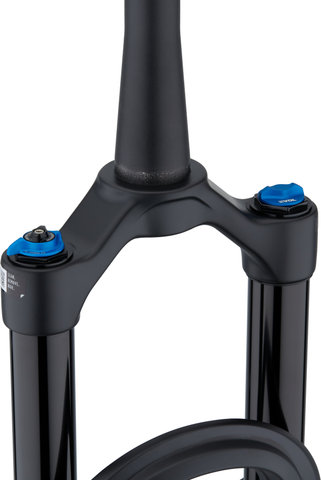

• fork crown design optimised for more stiffness, more space in the head tube area and shorter offset
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• Performance Elite series with black anodised stanchion tubes
• Float EVOL air suspension for sensitive response, more linear spring characteristics and optimum support through the entire spring travel

Manufacturer Number:

Contents:

• 1 x Fox Racing Shox 34 Float 29" FIT4 Performance Elite Boost suspension fork

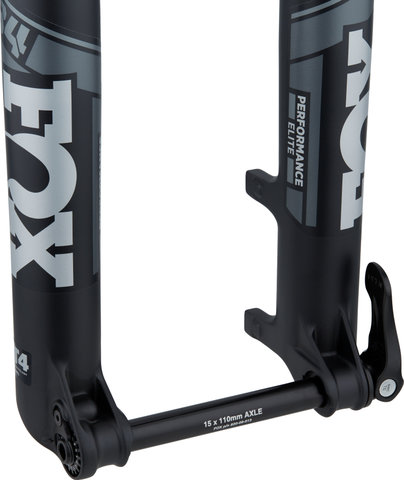

• 1 x Fox Racing Shox thru-axle with quick release

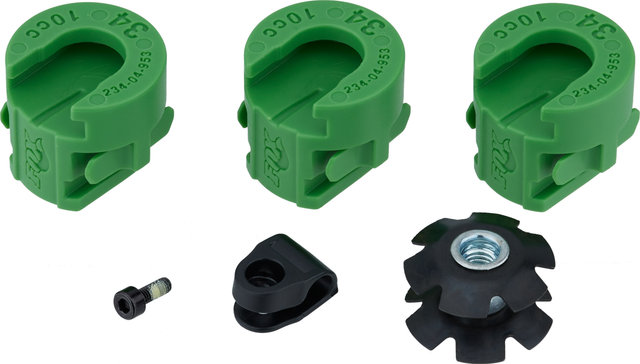

• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut
