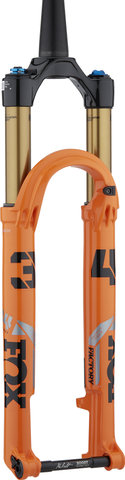

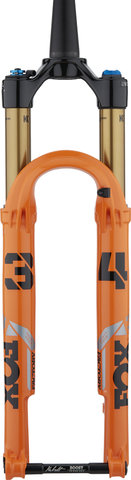

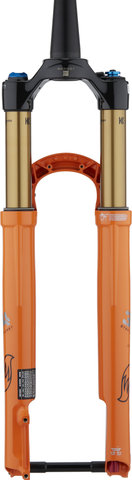

Fox Racing Shox 34 Float SC 29" Remote FIT4 Factory Boost Suspension Fork - 2022 Model

Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm, 120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

264 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-positions via remote (Open / Medium / Firm) with low-speed setting (22 levels) in Open mode

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

yes

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.4"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

180 mm

Weight Limit:

121 kg (system weight)

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• FIT4 Push-to-Lock remote damping cartridge with 3-position selection via remote and fine adjustment of low speed compression damping in open mode

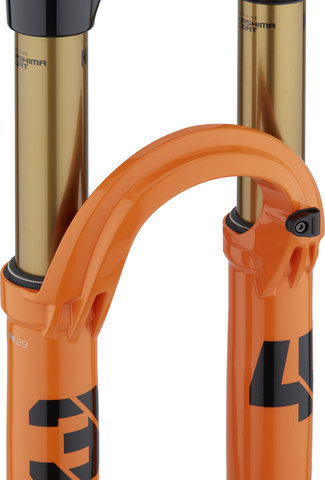

• narrow, weight-saving step-cast design with recesses above the axle for brake rotor and spokes

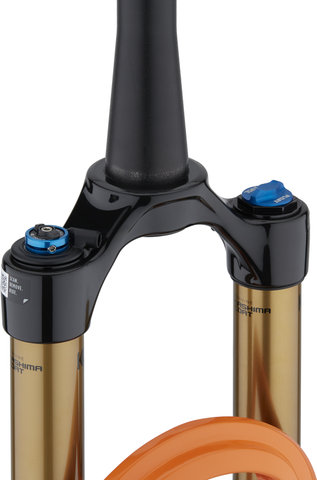

• fork crown design optimised for more stiffness, more space in the head tube area and shorter offset
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase

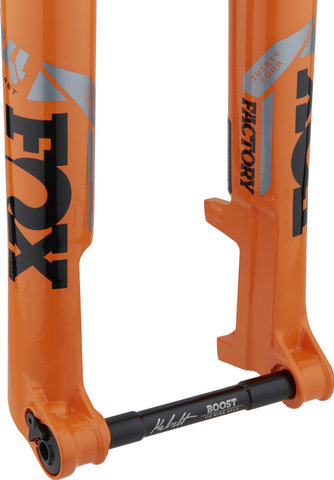

• with light Kabolt thru-axle
• Factory series with Kashima coating for minimised friction and optimised responsiveness
• Float EVOL air suspension for sensitive response, more linear spring characteristics and optimum support through the entire spring travel

Technology:

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Models:

100 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

100 mm

Offset:

44 mm

Axle to Crown:

510 mm

Manufacturer Numbers:

910-21-059 (shiny black), 910-21-061 (shiny orange)

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Offset:

44 mm

Axle to Crown:

530 mm

Manufacturer Numbers:

910-21-043 (shiny black), 910-21-042 (shiny orange)

Contents:

• 1 x Fox Racing Shox 34 Float SC 29" Remote FIT4 Factory Boost suspension fork
• 1 x Fox Racing Shox Kabolt thru-axle
• 1 x Fox Racing Shox handlebar remote
• 3 x Fox Racing Shox volume spacers
• 1 x clamp
• 1 x hose guides
• 1 x star nut
• 3 x cables
• 1 x cable housing
• 1 x ferrules
• 3 x end caps
• 2 x cable adjuster
