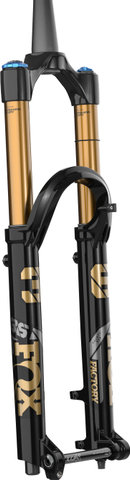

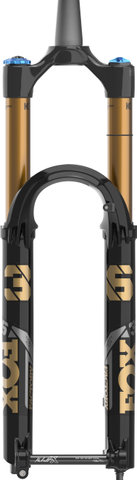

Fox Racing Shox 36 Float 27.5" GRIP X Factory Boost Suspension Fork

Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm

Steerer Tube:

1 1/8" – 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

244 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

530 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Material Steerer Tube:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

2 Positions (Open, Firm)

Rebound:

Low Speed (10 Clicks)

Suspension Stiffness:

via air pressure

Remote:

yes

Travel Adjustment:

no

Approved For:

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

180 mm

Manufacturer Numbers:

• Shiny black: 910-21-299
• Shiny orange: 910-21-298

Manufacturer:

FOX Factory GmbH
Gewerbepark 6
66989 Höhfröschen
Germany
info@ridefox.com

Contents:

• 1 x Fox Racing Shox 34 Float SC 29" GRIP SL Factory Psh-Lk Boost suspension fork
• 1 x Fox Racing Shox Kabolt thru-axle
