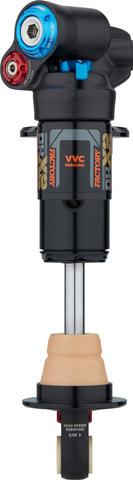

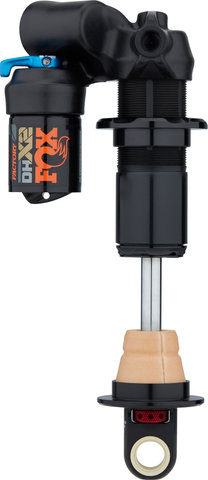

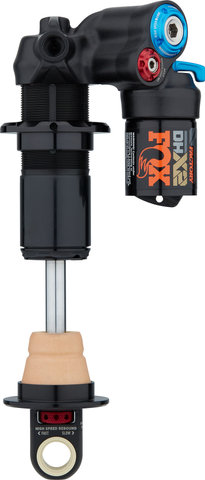

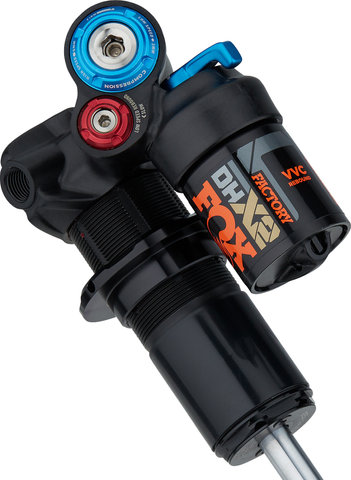

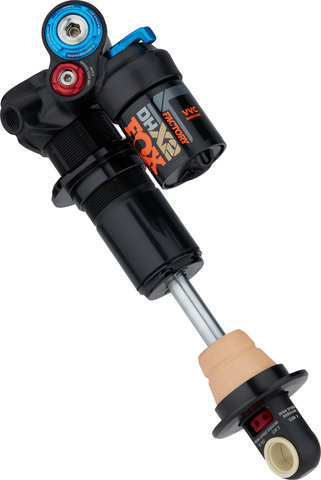

Fox Racing Shox DHX2 2POS Factory Trunnion Rear Shock - 2022 Model

Specifications:

Application:

All Mountain, Enduro, Downhill

Product Line:

Factory

Suspension Type:

coil spring

Size x Stroke:

185 x 50 mm, 185 x 55 mm, 205 x 60 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

DHX2

Tune:

CM RM Rezi CM

Bushing Material:

composite

Body Material:

steel

Shaft Material:

steel

Adjustment Options:

Compression:

high-speed, low-speed, 2-position lever (Open / Firm)

Rebound:

High-Speed, Low-Speed

Remote:

no

Features:

• also fits into smaller frames with compact expansion tank
• MCU end stop for increased end progression
• VVC (Variable Valve Control) for high-speed rebound damping
• stronger lockout in Firm mode due to independent circuit
• high-speed compression and rebound settings with 8 clicks as with GRIP2 suspension forks
• low-friction, durable shaft finish
• spring preload plate with detents prevents loosening at low preload
• main piston with high oil flow

Manufacturer Numbers:

185 mm x 50 mm:

978-01-055

185 mm x 55 mm:

978-01-056

205 mm x 60 mm:

978-01-057

Contents:

• 1 x Fox Racing Shox DHX2 2POS Factory Trunnion Shock

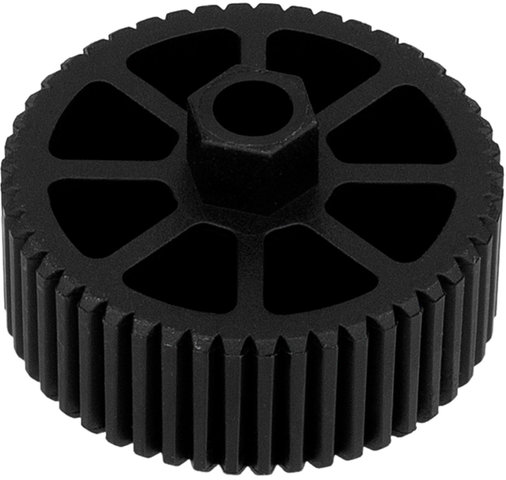

• 1 x Fox Racing Shox adjustment tool

Order Together:

• SLS Super Light Steel Coil Spring
