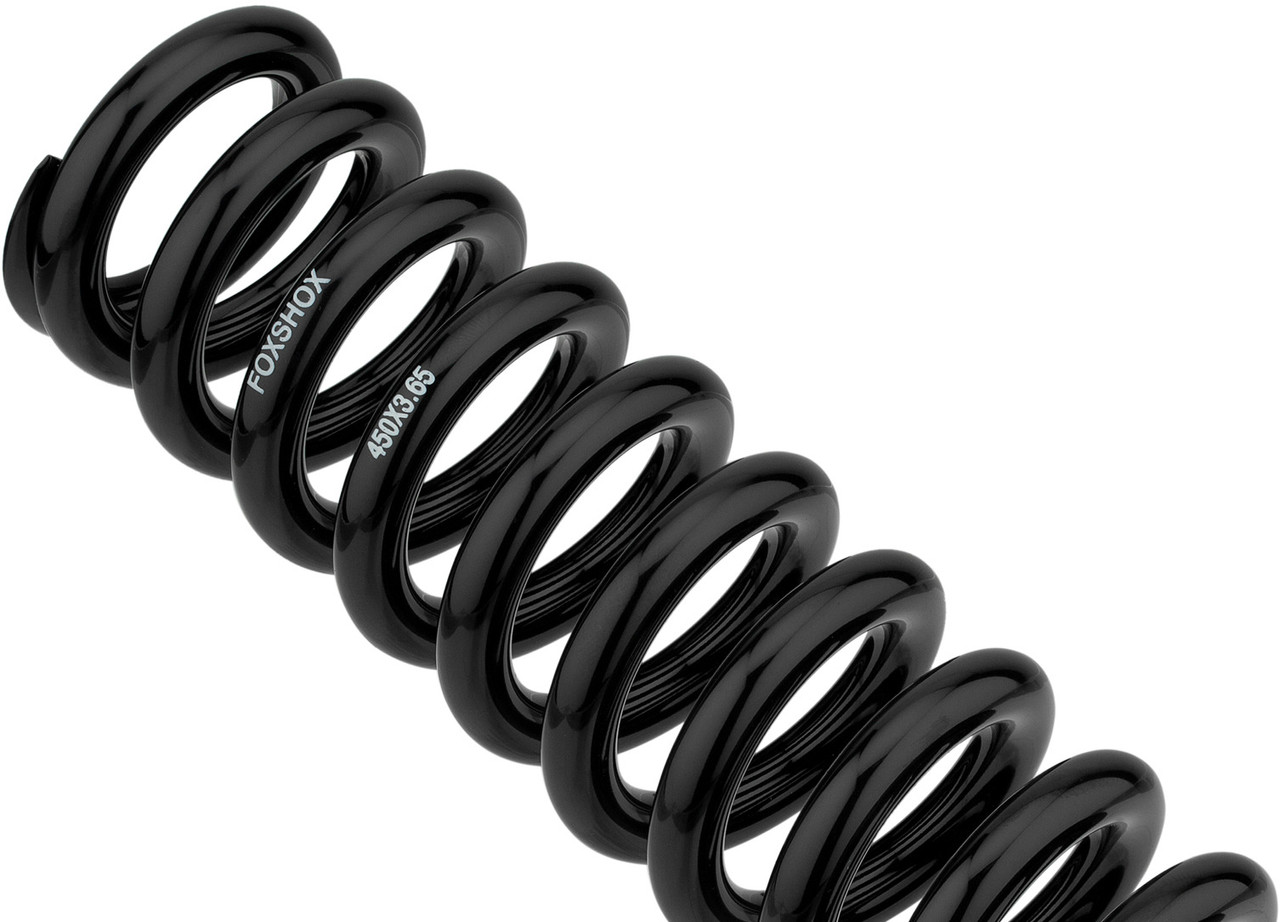

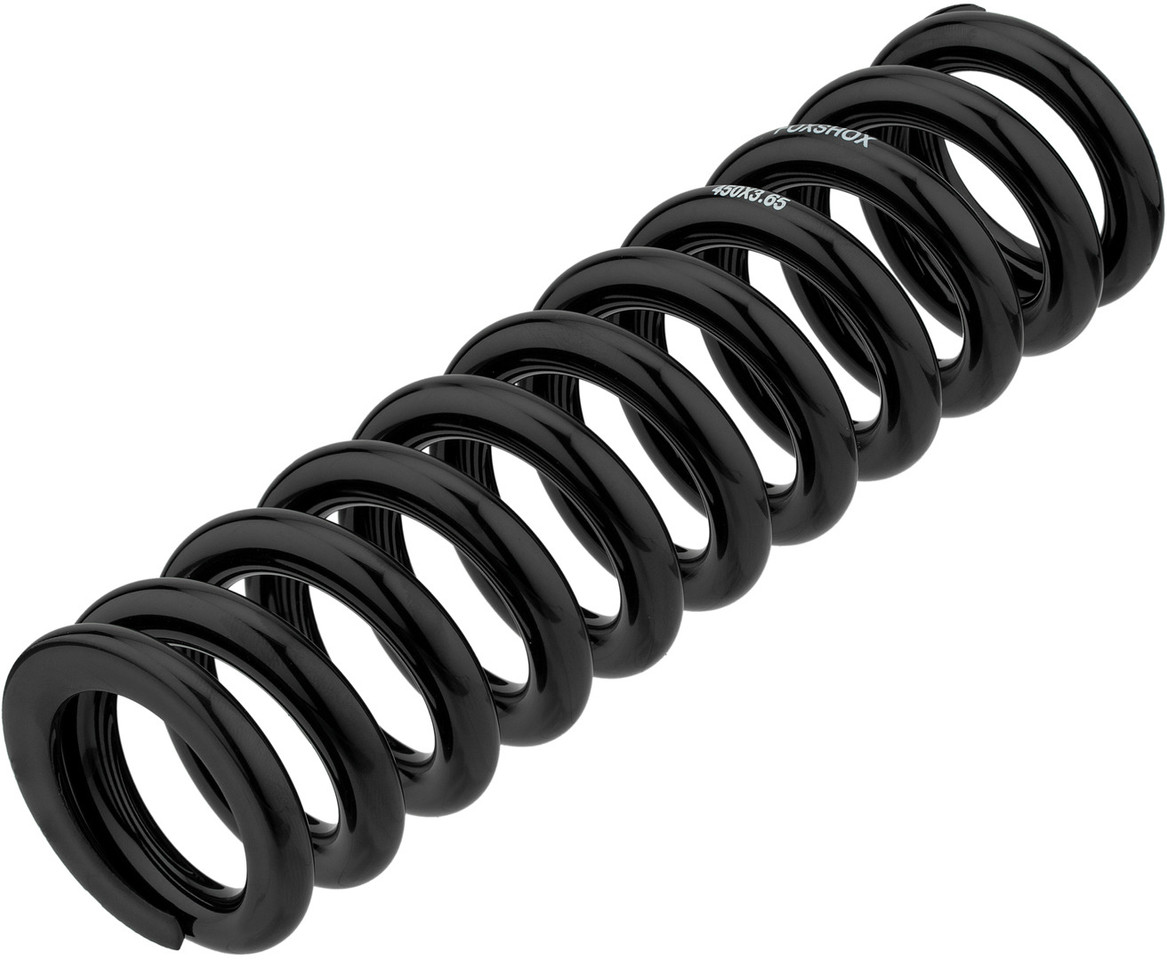

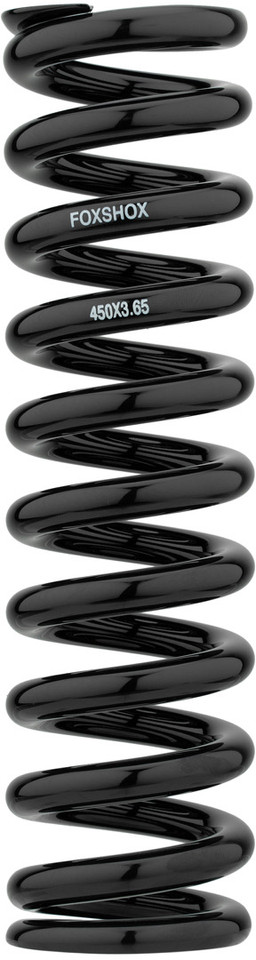

Fox Racing Shox Steel Coil for 89 mm Stroke

The Fox Racing Shox steel coil for shocks with 89 mm stroke

This Fox Racing Shox steel coil is suitable for compatible shocks with 89 mm stroke. The stroke of the coil varies between 92 and 98 mm.

Specifications:

Application:

Downhill, Enduro, All Mountain

Rear Shock (Size x Travel):

267 x 89 mm (10.5" x 3.5" )

Stroke:

92 mm, 93 mm, 94 mm, 95 mm, 97 mm, 98 mm

Inner Diameter:

35 mm (1.385" )

Compatibility:

• Fox DHX2 rear shock
• Fox DHX rear shock
• Fox VAN shock
• Marzocchi Bomber CR shock

Note from the manufacturer:

Depending on the shock model, it may happen that a coil is too long or too short. Therefore, also consider the coil length when making your choice.

Models:

150 lbs:

Coil Length:

173 mm

Stroke:

98 mm (3.85" )

Spring Rate:

150 lbs/inch

Manufacturer Number:

039-12-000

200 lbs:

Coil Length:

178 mm

Stroke:

97 mm (3.80" )

Spring Rate:

200 lbs/inch

Manufacturer Number:

039-12-001

225 lbs:

Coil Length:

178 mm

Stroke:

97 mm (3.80" )

Spring Rate:

225 lbs/inch

Manufacturer Number:

039-12-008

250 lbs:

Coil Length:

183 mm

Stroke:

95 mm (3.75" )

Spring Rate:

250 lbs/inch

Manufacturer Number:

039-12-002

275 lbs:

Coil Length:

191 mm

Stroke:

95 mm (3.75" )

Spring Rate:

275 lbs/inch

Manufacturer Number:

039-12-009

300 lbs:

Coil Length:

197 mm

Stroke:

94 mm (3.70" )

Spring Rate:

300 lbs/inch

Manufacturer Number:

039-12-003

325 lbs:

Coil Length:

197 mm

Stroke:

94 mm (3.70" )

Spring Rate:

325 lbs/inch

Manufacturer Number:

039-12-010

350 lbs:

Coil Length:

197 mm

Stroke:

94 mm (3.70" )

Spring Rate:

350 lbs/inch

Manufacturer Number:

039-12-004

400 lbs:

Coil Length:

197 mm

Stroke:

93 mm (3.65" )

Spring Rate:

400 lbs/inch

Manufacturer Number:

039-12-005

450 lbs:

Coil Length:

206 mm

Stroke:

93 mm (3.65" )

Spring Rate:

450 lbs/inch

Manufacturer Number:

039-12-006

500 lbs:

Coil Length:

210 mm

Stroke:

92 mm (3.64" )

Spring Rate:

500 lbs/inch

Manufacturer Number:

039-12-007

Contents:

• 1 x Fox Racing Shox steel coil
