Fox Racing Shox Transfer Internal Factory 175 mm Dropper Post - 2021 Model

The Transfer Internal Factory 150 mm dropper post by Fox Racing Shox - light and compact

The Transfer Factory dropper seatpost from Fox Racing Shox with Genuine Kashima Coat and 150 mm travel shines with its short overall length and insertion depth. This makes it more compact and lighter. Two different lever designs ensure that the seatpost is compatible with every drivetrain. The Bowden cable for control is routed internally. In addition, the ease of maintenance has been improved.

Specifications:

Application:

Cross Country, All Mountain

Travel:

175 mm

Diameter:

30.9 mm, 31.6 mm

Length:

475.1 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

Aluminium

Approved For:

Insertion Depth (max.):

289.9 mm

Features:

• reliable performance

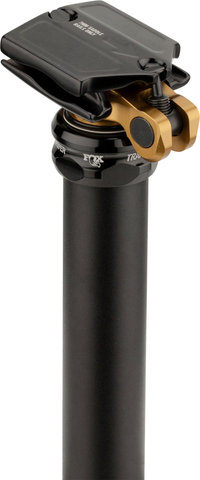

• low profile saddle clamp design
• maintenance-friendly
• Factory Series model with Genuine Kashima Coat

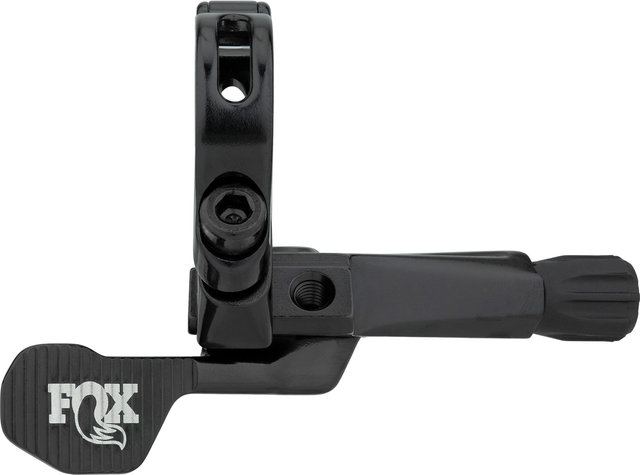

• remote lever 1x: to mount on the left underneath the handlebars instead of a shift lever
• remote lever 2x/3x: to mount left or right above the handlebars

Models:

30.9 mm / 475.1 mm / SB 0 mm / not incl. remote:

Diameter:

30.9 mm

Length:

475.1 mm

Setback:

0 mm

Manufacturer Number:

925-01-148

30.9 mm / 475.1 mm / SB 0 mm / 1x Remote:

Diameter:

30.9 mm

Length:

475.1 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-148 + 925-06-004

30.9 mm / 475.1 mm / SB 0 mm / 2x/3x Remote:

Diameter:

30.9 mm

Length:

475.1 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-148 + 925-06-002

31.6 mm / 475.1 mm / SB 0 mm / not incl. remote:

Diameter:

31.6 mm

Length:

475.1 mm

Setback:

0 mm

Manufacturer Number:

925-01-149

31.6 mm / 475.1 mm / SB 0 mm / 1x Remote:

Diameter:

31.6 mm

Length:

475.1 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-149 + 925-06-004

31.6 mm / 475.1 mm / SB 0 mm / 2x/3x Remote:

Diameter:

31.6 mm

Length:

475.1 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-149 + 925-06-002

Contents:

without remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post

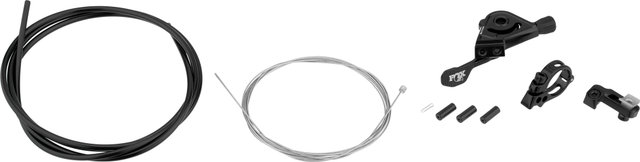

1x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x Fox Racing Shox clamp
• 1 x Fox Racing Shox Adapter for Matchmaker / I-Spec EV
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules

2x/3x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x cable pull
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules
