Fox Racing Shox Transfer Internal Performance Elite 100 mm Dropper Post - 2021 Model

The Transfer Internal Performance Elite 100 mm dropper post by Fox Racing Shox - light and compact

The Transfer Performance Elite dropper seatpost from Fox Racing Shox with a black, hard-anodised finish and 100 mm travel shines with low overall length and insertion depth. This makes it more compact and lighter. Two different lever designs ensure that the seatpost is compatible with every drivetrain. The Bowden cable for control is routed internally. In addition, the ease of maintenance has been improved.

Specifications:

Application:

Cross Country, All Mountain

Travel:

100 mm

Diameter:

30.9 mm, 31.6 mm

Length:

308.6 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

Aluminium

Approved For:

Insertion Depth (max.):

195.3 mm

Features:

• reliable performance
• low profile saddle clamp design
• maintenance-friendly
• black hard anodised

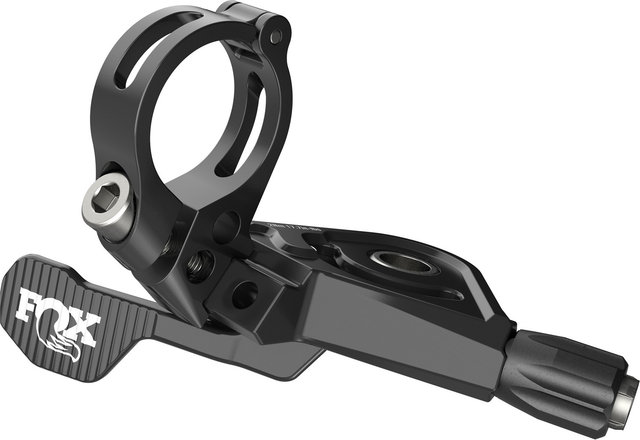

• remote lever 1x: to mount on the left underneath the handlebars instead of a shift lever

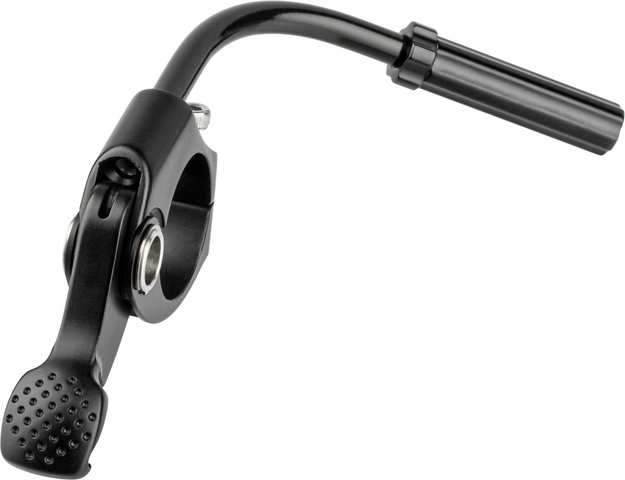

• remote lever 2 / 3x: to mount left or right above the handlebars

Models:

30.9 mm / 308.6 mm / SB 0 mm / not incl. remote:

Diameter:

30.9 mm

Length:

308.6 mm

Setback:

0 mm

Manufacturer Number:

925-01-134

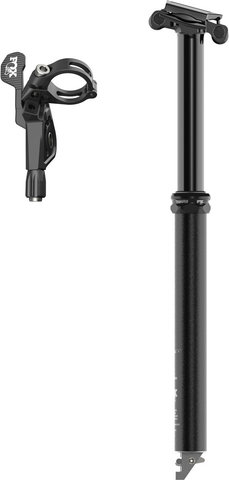

30.9 mm / 308.6 mm / SB 0 mm / 1x Remote:

Diameter:

30.9 mm

Length:

308.6 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-134 + 925-06-004

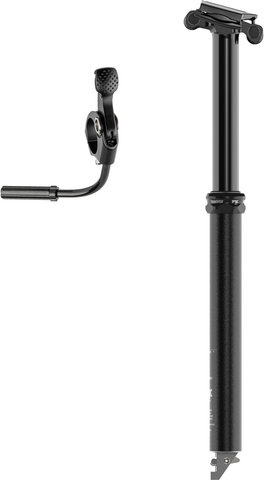

30.9 mm / 308.6 mm / SB 0 mm / 2x/3x Remote:

Diameter:

30.9 mm

Length:

308.6 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-134 + 925-06-002

31.6 mm / 308.6 mm / SB 0 mm / not incl. remote:

Diameter:

31.6 mm

Length:

308.6 mm

Setback:

0 mm

Manufacturer Number:

925-01-135

31.6 mm / 308.6 mm / SB 0 mm / 1x Remote:

Diameter:

31.6 mm

Length:

308.6 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-135 + 925-06-004

31.6 mm / 308.6 mm / SB 0 mm / 2x/3x Remote:

Diameter:

31.6 mm

Length:

308.6 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-135 + 925-06-002

Contents:

without remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post

1x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x Fox Racing Shox clamp
• 1 x Fox Racing Shox Adapter for Matchmaker / I-Spec EV
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules

2x/3x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x cable pull
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules
