Fulcrum E-Metal 3 Disc 6-bolt Boost 29" Wheelset - 2019

The E-Metal 3 Disc 6-bolt Boost 29" wheelset from Fulcrum has been specially developed for the requirements of E-MTBs.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike, All Mountain, Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Tubeless System:

2-Way Fit™ Ready

Technical Information - Rim:

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

23 mm (front), 18 mm (rear)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

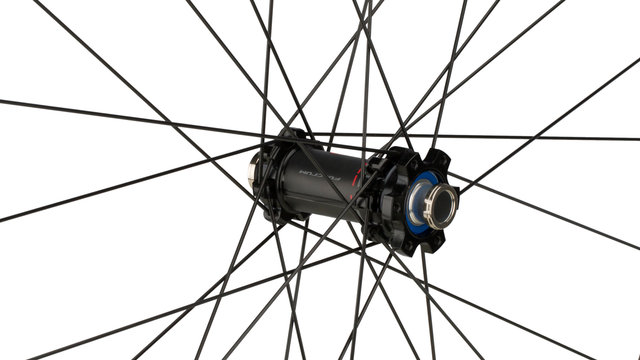

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

adjustable cartridge, sealed

Body Material:

aluminium

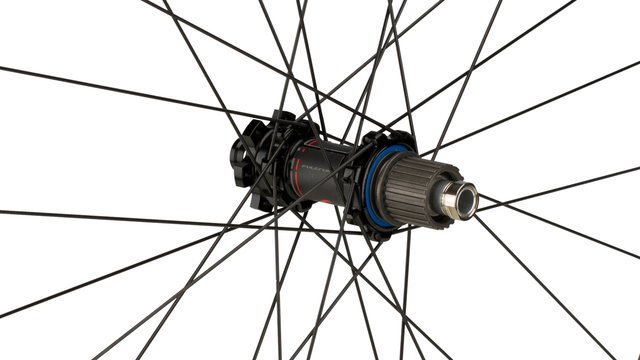

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

adjustable cartridge, sealed

Body Material:

aluminium

Technical Information - Lacing:

Spoke Type:

straight pull / round / reinforced head

Spoke Material:

stainless steel, black

Nipple Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

2-Way Fit Ready:
The conversion can only be done with the following components:

• 30 mm Fulcrum rim tape for 29" Red Zone Series / 35 mm Fulcrum rim tape for 27.5" Red Fire 500
• Tubeless valves, Factor Number: M1-035
• Effetto Mariposa Caffelatex tyre sealant

* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.

Features:

• ASTM category 3: for off-road use with jumps up to 61 cm in height
• - ASTM category 4 (130 kg weight limit): for off-road use with jumps up to a height of 122 cm
• self-locking nipples
• reinforced specific disc brake flange
• differentiated rim depth
• welded joints on the rim
• spokes with reinforced head
• reinforced freehub body system

Technology:

2-Way Fit™ Ready
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system - which is a clear plus in terms of safety. There is also less snake bite danger, as there is no inner tube that can be damaged.
What about a flat tyre? Don't worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal inner tube to get you home.

Asymmetric Rim
Rim asymmetry is designed to improve the tension of the rim while balancing the forces coming from the brakes and cassette.

Anti-Rotation System™
Fulcrum's technicians have redesigned the spokes and hub shells to create a strong and solid unit. In this way, the spokes never lose their initial tension, keeping the wheel perfectly reactive and centred, and the wheel remains in the position developed in the wind tunnel to ensure the best possible aerodynamics.

Colour Index:

• Rims: black with black decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

• Freehub: Shimano MTB
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Number: EM3-19DFR952B

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

• Freehub: Shimano Micro Spline
• Gearing: 12-speed
• Manufacturer Number: EM3-19DFR952BM

Contents:

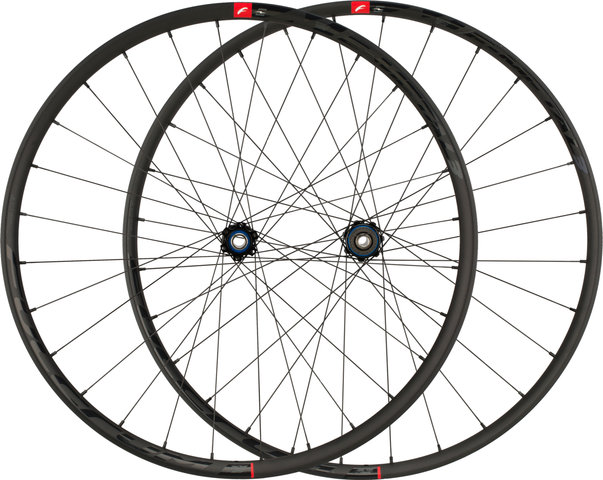

• 1 x Fulcrum E-Metal 3 wheelset (front and rear wheel)
