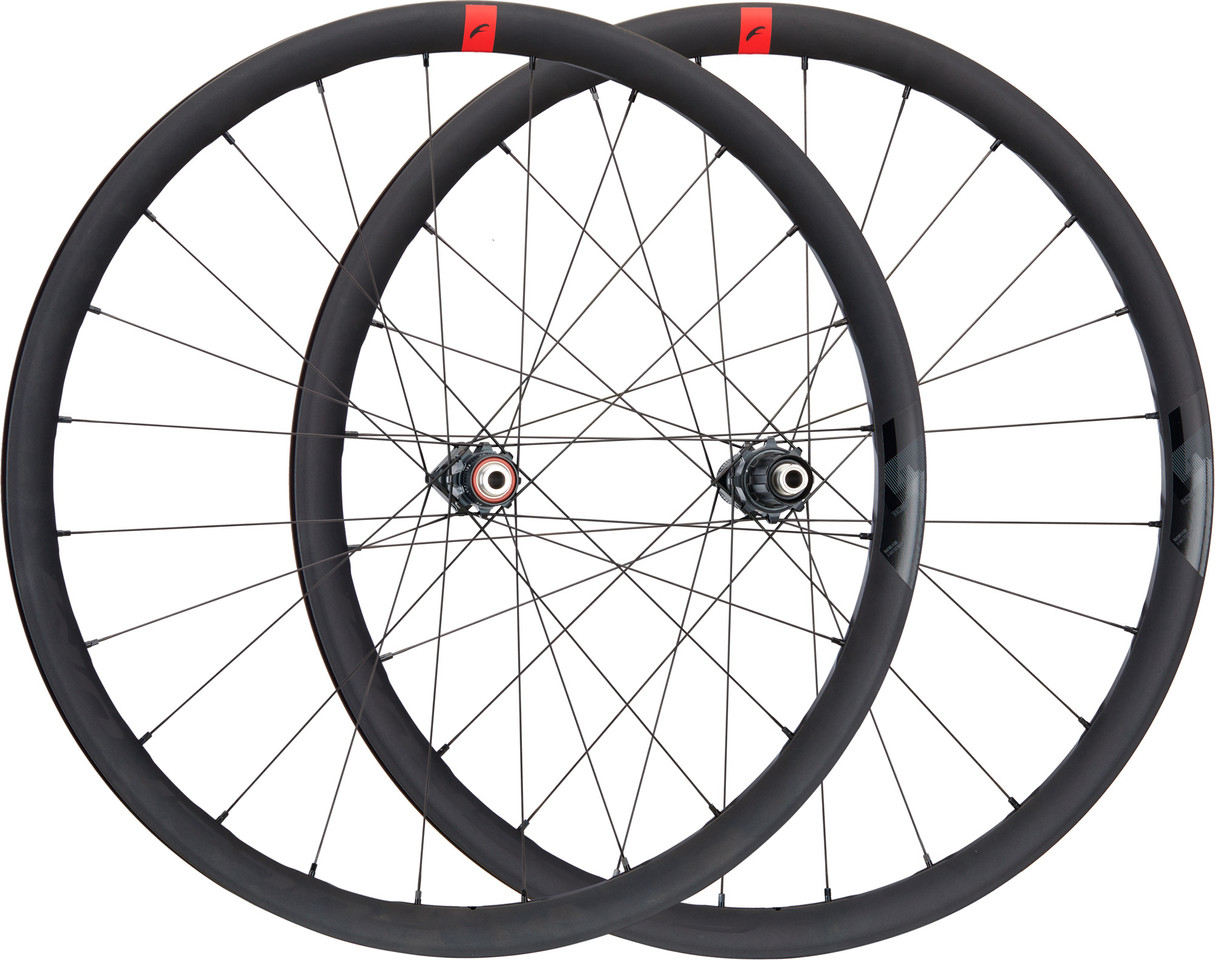

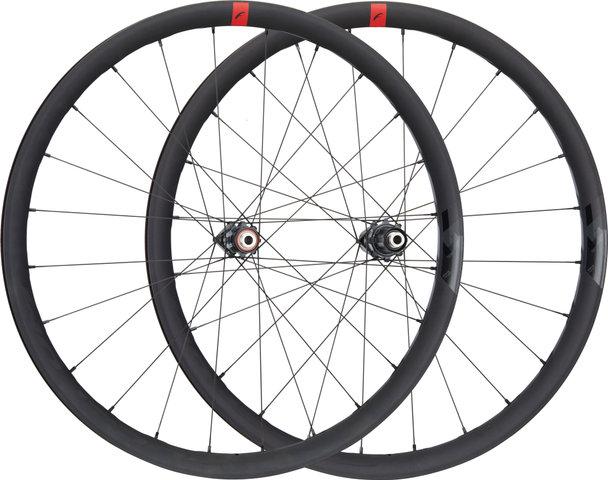

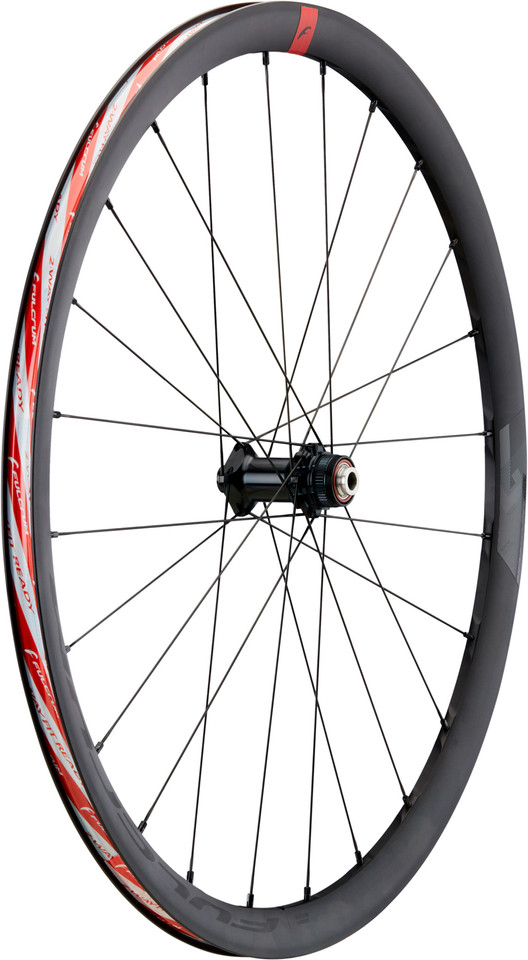

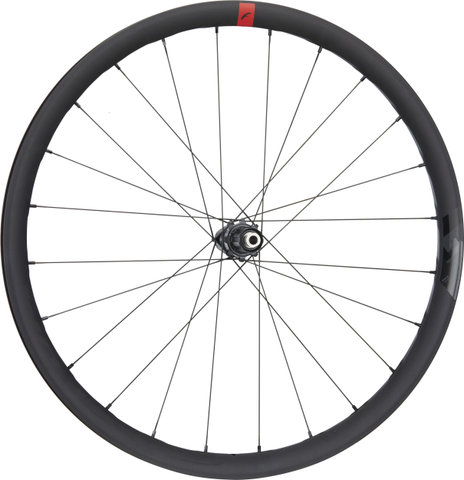

Fulcrum Racing 4 Center Lock Disc Wheelset

The Racing 4 Center Lock Disc wheelset from Fulcrum is a versatile wheelset with 34 mm rim depth for your 28" road bike. The medium-height rim design increases aerodynamics while maintaining steering precision. The Anti-Rotation System prevents the spoke tension from slackening, which means that even after many kilometres the wheels are just as stiff as they were at the start. The Square-Milling profile maintains stiffness and stability while keeping the weight low. Thanks to the 19 mm jaw width, you can easily mount tyres that are 25 or more millimetres wide. Not only are modern tyre sizes possible with this wheelset--thanks to the 2Way Fit system that is standard for Fulcrum, it is up to you whether you ride tubeless or resort to an inner tube.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

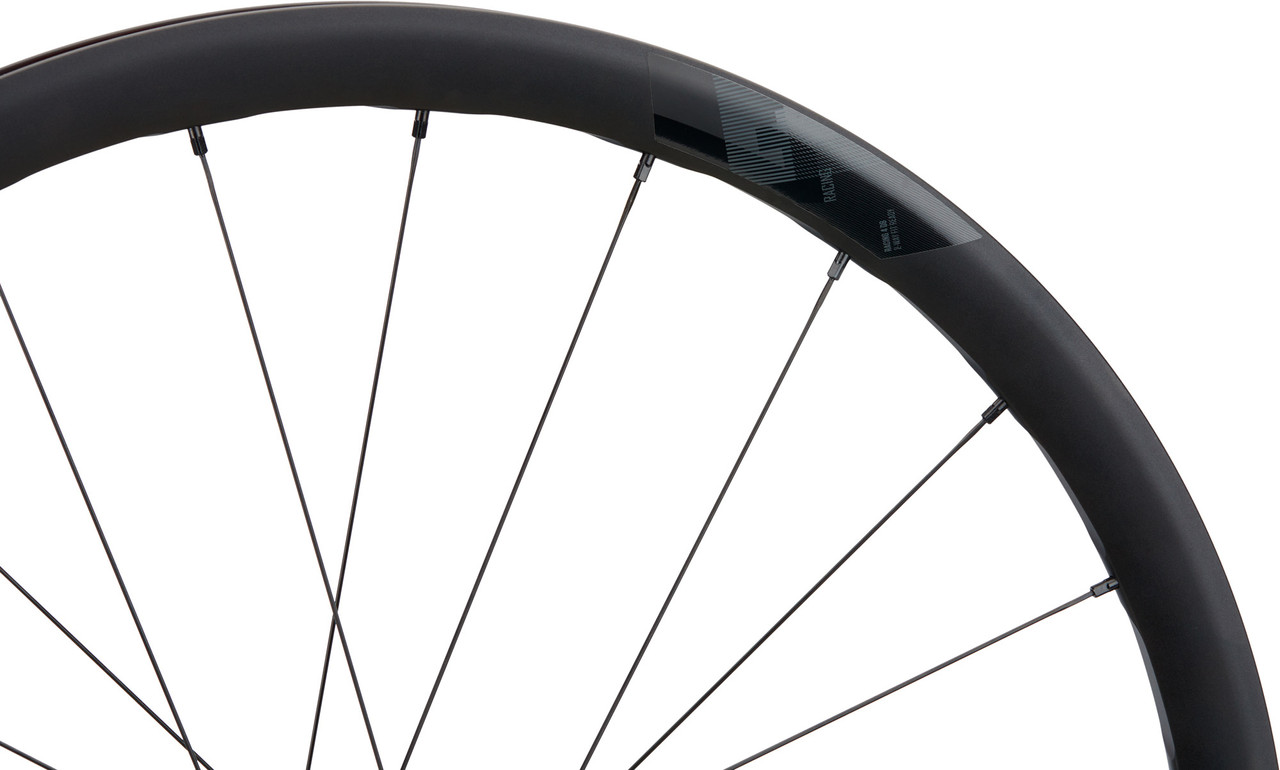

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24 mm

Depth:

34 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

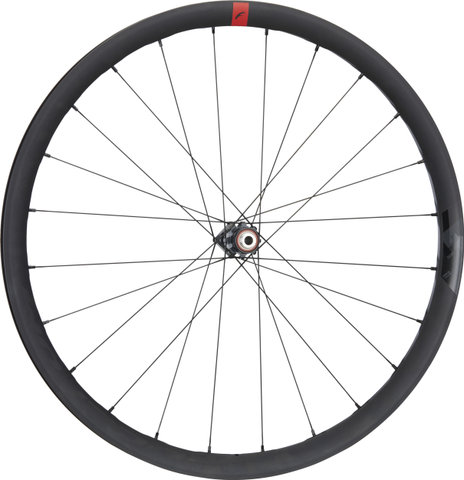

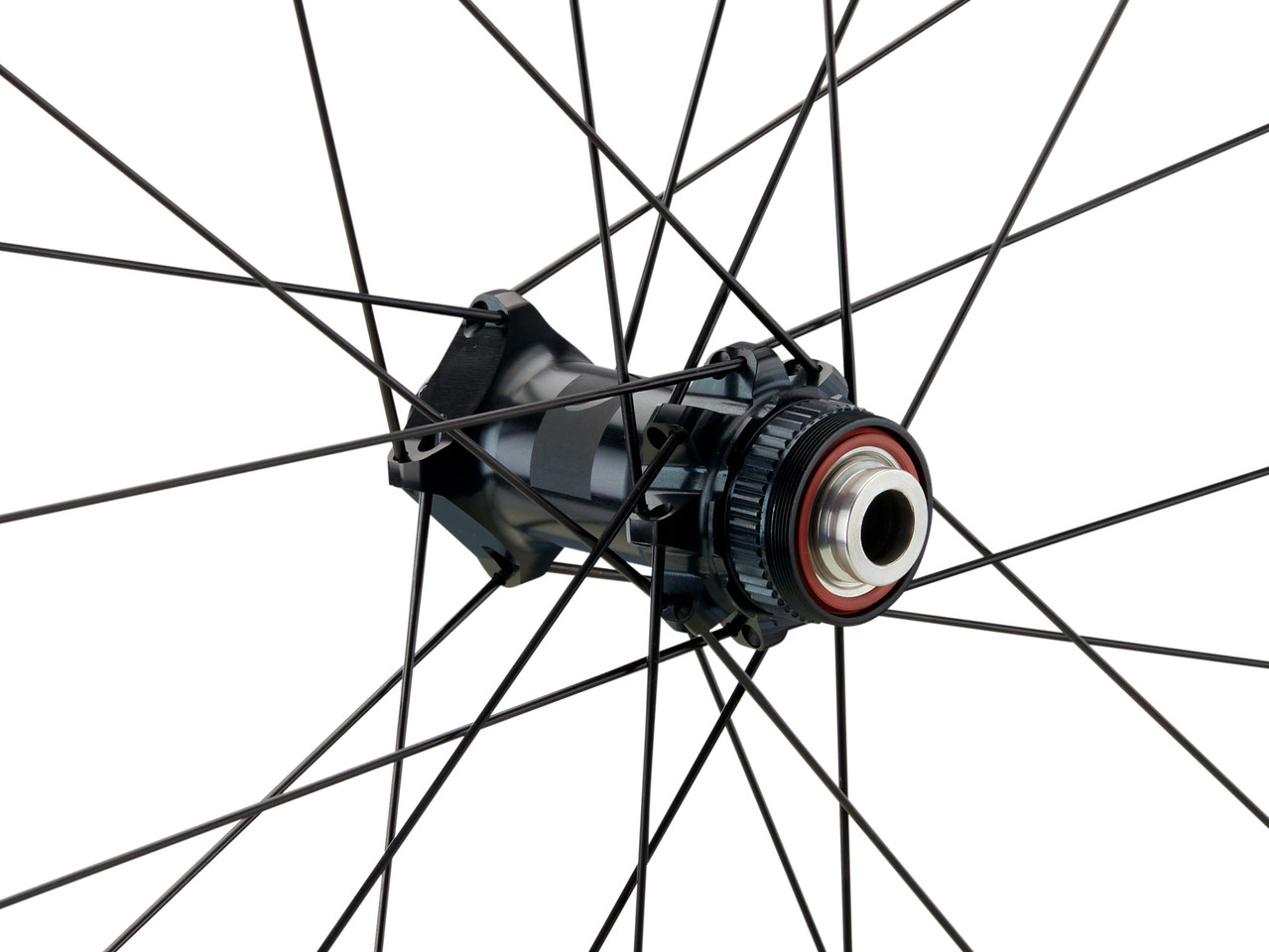

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

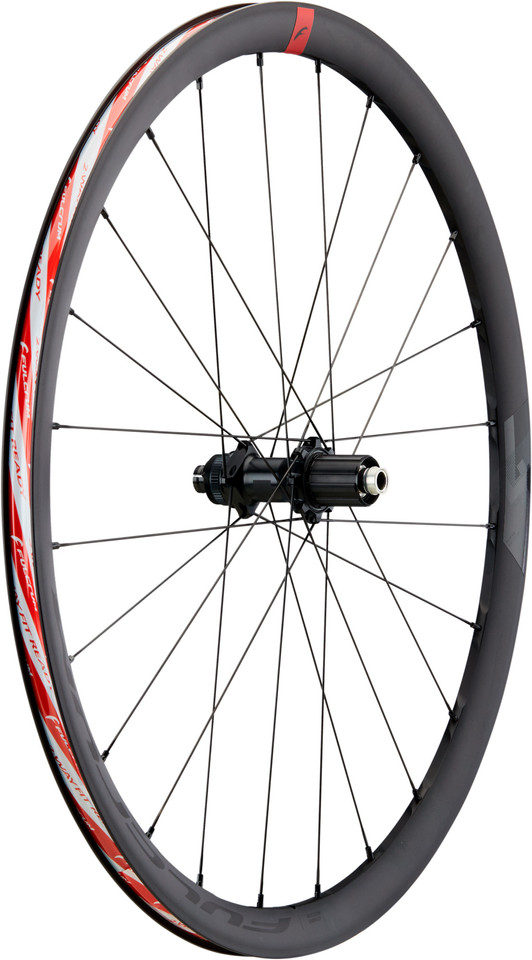

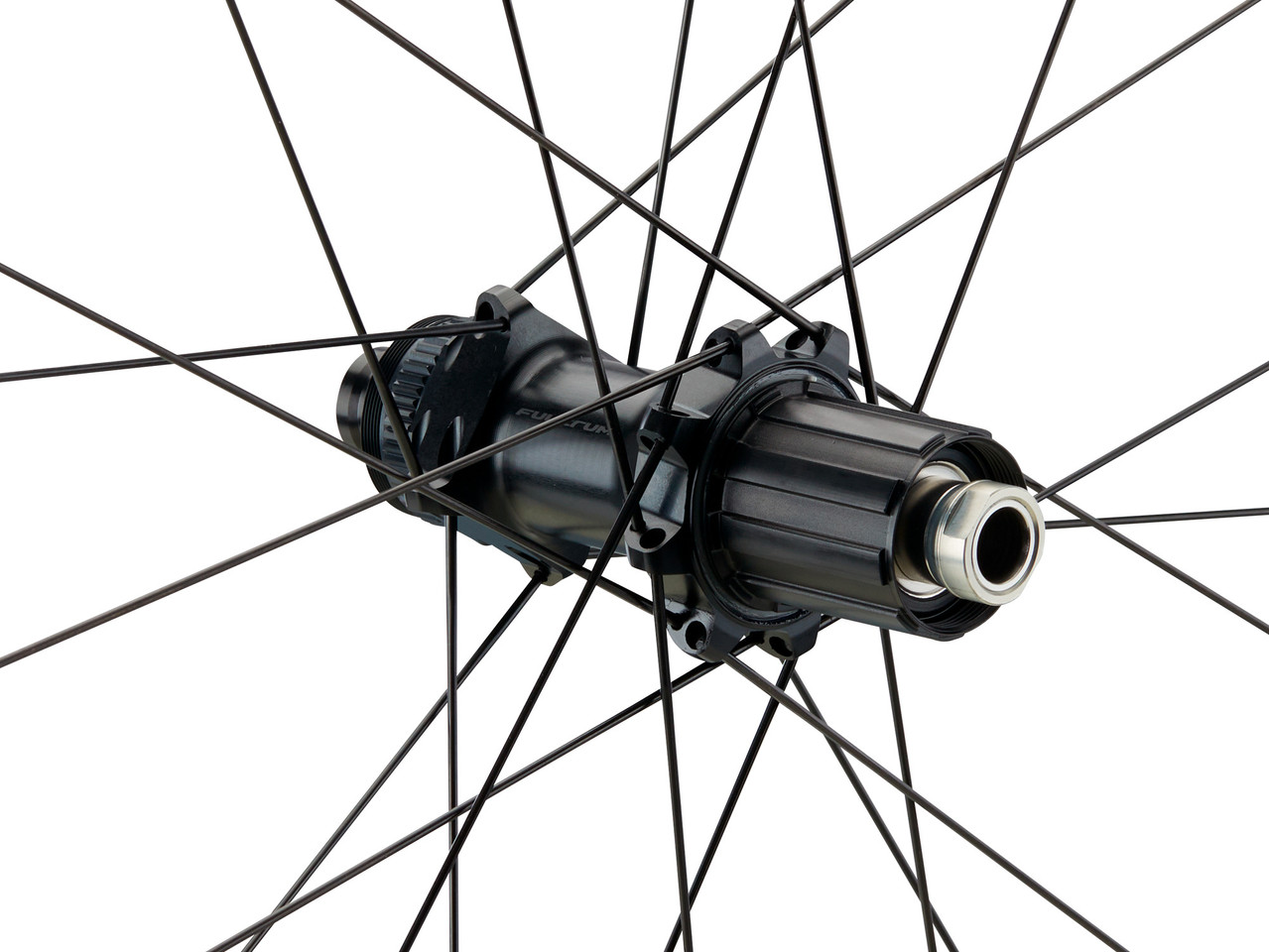

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

Twice crossed (L), radial (R)

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

straight pull, round

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

9 bars (with inner tube), 7.5 bars (tubeless)

Recommended Tyre Width:

23 - 56 mm

Technology:

Anti Rotation System
Spokes and hubs are designed to form a solid unit. The initial tension of the spokes is permanently maintained. This keeps the wheel optimally trued.

Square Milling
A three-sided bevelled rim profile saves material, resulting in lower weight. In the area of the spoke holes, the rim is rectangularly reinforced, thus maintaining stability despite saving on material.

Colour Info:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

RC4-22DFR22AS

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

RC4-22DFR22AX

28" set (front 12x100 + rear 12x142) Campa N3W:

Freehub:

Campagnolo N3W

Gearing:

11-/12-/13-speed

Note:

An adapter is necessary for mounting 11/12-speed Campagnolo cassettes on a Campagnolo N3W rotor.

Manufacturer Number:

RC4-22DFR22AC3

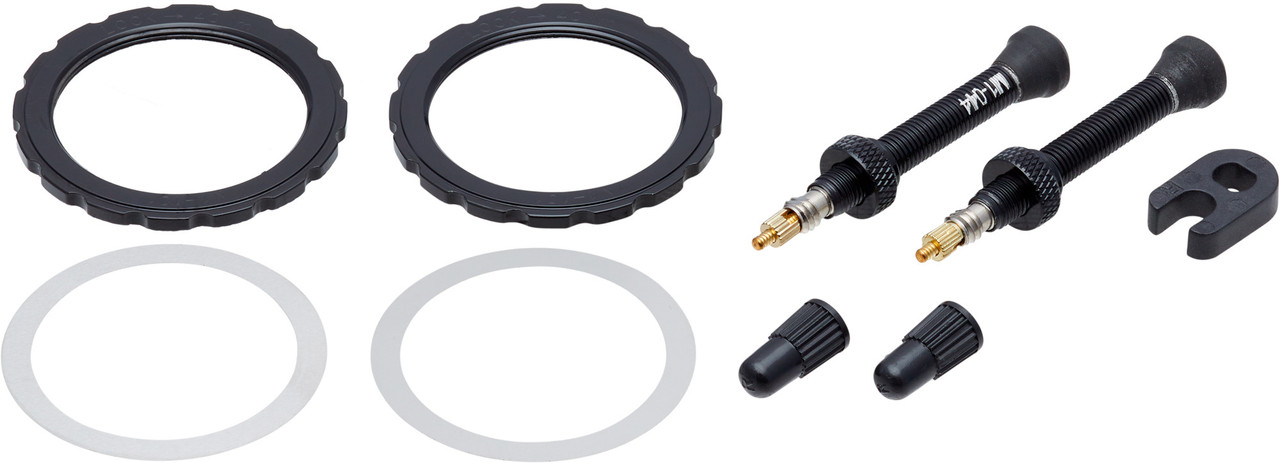

Contents:

• 1 x Fulcrum Racing 4 Center Lock Disc 28" wheelset (front and rear wheel)
• 2 x Fulcrum tubeless valves
