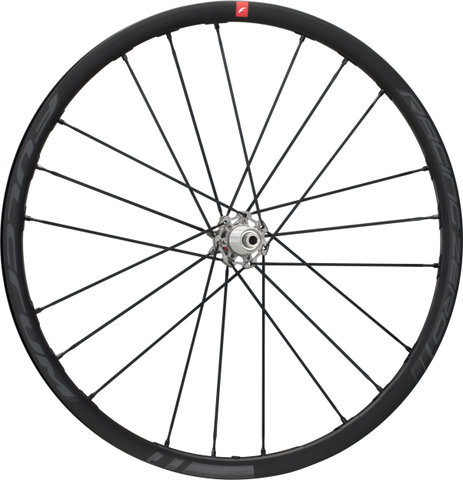

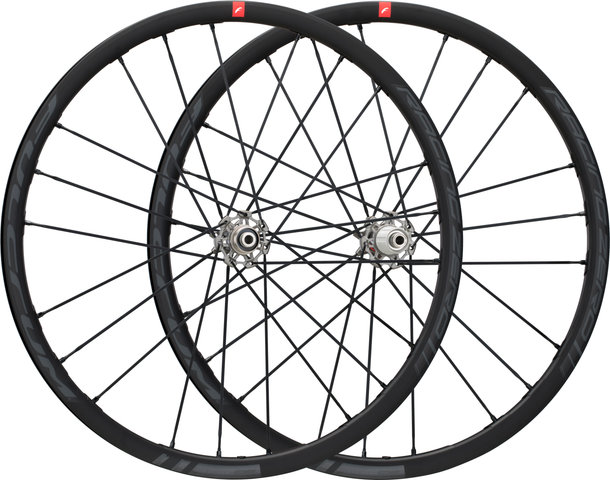

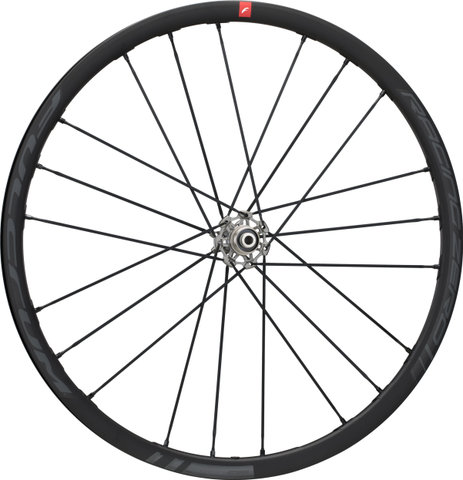

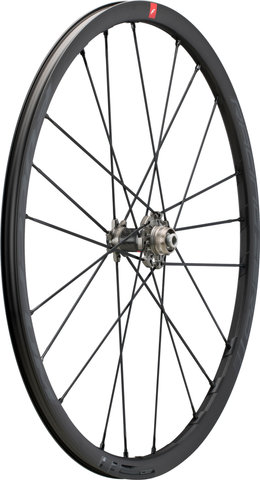

Fulcrum Racing Zero Center Lock Disc 28" Wheelset

Fulcrum Racing Zero Center Lock Disc 28" Wheelset - Fast gravel wheels

The Racing Zero wheelset from Fulcrum performs excellently on gravel bikes for racing. The continuous undrilled rim bed eliminates the need for rim tape. The high-strength aluminium of the rims withstands the stresses of bumpy gravel roads. The two-to-one spoke pattern makes the wheels especially stiff, which allows you to reach top speeds quickly. Whether uphill or downhill, you have your bike firmly under control thanks to the Center Lock disc brake mount and can shake off your competitors in tricky situations. The traditional set-up of tubular tyres is no problem at all, but if you prefer to ride tubeless, that is also possible.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

21

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

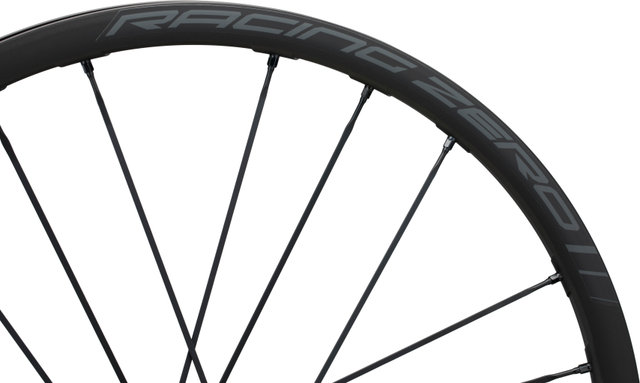

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

23.8 mm

Depth:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6082)

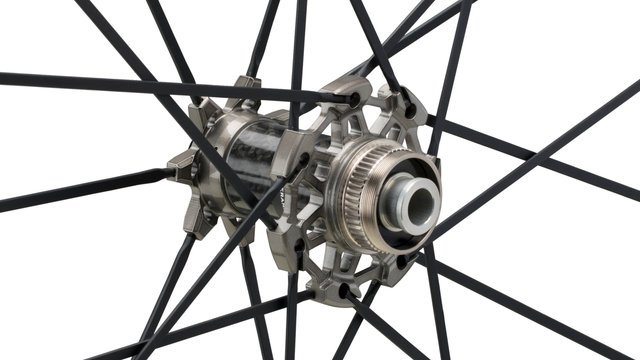

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

Ceramic bearing (USB)

Body Material:

carbon, aluminium

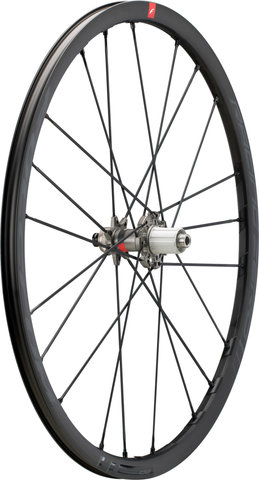

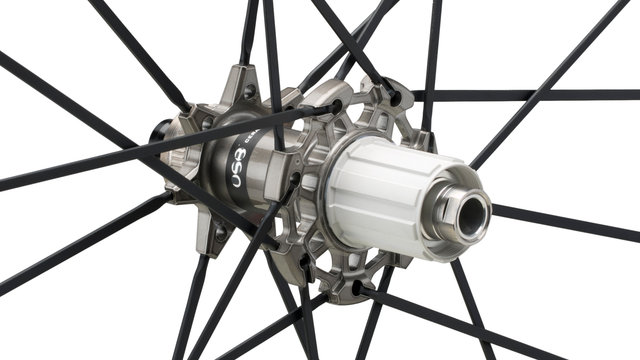

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

Ceramic bearing (USB)

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

Twice crossed (L), radial (R)

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

straight pull, aero

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

109 kg (rider weight)

Recommended Tyre Width:

23 - 50 mm

Technology:

Undrilled Rim Bed
The rim bed is continuous and has no holes for nipples. The nipples are inserted over the valve opening and guided with a magnet to the connection point of the rim. This eliminates the need for rim tape, increases the durability of the rim and allows the spokes to be tensioned more, resulting in greater stiffness.

Two-to-One Spoke Ratio
In order to avoid energy loss, two-to-one wheels are equipped with double the number of spokes in critical areas. In the case of rear wheels, this takes into account the increased forces on the drive side. Front wheels have twice as many spokes on the side of the brake rotor.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black w/ red decals
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

R0-20DFR22AS

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Number:

R0-20DFR22AX

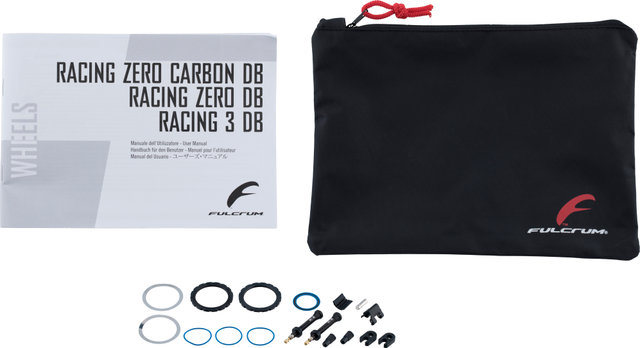

Contents:

• 1 x Fulcrum Racing Zero wheelset (front and rear wheel)
