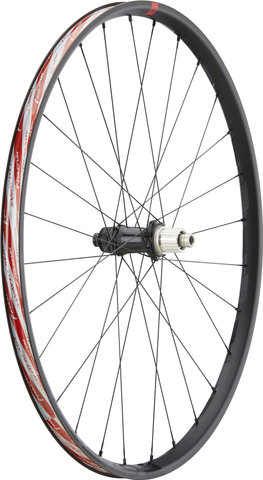

Fulcrum Red Zone 3 Disc Center Lock Boost 29" Wheelset

The Fulcrum Red Zone 3 Center Lock Disc Boost Wheelset for trail bikes

The Fulcrum Red Zone 3 wheels are suitable for 29" Boost mountain bikes. The hubs are suitable for center lock brake rotors. In addition, you can ride them tubeless as well as with an inner tube.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

24 (front), 28 (rear)

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

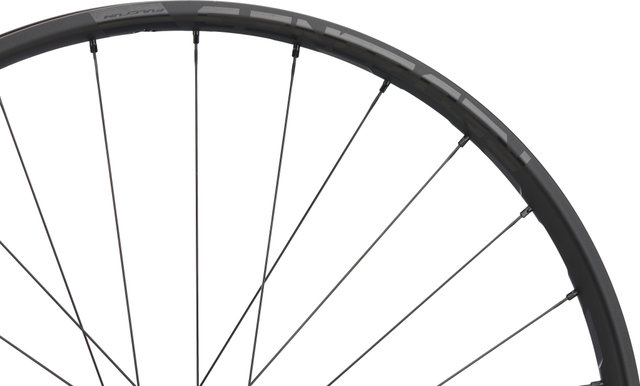

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

29 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

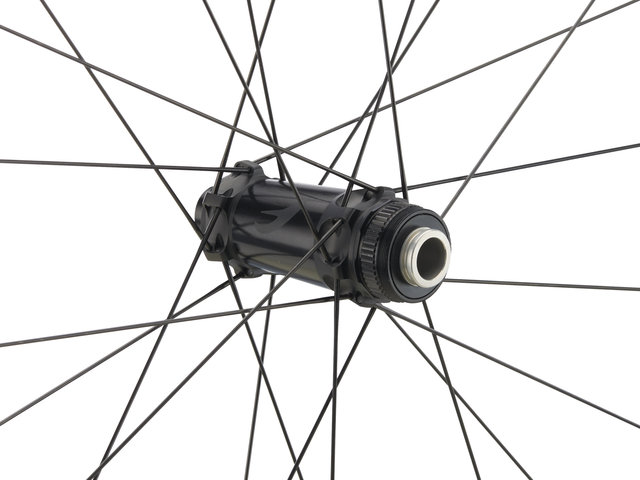

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

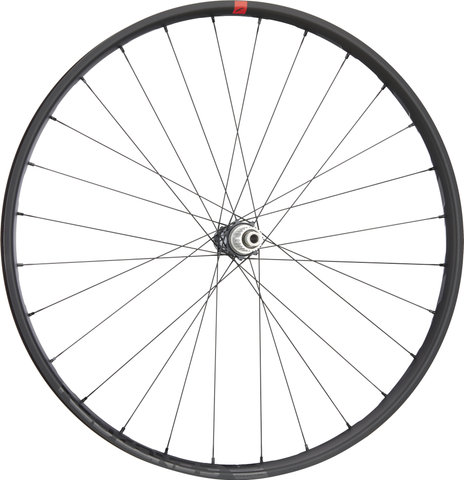

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

straight pull / round / double butted

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

125 kg (system weight)

Recommended Tyre Width:

2.2" - 2.4"

Colour Info:

black:

• Rims: black with red Fulcrum logo
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

RZ3-22DFR5B2BA

28" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

RZ3-22DFR5B2BAM

28" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

RZ3-22DFR5B2BAXD

Contents:

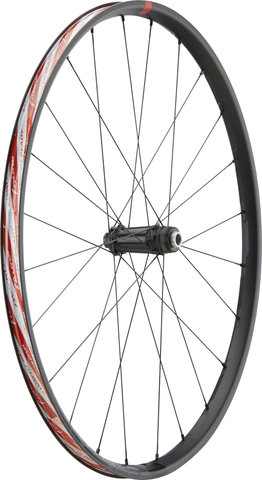

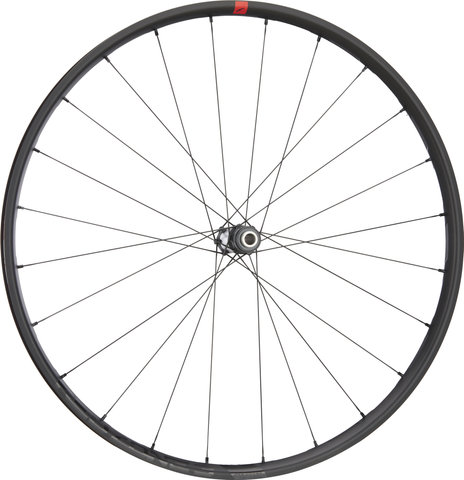

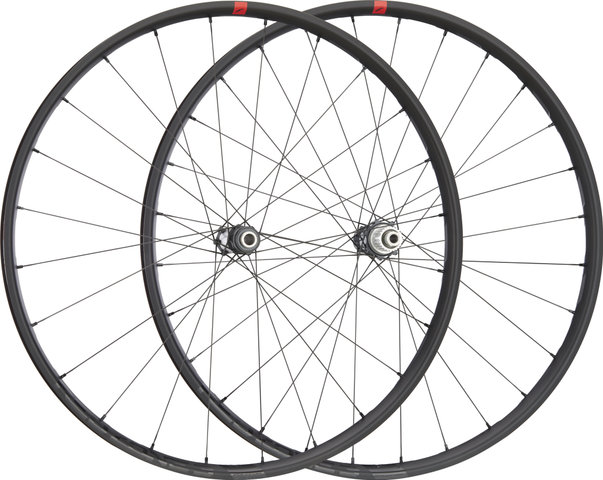

• 1 x Fulcrum Red Zone 3 Center Lock Disc Boost 29" wheelset (front and rear wheel)

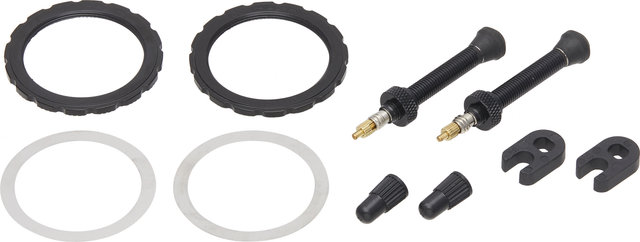

• 2 x Fulcrum tubeless valves
• 1 x Fulcrum sticker set, reflective
