Fulcrum Red Zone 5 Disc Center Lock Boost 29" Wheelset - 2023 Model

The Fulcrum Red Zone 5 Disc Center Lock Boost wheelset for cross-country bikes

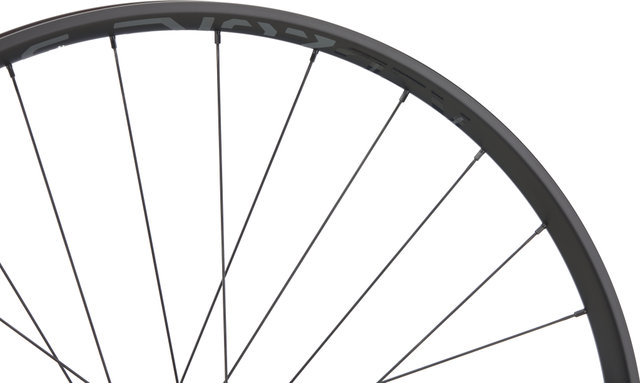

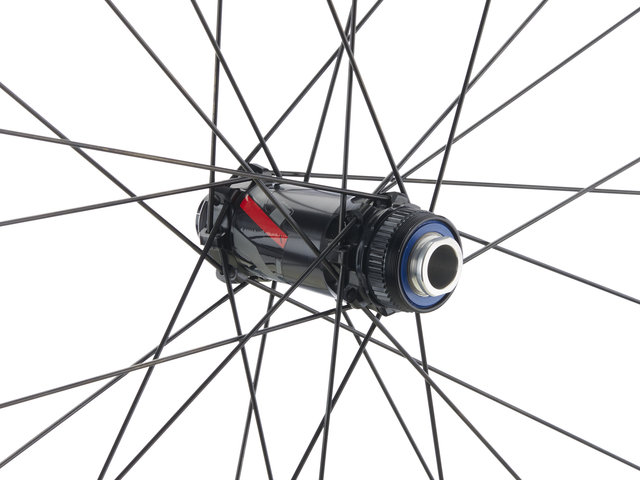

The Fulcrum Red Zone 5 wheels are suitable for 29" Boost mountain bikes. With an inner rim width of 27 mm, you have enough space for tyres up to 62 mm wide. The triple crossed straight pull spokes provide the necessary stability on rough trails. The sturdy hubs with conical bearings are suitable for centre-lock brake rotors. In addition, you can run the wheels tubeless as well as with an inner tube.

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

27-622

Inner Width:

27 mm

Outer Width:

31.2 mm

Depth:

18.6 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

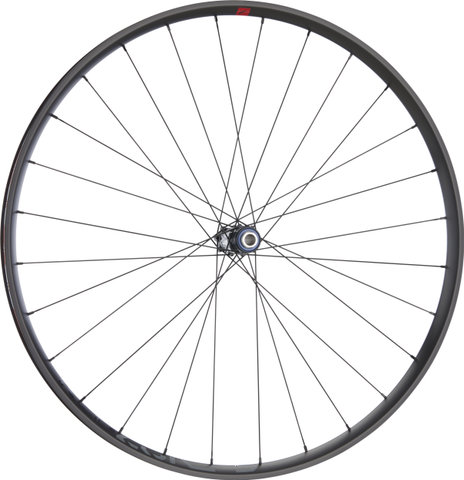

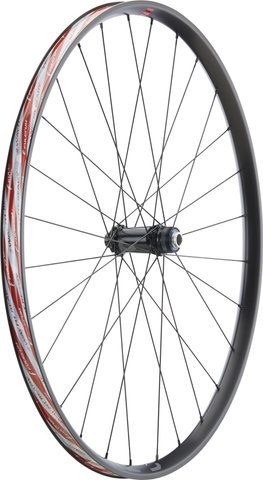

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

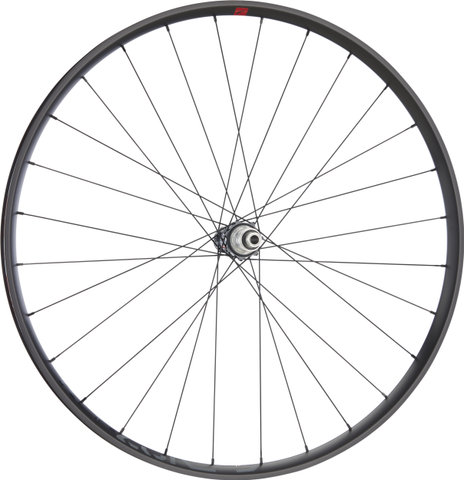

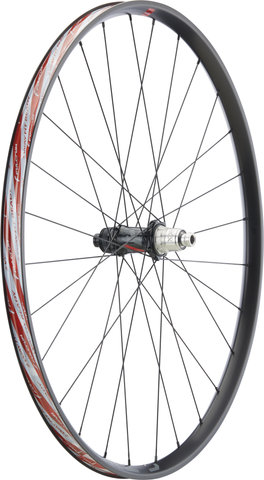

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

straight pull / round / double butted

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

125 kg (system weight)

Air Pressure (max.):

5.5 bars (inner tube), 4.1 bars (tubeless)

Recommended Tyre Width:

54 - 62 mm

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

RZ5-23DFRBBA

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

RZ5-23DFRBBAM

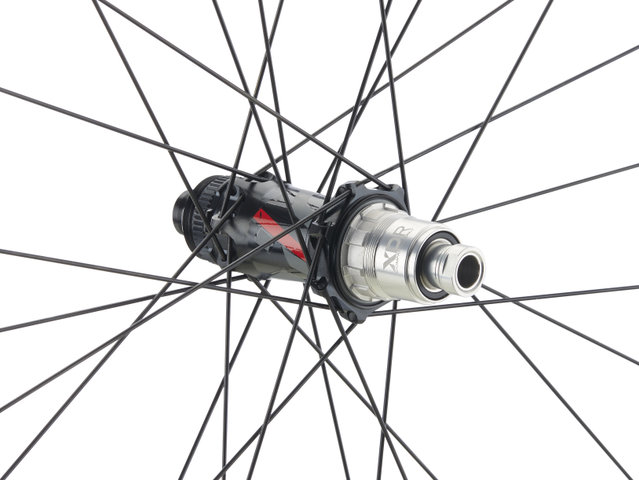

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

RZ5-23DFRBBAXD

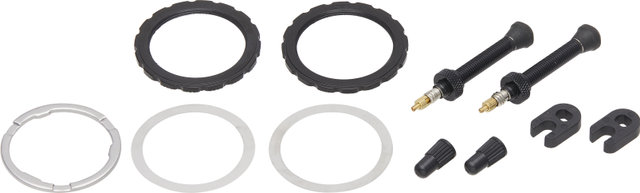

Contents:

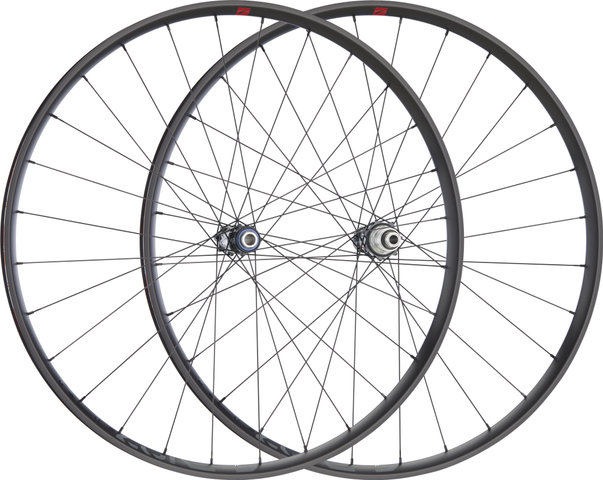

• 1 x Fulcrum Red Zone 5 Center Lock Disc Boost 29" wheelset (front and rear wheel)
• 2 x Fulcrum tubeless valves

• black/Shimano MTB/Boost/148 mm/110 mm/Boost/29"/110 mm/Shimano MTB/110 mm/148 mm: 1840 g

Fulcrum Wheels S.r.l.
Via dell' Economia 103
36100 Vicenza
Italy
