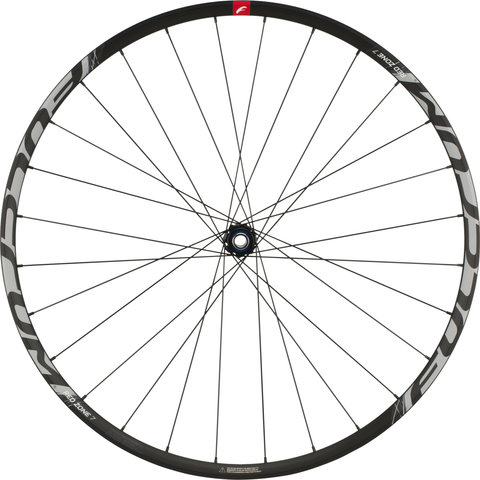

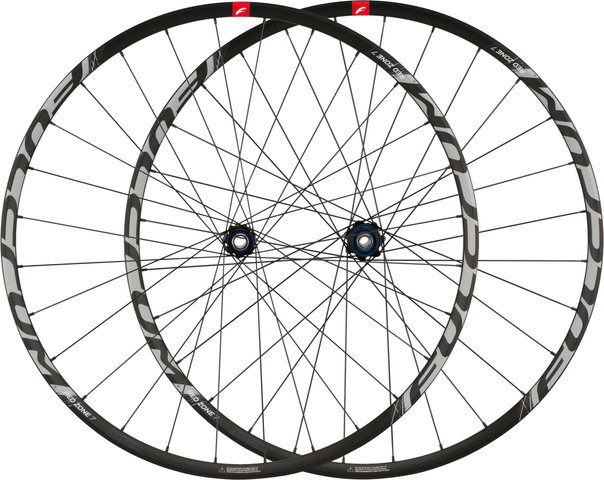

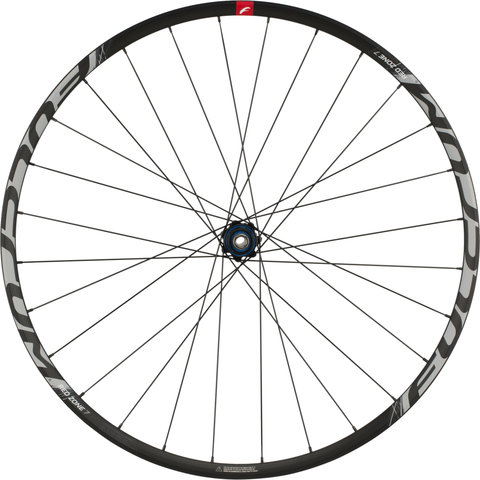

Fulcrum Red Zone 7 Disc Center Lock Boost 29" Wheelset

Reliable and honest: the Red Zone 7 2-Way Fit™ Center Lock Disc Boost 29" Wheelset by Fulcrum

The Red Zone 7 wheelset from Fulcrum has been carefully designed for a wide range of situations. This wheelset can help you start training for the next race.

Specifications:

Application:

Cross Country, All Mountain, Trail

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (AFS Axle System™)

Tubeless System:

2-Way Fit™ Ready

Freehub Compatibility:

Shimano Freehub:

8-/9-/10-/11-speed Shimano/SRAM (MTB)

SRAM XD Freehub:

11-/12-speed SRAM XD

Note:

To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

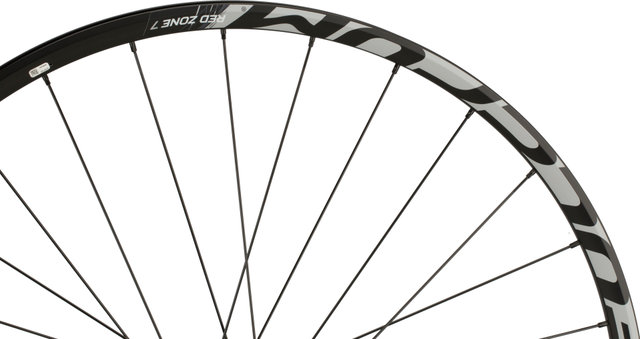

Technical Information - Rim:

Dimensions (ETRTO):

23-622

Inner Width:

23 mm

Depth:

20 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

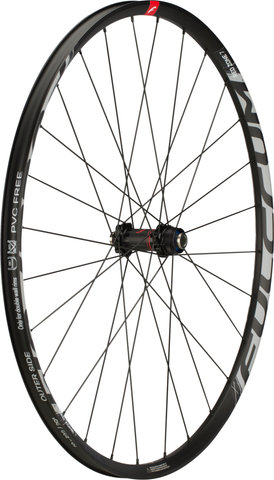

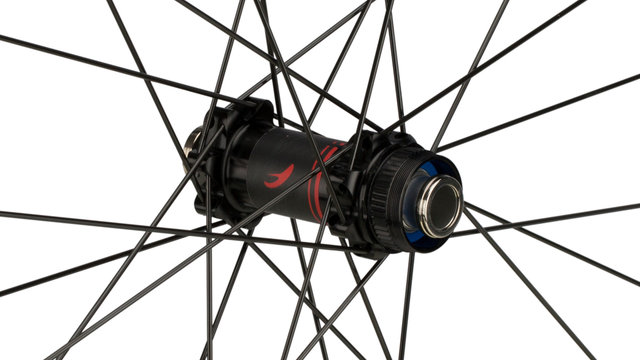

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

cartridge

Body Material:

aluminium

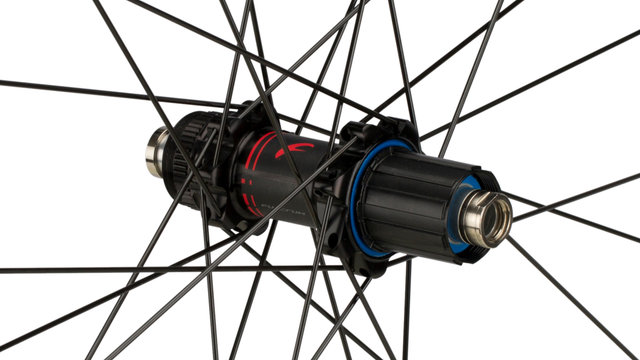

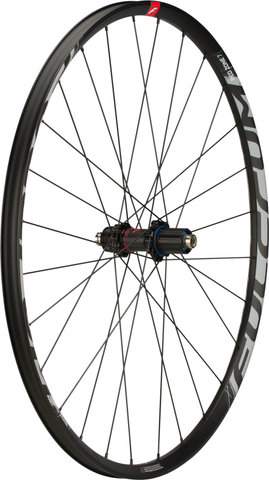

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cartridge

Body Material:

aluminium

Technical Information - Lacing:

Spoke Type:

straight pull / round

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Weight Limit:

109 kg total weight*

Recommended Tyre Width:

2" -2.35"

2-Way Fit Ready:
The conversion can only be done with the following components:

• 30 mm Fulcrum rim tape for 29" Red Zone Series / 35 mm Fulcrum rim tape for 27.5" Red Fire 500
• Tubeless valves, Factor Number: M1-035
• Effetto Mariposa Caffelatex tyre sealant

* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.

Technology:

2-Way Fit™ Ready
If the necessary accessories (valve, rim tape and tyre sealant) are used, the wheelset is tubeless compatible. This makes it particularly versatile and perfectly suited for every situation. An Abrupt loss of air is prevented with this system - which is a clear plus in terms of safety. There is also less snake bite danger, as there is no inner tube that can be damaged.
What about a flat tyre? Don't worry! One of the advantages of the Fulcrum 2-Way Fit Ready system is the possibility of removing the tubeless valve and inserting a normal inner tube to get you home.

AFS Axle System™
The Axial Fixing System is the solution developed by Fulcrum to mount the disc rotor to the hub. The connection provided by the stop surface of the mount is greater than that of the already known standards, allowing greater structural rigidity and therefore more precise and efficient braking.

Manufacturer Numbers:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

RZ7-18DFR5B2A

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

RZ7-18DFR52BAXD

Contents:

• 1 x Fulcrum Red Zone 7 wheelset (front & rear)
