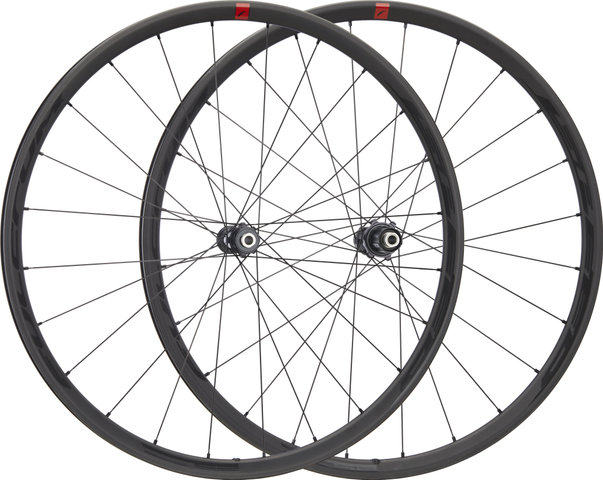

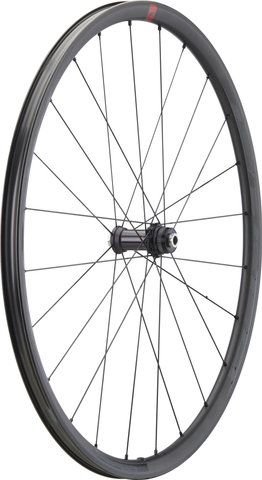

Fulcrum Speed 25 DB Center Lock Disc Carbon 28" Wheelset

The Fulcrum Speed 25 DB Center Lock Disc Carbon 28" Wheelset for ambitious road cycling

The Speed 25 DB 28" wheelset from Fulcrum is made of carbon and is ideal for high-performance road bikes. The 26 mm rim depth is not susceptible to wind and shines with its low but effective use of materials. Since the wheels for Center Lock Disc brakes weigh a mere 1285 grams, you will benefit from this lightweight set particularly in mountainous terrain or on extremely long distances. Durable, smooth-running USB ceramic bearings are icing on the cake. In terms of aerodynamics, an attempt was made to achieve the optimum with the low weight. Therefore, the rim profile of the front wheel is symmetrical, while the rear wheel impresses with an asymmetrical rim profile. Aero spokes are used at both the front and rear. The necessary stiffness of the wheels is achieved through the continuous rim bed, which allows you to take advantage of particularly high spoke tension. In addition, you no longer need to use rim tape, regardless of whether you prefer to ride with an inner tube or prefer to go tubeless. The trend towards wider tyres on road bikes has been taken into account with an inner rim width of 21 mm. This allows you to fit tyres over 28 mm without encountering any issues.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

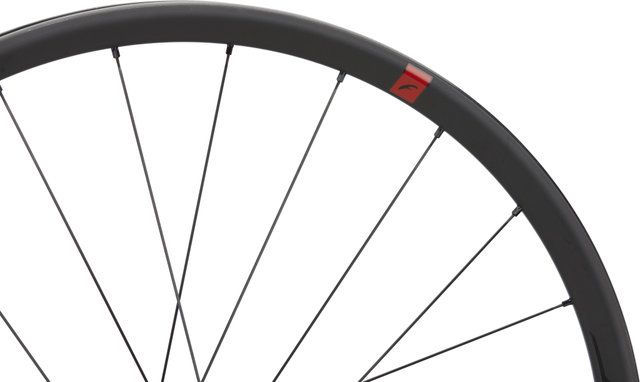

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

21-622

Inner Width:

21 mm

Outer Width:

27.6 mm

Depth:

26 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon (DIMF)

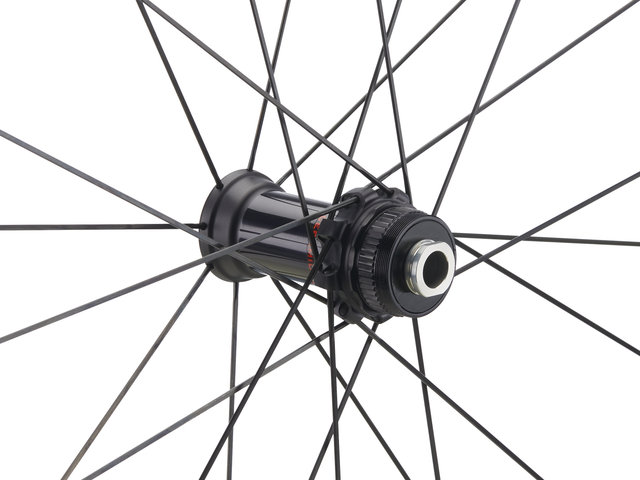

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

Ceramic bearing (USB)

Body Material:

aluminium

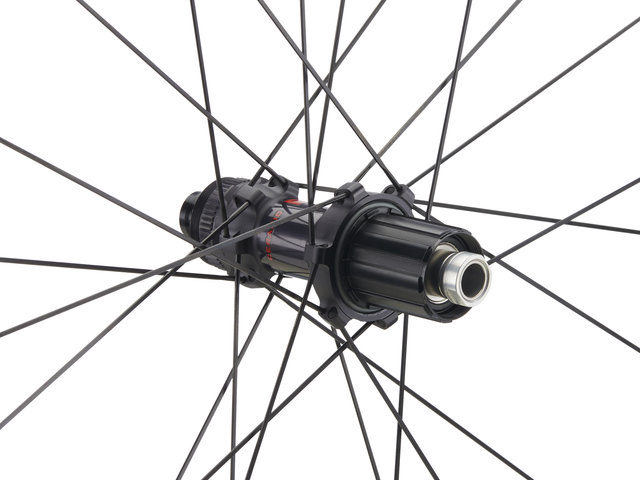

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

Ceramic bearing (USB)

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / bladed / double butted

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

8.5 bars (25 mm with inner tube), 7 bars (25 mm tubeless)

Recommended Tyre Width:

25 - 64 mm

Features:

• lightweight wheelset for high-performance road bikes
• low rim profile, especially suitable for mountain stages and long distance
• 2-Way Fit rims can be run with tyre and inner tube or tubeless
• stiff wheels due to MoMag technology and a continuous rim bed (Undrilled Rim Bed)
• particularly durable USB ceramic bearings
• freehub made of extra hardened aluminium

Technology:

MoMag™
MoMag stands for Mounting Magnet and refers to a type of fastening for spokes in the rim bed. The spoke nipples are placed in the rim via the valve opening and brought to their destination by means of a magnet. The spokes are screwed into the nipples as standard. This also makes it possible to maintain and replace spokes with little effort.

Undrilled Rim Bed
The rim bed is continuous and has no holes for nipples. The nipples are inserted over the valve opening and guided with a magnet to the connection point of the rim. This eliminates the need for rim tape, increases the durability of the rim and allows the spokes to be tensioned more, resulting in greater stiffness.

USB™
USB stands for Ultra Smooth Bearings. These are ceramic bearings for hubs that enormously increase the smoothness of the wheels, minimise weight and keep maintenance manageable. USB bearings are about 50% smoother than standard bearings. This means that more power is converted into direct propulsion and is no longer lost through friction.

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Campa N3W:

Freehub:

Campagnolo N3W

Gearing:

11-/12-/13-speed

Note:

An adapter is necessary for mounting 11/12-speed Campagnolo cassettes on a Campagnolo N3W rotor.

Manufacturer Number:

RS-22D25CFR22AC3

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

RS-22D25CFR22AS

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

RS-22D25CFR22AX

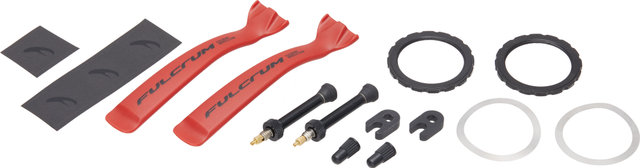

Contents:

• 1 x Fulcrum Speed 25 DB Disc Center Lock Carbon 28" wheelset (front and rear wheel)
• 2 x Fulcrum tubeless valves
• 2 x Fulcrum lockrings for brake rotors
• 2 x Fulcrum washers for lockring

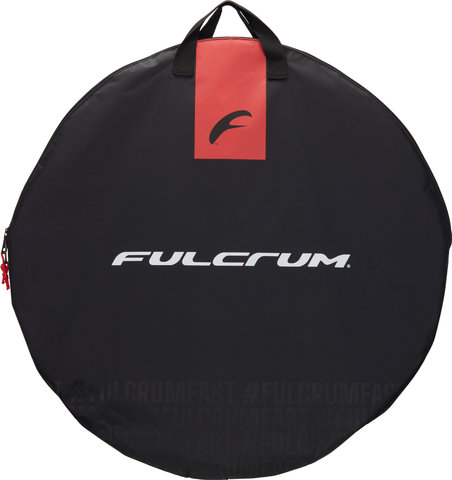

• 2 x Fulcrum wheel bags
• 2 x Fulcrum tyre levers
• 1 x Fulcrum F decal set
• 2 x valve core tools
