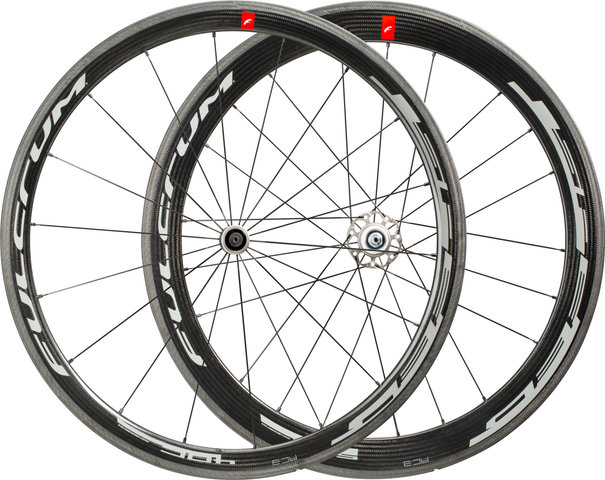

Fulcrum Speed 40C-55C Combo Carbon C17 Wheelset

A combination of medium-low and medium-high: the Speed 40C-55C Combo Carbon C17 wheelset by Fulcrum

In the Speed 40C-55C Combo Carbon C17 wheelset, Fulcrum combines all the advantages of the two single versions, 40 mm at the front and 55 mm at the rear. This means maximum stiffness and power transmission at the rear and improved handling and agility at the front. Is this is the perfect combination? That's between you and the road.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

18 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

none

Freehub:

Shimano/SRAM (Road)

Gearing:

8-/9-/10-/11-speed

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Technical Information - Rim:

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

24.2 mm

Depth:

40 mm (front), 55 mm (rear)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

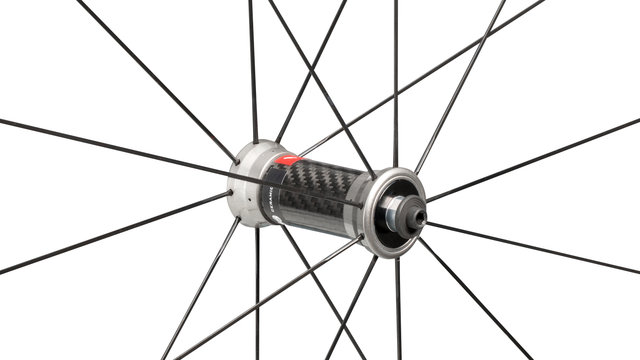

Technical Information - Front Hub:

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

ceramic (USB™)

Body Material:

Carbon

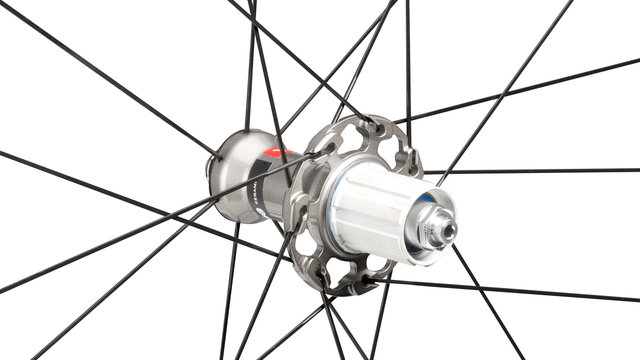

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

ceramic (USB)

Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

2:1 Two-to-One™

Spoke Type:

aero / straight pull / triple butted

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

109 kg total weight

Recommended Tyre Width:

25-50 mm

Features:

• Twill-Carbon Brake Flank
• AC3 surface treatment for brake flanks
• front hub with aluminium flanks
• rear hub with aluminium flanks

Technology:

USB™
Fulcrum has always been respected for the extreme smoothness and reliability of its hubs. These characteristics are due to the fact that all projects are developed in the R&D department and an almost manic attention is paid to every detail. The hubs with USB (Ultra Smooth Bearings) ceramic bearings further increase wheel smoothness and reduce weight and maintenance. Comparative tests have shown that USB bearings are 50% smoother than standard bearings. Improving your performance, whether in a competition or a ride with your friends, is now easier.

2:1 Two-to-One™
At the moment when the rider pedals at full power, the rotation of the cassette causes the spokes on the freehub side to give way, resulting in a loss of rim tension. This causes excessive bending of the whole and this inevitably means a loss of energy. Fulcrum has solved this classic problem in cycling with its 2:1 Two-to-One Spoke Ratio patent, that is, with twice the number of spokes in critical areas. In this way, two spokes take over the task of one, the yielding and twisting of the wheel remains low and the transmission of the athlete's energy becomes much more efficient. Thanks to this patent, the spoke tensions are more balanced and the fatigue strength of rim, hub and spokes is much higher.

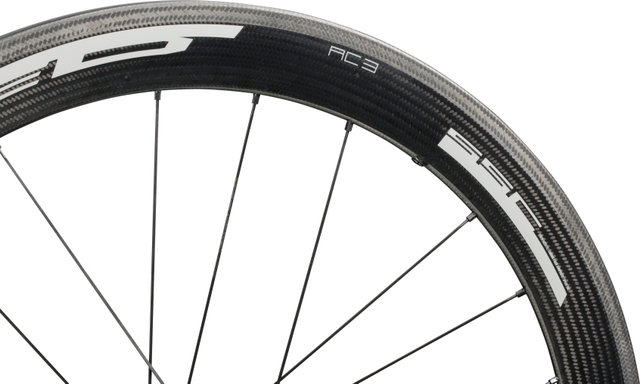

AC3™ All Conditions Carbon Control
For years, braking with carbon rims was the subject of studies and technical updates that followed advances in materials research and end-phase machining processes. AC3 is a further step forward in this direction, and makes remarkable braking possible especially in difficult conditions, moments in which such improvements transform cycling.
Fulcrum has decided to alter its approach to machining the braking surface, moving from a mechanical process to a process that uses laser micro-incisions on the surface to remove resins and smooth roughness. This means that the the brake shoe makes direct contact with the fibre during braking, which improves grip and removes water and moisture from the surface, immediately providing ideal riding conditions.

Manufacturer Number:

28" set (front 9x100 + rear 10x130) Shimano:

RS-18C45FRS

Contents:

• 1 x Fulcrum Speed 40C-55C Combo Carbon C17 wheelset (front & rear)
• 2 x quick releases
• 2 x tyre lever
• 2 x pair brake pads
• 2 x wheel bag
