Fulcrum Speed 40C Carbon Wheelset

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

18 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

none

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Campy Freehub:

9-/10-/11-/12-speed Campagnolo

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Technical Information - Rim:

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

24.2 mm

Depth:

40 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

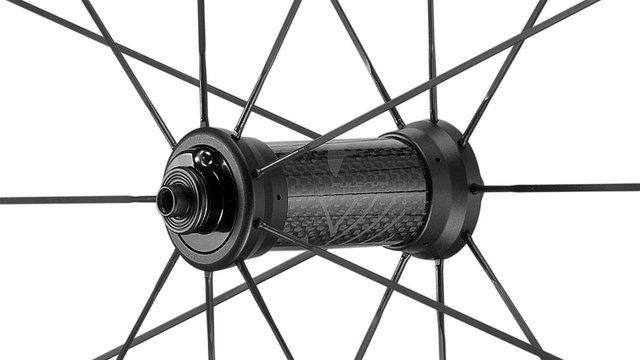

Technical Information - Front Hub:

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

ceramic (USB™)

Body Material:

Carbon

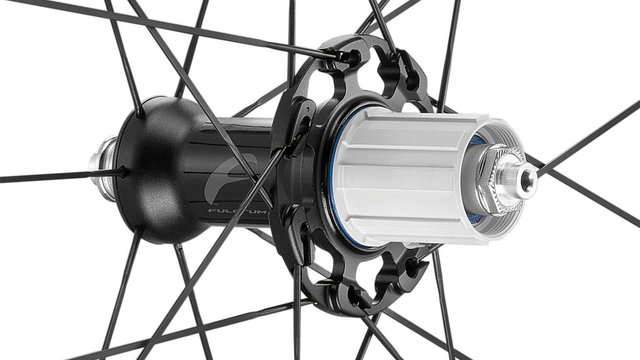

Technical Information - Rear Hub:

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

ceramic (USB™)

Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

2:1 Two-to-One™

Spoke Type:

aero / straight pull / triple butted

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

109 kg total weight*

Recommended Tyre Width:

25-50 mm

* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.

Technology:

USB™
Fulcrum has always been respected for the extreme smoothness and reliability of its hubs. These characteristics are due to the fact that all projects are developed in the R&D department and an almost manic attention is paid to every detail. The hubs with USB (Ultra Smooth Bearings) ceramic bearings further increase wheel smoothness and reduce weight and maintenance. Comparative tests have shown that USB bearings are 50% smoother than standard bearings. Improving your performance, whether in a competition or a ride with your friends, is now easier.

2:1 Two-to-One™
At the moment when the rider pedals at full power, the rotation of the cassette causes the spokes on the freehub side to give way, resulting in a loss of rim tension. This causes excessive bending of the whole and this inevitably means a loss of energy. Fulcrum has solved this classic problem in cycling with its 2:1 Two-to-One Spoke Ratio patent, that is, with twice the number of spokes in critical areas. In this way, two spokes take over the task of one, the yielding and twisting of the wheel remains low and the transmission of the athlete's energy becomes much more efficient. Thanks to this patent, the spoke tensions are more balanced and the fatigue strength of rim, hub and spokes is much higher.

AC3™ All Conditions Carbon Control
For years, braking with carbon rims was the subject of studies and technical updates that followed advances in materials research and end-phase machining processes. AC3 is a further step forward in this direction, and makes remarkable braking possible especially in difficult conditions, moments in which such improvements transform cycling.
Fulcrum has decided to alter its approach to machining the braking surface, moving from a mechanical process to a process that uses laser micro-incisions on the surface to remove resins and smooth roughness. This means that the the brake shoe makes direct contact with the fibre during braking, which improves grip and removes water and moisture from the surface, immediately providing ideal riding conditions.

Manufacturer Numbers:

28" set (front 9x100 + rear 10x130) Campy:

RS-18CFRC

28" set (front 9x100 + rear 10x130) Shimano:

RS-18CFRS

Contents:

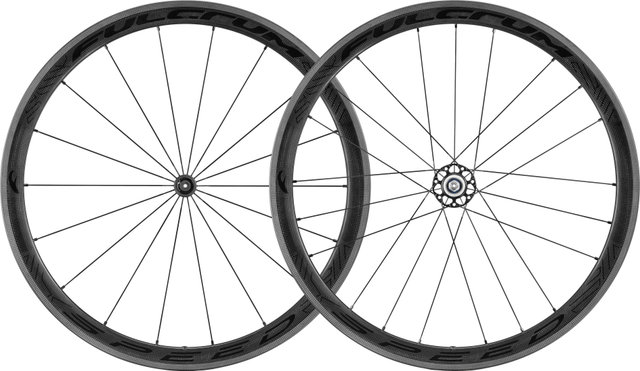

• 1 x Fulcrum Speed 40C Carbon wheelset (front & rear)
