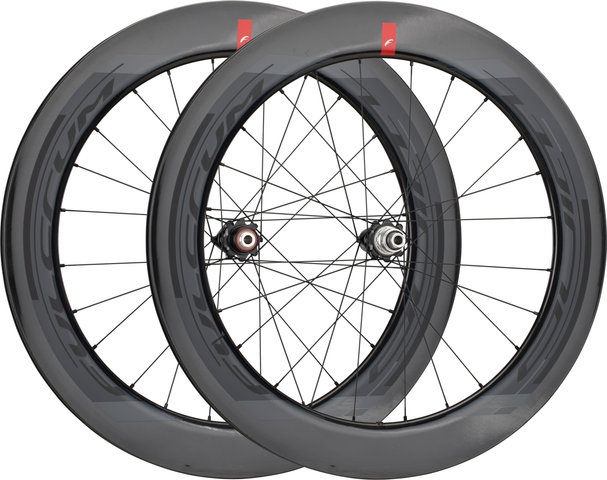

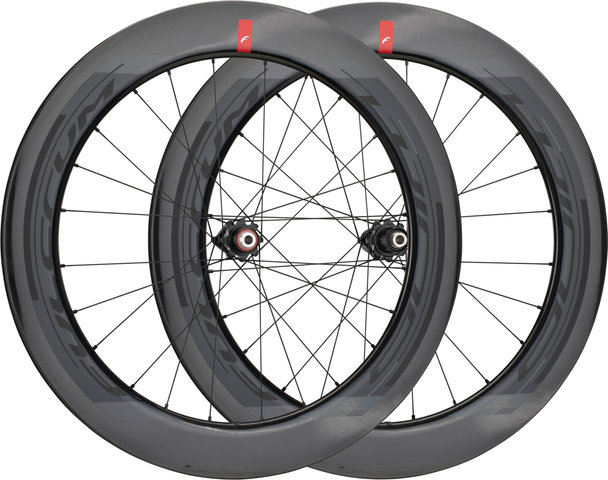

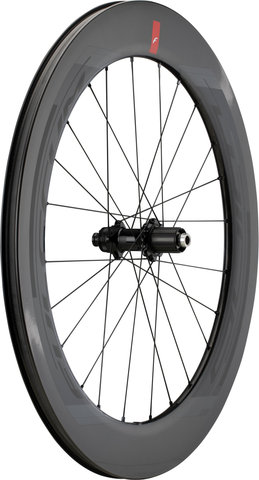

Fulcrum Wind 75 Center Lock Disc Carbon 28" Wheelset

Fulcrum Wind 75 Center Lock Disc Carbon 28" Wheelset - Streamlined on the road

The aerodynamic Wind carbon wheelset from Fulcrum is ideal for triathlon and time trial. The rims with 75 mm high profile are made for low wind resistance and high speeds. The continuous rim bed allows for higher spoke tension, which makes the wheels themselves stiffer. This will make you accelerate even faster. Thanks to 2-Way-Fit technology, you have the choice or riding with inner tubes or tubeless. Equipped with disc brake hubs for Center Lock brake rotors, you'll always be in control of your racing machine, especially when every second counts!

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

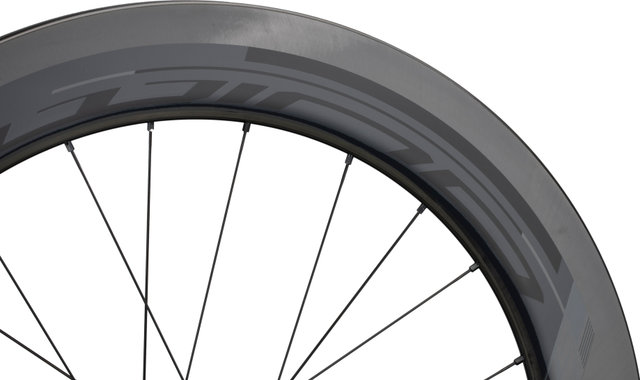

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

27 mm

Depth:

75 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

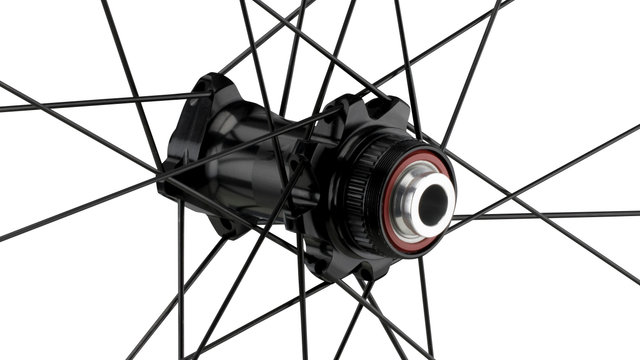

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

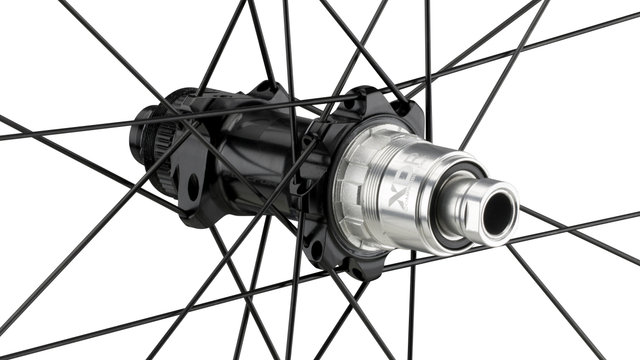

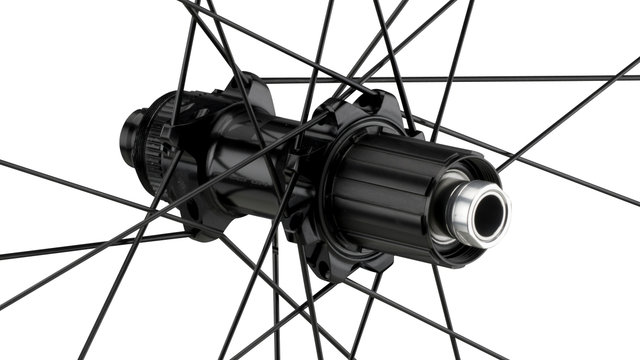

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

Twice crossed (L), radial (R)

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

straight pull, double-butted, round

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Recommended Tyre Width: 23 - 32 mm

Technology:

Undrilled Rim Bed
The rim bed is continuous and has no holes for nipples. The nipples are inserted over the valve opening and guided with a magnet to the connection point of the rim. This eliminates the need for rim tape, increases the durability of the rim and allows the spokes to be tensioned more, resulting in greater stiffness.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

RW75-21DFR22AS

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Number:

RW75-21DFR22AX

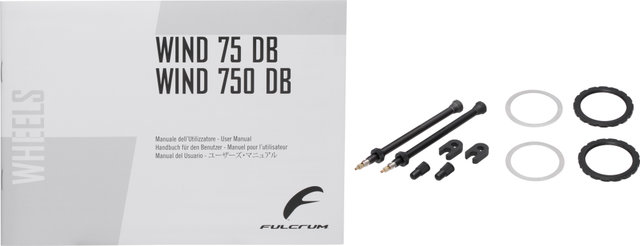

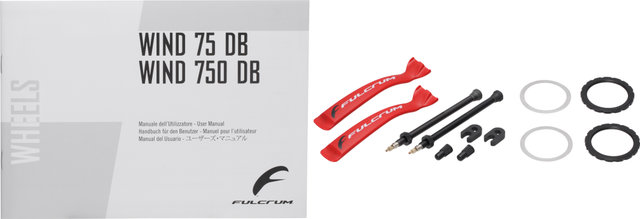

Contents:

• 1 x Fulcrum Wind 75 wheelset (front and rear wheel)
• 2 x Fulcrum tubeless valves
• 1 x Fulcrum DRP seal kit

• black/Non Boost/Non Boost/142 mm/100 mm/28"/SRAM XDR/100 mm/SRAM XDR/100 mm/142 mm: 1820 g
