GALFER Disc E-Bike Brake Pads for Shimano

These Disc E-Bike brake pads by GALFER for Shimano brakes are adapted to the higher weight and speed of e-bikes and are also suitable for s-pedelecs. They have a semi-metallic coating with organic content.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Brake Pad Compound:

semi-metallic

Backing Plate Material:

steel

Cooling Fins:

no

Features:

• can be used for s-pedelecs up to 45 km/h, meets ECE R-90 standard
• very quiet
• good braking feel
• progressive, strong braking force
• low vibration and low brake rotor wear
• particularly durable

Models:

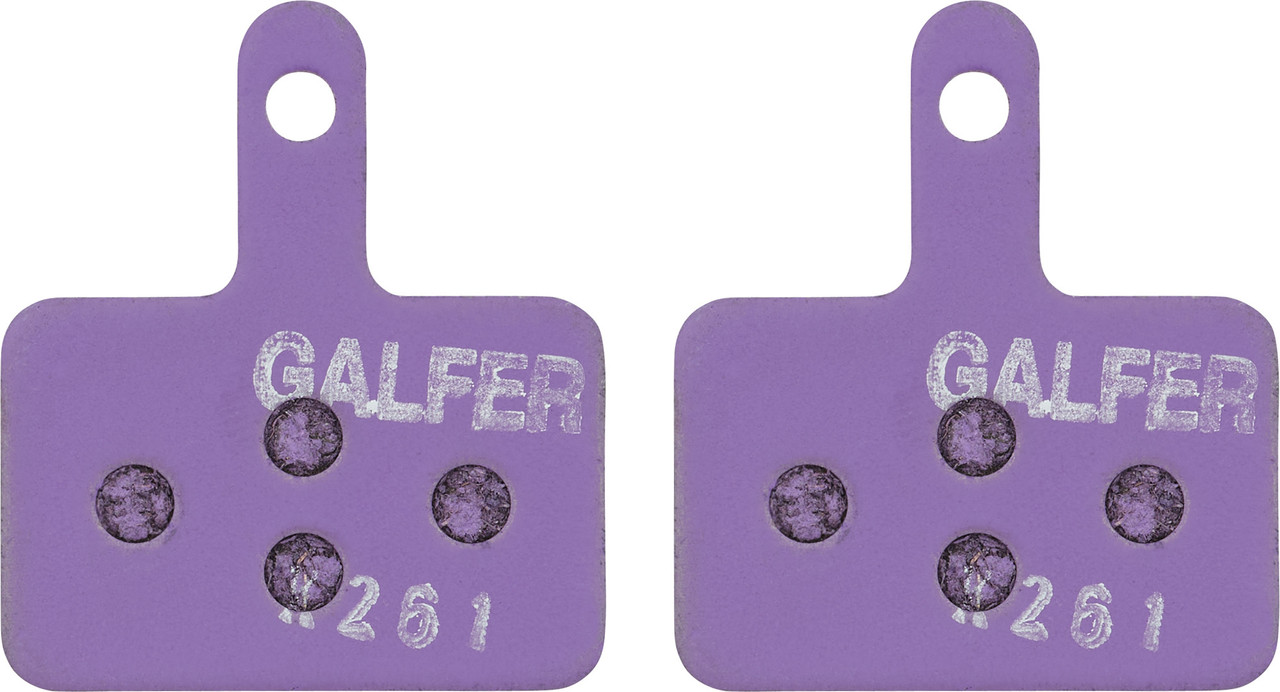

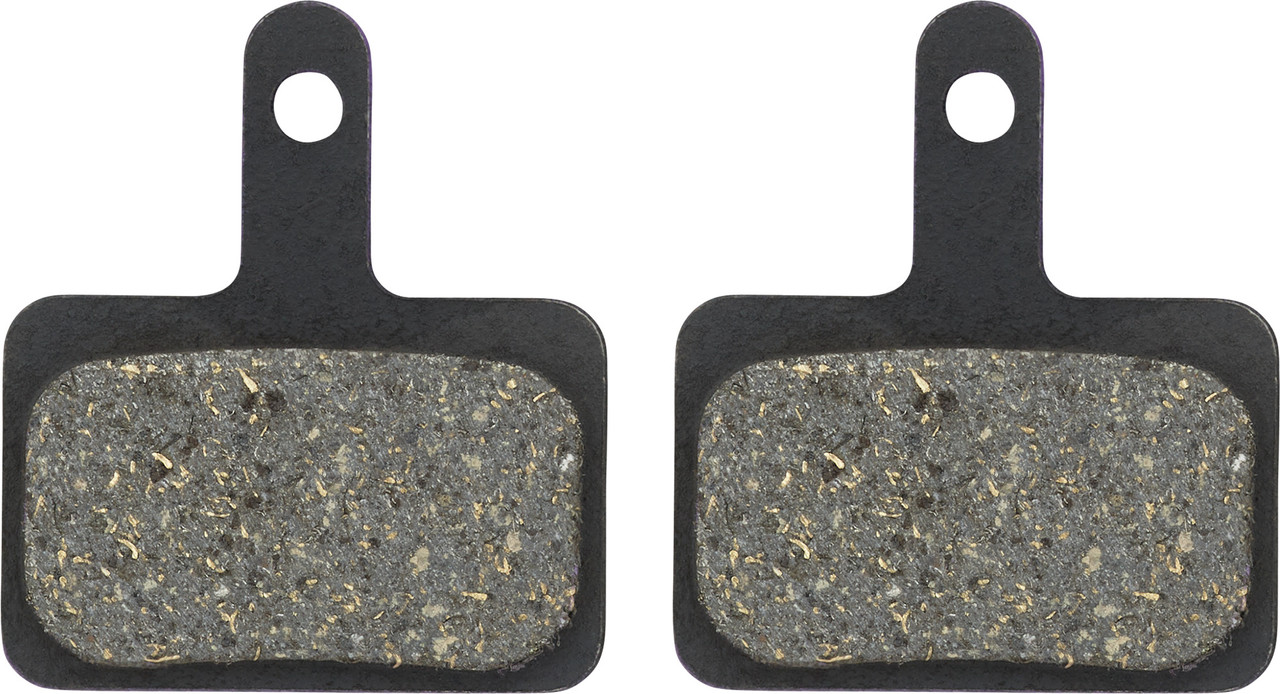

Semi-Metallic - Steel / SH-002:

Type:

G1652

Manufacturer Number:

FD293G1652

Compatibility:

LX BR-T675 / Deore BR-T615 / BR-M3050 / Alivio BR-M4050 / Tourney TX805 / BR-C501 / BR-M575 / BR-M525 / BR-M495 / BR-M486 / BR-M485 / BR-M475 / BR-M465 / BR-M447 / BR-M446 / BR-M445 / BR-M416 / BR-M416A / BR-M415 / BR-M395 / BR-M375 / BR-M365 / BR-M355 / BR-M315 / BR-MT500 / BR-MT410 / BR-MT400 / BR-MT200 / BR-UR300

Manufacturer Designation:

FD293

Note:

Suitable in terms of brake pad shape, but with the exception of the BR-M575, all Shimano brakes mentioned are not approved for metallic and semi-metallic pads.

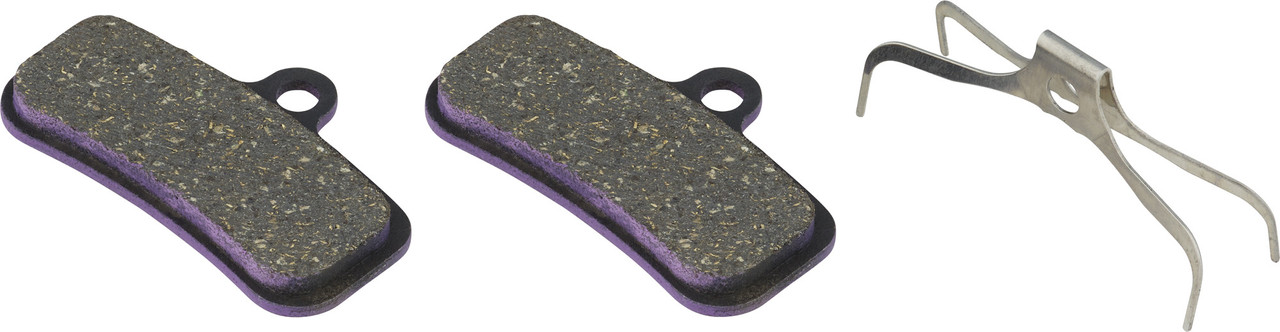

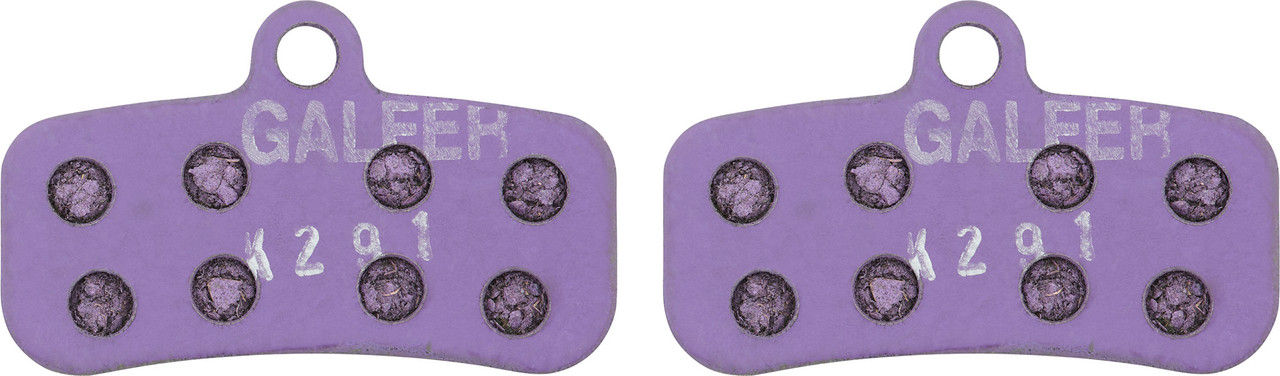

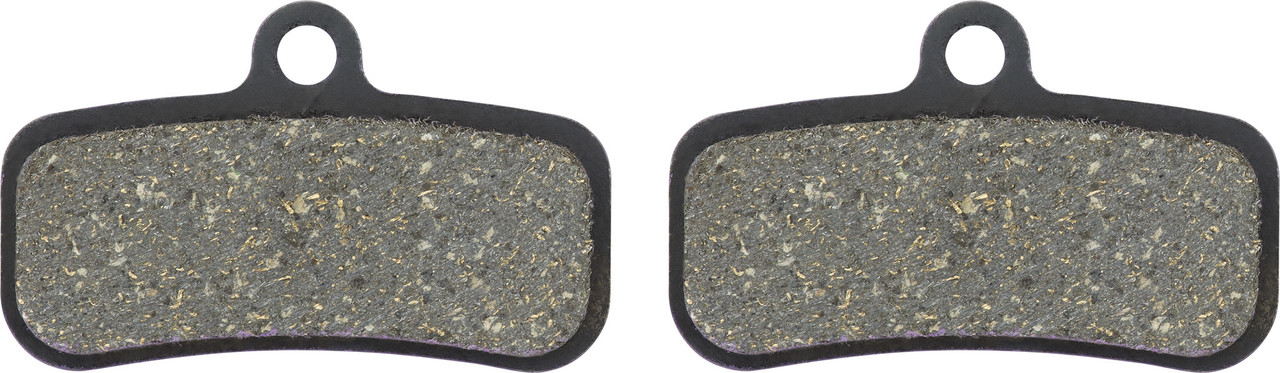

Semi-Metallic - Steel / SH-003:

Type:

G1652

Manufacturer Number:

FD426G1652

Compatibility:

Saint BR-M820 / BR-M810 / ZEE BR-M640 / XT BR-M8120 / BR-M8020 / SLX BR-M7120 / Deore BR-M6120 / CUES BR-U8020 / BR-MT520 / BR-MT420

Manufacturer Designation:

FD426

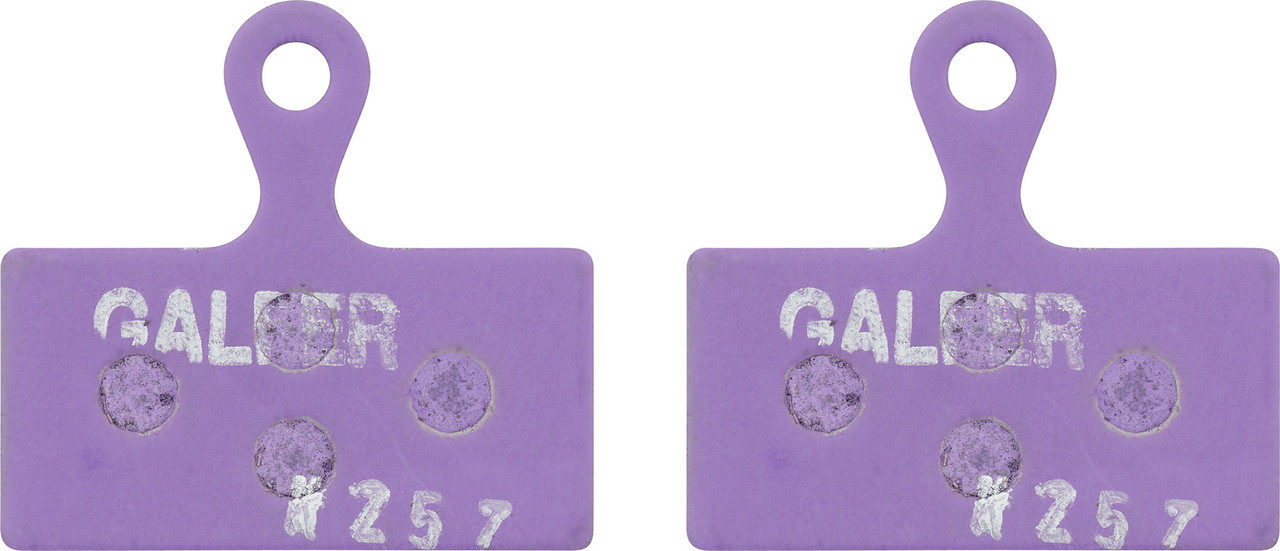

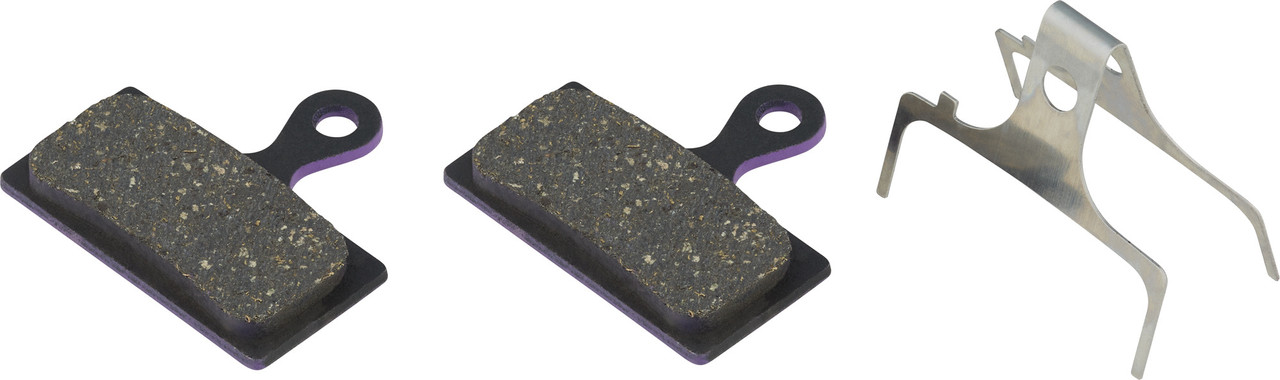

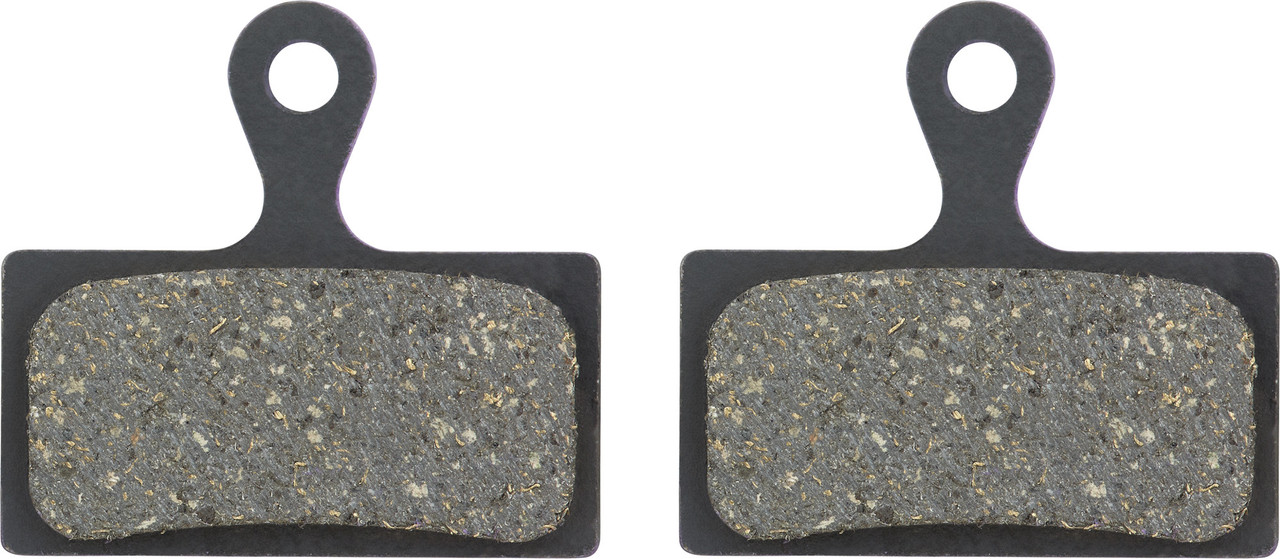

Semi-Metallic - Steel / SH-008:

Type:

G1652

Manufacturer Number:

FD452G1652

Compatibility:

XTR BR-M9020 / BR-M9000 / BR-M987 / BR-M985 / XT BR-M8100 / XT BR-M8000 / BR-M785 / SLX BR-M666 / BR-M675 / BR-M7000 / BR-M7100 / Deore BR-M6000 / BR-M6100 / BR-M615 / Alfine BR-S700 / BR-S7000 / BR-RS785 / BR-R785 / BR-R517 / BR-R515 / BR-R317 / BR-R315 / BR-CX77 / BR-CX75

Manufacturer Designation:

FD452

Note:

BR-S700 and BR-S7000 fit in terms of brake pad shape, but are not approved by Shimano for metallic and semi-metallic pads.

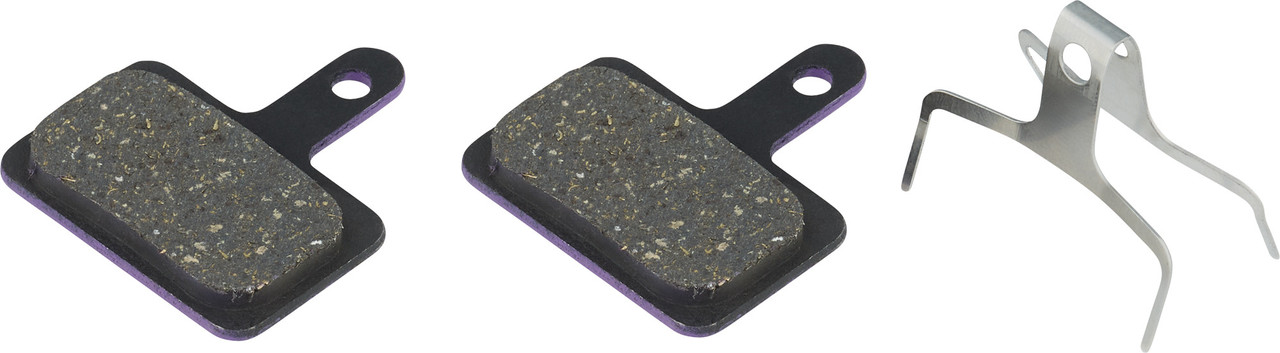

Contents:

• 1 x pair GALFER Disc E-Bike brake pads
• 1 x pad spreader spring
