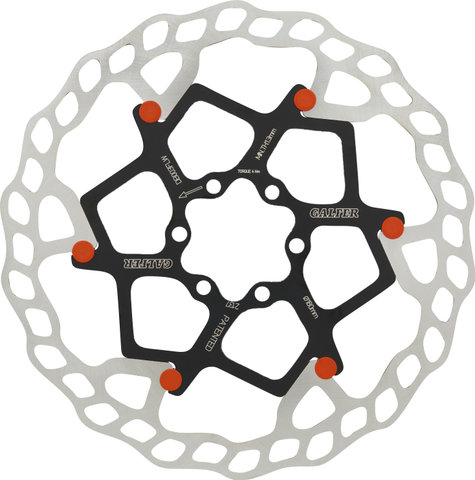

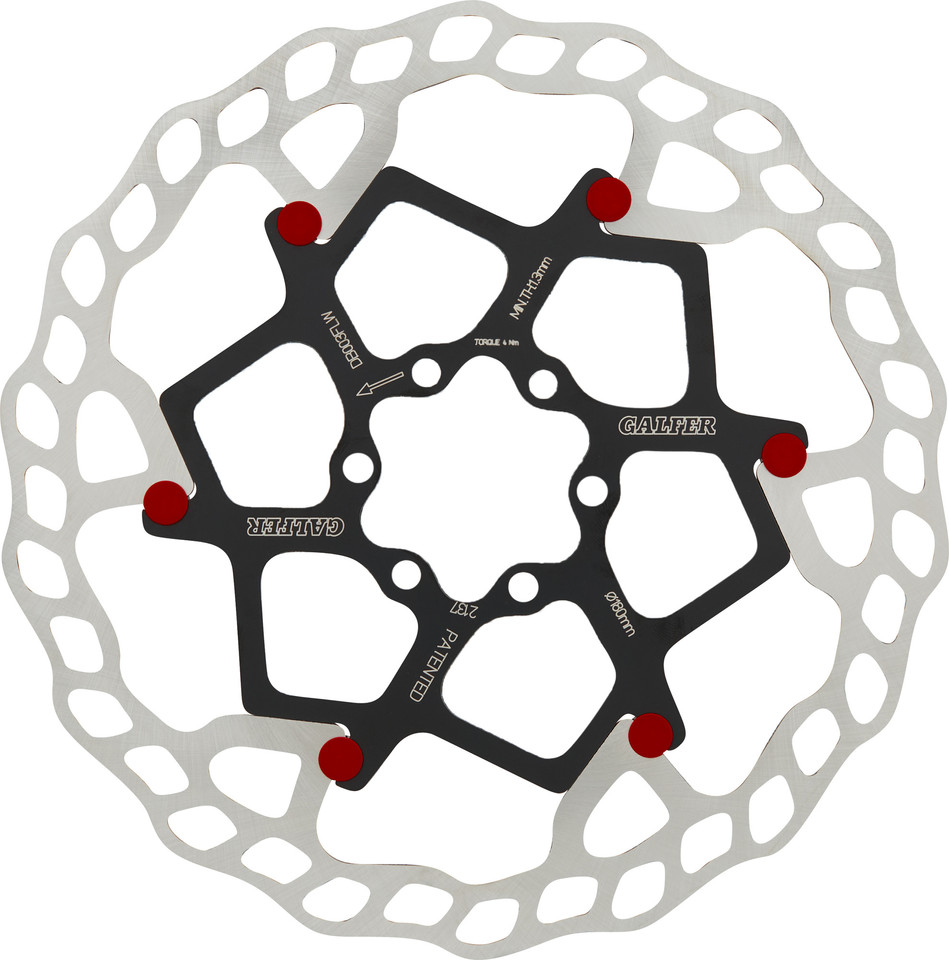

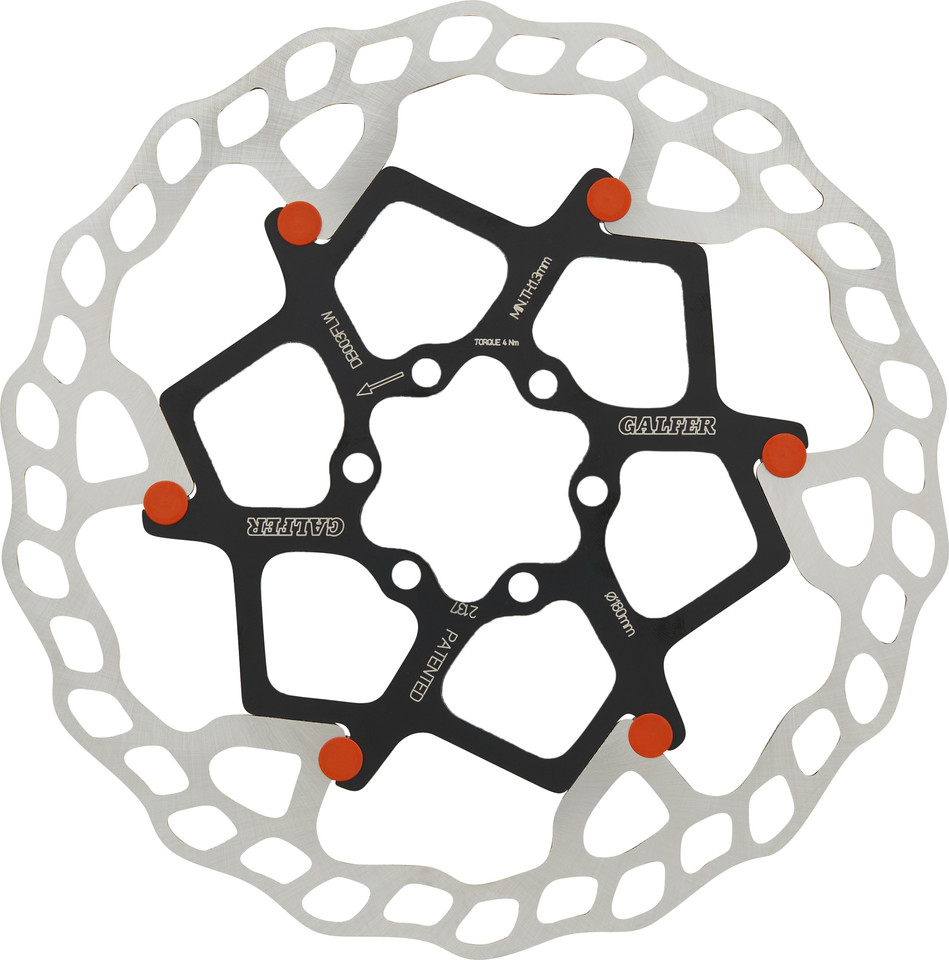

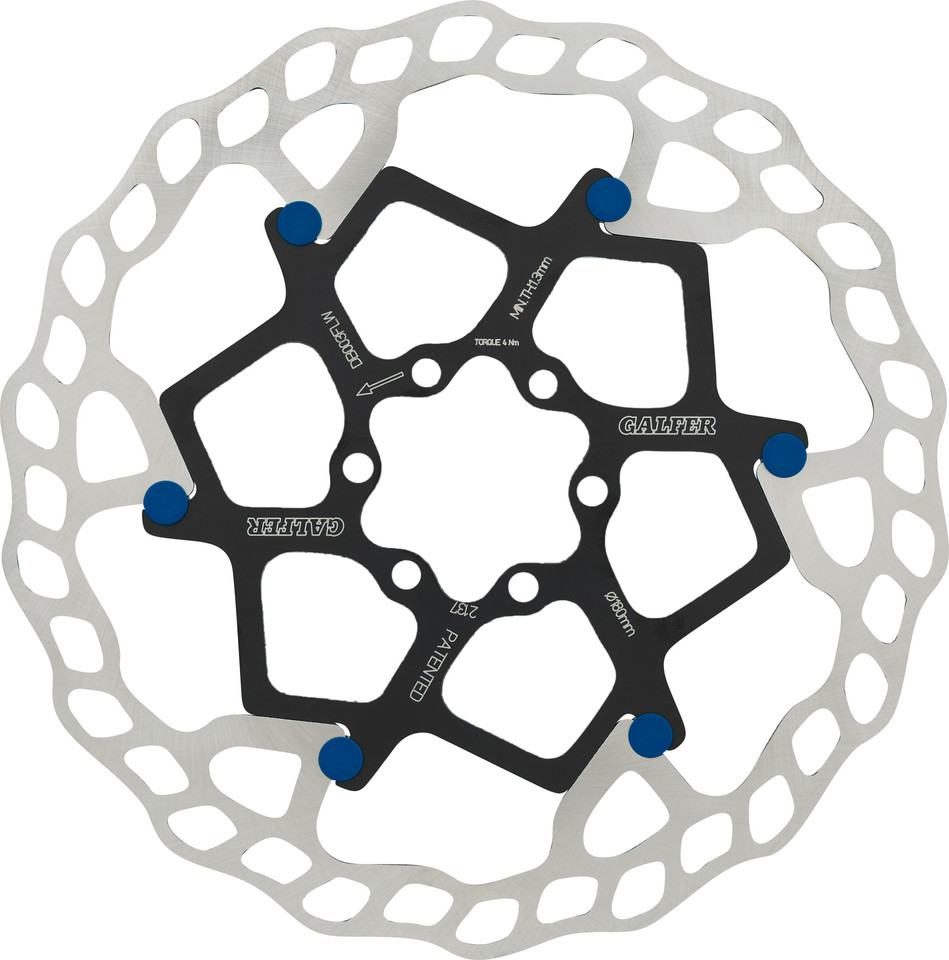

GALFER Floating Disc Wave 1.8 mm MTB 6-bolt Brake Rotor

The GALFER Floating Disc Wave brake rotor with 1.8 mm thickness and 6-bolt mount for mountain bikes features a floating design. The braking surface can freely expand and contract under heat, resulting in reduced vibration. It also creates a thermal barrier to the internal structure, which improves temperature management.

Technical Information:

Mount:

6-bolt

Diameter:

180 mm, 203 mm

Design:

2-piece, float-mounted

Rotor Material:

stainless steel

Features:

• floating, thus little vibration and heat development towards the hub
• improved air circulation and ventilation
• optimised braking surface profile
• 1.8 mm thick
• laser-cut
• strong, controllable braking power
• light and quiet
• particularly heat-resistant braking surface due to high carbon content
• consistent performance in dry and wet conditions
• with corrosion protection
• Made in Spain

Manufacturer Numbers:

silver-black-green / 180 mm:

DB003FLW

silver-black-green / 203 mm:

DB004FLW

silver-black-blue / 180 mm:

DB003FLWB

silver-black-blue / 203 mm:

DB004FLWB

silver-black-gold / 180 mm:

DB003FLWG

silver-black-gold / 203 mm:

DB004FLWG

silver-black-orange / 180 mm:

DB003FLWO

silver-black-orange / 203 mm:

DB004FLWO

silver-black-red / 180 mm:

DB003FLWR

silver-black-red / 203 mm:

DB004FLWR

Contents:

• 1 x GALFER Floating Disc Wave 1.8 mm MTB 6-bolt brake rotor
• 6 x bolts
