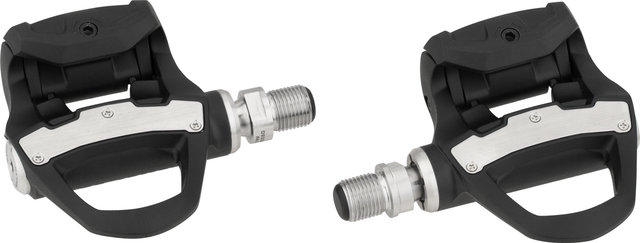

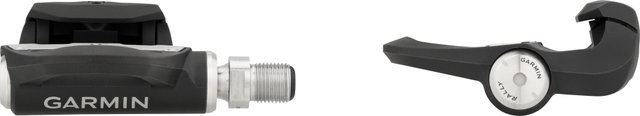

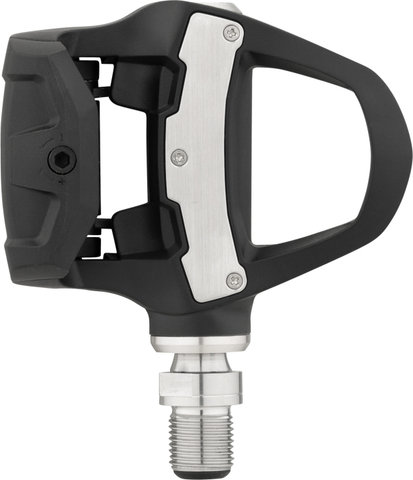

Garmin Rally RK200 Power Meter Pedals

The Garmin Rally RK200 Power Meter Pedals - Dual-sided power metering on road bikes for Look Kéo

Garmin's Rally RK200 Power Meter road pedals are compatible with Look Kéo Cleats to measure bilateral power, cadence, right-left balance and power peaks over the course of pedalling. They also analyse other aspects of performance development depending on riding position and bike set-up, otherwise known as Cycling Dynamics. The pedals are easy to mount and can therefore be transferred from one bike to another seamlessly. The pedal bodies are interchangeable, which means they can also be used with Shimano SPD-SL cleats for MTB and gravel riding. The Rally RK helps you to train more efficiently, which in turn allows you to prepare faster to dominate future challenges.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road, Triathlon & Time Trial, Track

Type:

clipless pedals with power meters (on both sides)

Technical Information:

Body Material:

composite, metal

Axle Material:

steel

Seals:

double

Height:

12.2 mm

Pedal Centre to Crank Arm Distance:

53 mm

Tolerance:

+/- 1%

Power Source:

Lithium battery CR1/3N (2 x) or lithium battery LR44/SR44 (4 x)

Battery Life:

max. 120 h

Data Collected:

Power (both sides), cadence, Cycling Dynamics (including right-left balance, Power Phase, Platform Center Offset)

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Approved For:

Weight Limit:

105 kg total weight

Compatibility:

• Rally RK Cleats (recommended)
• Look Kéo Cleats from the original manufacturer
• Garmin watches, Edge bike computers, Garmin Connect app for data analysis, software and settings updates
• Garmin Connect app for calibration, training analysis or sharing training data with third-party platforms like Strava, TrainingPeaks or TrainerRoad

Features:

• bilateral power metering with full access to Cycling Dynamics for advanced power analysis
• slim pedal design with fully-integrated battery housing and low profile for better ergonomics
• easy mounting lets you swap out pedals between several bikes
• replaceable pedal bodies
• easily replaceable batteries
• on-site calibration
• adjustable tension
• 55 mm Q-factor possible with enclosed spacer
• operating temperature range -10 °C to 50 °C

Technology:

How Garmin Rally Power Meters Work
Garmin Rally pedals measure the force applied to the pedal during 360° pedalling cycles and the direction of the force. Based on this, the force that causes the propulsion (tangential vector) and the force that acts on the crank in the form of compression or elongation (radial vector) are considered equally. This results in a more realistic measurement in comparison to relying solely on the tangential vector, and gives you a better overall picture of pedalling forces.

Manufacturer Number:

010-02388-00

Contents:

• 1 x Garmin Rally RK200 Pedal with Power Meter axle (left)
• 1 x Garmin Rally RK200 Pedal with Power Meter axle (right)

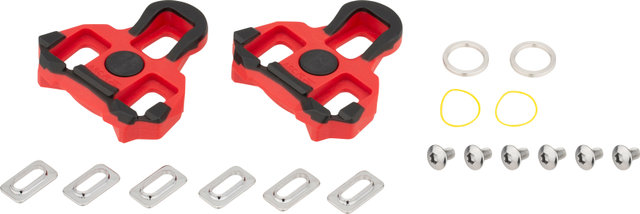

• 1 x pair Garmin Rally RK 6° Cleats
• 6 x fixing screw for cleats
• 2 x 2 mm washer
• 2 x replacement gasket for battery compartment cover
• 2 x CR1/3N batteries (installed)

Order Together:

Optional accessories:

• Rally RS Pedal Body Replacement Kit for Shimano SPD-SL cleats
• Rally XC Pedal Body Exchange Kit for gravel/MTB use
