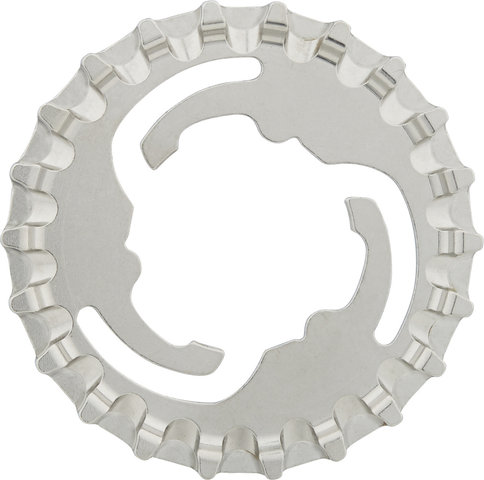

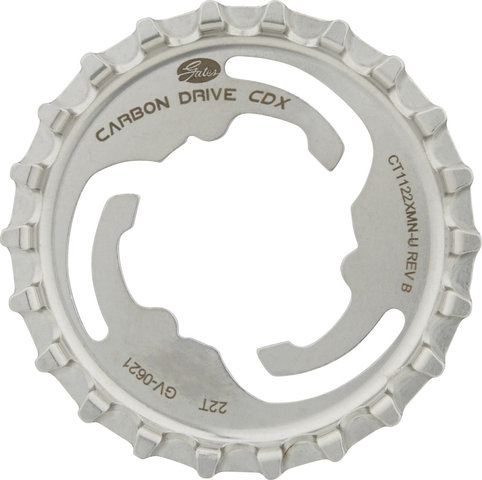

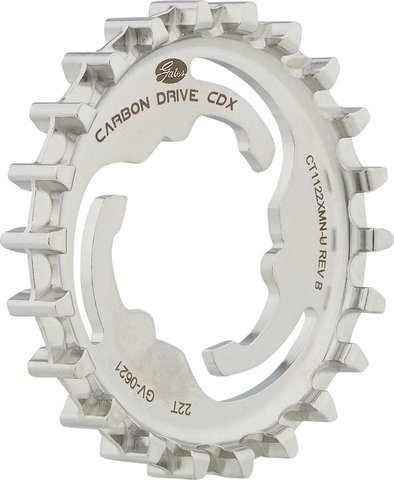

Gates CDX 3-cam SureFit Shimano Unified Rear Belt Drive Sprocket

This Gates CDX rear belt drive sprocket for touring use has three SureFit™ cams, fits the so-called Unified Beltline of 45.5 mm and is compatible with Shimano Alfine 8- and 11-speed mechanical and Nexus Disc 3-, 7- and 8-speed internally geared hubs. A belt line that is further out than on older models with 43.7 mm ensures higher performance, especially in combination with mid-drive motors.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Teeth:

22 t, 24 t

Mount:

3-cam (3-lobe)

Technical Information:

Width of the teeth:

11 mm

Tooth division:

11 mm

Belt line:

45.5 mm

Mounting web thickness:

2.9 mm

Offset:

2.7 mm (assembly surface), 1.25 mm (centre line)

Material:

stainless steel

Compatibility:

• Shimano Alfine 8-speed SG-S7001-8
• Shimano Alfine 11-speed SG-S700
• Shimano Nexus 3-speed coaster brake SG-3C41
• Shimano Nexus 3-speed disc SG-3D55
• Shimano Nexus 7-speed roller brake SG-C3000-7R
• Shimano Nexus 7-speed coaster brake SG-C3000-7C
• Shimano Nexus 7-speed disc SG-C3001-7D
• Shimano Nexus 8-speed disc SG-C6001-8D, SG-C6001-8CD

Note from the manufacturer:

For 22 t sprockets in all combinations with mechanical Nexus 8-speed internally geared hubs, a Right hand dust cap B for Inter-8 should be ordered as well.

Features:

• CDX level: high-end version for high loads and best performance
• suitable for mud, sand, snow and ice as well as all roads
• middle guide groove (CenterTrack)
• high mileage
• robust stainless steel
• SureFit pinion design: flexible interface for 3-cam flat, greater mounting tolerance
• with 2.7 mm offset for a belt line of 45.5 mm for Alfine / Nexus internally geared hubs (Unified Beltline)

Technology:

Gates Carbon Drive System
The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework.

Models:

22 tooth:

Outer Diameter:

75.3 mm

Manufacturer Number:

CT1122XMN-U

24 tooth:

Outer Diameter:

82.3 mm

Manufacturer Number:

CT1124XMN-U

Contents:

• 1 x Gates CDX 3-cam Shimano Unified Rear Belt Drive Sprockets

Order Together:

• SureFit assembly tool
