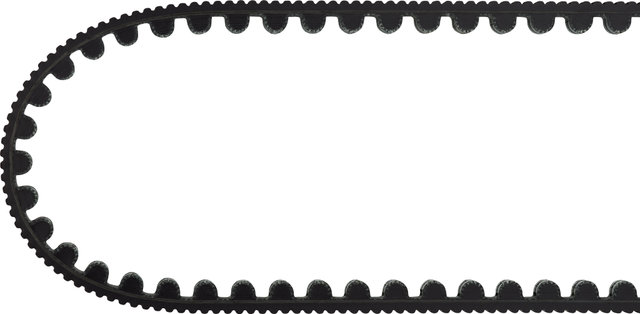

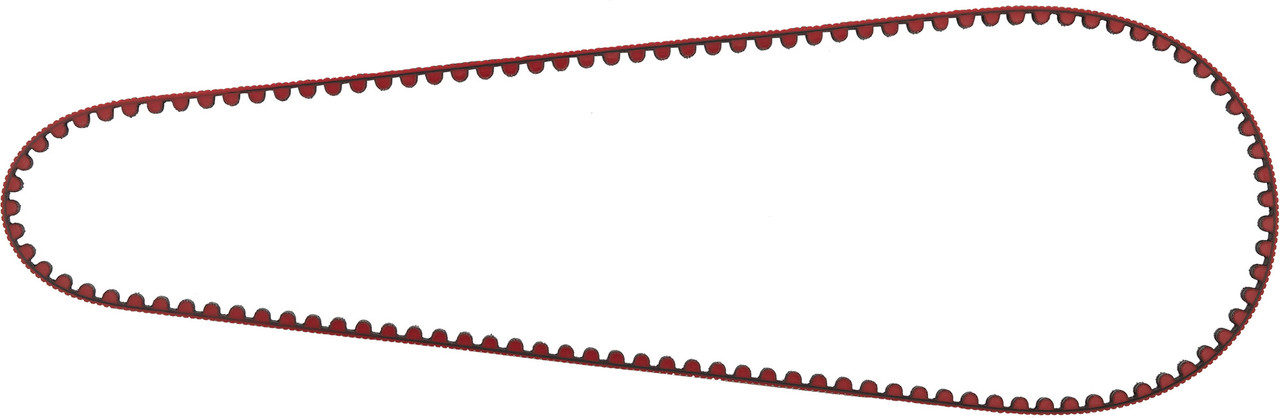

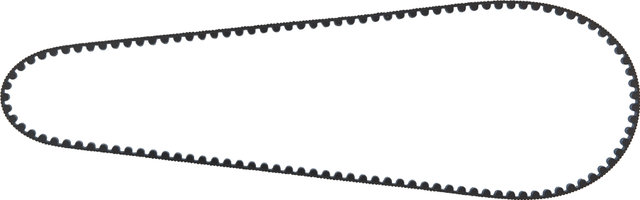

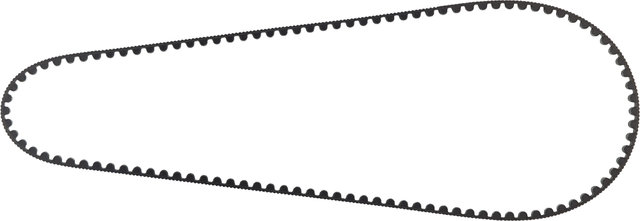

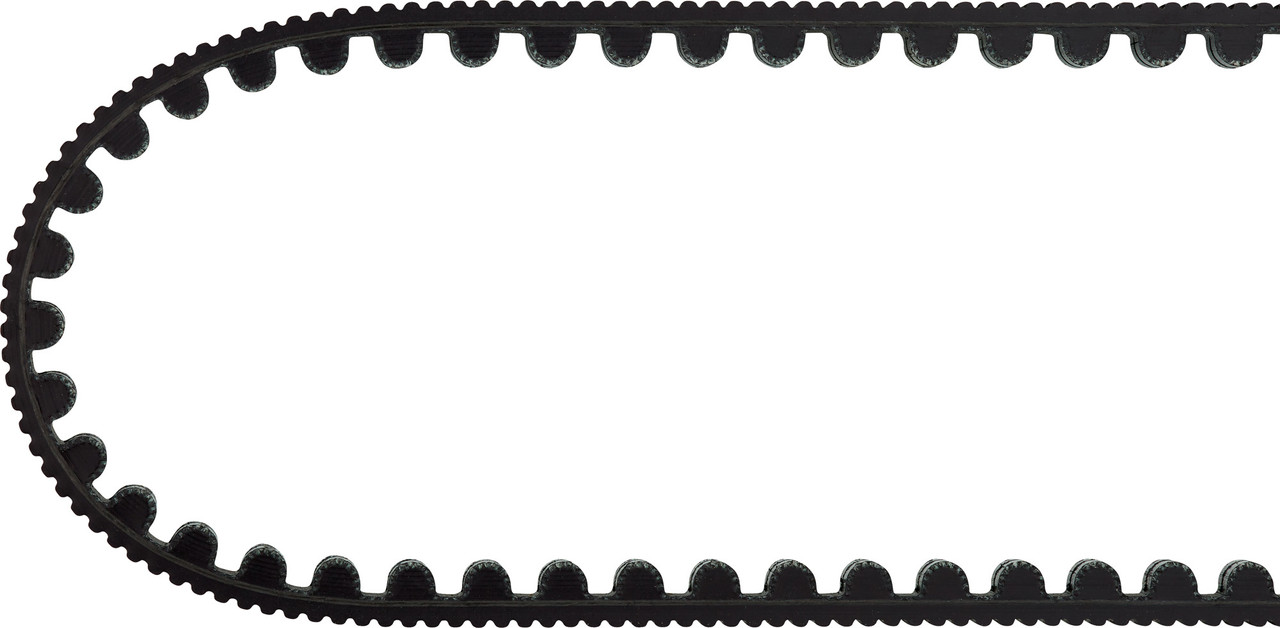

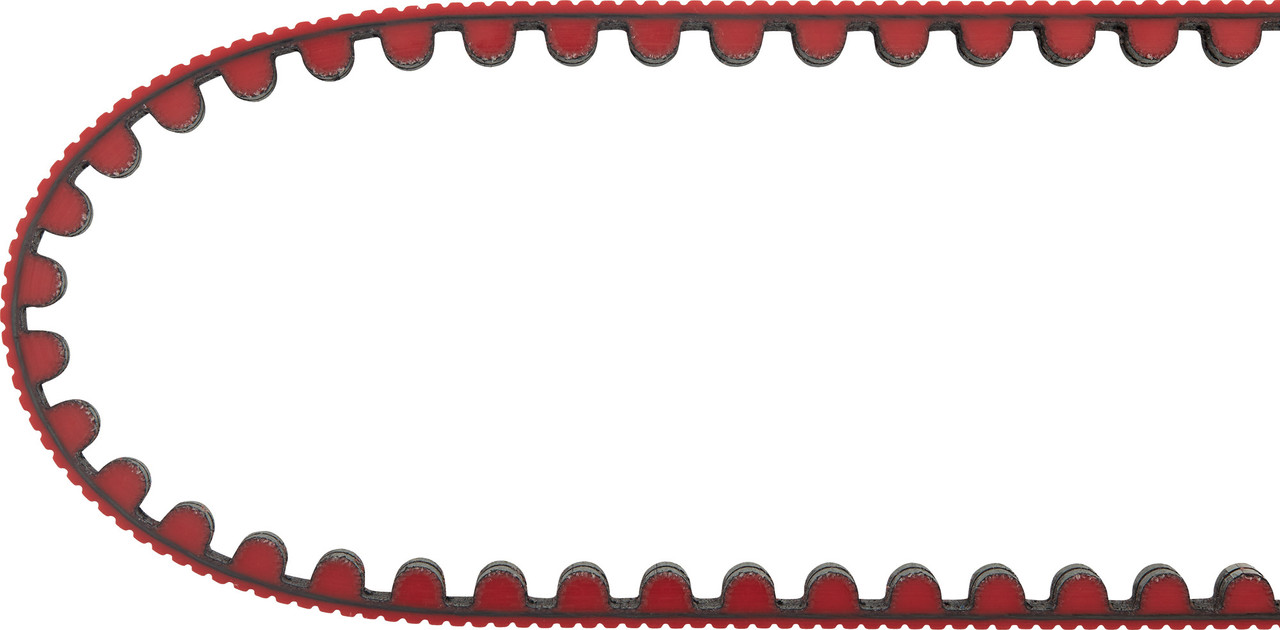

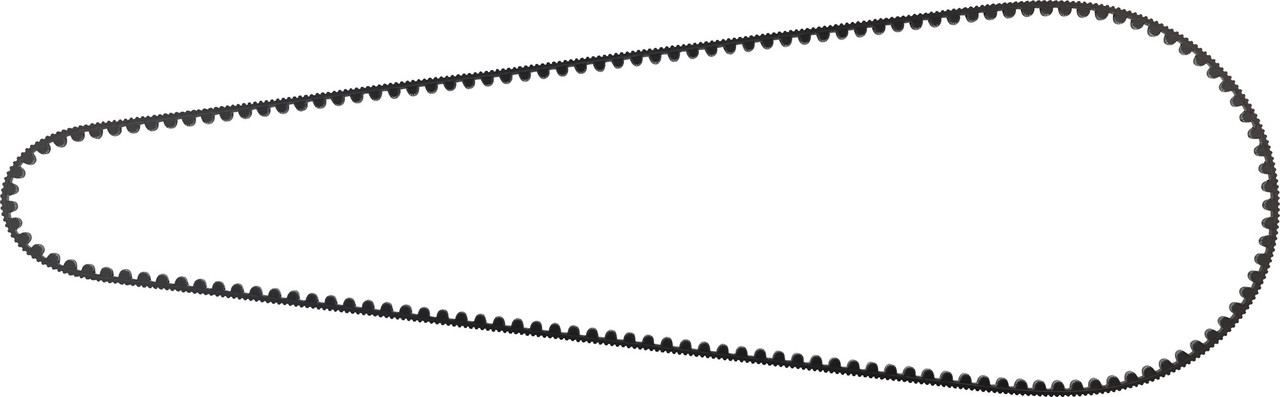

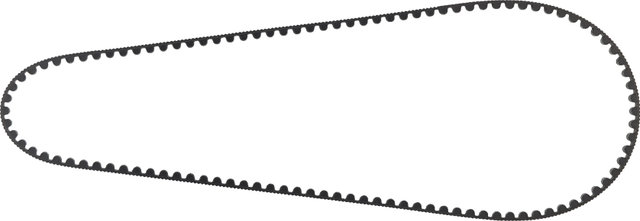

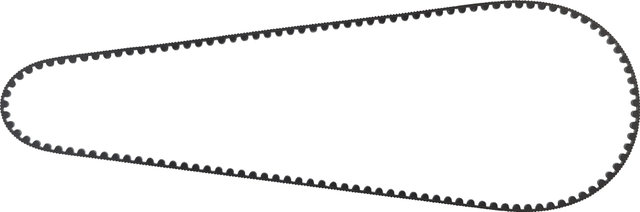

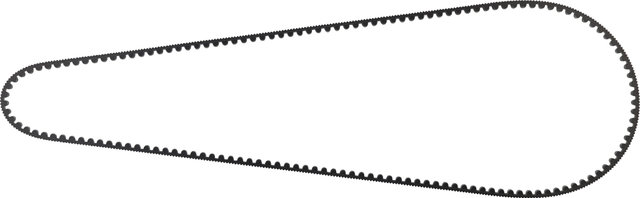

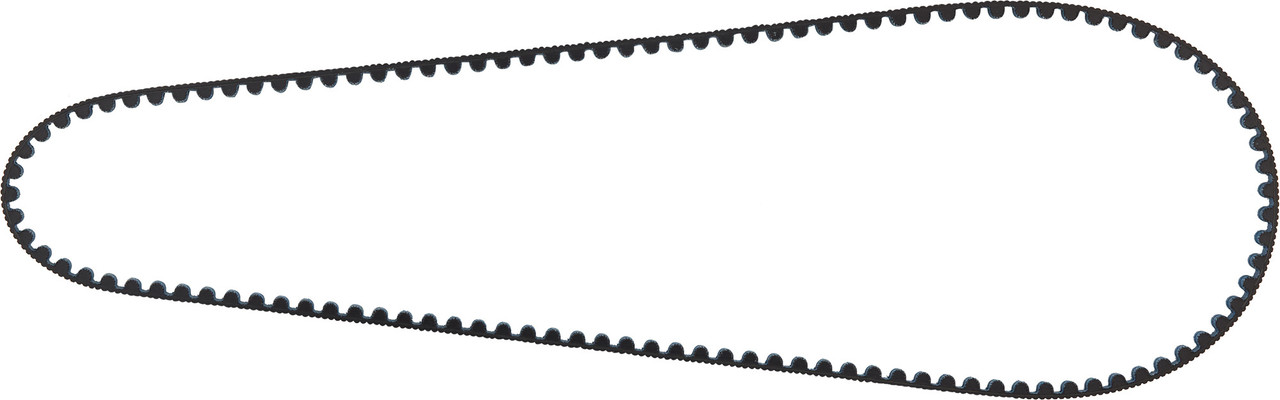

Gates CDX Belt
Item number: 83795

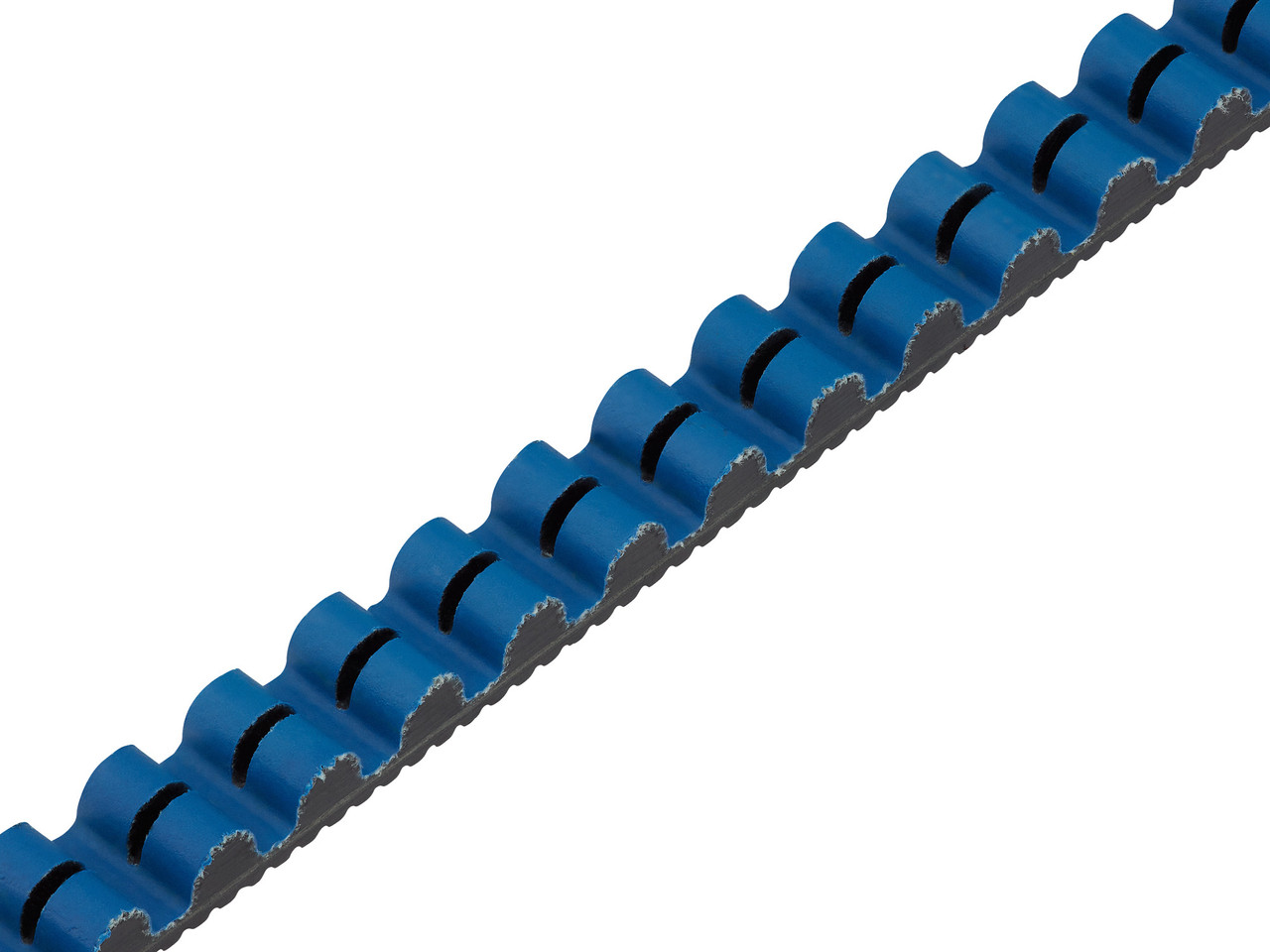

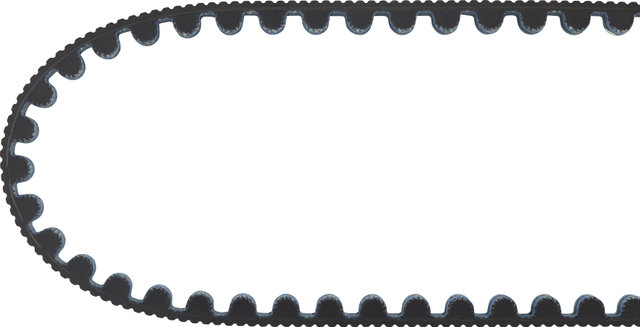

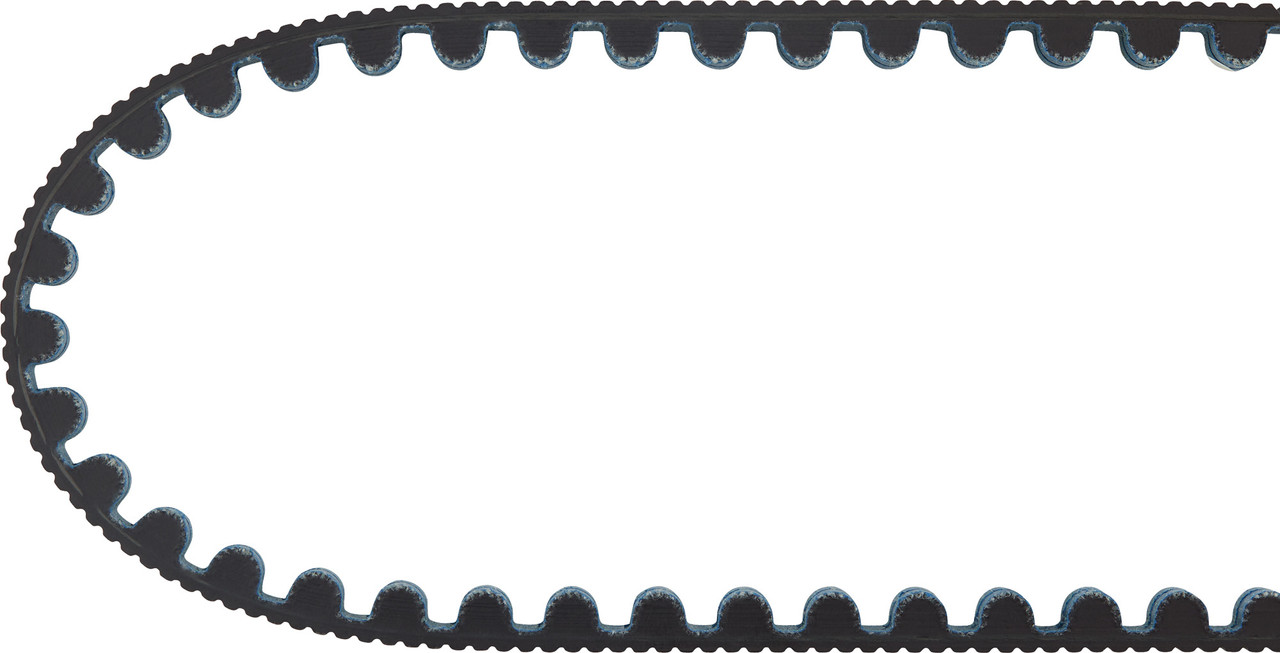

The Gates CDX belt is perfect for long-distance and off-road riding. It is 12 mm wide and consists of strong carbon fibre strands, a weather-resistant polyurethane body and a nylon running side. The back of the belt is ribbed for better dirt repellency.
The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against modifying a conventional frame.
Belt tension
For optimal function of the Gates Carbon Drive System, correct belt tension is essential. Common tension adjustment systems include inclined or vertical dropouts, horizontally sliding dropouts (not recommended by Gates) and eccentric bottom brackets.
There are several common methods to measure the tension of your Carbon Drive system, most notably the Eco Tension Tester, the Spring Tension Tester and the Gates Carbon Drive Smartphone App. Gates Carbon Drive tension recommendations are as follows:
To calculate the correct belt length, the Gates Carbon Drive Belt Calculator is available on the Gates Carbon Drive homepage.
1221 mm:
1243 mm:
1265 mm:
1298 mm:
1320 mm:
1342 mm:
1375 mm:
1408 mm:
1430 mm:
1452 mm:
1507 mm:
1573 mm:
1661 mm:
1738 mm:
1826 mm:
1848 mm:
1914 mm:
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.Specifications:
- Application:
- City & Touring, All Mountain, Cross Country
- Width:
- 12 mm
Technical Information:
- Length:
- 1188 mm, 1221 mm, 1243 mm, 1265 mm, 1298 mm, 1320 mm, 1342 mm, 1375 mm, 1408 mm, 1430 mm, 1452 mm, 1507 mm, 1573 mm, 1661 mm, 1738 mm, 1826 mm, 1848 mm, 1914 mm
- Tooth division:
- 11 mm
- Material:
- Polyurethane, Carbon, Nylon
Compatibility:
- CDX Belt Drive Sprockets
- CDX:EXP Belt Drive Sprockets
Features:
- CDX level: high-end version for high loads and best performance
- suitable for mud, sand, snow and ice as well as all roads

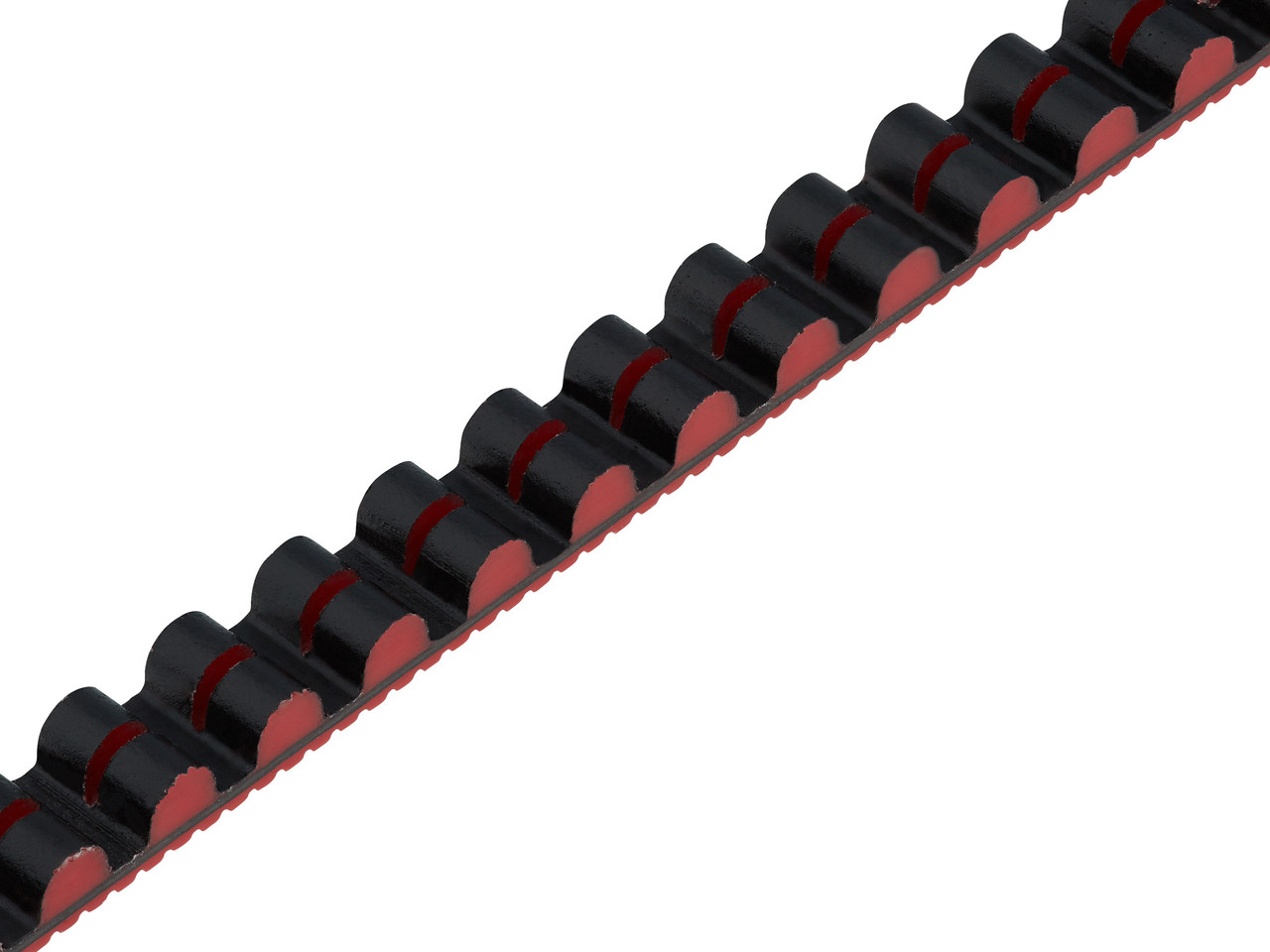

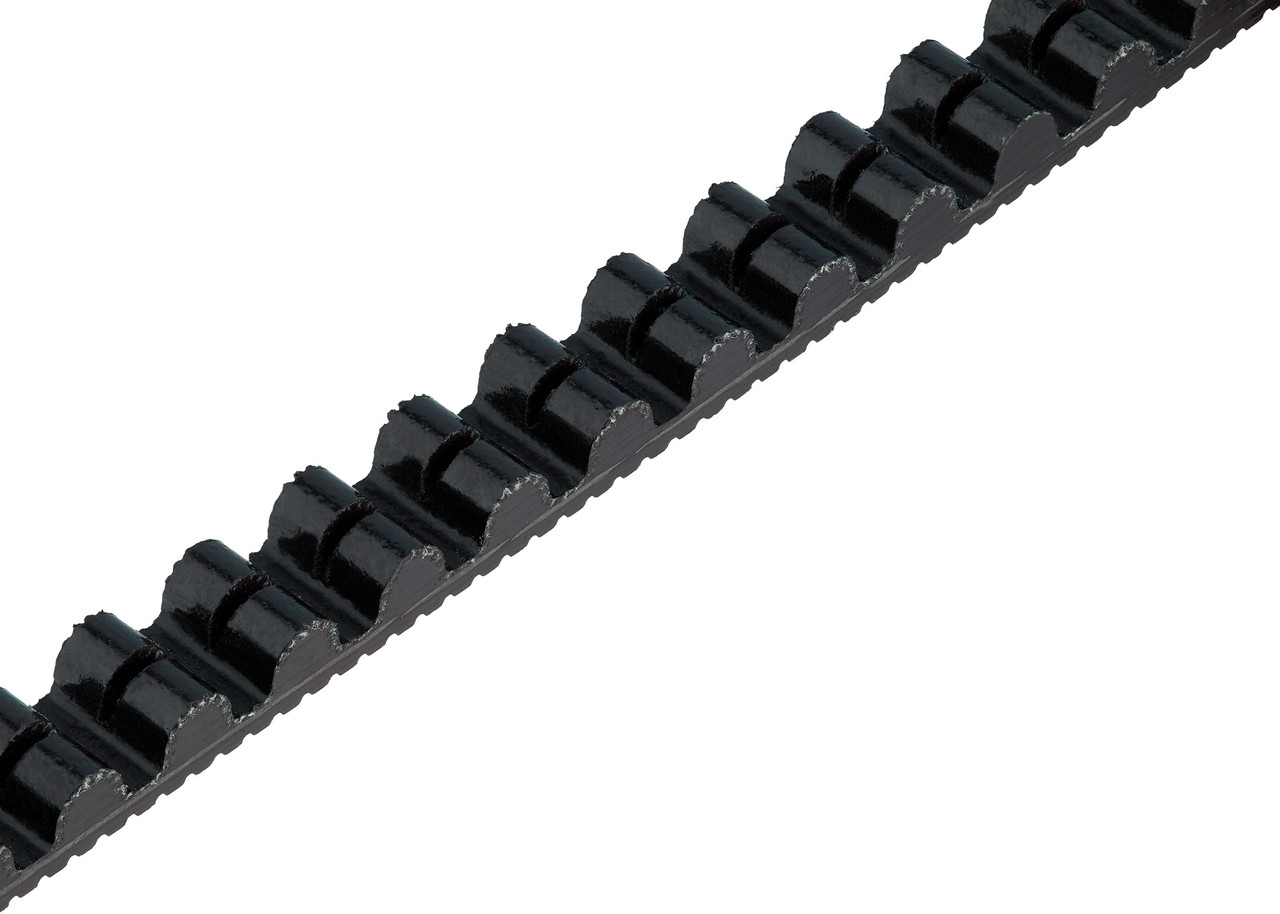

- middle guide groove (CenterTrack)
- high mileage
- weather-resistant and wear-resistant polyurethane
- carbon fibre tension members
- wheel-optimised tooth profile
- ribbed strap back
- nylon running side
Technology:
Gates Carbon Drive SystemThe main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against modifying a conventional frame.
Belt tension
For optimal function of the Gates Carbon Drive System, correct belt tension is essential. Common tension adjustment systems include inclined or vertical dropouts, horizontally sliding dropouts (not recommended by Gates) and eccentric bottom brackets.
There are several common methods to measure the tension of your Carbon Drive system, most notably the Eco Tension Tester, the Spring Tension Tester and the Gates Carbon Drive Smartphone App. Gates Carbon Drive tension recommendations are as follows:
- Off-road and urban - soft and even pedalling style: 40-60 Hz (35-45 lbs)
- Off-road and urban - strong and hard pedalling style: 60-75 Hz (45-53 lbs)
- Internally geared hubs: 35-50 Hz (28-40 lbs)
- Tandem: 60-65 Hz (45-48 lbs)
- Shimano STEPS: 35-45 Hz (28-35 lbs)
To calculate the correct belt length, the Gates Carbon Drive Belt Calculator is available on the Gates Carbon Drive homepage.
Models:
1188 mm:- Teeth:
- 108
- Manufacturer Number:
- 11M-108T-12CT
1221 mm:
- Teeth:
- 111
- Manufacturer Number:
- 11M-111T-12CT
1243 mm:
- Teeth:
- 113
- Manufacturer Number:
- 11M-113T-12CT
1265 mm:
- Teeth:
- 115
- Manufacturer Number:
- 11M-115T-12CT
1298 mm:
- Teeth:
- 118
- Manufacturer Number:
- 11M-118T-12CT
1320 mm:
- Teeth:
- 120
- Manufacturer Number:
- 11M-120T-12CT
1342 mm:
- Teeth:
- 122
- Manufacturer Number:
- 11M-122T-12CT
1375 mm:
- Teeth:
- 125
- Manufacturer Number:
- 11M-125T-12CT
1408 mm:
- Teeth:
- 128
- Manufacturer Number:
- 11M-128T-12CT
1430 mm:
- Teeth:
- 130
- Manufacturer Number:
- 11M-130T-12CT
1452 mm:
- Teeth:
- 132
- Manufacturer Number:
- 11M-132T-12CT
1507 mm:
- Teeth:
- 137
- Manufacturer Number:
- 11M-137T-12CT
1573 mm:
- Teeth:
- 143
- Manufacturer Number:
- 11M-143T-12CT
1661 mm:
- Teeth:
- 151
- Manufacturer Number:
- 11M-151T-12CT
1738 mm:
- Teeth:
- 158
- Manufacturer Number:
- 11M-158T-12CT
1826 mm:
- Teeth:
- 166
- Manufacturer Number:
- 11M-166T-12CT
1848 mm:
- Teeth:
- 168
- Manufacturer Number:
- 11M-168T-12CT
1914 mm:
- Teeth:
- 174
- Manufacturer Number:
- 11M-174T-12CT
Contents:
- 1 x Gates CDX belt
