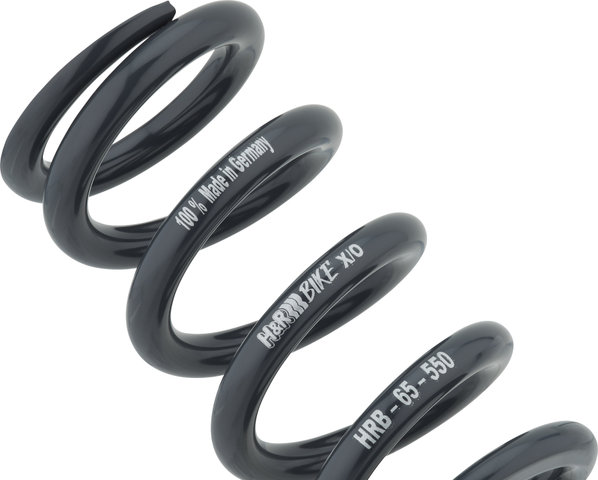

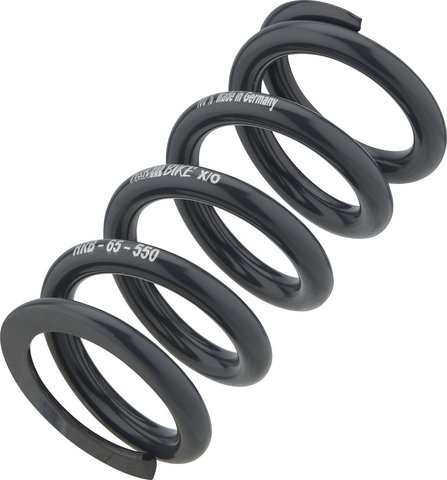

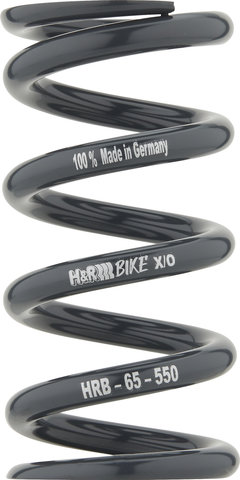

H&R Bike Performance Spring Steel Spring up to 65 mm Stroke

The H&R Bike Performance Spring steel spring for rear shocks up to 65 mm stroke

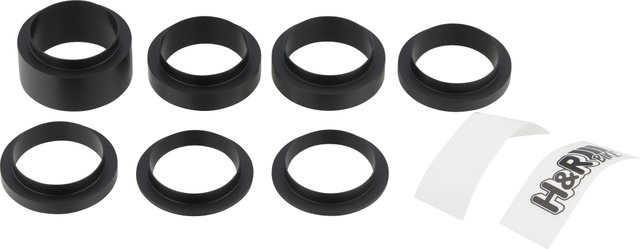

The Performance Spring steel spring from H&R Bike is suitable for steel coil shocks with a stroke of 50 to 65 mm. The spring is made of an extremely light, block-resistant and durable steel alloy for consistently high performance over a long period of time. In addition to the spring, you will also find a 7-piece set of POM spacers for the installation on shocks from RockShox, ÖHLINS, Fox Racing Shox and Cane Creek. The Performance Spring steel spring is manufactured in Germany.

Specifications:

Application:

Enduro

Rear Shock (Size x Travel):

165 - 230 x 50 - 65 mm

Stroke:

65 mm

Inner Diameter:

38.5 mm

Compatibility:

• steel coil shocks with 50 - 65 mm stroke and 165 - 230 mm size

Note:

When selecting the spring, also consider the coil length, as the installation space between the spring plates is not sufficient for some shocks.

Features:

• steel springs for shocks with up to 65 mm stroke
• lightweight
• block-resistant and robust
• includes POM spacer set for maximum compatibility
• made in Germany

Models:

350 lbs:

Coil Length:

105 mm

Spring Rate:

350 lbs/inch (61.3 N/mm)

Manufacturer Number:

65-350

375 lbs:

Coil Length:

107 mm

Spring Rate:

375 lbs/inch (65.7 N/mm)

Manufacturer Number:

65-375

400 lbs:

Coil Length:

110 mm

Spring Rate:

400 lbs/inch (70.1 N/mm)

Manufacturer Number:

65-400

425 lbs:

Coil Length:

108 mm

Spring Rate:

425 lbs/inch (74.4 N/mm)

Manufacturer Number:

65-425

450 lbs:

Coil Length:

106 mm

Spring Rate:

450 lbs/inch (78.8 N/mm)

Manufacturer Number:

65-450

475 lbs:

Coil Length:

110 mm

Spring Rate:

475 lbs/inch (83.2 N/mm)

Manufacturer Number:

65-475

500 lbs:

Coil Length:

108 mm

Spring Rate:

500 lbs/inch (87.6 N/mm)

Manufacturer Number:

65-500

525 lbs:

Coil Length:

112 mm

Spring Rate:

525 lbs/inch (91.9 N/mm)

Manufacturer Number:

65-525

550 lbs:

Coil Length:

110 mm

Spring Rate:

550 lbs/inch (96.3 N/mm)

Manufacturer Number:

65-550

575 lbs:

Coil Length:

114 mm

Spring Rate:

575 lbs/inch (100.7 N/mm)

Manufacturer Number:

65-575

600 lbs:

Coil Length:

112 mm

Spring Rate:

600 lbs/inch (105.1 N/mm)

Manufacturer Number:

65-600

625 lbs:

Coil Length:

116 mm

Spring Rate:

625 lbs/inch (109.5 N/mm)

Manufacturer Number:

65-625

650 lbs:

Coil Length:

114 mm

Spring Rate:

650 lbs/inch (113.8 N/mm)

Manufacturer Number:

65-650

675 lbs:

Coil Length:

118 mm

Spring Rate:

675 lbs/inch (118.2 N/mm)

Manufacturer Number:

65-675

700 lbs:

Coil Length:

117 mm

Spring Rate:

700 lbs/inch (122.6 N/mm)

Manufacturer Number:

65-700

725 lbs:

Coil Length:

121 mm

Spring Rate:

725 lbs/inch (127 N/mm)

Manufacturer Number:

65-725

750 lbs:

Coil Length:

119 mm

Spring Rate:

750 lbs/inch (131.3 N/mm)

Manufacturer Number:

65-750

775 lbs:

Coil Length:

124 mm

Spring Rate:

775 lbs/inch (135.7 N/mm)

Manufacturer Number:

65-775

800 lbs:

Coil Length:

123 mm

Spring Rate:

800 lbs/inch (140.1 N/mm)

Manufacturer Number:

65-800

Contents:

• 1 x steel spring H&R Bike Performance Spring
• 1 x POM spacer set, 7-piece
