H&R Bike Performance Spring Steel Spring up to 75 mm Stroke

The H&R Bike Performance Spring steel spring for rear shocks up to 75 mm stroke

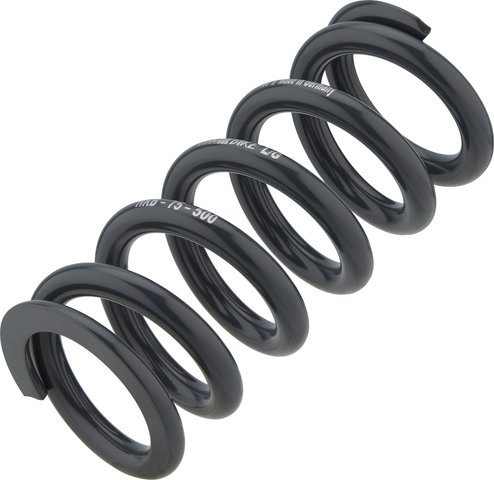

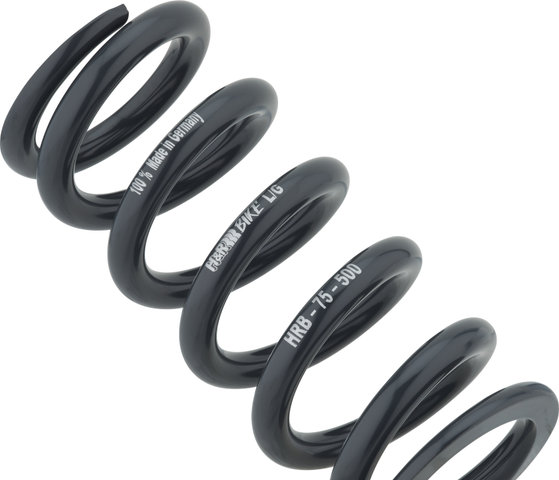

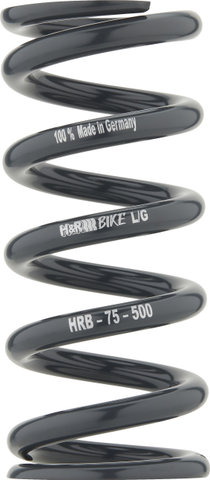

The Performance Spring steel spring from H&R Bike is suitable for steel coil shocks with a stroke of 66 to 75 mm. The spring is made of an extremely light, block-resistant and durable steel alloy for consistently high performance over a long period of time. In addition to the spring, you will also find a 7-piece set of POM spacers for the installation on shocks from RockShox, ÖHLINS, Fox Racing Shox and Cane Creek. The Performance Spring steel spring is manufactured in Germany.

Specifications:

Application:

Downhill

Rear Shock (Size x Travel):

165 - 250 x 66 - 75 mm

Stroke:

75 mm

Inner Diameter:

38.5 mm

Compatibility:

• steel coil shocks with 66 to 75 mm stroke and 165 - 250 mm size

Note:

When selecting the spring, also consider the coil length, as the installation space between the spring plates is not sufficient for some shocks.

Features:

• steel springs for shocks with up to 75 mm stroke
• low weight for up to 30% weight saving
• block-resistant and robust
• includes POM spacer set for maximum compatibility
• made in Germany

Models:

300 lbs:

Coil Length:

118 mm

Spring Rate:

300 lbs/inch (52.5 N/mm)

Manufacturer Number:

75-300

325 lbs:

Coil Length:

121 mm

Spring Rate:

325 lbs/inch (56.9 N/mm)

Manufacturer Number:

75-325

350 lbs:

Coil Length:

124 mm

Spring Rate:

350 lbs/inch (61.3 N/mm)

Manufacturer Number:

75-350

375 lbs:

Coil Length:

122 mm

Spring Rate:

375 lbs/inch (65.7 N/mm)

Manufacturer Number:

75-375

400 lbs:

Coil Length:

119 mm

Spring Rate:

400 lbs/inch (70.1 N/mm)

Manufacturer Number:

75-400

425 lbs:

Coil Length:

129 mm

Spring Rate:

425 lbs/inch (74.4 N/mm)

Manufacturer Number:

75-425

450 lbs:

Coil Length:

126 mm

Spring Rate:

450 lbs/inch (78.8 N/mm)

Manufacturer Number:

75-450

475 lbs:

Coil Length:

124 mm

Spring Rate:

475 lbs/inch (83.2 N/mm)

Manufacturer Number:

75-475

500 lbs:

Coil Length:

128 mm

Spring Rate:

500 lbs/inch (87.6 N/mm)

Manufacturer Number:

75-500

525 lbs:

Coil Length:

126 mm

Spring Rate:

525 lbs/inch (91.9 N/mm)

Manufacturer Number:

75-525

550 lbs:

Coil Length:

130 mm

Spring Rate:

550 lbs/inch (96.3 N/mm)

Manufacturer Number:

75-550

575 lbs:

Coil Length:

134 mm

Spring Rate:

575 lbs/inch (100.7 N/mm)

Manufacturer Number:

75-575

600 lbs:

Coil Length:

132 mm

Spring Rate:

600 lbs/inch (105.1 N/mm)

Manufacturer Number:

75-600

Contents:

• 1 x steel spring H&R Bike Performance Spring

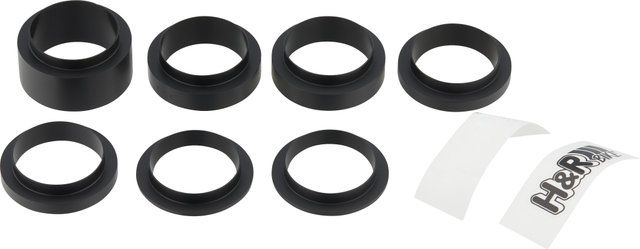

• 1 x POM spacer set, 7-piece
