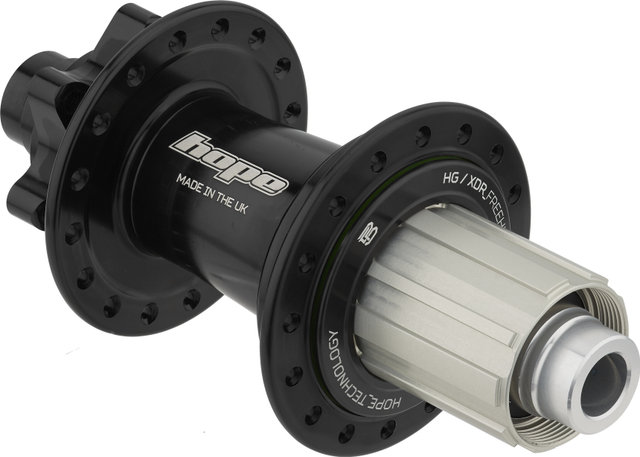

Hope Pro 5 6-Bolt Boost Rear Hub

Specifications:

Series:

Pro 5

Application:

All Mountain, Enduro, Gravel, Cross Country

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Freehub Body Type:

aluminium, ratchet system mit 6 steel pawls, 108 contact points

Technical Information:

Body Material:

aluminium (2014-T6)

Bearings:

stainless steel industrial bearings

Seals:

Zero Drag labyrinth seal

Features:

• sturdy rear hub with Boost installation width and 6-bolt brake rotor mount for mountain and gravel bikes
• stiff aluminium hub body with spoke holes for J-bend spokes
• 6 staggered pawls, 3 pawls engage in parallel in 54 contact points = 108 contact points
• revised pawl design: increased spring tension with lower resistance for performance, resilience and durability
• labyrinth seal keeps dirt and moisture out
• large, resistant industrial bearings for low-friction running
• easy maintenance without special tools
• replaceable freehub

Models:

12 x 148 mm / 32 hole / Shimano:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Flange Distance (L/R):

57.6 mm (35.0 mm / 22.6 mm)

Partial Bolt Circle Diameter (L/R):

57.0 mm / 59.0 mm

Manufacturer Numbers:

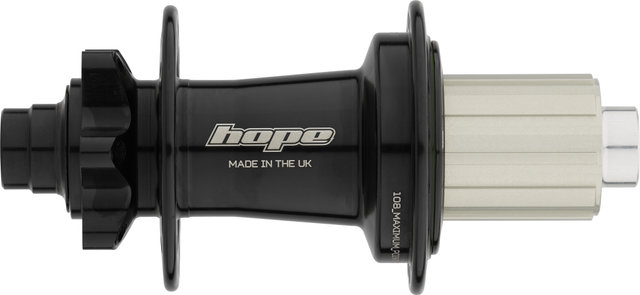

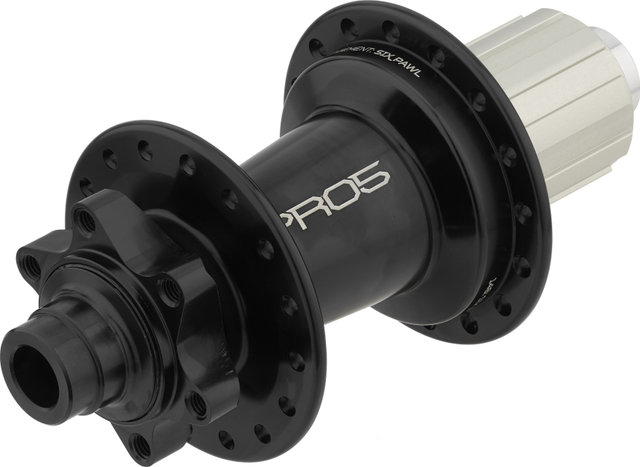

• black: RHP532N148SA

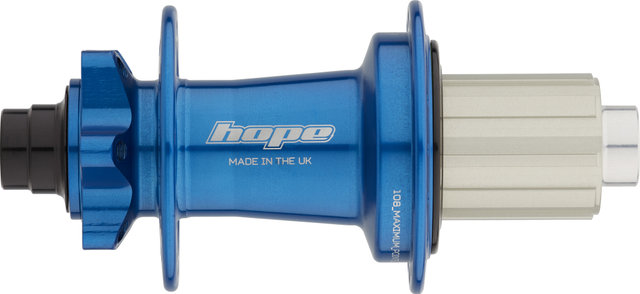

• blue: RHP532B148SA

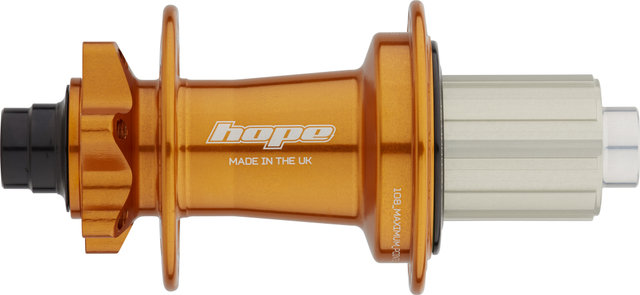

• orange: RHP532C148SA

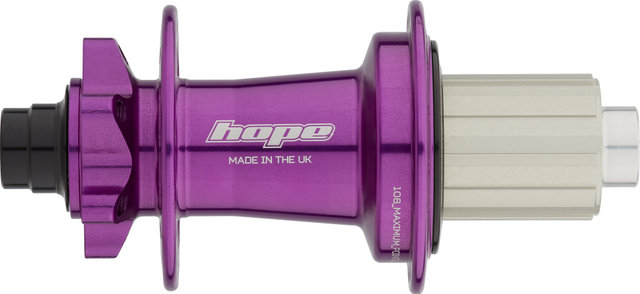

• purple: RHP532PU148SA

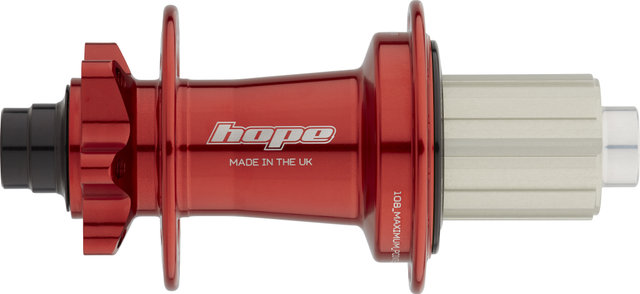

• red: RHP532R148SA

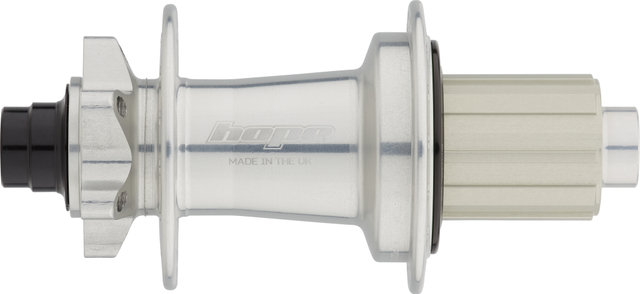

• silver: RHP532S148SA

12 x 148 mm / 32 hole / SRAM XD:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

SRAM XD

Gearing:

11-/12-speed

Flange Distance (L/R):

57.6 mm (35.0 mm / 22.6 mm)

Partial Bolt Circle Diameter (L/R):

57.0 mm / 59.0 mm

Manufacturer Numbers:

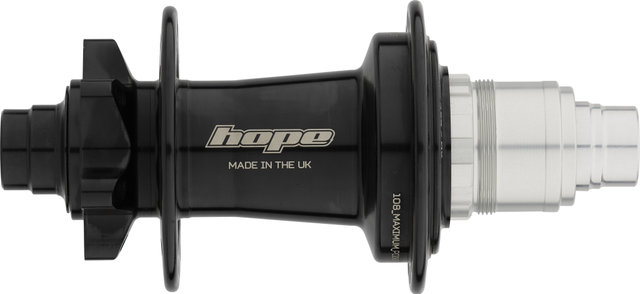

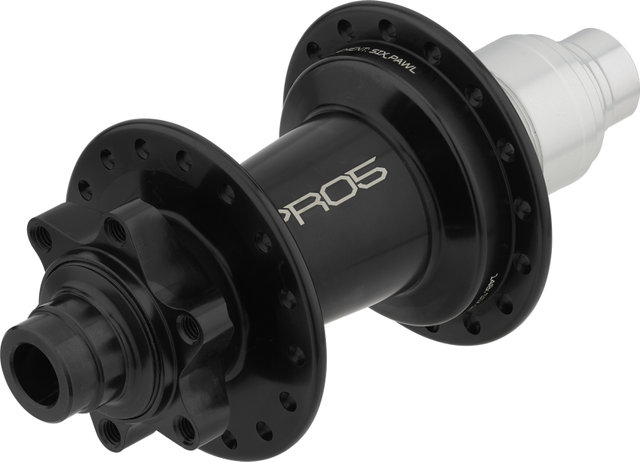

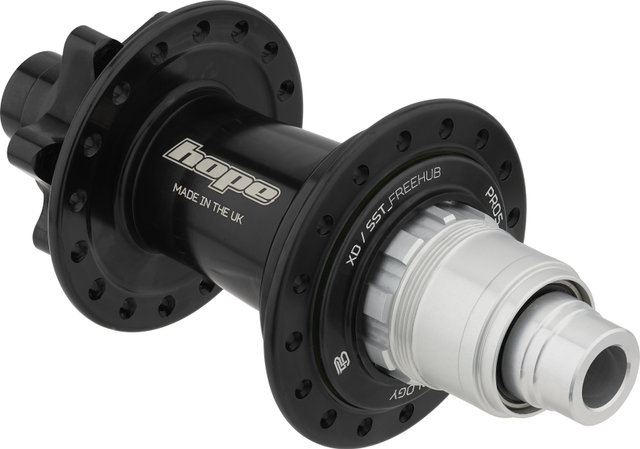

• black: RHP532N148XD

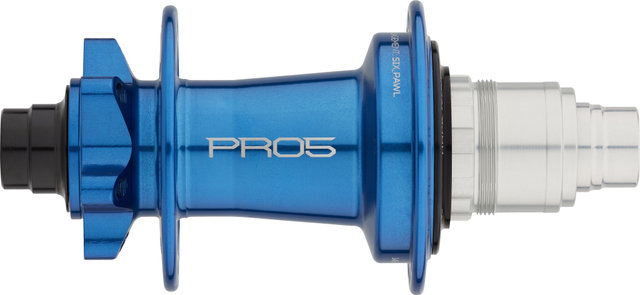

• blue: RHP532B148XD

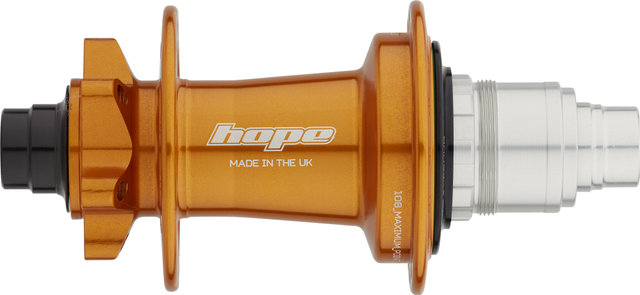

• orange: RHP532C148XD

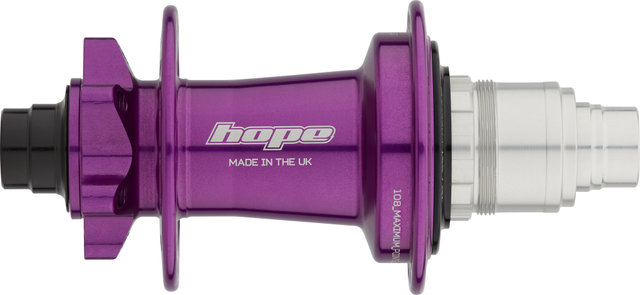

• purple: RHP532PU148XD

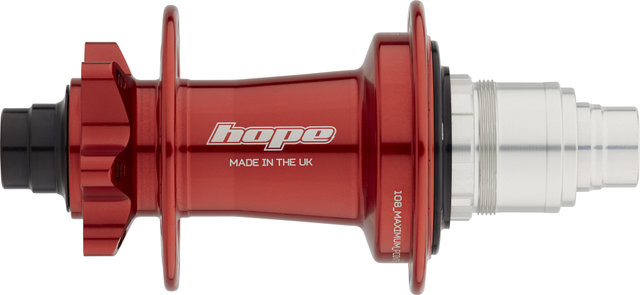

• red: RHP532R148XD
• silver: RHP532S148XD

Contents:

• 1 x Hope Pro 5 Disc 6-bolt Boost rear hub
