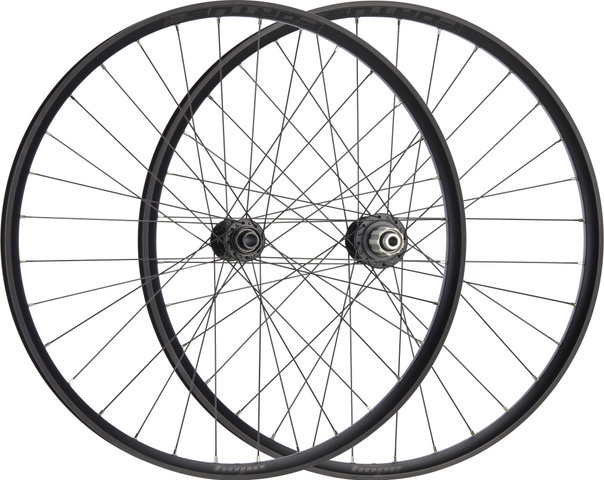

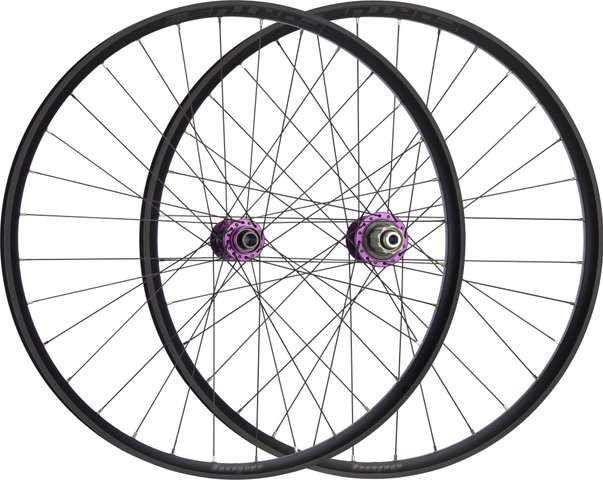

Hope Pro 5 + Fortus 30 SC Disc Center Lock 27.5" Boost Wheelset

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

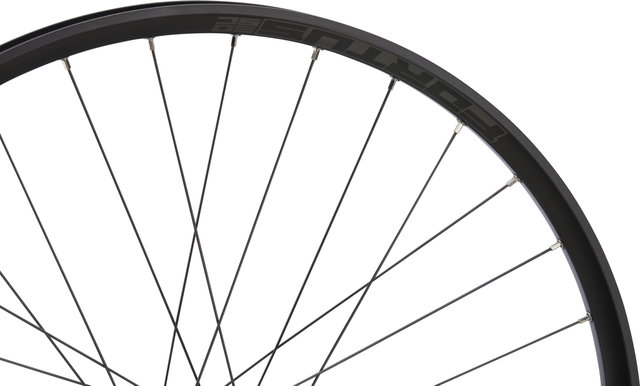

Technical Information - Rim:

Type:

Hope Fortus 30 Single Cavity

Rim Flange:

with hook

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

20 mm

ERD:

562 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6061-T6)

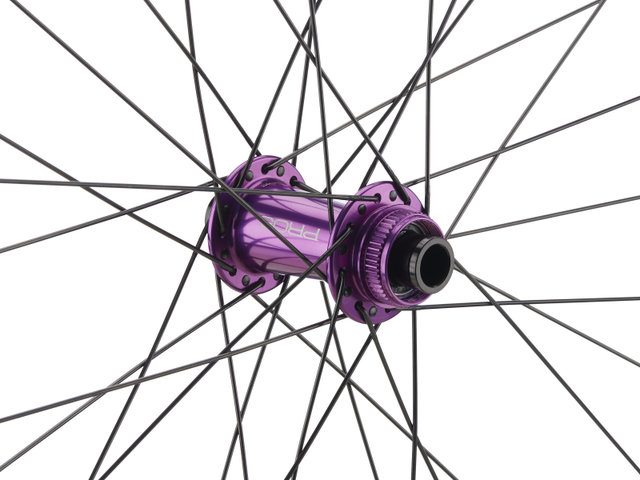

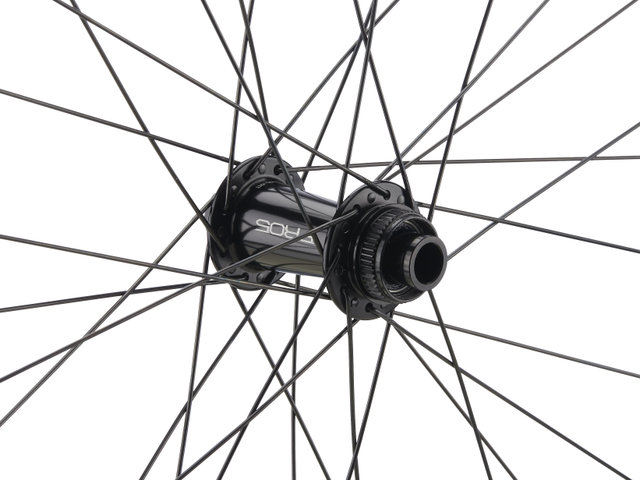

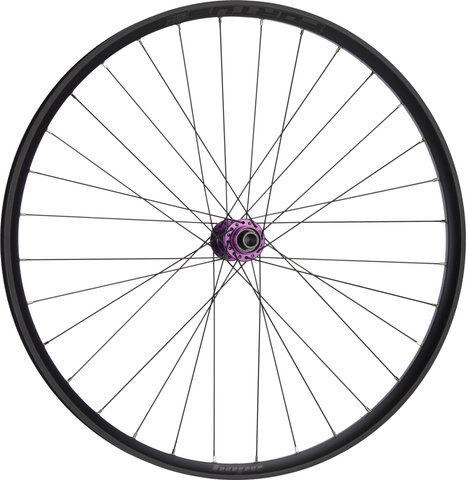

Technical Information - Front Hub:

Type:

Hope Pro 5

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

stainless steel industrial bearings

Body Material:

aluminium

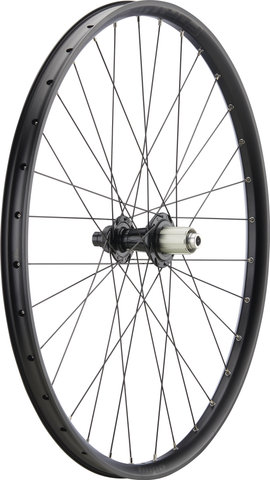

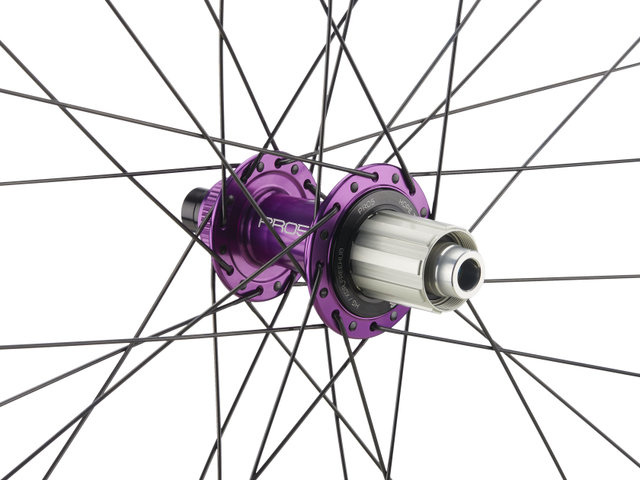

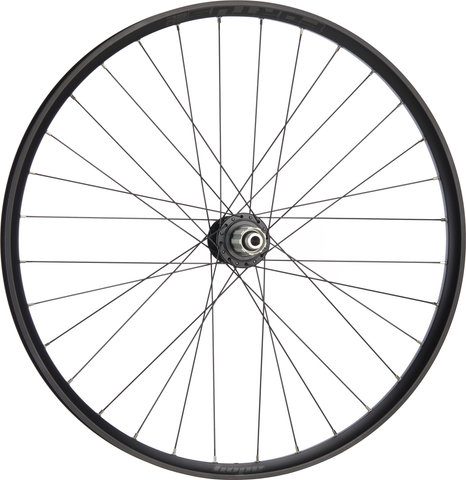

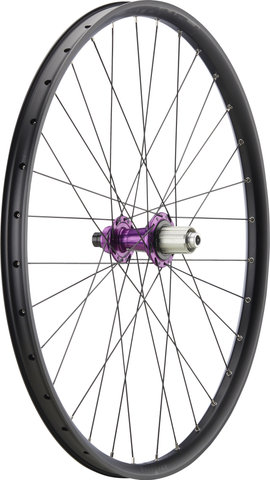

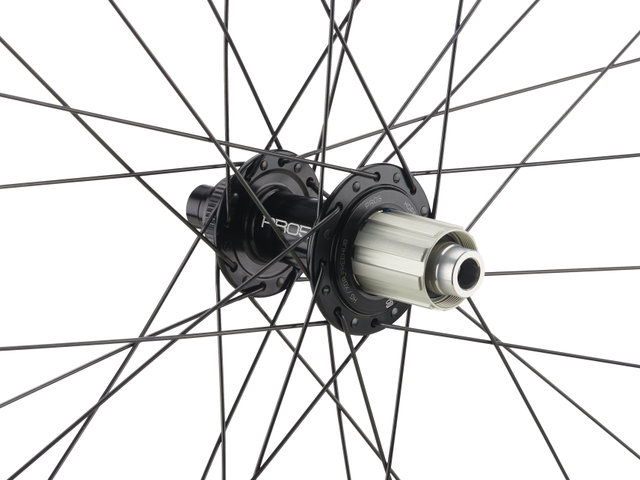

Technical Information - Rear Hub:

Type:

Hope Pro 5

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

stainless steel industrial bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

ratchet system with 6 pawls, 108 contact points

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim Race / J-Bend / straight / triple butted

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

2.4" - 2.8"

Features:

• 27.5" MTB wheelset with Pro 5 boost hubs, centre-lock brake rotor mount and Fortus 30 SC rims
• robust Pro-5 hubs with industrial bearings and labyrinth seal for frictionless function
• ratchet freehub with 6 pawls and a total of 108 contact points
• light and stable single-cavity rims with only one cavity
• welded rim joint
• eyelets
• including rim tape and valves for tubeless set-up

Models:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

• black: HFW27F30SCP5CLN11 (front) + HRW27F30SCP5CLN148SA (rear)
• blue: HFW27F30SCP5CLB11 (front) + HRW27F30SCP5CLB148SA (rear)
• orange: HFW27F30SCP5CLC11 (front) + HRW27F30SCP5CLC148SA (rear)
• purple: HFW27F30SCP5CLPU11 (front) + HRW27F30SCP5CLPU48SA (rear)
• red: HFW27F30SCP5CLR11 (front) + HRW27F30SCP5CLR148SA (rear)
• silver: HFW27F30SCP5CLS11 (front) + HRW27F30SCP5CLS148SA (rear)

Freehub:

SRAM XD

Gearing:

11-/12-speed

• black: HFW27F30SCP5CLN11 (front) + HRW27F30SCP5CLN148XD (rear)
• blue: HFW27F30SCP5CLB11 (front) + HRW27F30SCP5CLB148XD (rear)
• orange: HFW27F30SCP5CLC11 (front) + HRW27F30SCP5CLC148XD (rear)
• purple: HFW27F30SCP5CLPU11 (front) + HRW27F30SCP5CLPU48XD (rear)
• red: HFW27F30SCP5CLR11 (front) + HRW27F30SCP5CLR148XD (rear)
• silver: HFW27F30SCP5CLS11 (front) + HRW27F30SCP5CLS148XD (rear)

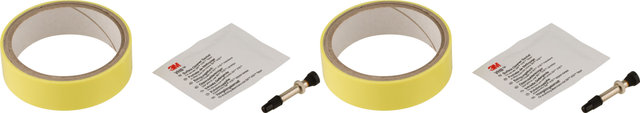

Contents:

• 1 x Hope Pro 5 + Fortus 30 SC Disc Center Lock 27.5" Boost wheelset (front wheel and rear wheel)
• 2 x rolls of rim tape
• 2 x Hope tubeless valves
• 2 x cleaning cloth
