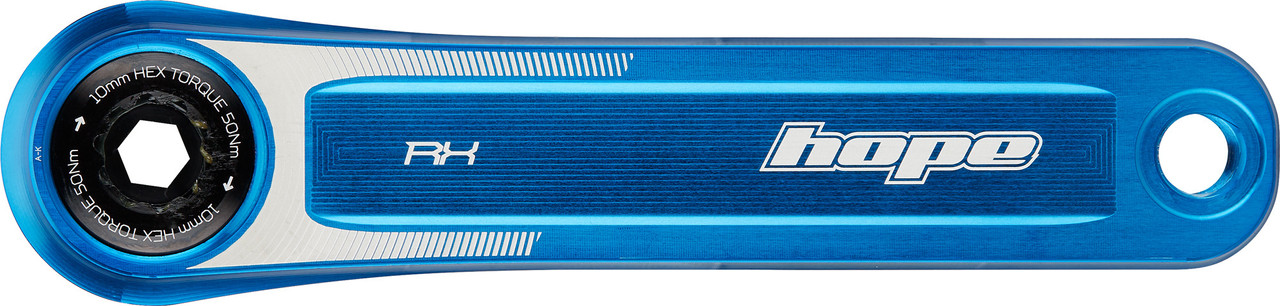

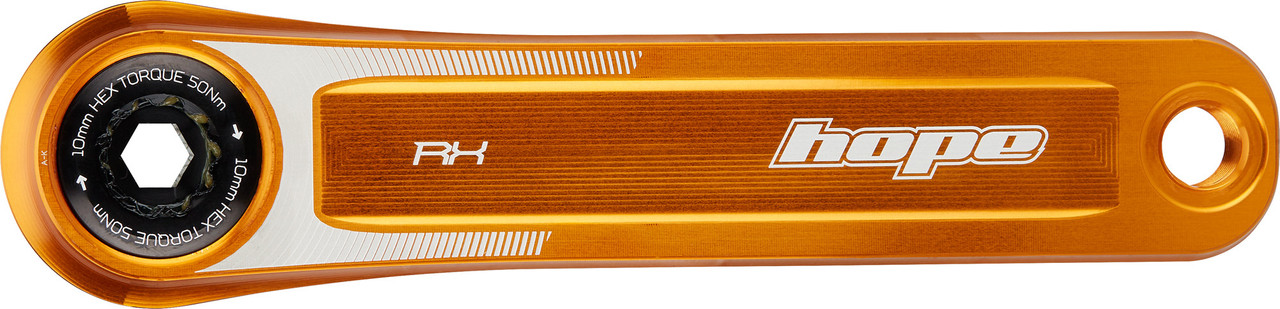

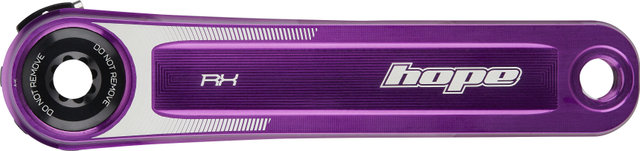

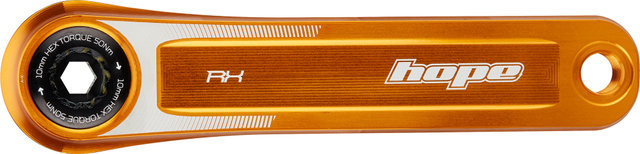

Hope RX Crank

Specifications:

Application:

Gravel, Road

Compatibility:

1x, 2x

Chainring Mount:

Hope Direct Mount

Technical Information:

Series:

RX

Crank Arm Material:

Aluminium

Axle Material:

Aluminium

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

45 mm (1-speed), 43 mm (2-speed)

Q-Factor:

149 mm

Axle Diameter:

30 mm

Compatible BSA Shell Width:

68 mm

Recommended Bottom Bracket:

BSA, PF41

Note:

A complete overview of compatible bottom brackets and necessary spacers can be found in the compatibility list from Hope.

Features:

• lightweight aluminium crank for gravel bikes and road bikes
• precise CNC-milled, two-part hollow construction saves weight and is still enormously stable
• oversized axle with 30 mm diameter
• with integrated crank removal tool for easy assembly and disassembly
• suitable for 1x or 2x drivetrains

Manufacturer Numbers:

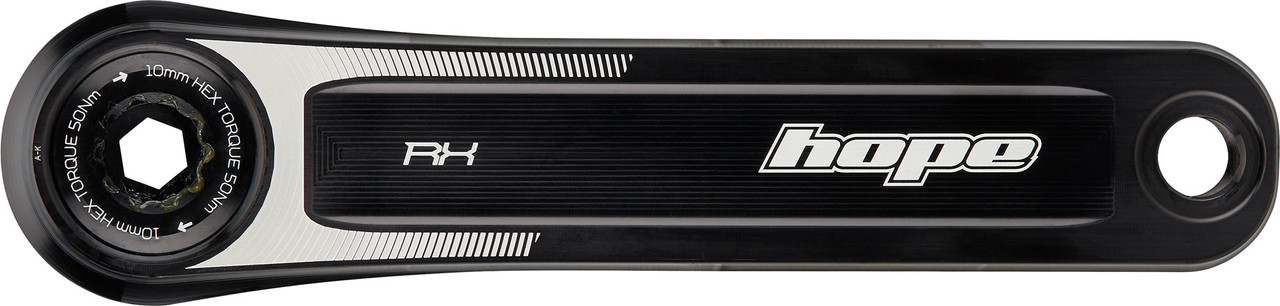

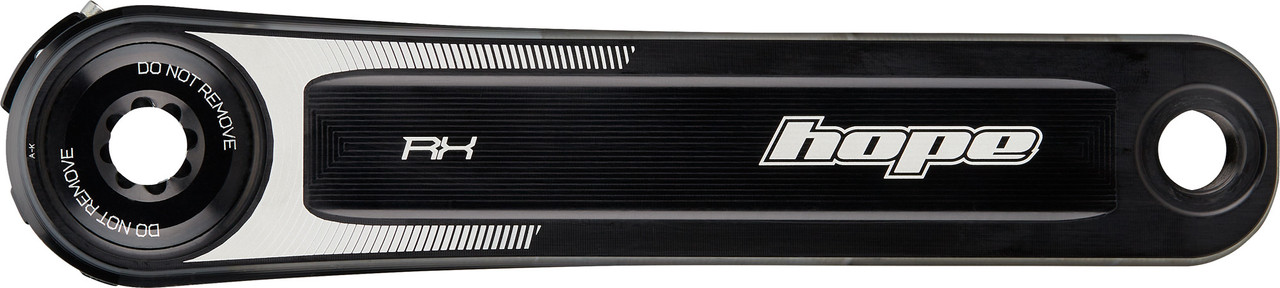

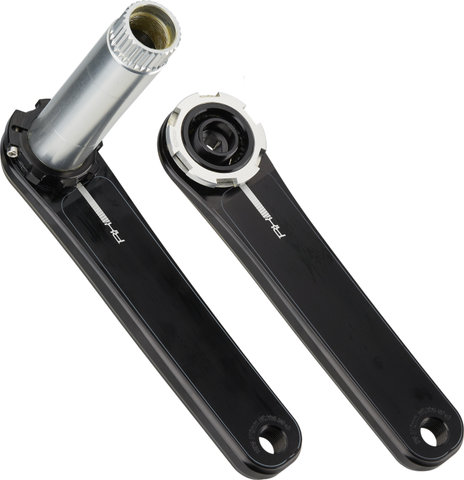

black / 170.0 mm:

HCRXN70N

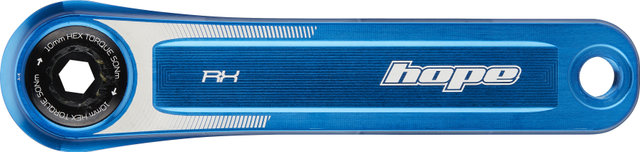

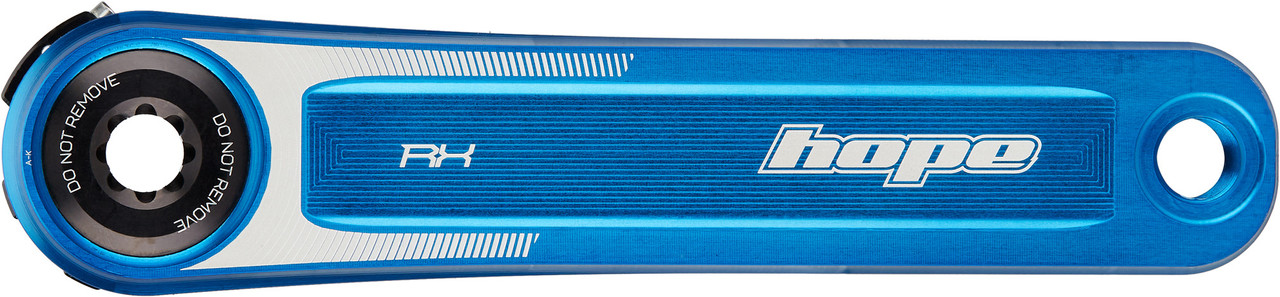

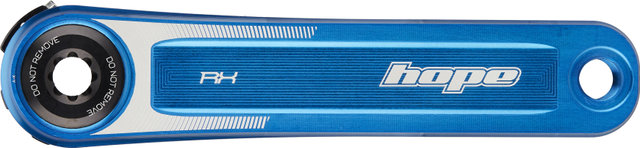

blue / 170.0 mm:

HCRXN70B

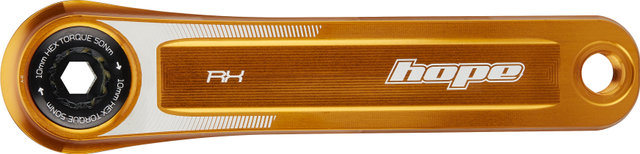

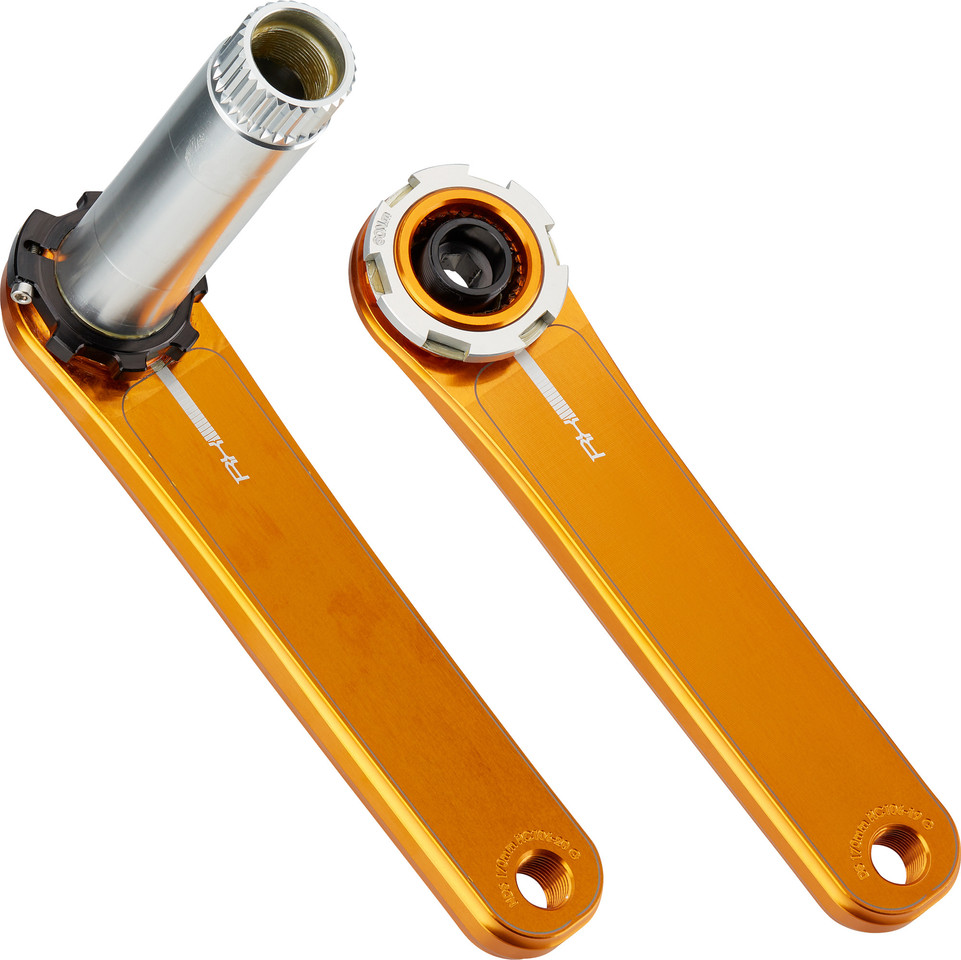

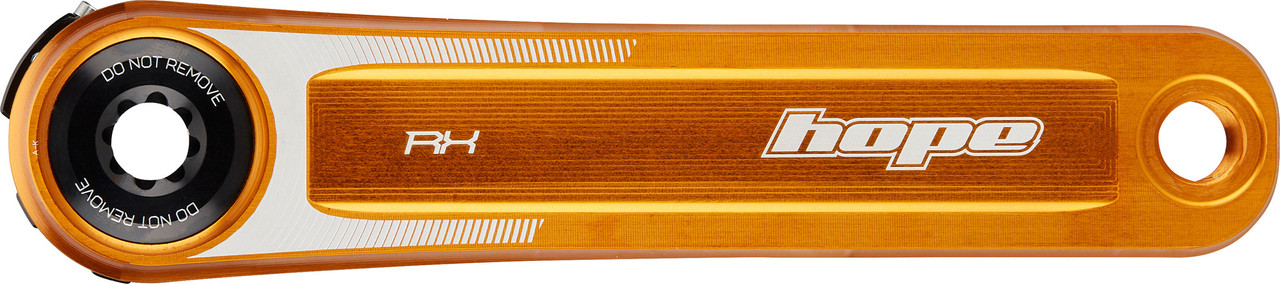

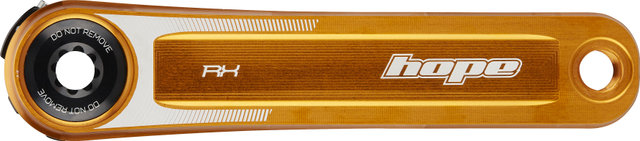

orange / 170.0 mm:

HCRXN70C

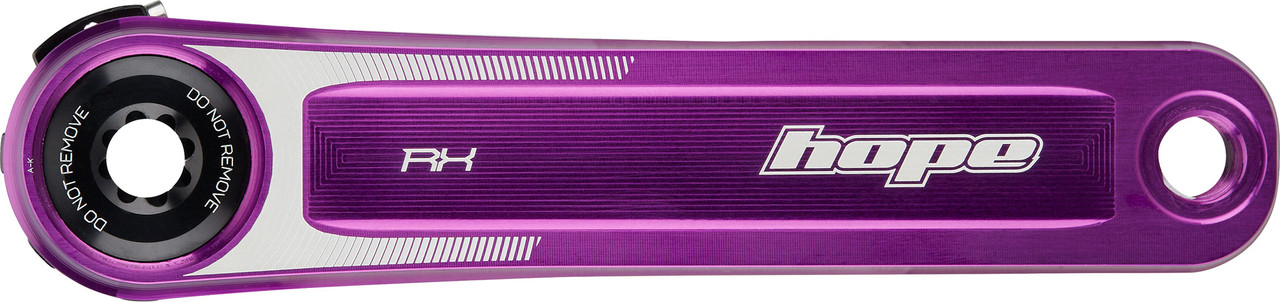

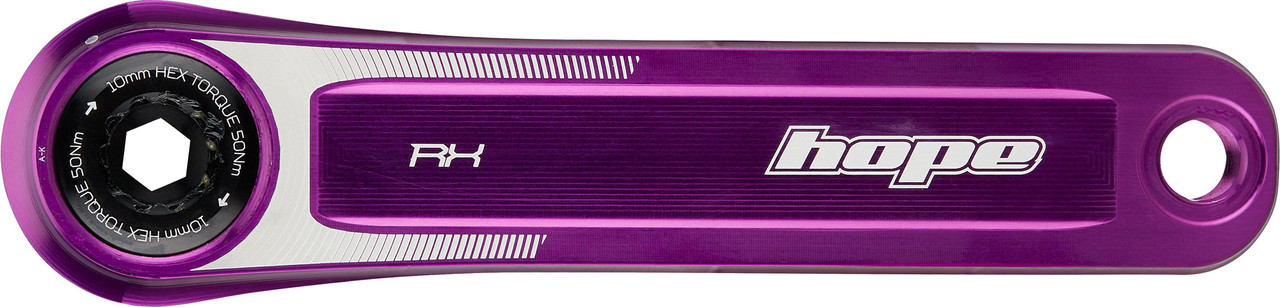

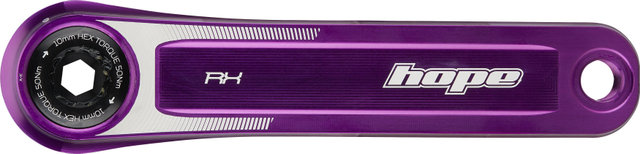

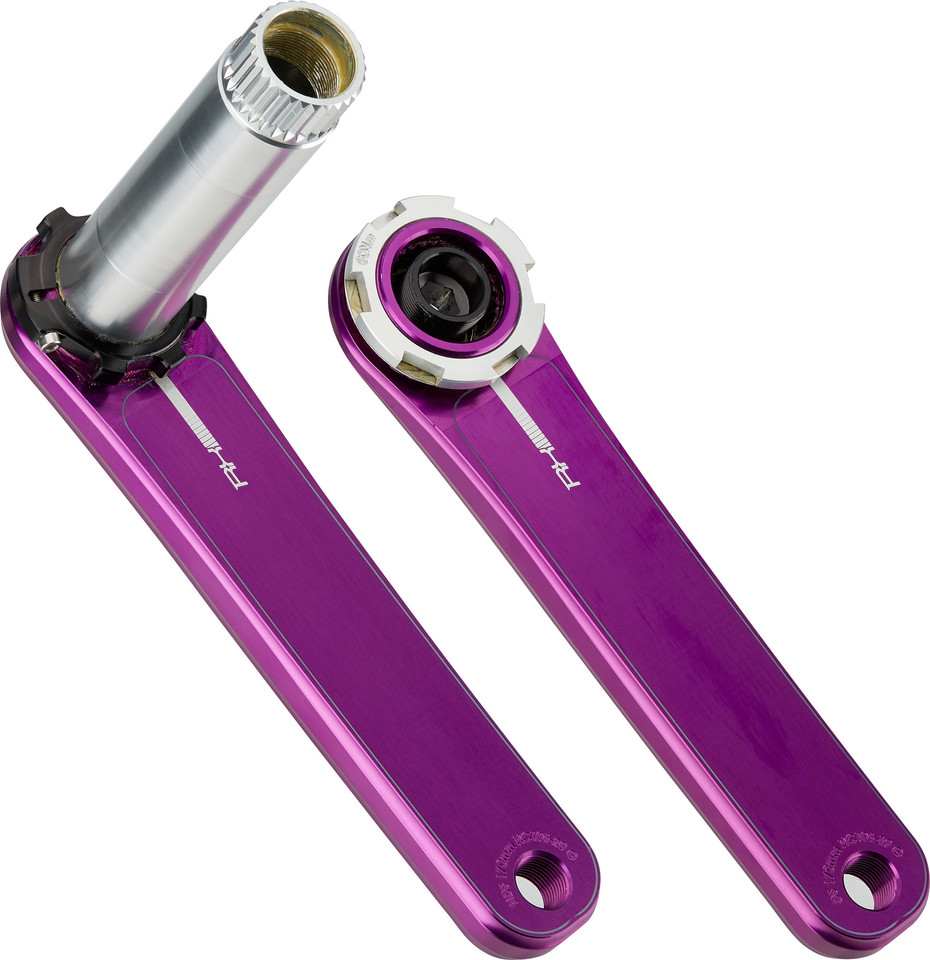

purple / 170.0 mm:

HCRXN70PU

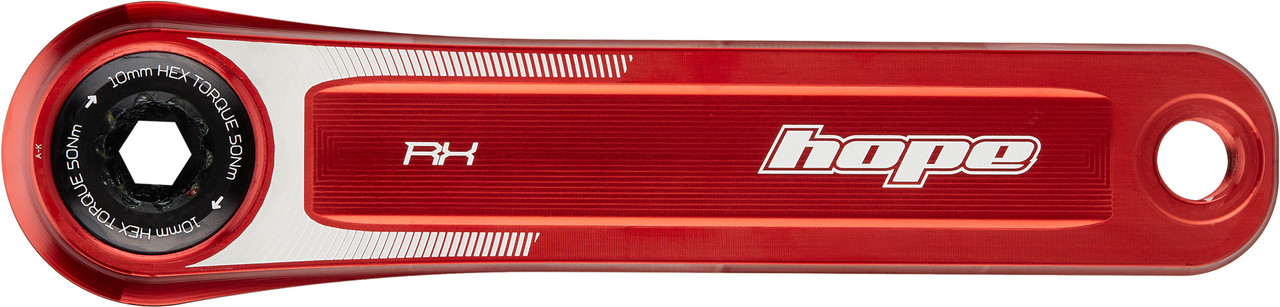

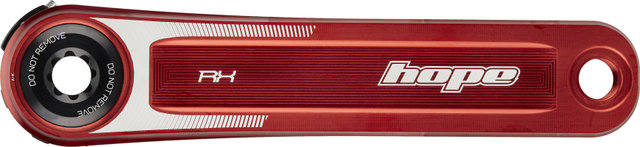

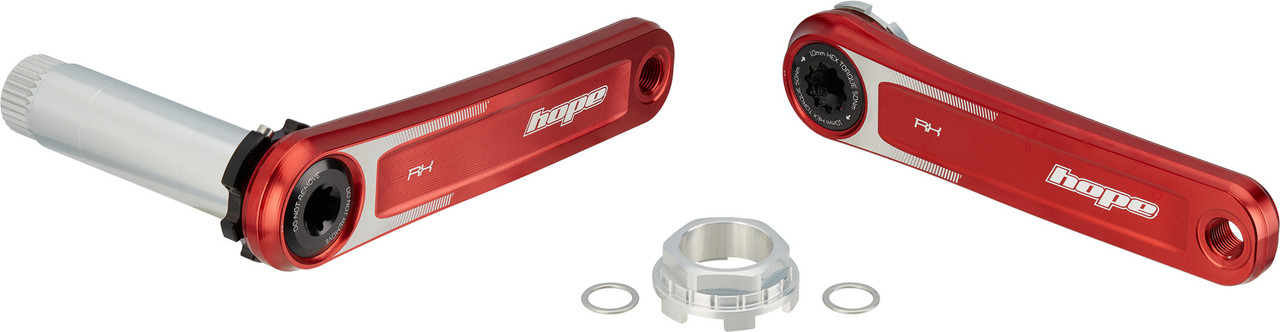

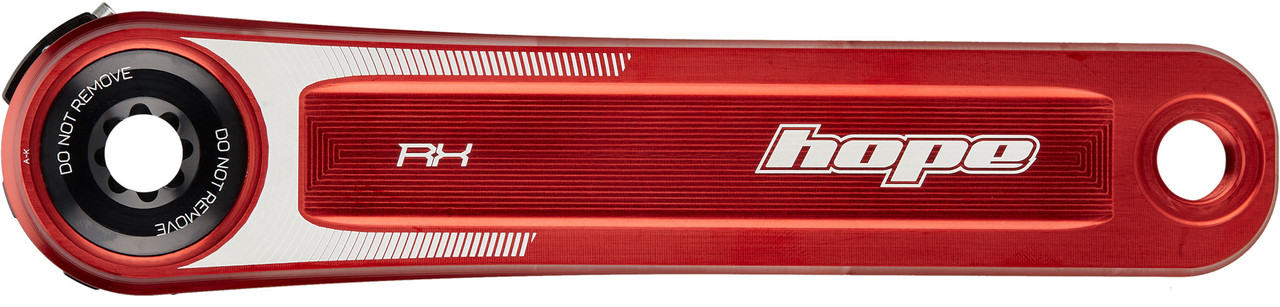

red / 170.0 mm:

HCRXN70R

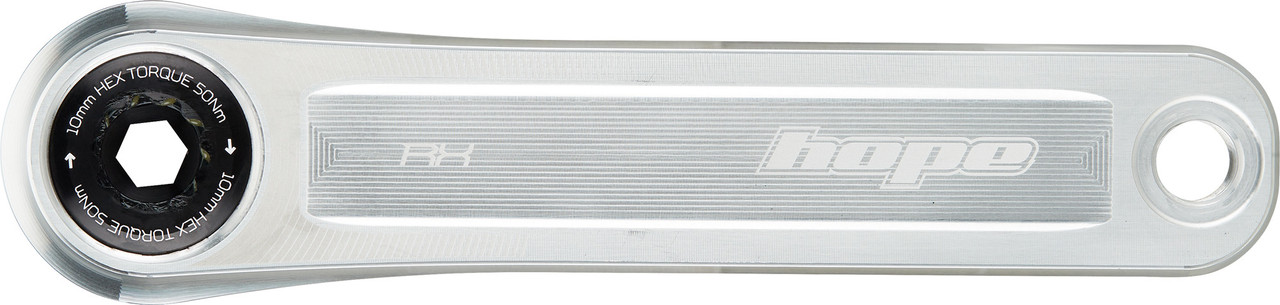

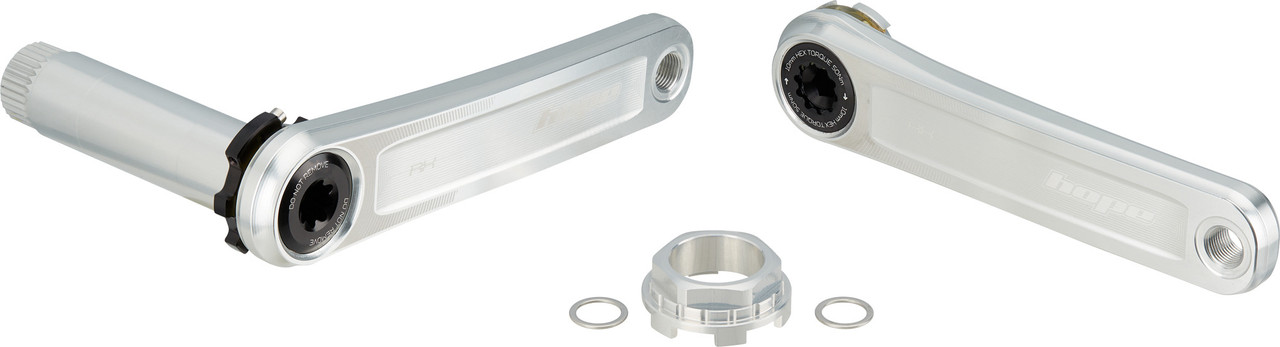

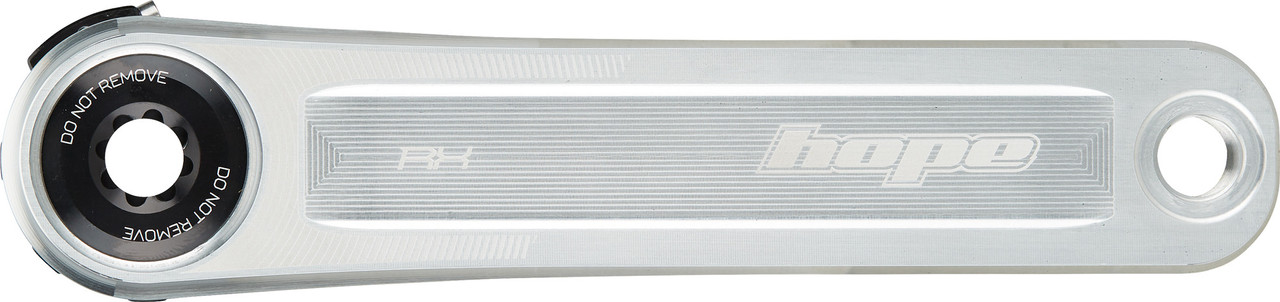

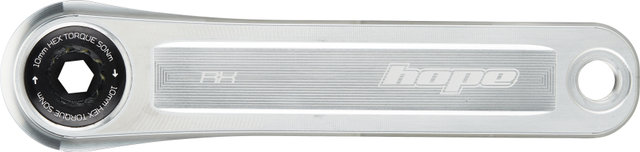

silver / 170.0 mm:

HCRXN70S

black / 172.5 mm:

HCRXN72N

blue / 172.5 mm:

HCRXN72B

orange / 172.5 mm:

HCRXN72C

purple / 172.5 mm:

HCRXN72PU

red / 172.5 mm:

HCRXN72R

silver / 172.5 mm:

HCRXN72S

black / 175.0 mm:

HCRXN75N

blue / 175.0 mm:

HCRXN75B

orange / 175.0 mm:

HCRXN75C

purple / 175.0 mm:

HCRXN75PU

red / 175.0 mm:

HCRXN75R

silver / 175.0 mm:

HCRXN75S

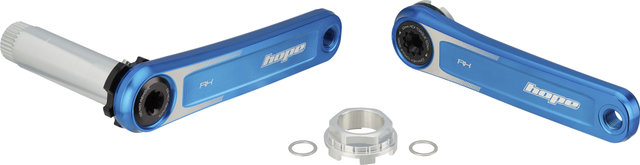

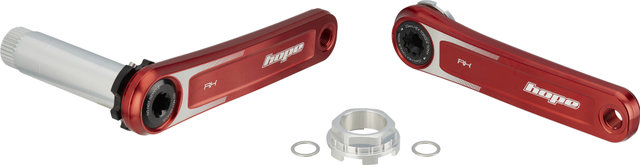

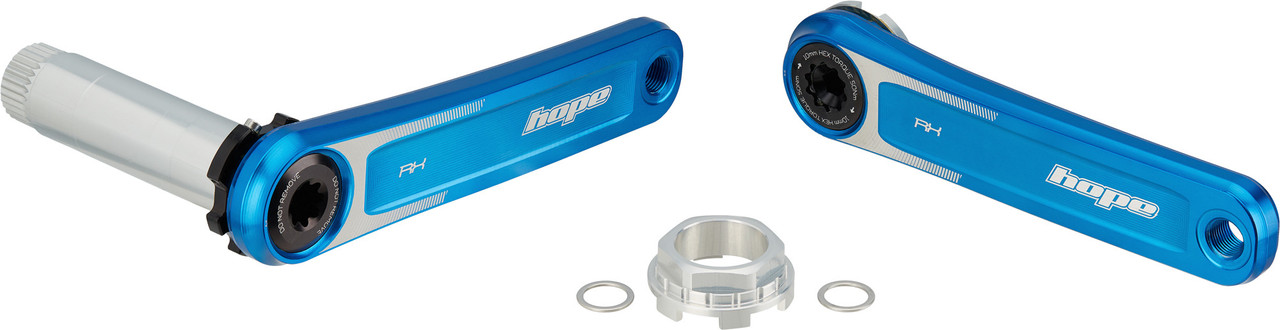

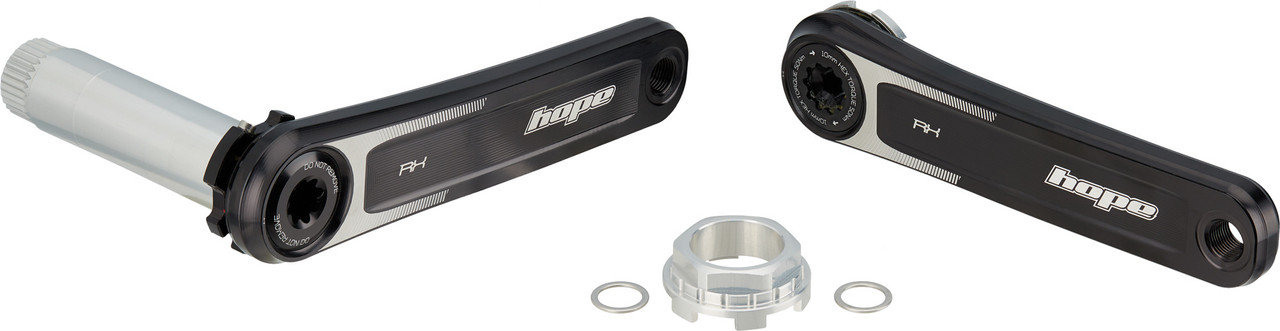

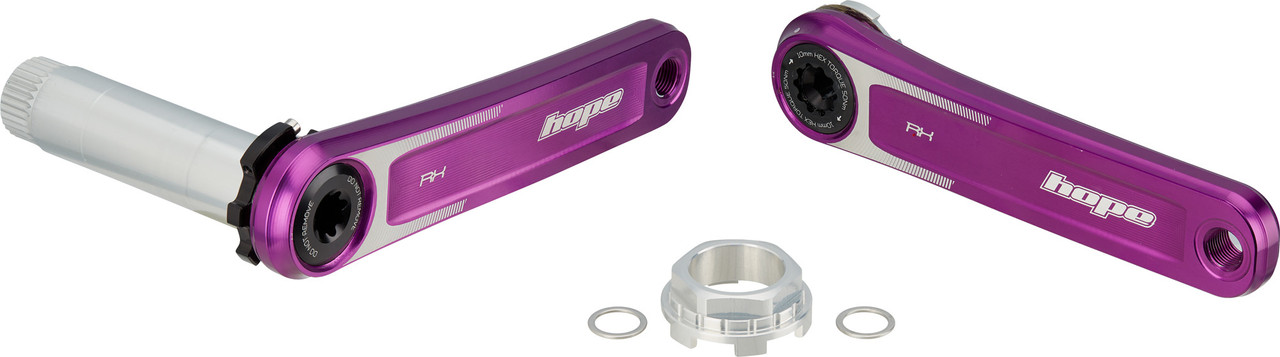

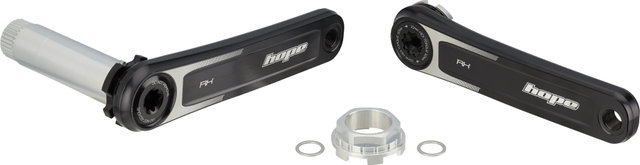

Contents:

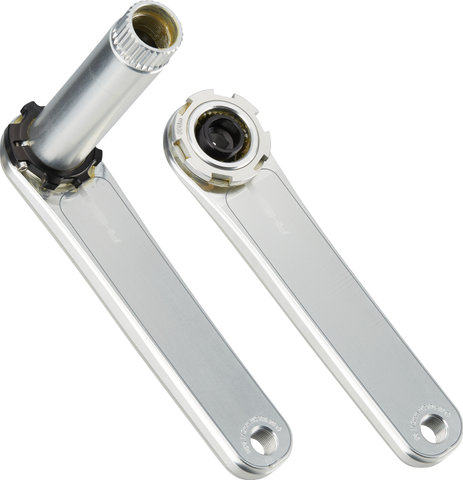

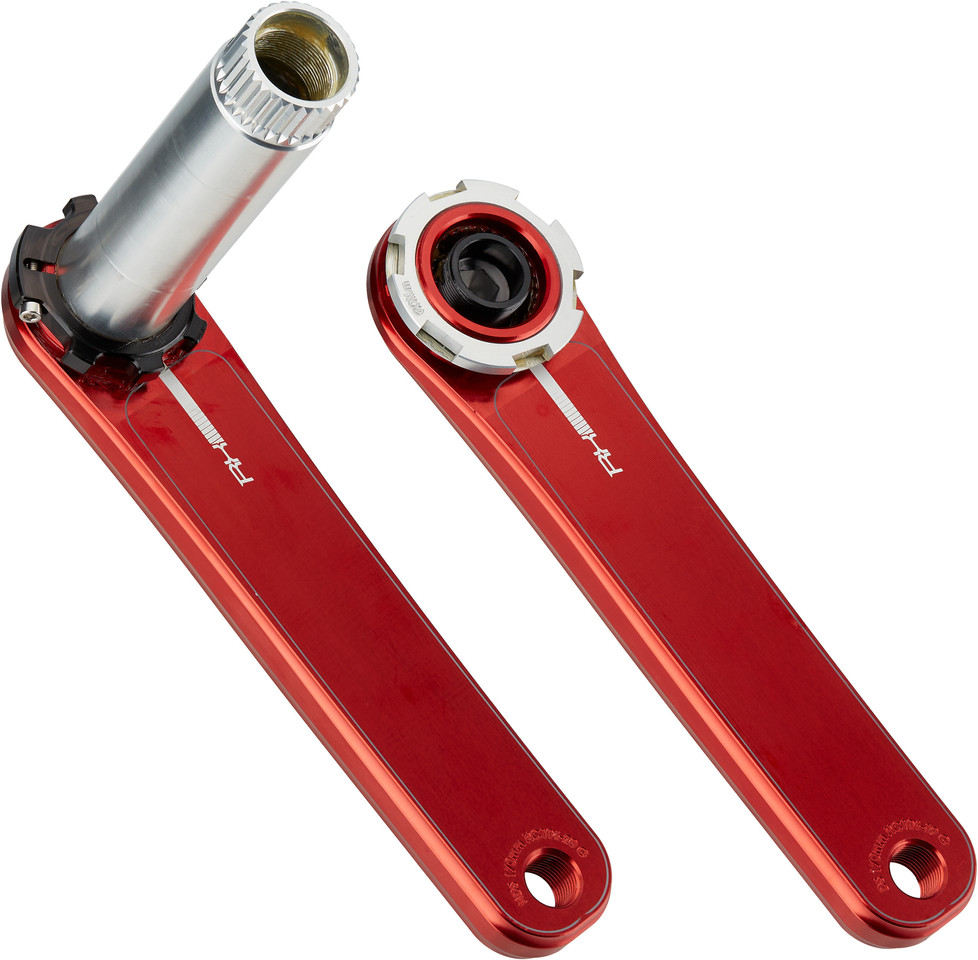

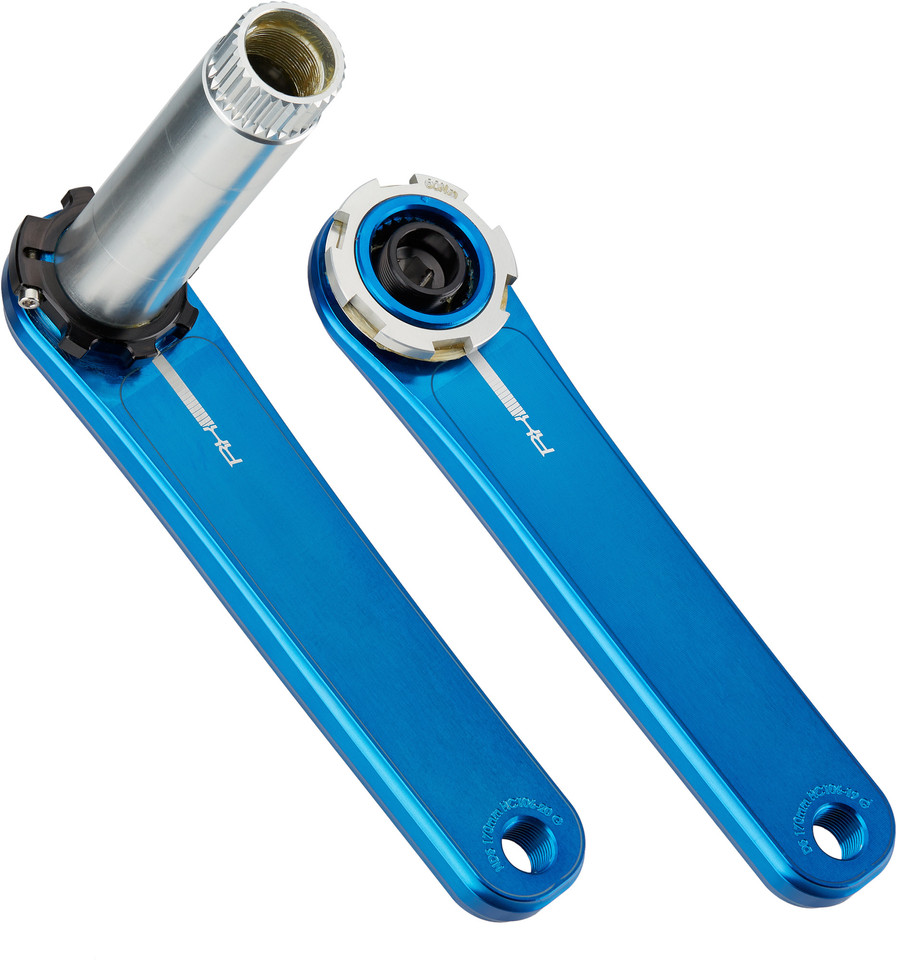

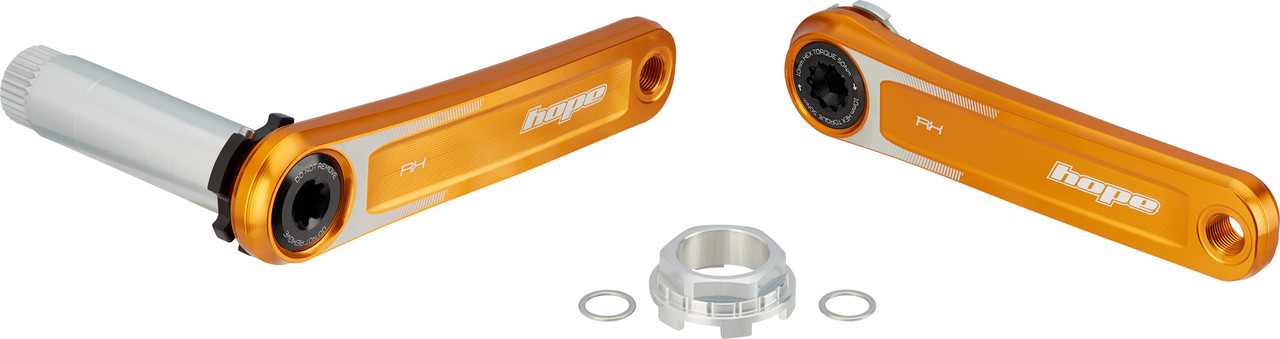

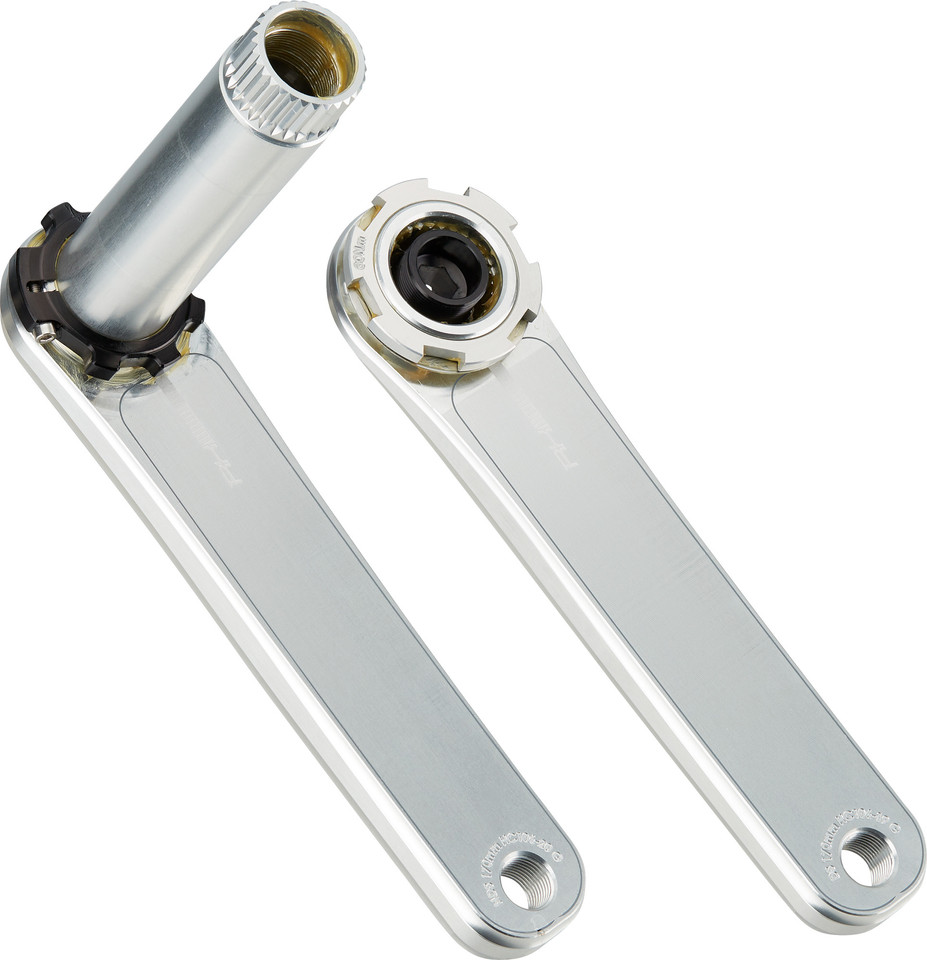

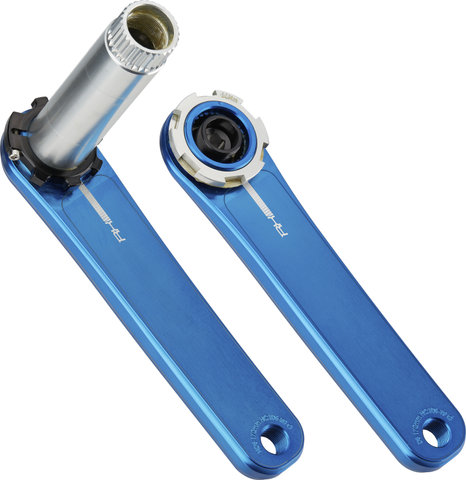

• 1 x Hope RX left crank arm with axle
• 1 x Hope RX right crank arm
• 2 x washers for pedals
• 1 x Hope lockring tool

Order Together:

• RX Spiderless Direct Mount chainring
