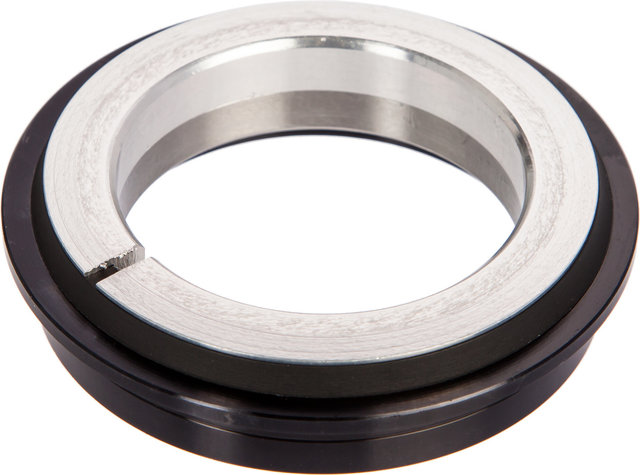

Hope ZS56/40 E Headset Bottom Assembly

High reliability: the ZS56/40 E Headset Bottom Assembly by Hope

The Hope ZS56/40 headset bottom assembly is distinguished by its reliability and durability. The reason for this is the corrosion-resistant stainless steel bearing and the rubber seal. In addition, the headset cup is made of high-quality aluminium. The crown race is slotted to facilitate assembly.

Use:

For 1.5" lower head tubes combined with 1.5" , 1 1/8" - 1.5" tapered or 1 1/4" - 1.5" tapered forks.

Specifications:

Application:

Downhill, All Mountain, Enduro, Cross Country, Trail

Bottom Cup:

1.5"

Steerer Tube:

1 1/8" , 1 1/8" - 1.5" tapered, 1 1/4" - 1.5" tapered

Design:

Zero Stack (ZS)

Technical Information:

Material:

aluminium (2014-T6)

Bearings:

angular contact ball bearings, stainless steel

Lower Insert Depth:

10 mm

Bottom Outer Diameter:

55.9 mm

Bottom Inner Diameter:

40 mm

Seals:

integrated rubber seal

Features:

• replaceable corrosion-resistant stainless steel bearings
• slotted crown race for easier assembly
• sealed

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Numbers:

orange:

HSCEC

purple:

HSCEPU

black:

HSCE

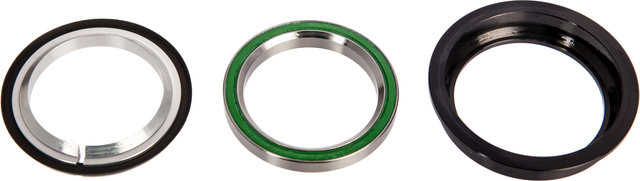

Contents:

• 1 x Hope lower headset cup incl. stainless steel bearings
• 1 x crown race
• 1 x O-ring
