Knipex Assembly Pack Pliers Set

The pliers set assembly pack from Knipex consists of combination pliers, diagonal cutting pliers and flat round nose pliers with cutting edge.

Specifications:

Function:

general tools

Type:

Pliers, diagonal cutting pliers

Technical Information:

Material:

steel

Handle Material:

composite material

Features:

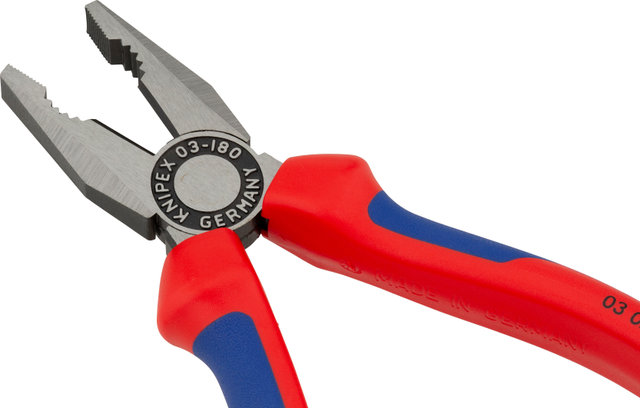

Combination Pliers:

• serrated gripping surfaces
• cutting edges inductively hardened, cutting edge hardness approx. 60 HRC
• made of special tool steel, forged, multi-stage oil-hardened
• cutting capacity for medium-hard wire: Ø 3.4 mm
• cutting capacity for hard wire: Ø 2.2 mm
• cutting capacity for cu-cables, stranded: Ø 12.0 mm
• cutting capacity for cu-cables, stranded: 16.0 mm²
• dimensions 180 x 54 x 21 mm
• DIN ISO 5746

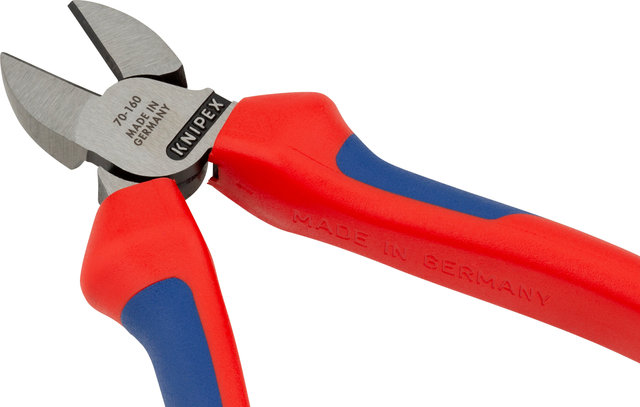

Diagonal Cutting Pliers:

• cutting edges inductively hardened, cutting edge hardness approx. 62 HRC
• made of vanadium electric steel, forged, multi-stage oil-hardened
• cutting capacity for soft wire: Ø 4.0 mm
• cutting capacity for medium-hard wire: Ø 3.0 mm
• cutting capacity for hard wire: Ø 2.0 mm
• dimensions 160 x 53 x 21 mm
• DIN ISO 5749

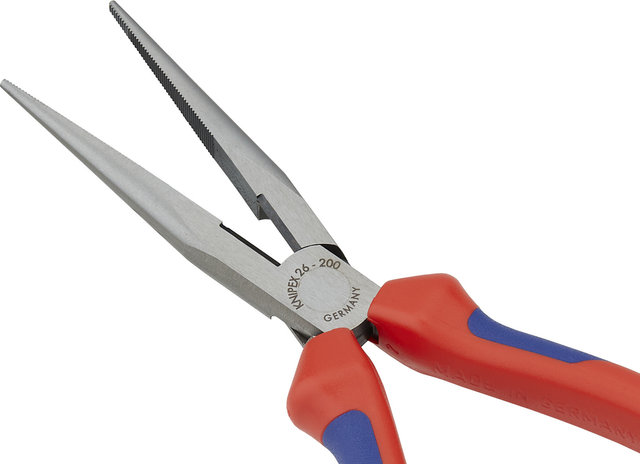

Flat Round Nose Pliers:

• elastic precision tips, dimensionally stable even when twisted
• cutting edges inductively hardened, cutting edge hardness approx. 61 HRC
• made of vanadium electric steel, forged, multi-stage oil-hardened
• cutting capacity for medium-hard wire: Ø 3.2 mm
• cutting capacity for hard wire: Ø 2.2 mm
• dimensions 200 x 48 x 19 mm
• DIN ISO 5745

Manufacturer Number:

00 20 11

Contents:

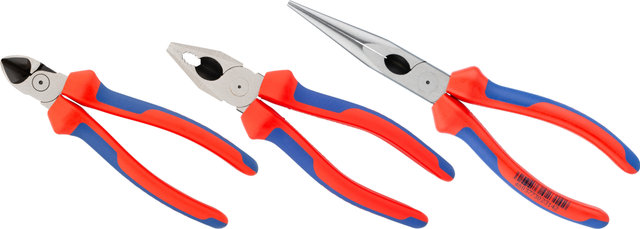

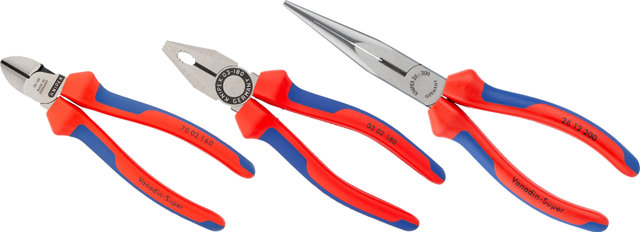

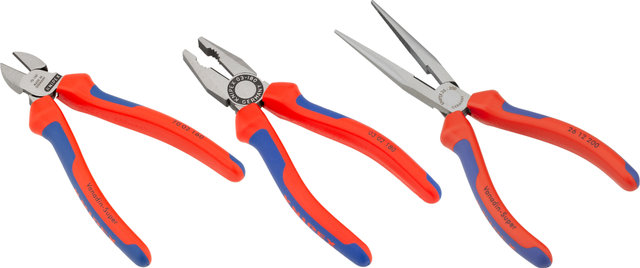

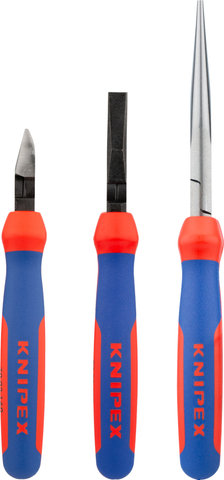

Pliers Set Assembly Pack, consisting of:

• 1 x Knipex universal pliers
• 1 x Knipex diagonal cutter
• 1 x Knipex flat round nose pliers with cutting edge
