Knipex Pliers Wrench

Pliers and wrench in one tool: the Pliers Wrench by Knipex

The pliers wrench from Knipex is a pair of pliers and a wrench in one, and is particularly suitable for gently assembling surface-finished fittings, due to parallel guided jaws and simple adjustment at the touch of a button.
The smooth jaws grip, if necessary, with high pressing pressure all parallel surfaces in the capacity range and open up a wide range of applications for the pliers wrench: e.g. for counter screw connections, pressing to activate the adhesive force for contact adhesives, edge breaking for tiling work, cracking cable ties through to use as a small vice.

Specifications:

Function:

screwdriver

Type:

pliers

Type:

Pliers Wrench

Technical Information:

Material:

steel

Features:

• pliers and wrench in one tool
• for gripping, holding, pressing and bending workpieces

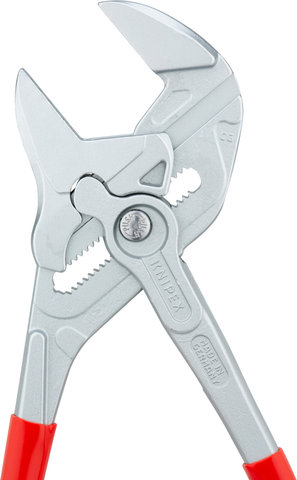

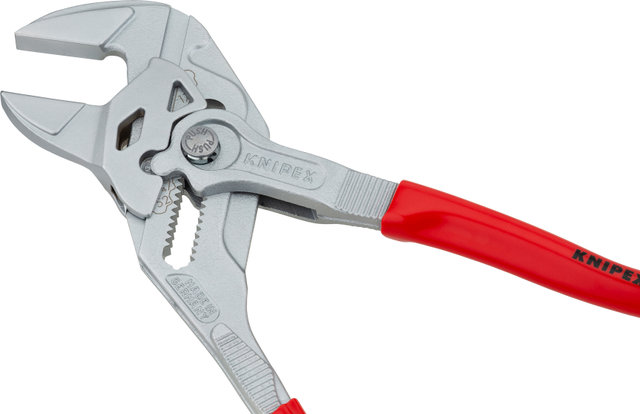

• stepless gripping of all wrench sizes up to the specified capacity by means of parallel guided jaws

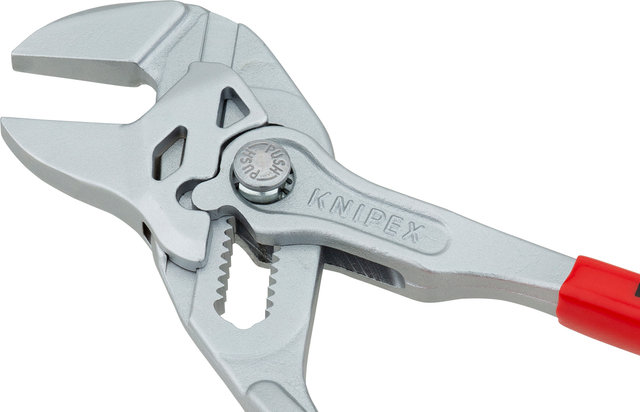

• button adjustment directly on the workpiece
• secure catching of the hinge bolt: no unintentional adjustment
• the stroke between the gripping jaws allows quick tightening and loosening of screw connections according to the ratchet principle
• high clamping force due to 10-fold manual force amplification
• no damage to the edges of sensitive fittings due to play-free, full-surface contact
• chrome vanadium electric steel, forged, oil-hardened

Models:

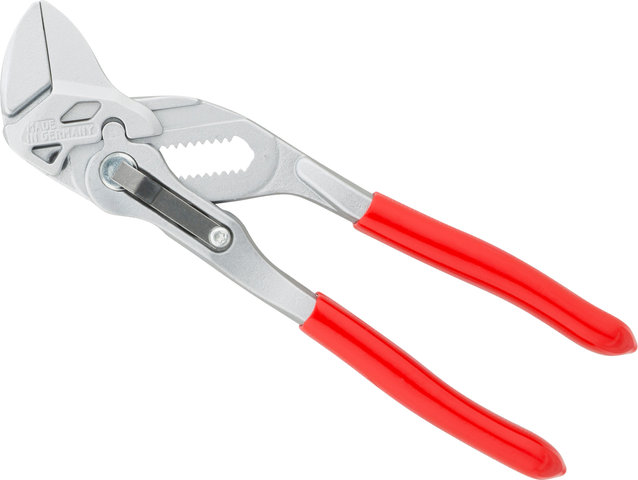

Versions with single plastic handle

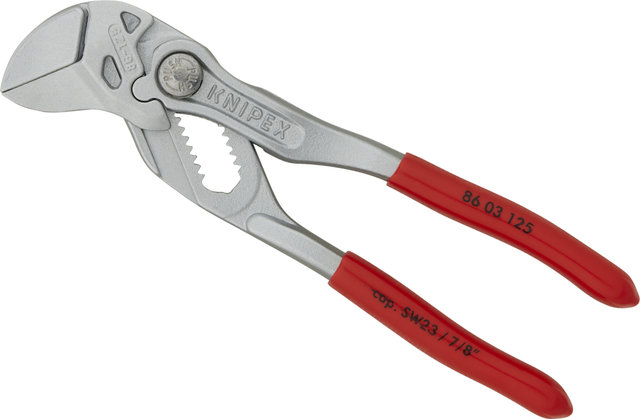

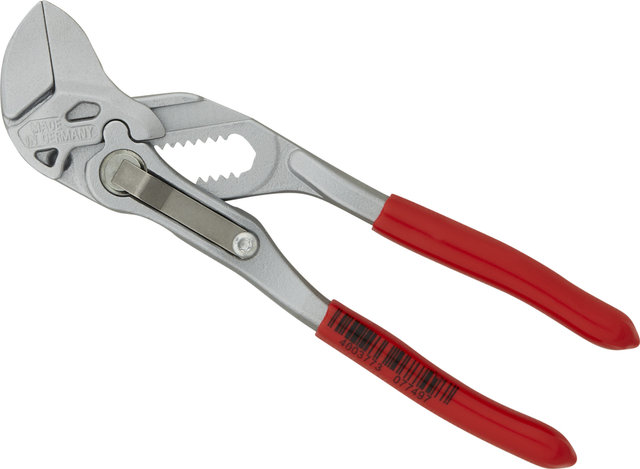

125 mm / red:

Length:

125 mm

Adjustment Positions:

11

Nut Capacity (Hex Diameter):

7/8 inch / 23 mm

Manufacturer Number:

86 03 125

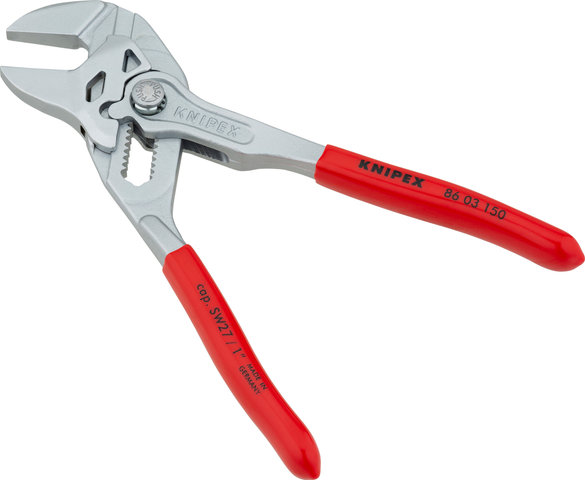

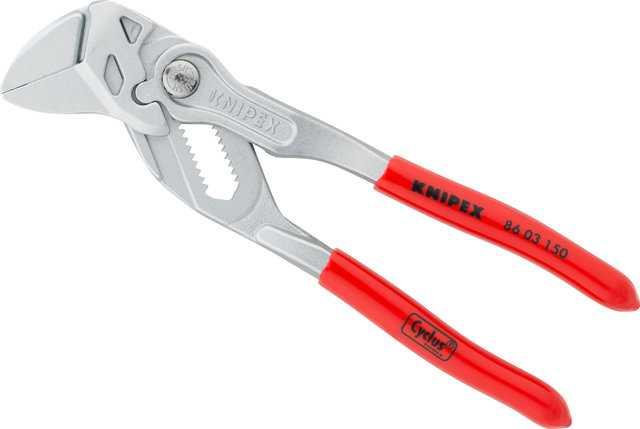

150 mm / red:

Length:

150 mm

Adjustment Positions:

14

Nut Capacity (Hex Diameter):

1 inches / 27 mm

Manufacturer Number:

86 03 150

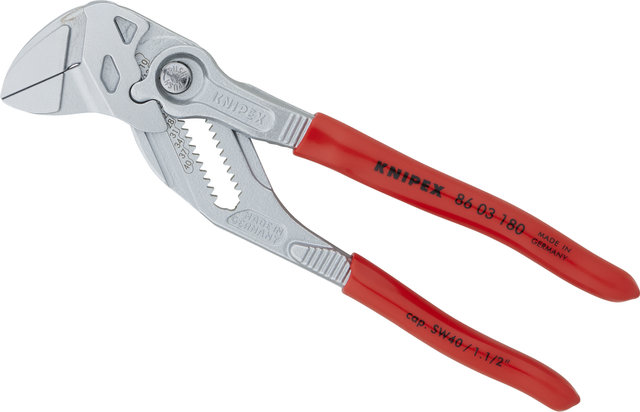

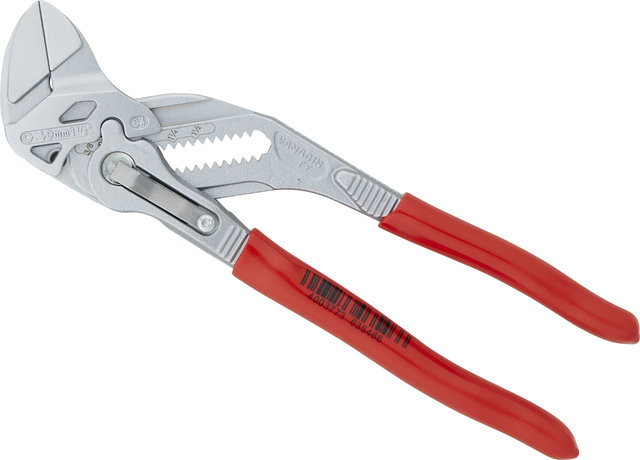

180 mm / red:

Length:

180 mm

Adjustment Positions:

15

Nut Capacity (Hex Diameter):

1 1/2 inches / 40 mm

Manufacturer Number:

86 03 180

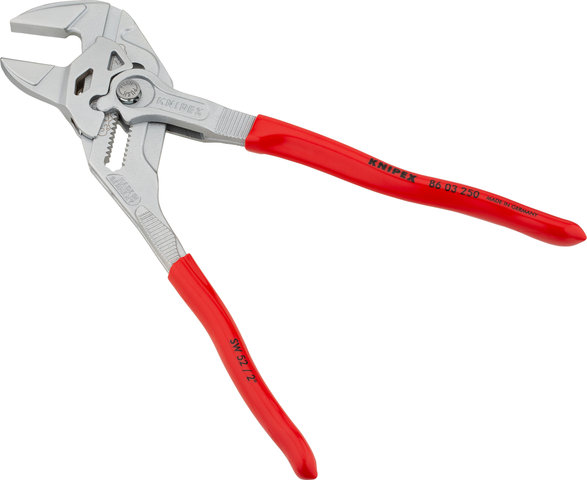

250 mm / red:

Length:

250 mm

Adjustment Positions:

19

Nut Capacity (Hex Diameter):

2 inch / 52 mm

Manufacturer Number:

86 03 250

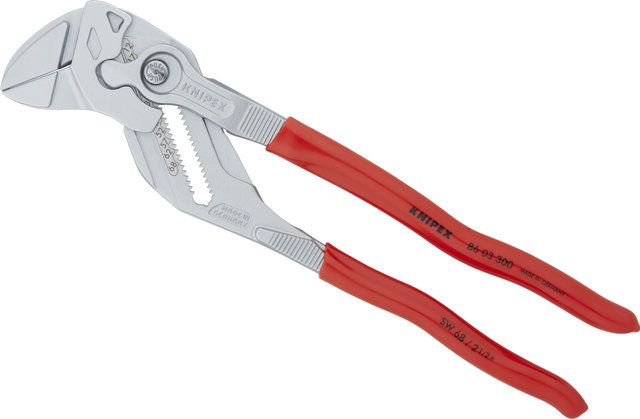

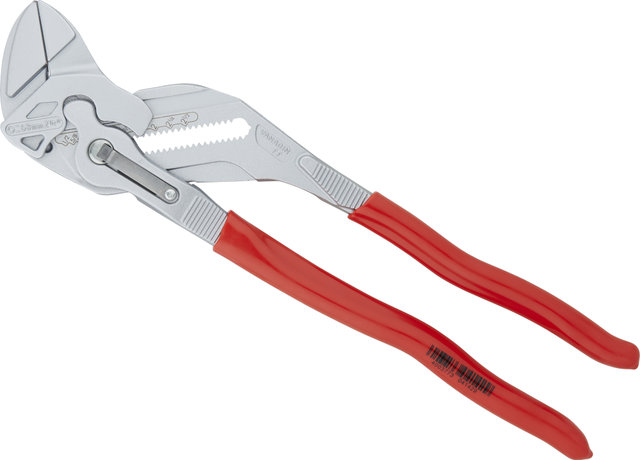

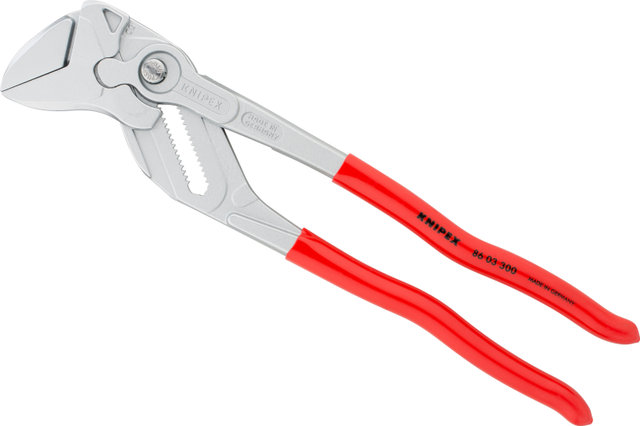

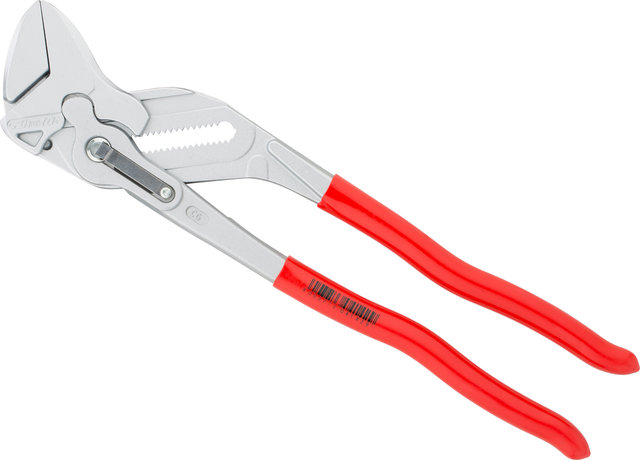

300 mm / red:

Length:

300 mm

Adjustment Positions:

24

Nut Capacity (Hex Diameter):

2 1/2 inches / 68 mm

Manufacturer Number:

86 03 300

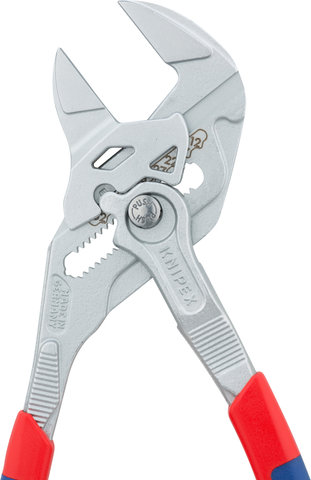

Versions with multi-component handle

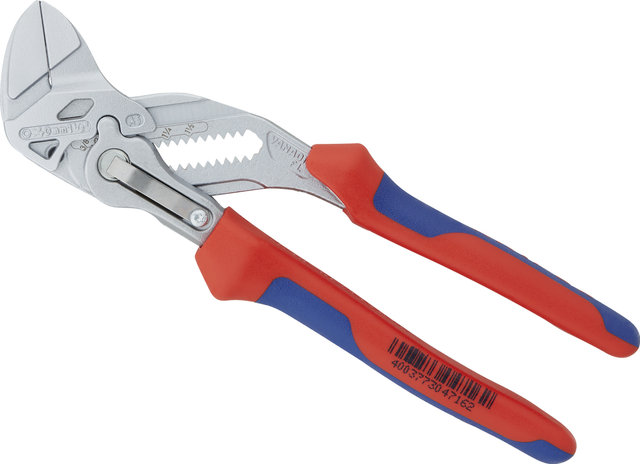

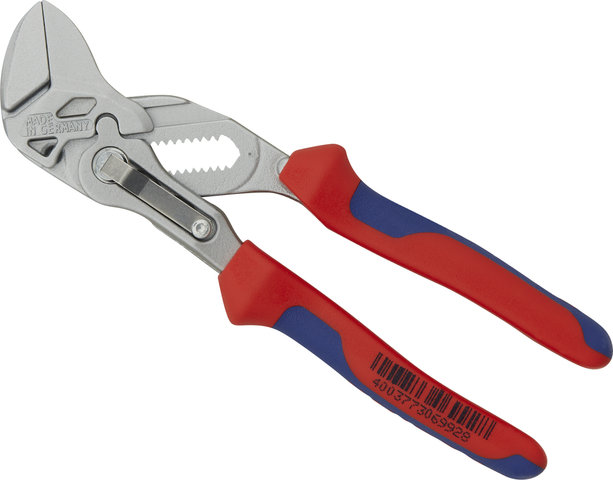

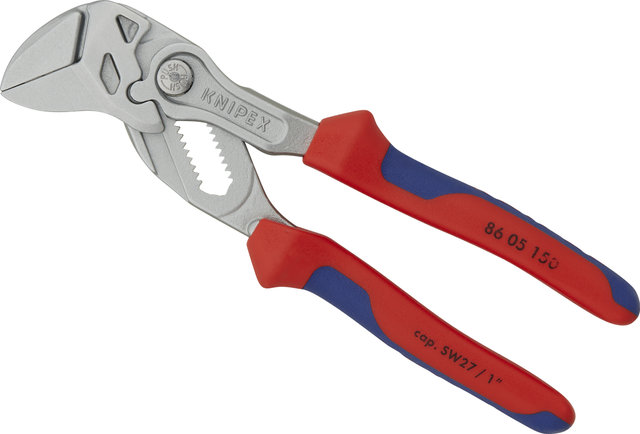

150 mm / red-blue:

Length:

150 mm

Adjustment Positions:

14

Nut Capacity (Hex Diameter):

1 inches / 27 mm

Manufacturer Number:

86 05 150

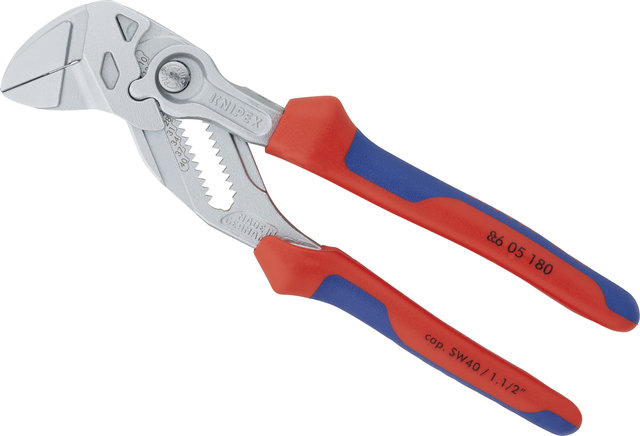

180 mm / red-blue:

Length:

180 mm

Adjustment Positions:

15

Nut Capacity (Hex Diameter):

1 1/2 inches / 40 mm

Manufacturer Number:

86 05 180

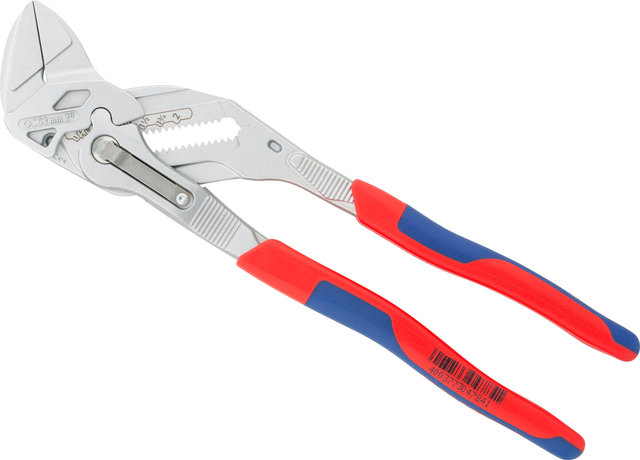

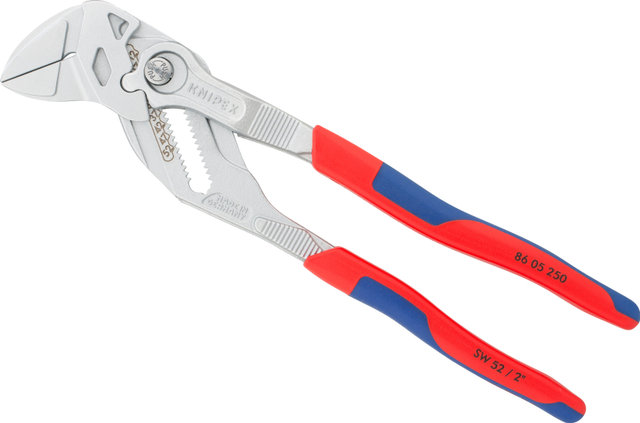

250 mm / red-blue:

Length:

250 mm

Adjustment Positions:

19

Nut Capacity (Hex Diameter):

2 inches / 52 mm

Manufacturer Number:

86 05 250

Contents:

• 1 x Knipex pliers wrench
