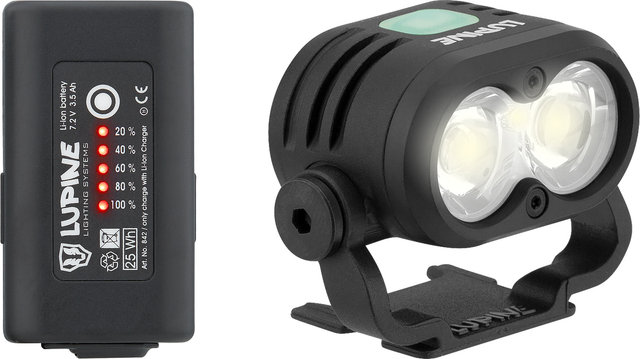

Lupine Piko R 4 SC LED Helmet Light

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

helmet light (white)

Light Source:

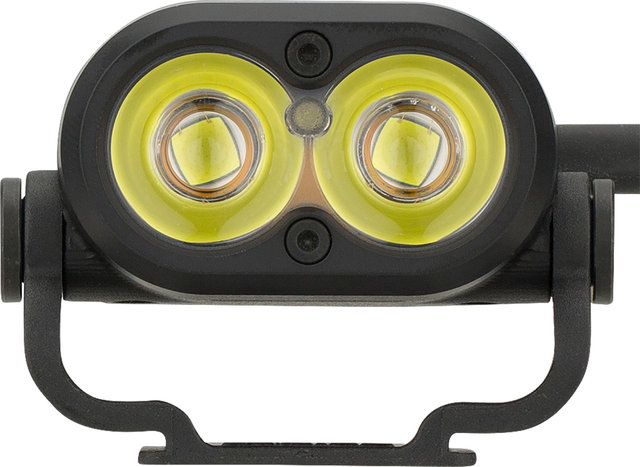

3 x LED (2 x CREE XM-L3, 1 x XQ-E HI)

Brightness:

2100 lumens

Burn Time:

1:15 (2100 lumens) - 80:00 (diffused light 40 lumens) hours

Power Source:

battery (lithium-ion)

Power Indicator:

yes

Technical Information - Light:

Material:

aluminium (6061-T6)

Illumination Range:

215 m

Illumination Modes:

6 levels from 0.3 W (50 lumens) to 20 W (2100 lumens), diffuse light, SOS, Alpine distress signal, RVLR

Protection Rating:

IP68, IK09

Mount:

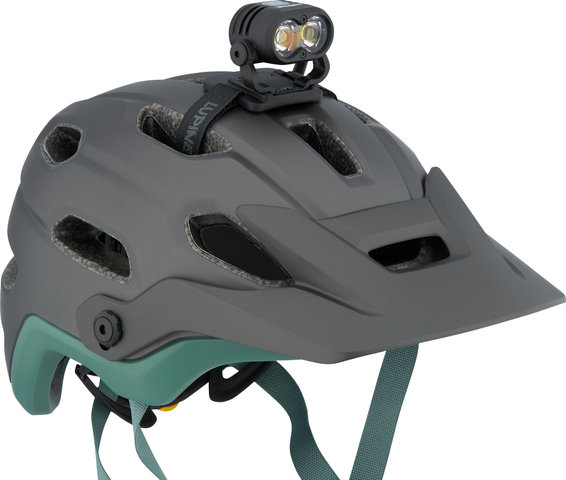

FrontClick helmet mount

Dimensions (H x W x D):

26 x 43 x 32 mm

Technical Information - Battery:

Material:

polyamide

Capacity:

3.5 Ah

Charge Time:

1:50 hours

Protection Rating:

IP68, IK09

Mount:

FastClick battery mount

Dimensions (H x W x D):

72 x 40 x 22 mm

Features:

• small, powerful helmet light with remote

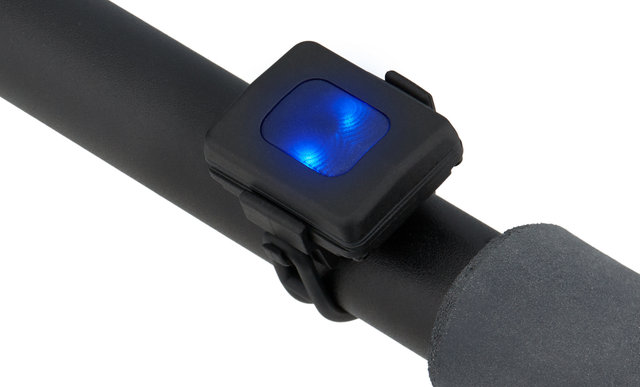

• Bluetooth remote control
• Lupine Light Control App
• 22° Optics (Collimated Lens Technology)
• CNC-milled aluminium housing
• colour temperature: 6000 K

Technology:

FrontClick
More flexibility than ever with the FrontClick quick-release system. You can turn your head lamp into a helmet light or swap out the light from one helmet to the next in just a few seconds, without any tools.

FastClick Battery Mount
Lupine's FastClick-System enables you to carry the headlamp battery directly on your head and change it out in seconds.

Manufacturer Number:

d4200-202

Using Helmet Lights

Helmet lights and head lamps are ideal for outdoor sports. Whether it's in traffic, on closed or private grounds or at sporting events, a helmet light is essential for the well-equipped rider.

However, helmet lights are not bicycle lights, in that they do not have StVZO approval and may not be mounted on the bicycle for lighting purposes. Its use as helmet light is not permitted on roads in Germany either.
You should therefore always use a StVZO-approved bike light, which is indicated by the number [K~~].

For use in other countries, please refer to local public safety authorities.

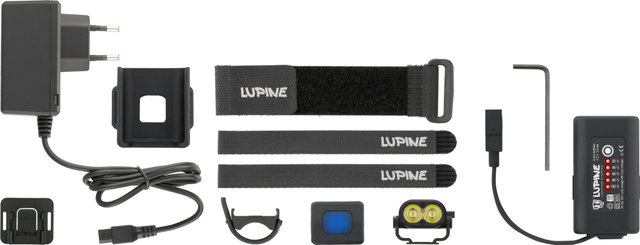

Contents:

• 1 x Lupine Piko R light
• 1 x Lupine SmartCore FastClick 3.5 Ah lithium-ion battery
• 1 x Lupine Bluetooth remote control
• 1 x Lupine FrontClick helmet mount
• 1 x Lupine Peppi V5 handlebar mount
• 1 x Lupine FastClick battery helmet mount
• 1 x Lupine Wiesel charger
• 2 x Lupine hook & loop fastening strap
