Lupine SL AX 6.9 LED Front Light w/ StVZO approval - 2023 Model

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

13 x LED (Osram Compact PL)

Brightness:

3800 lumens / 340 lux

Burn Time:

1:20 hours (high beam) - 25 hours (daytime running light)

Illumination Range:

370 m

Power Source:

battery (Li-ion), external

Technical Information:

Illumination Modes:

daytime running light (2 W), low beam Eco (5 W), low beam (8 W), high beam Eco (22 W), high beam (38 W)

Voltage:

7.2V

Power Indicator:

yes

Charge Time:

3:40 hours

Protection Rating:

IP68, IK09

Dimensions (H x W x D):

48 mm x 85 mm x 45 mm (light)

Material:

aluminium (6061-T6)

Switch:

on / off / mode / sensor

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

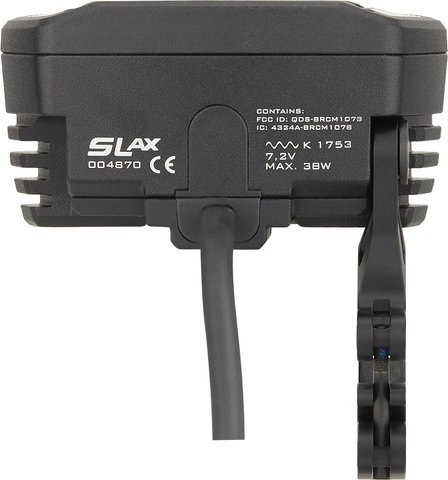

Check Number:

K~~1753

Features:

• powerful front light with up to 3800 lumens including external SmartCore battery with 6.9 Ah
• large range up to 370 metres with uniform light pattern

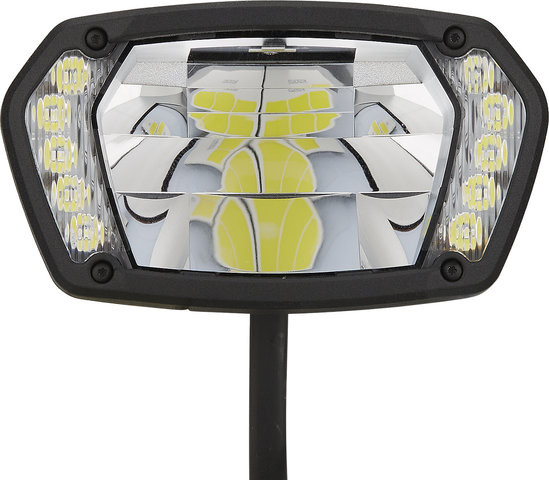

• Fresnel lens system for optimal illumination of the close-up range
• sensor changes from daytime running mode to low beam in darkness and enables the high beam
• changeover point between daytime mode and low beam can be calibrated
• 6.9 Ah SmartCore battery with five-level battery charge indicator and hook-and-loop strap attachment
• daytime running light function tested according to ECE R87
• Bluetooth handlebar remote control lighting up in different colours, with automatic switch-off
• acoustic and optical charge level indicator
• lights up when the battery level is very low
• waterproof and impact resistant according to IP68 and IK09
• CNC-milled and black anodised
• can also be controlled via smartphone or smartwatch thanks to app connection
• operating temperature -25 °C to +70 °C

Manufacturer Number:
d4308

Contents:

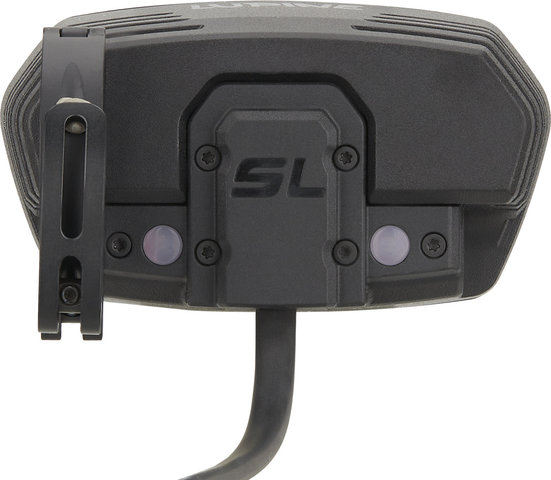

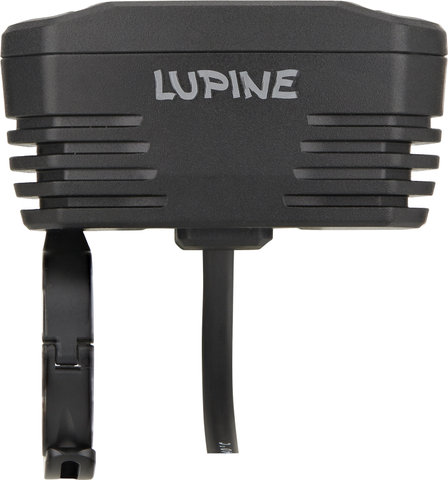

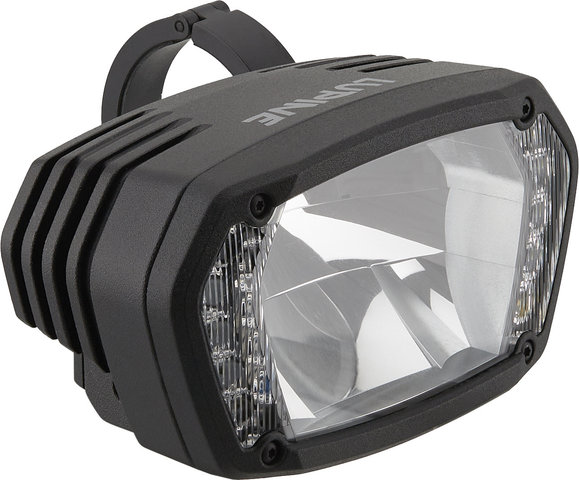

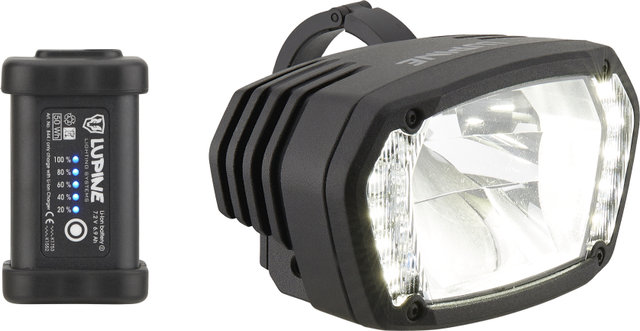

• 1 x Lupine SL AX front light
• 1 x Lupine handlebar mount

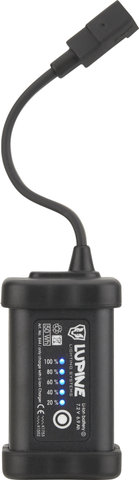

• 1 x Lupine SmartCore battery, 6.9 Ah

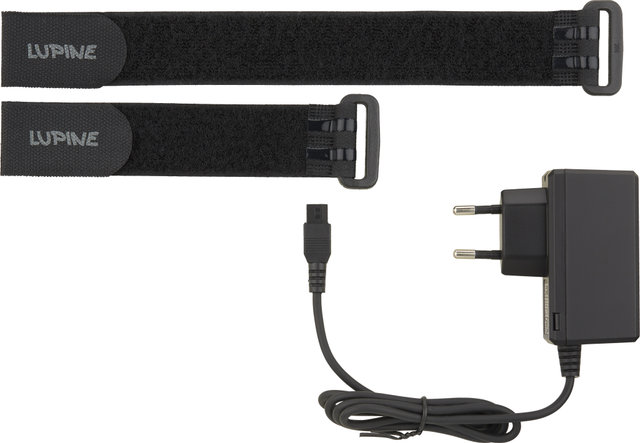

• 1 x short hook-and-loop strap
• 1 x long hook-and-loop strap

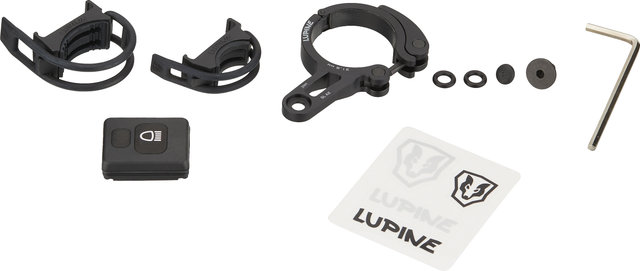

• 1 x Lupine Bluetooth remote control
• 1 x Lupine Peppi V5 remote control mount
• 1 x Lupine Peppi V5 XL remote control mount
• 1 x Lupine Wiesel charger
• 1 x bolt
• 2 x O-ring
