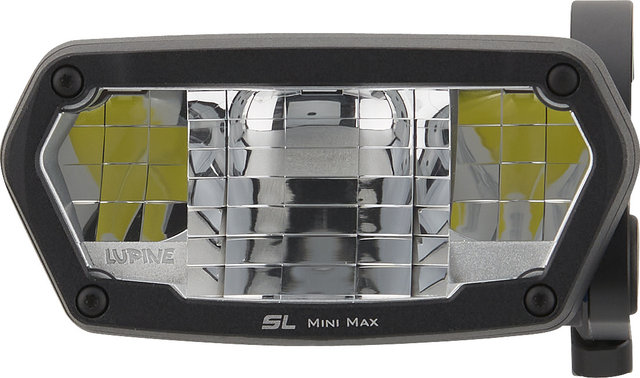

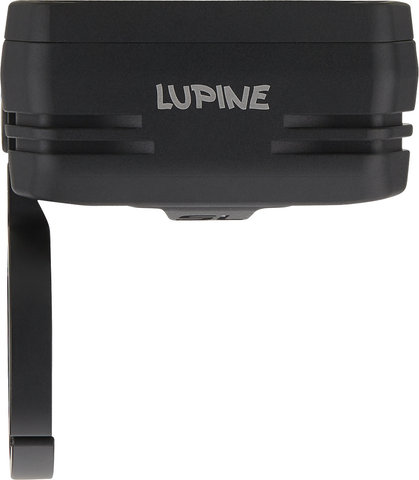

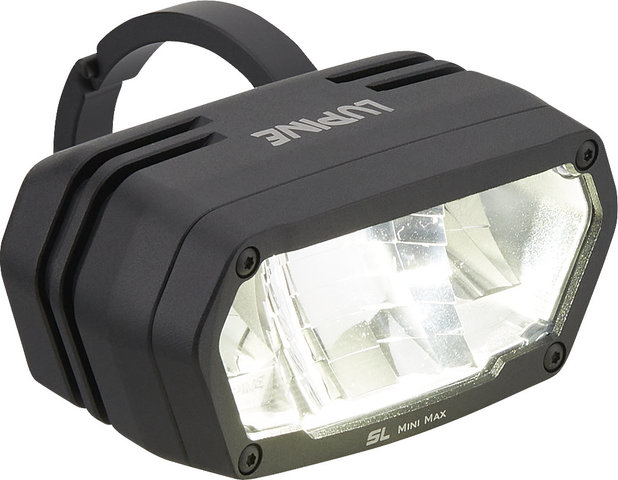

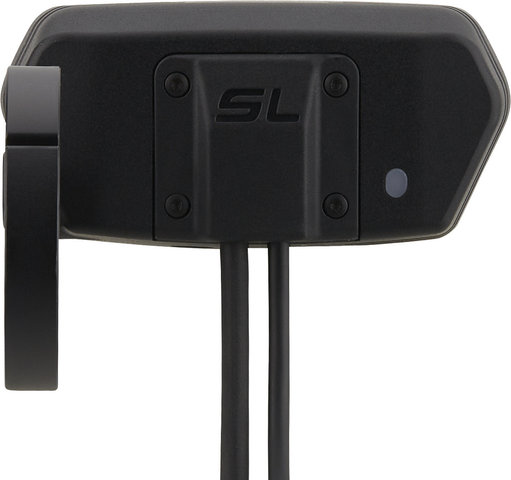

Lupine SL MiniMax AF 6.9 LED Front Light - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

3 x LED (Osram Automotive)

Brightness:

2400 lumens / 260 lux

Burn Time:

1:25 hours (high beam) - 25 hours (daytime running mode)

Illumination Range:

260 m

Power Source:

battery (Li-ion), external

Technical Information:

Illumination Modes:

Daytime running mode (2 W), low beam (8 W), high beam (25 W)

Voltage:

7.2V

Power Indicator:

yes

Charge Time:

3:35 hours

Protection Rating:

IP67, IK09

Dimensions (H x W x D):

34 mm x 69 mm x 37 mm

Material:

aluminium (6061-T6)

Switch:

on / off / mode / sensor

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~2258

Features:

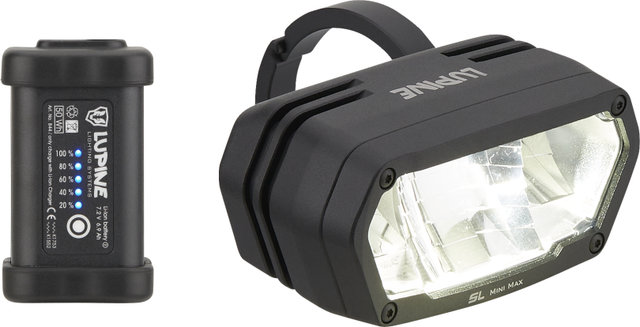

• powerful front light with up to 2400 lumens including external SmartCore battery with 6.9 Ah
• large range up to 260 metres with uniform light pattern
• sensor-controlled switch between daytime running mode and low beam
• changeover point between daytime mode and low beam can be calibrated

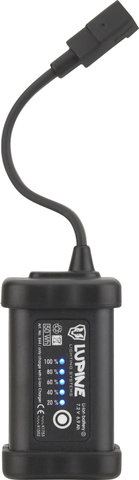

• 6.9 Ah SmartCore battery with five-level battery charge indicator and hook-and-loop strap attachment
• Bluetooth handlebar remote control lighting up in different colours
• waterproof and impact-resistant according to IP67 and IK09
• CNC-milled and black anodised

Manufacturer Number:
d8308

Contents:

• 1 x Lupine SL MiniMax AF front light

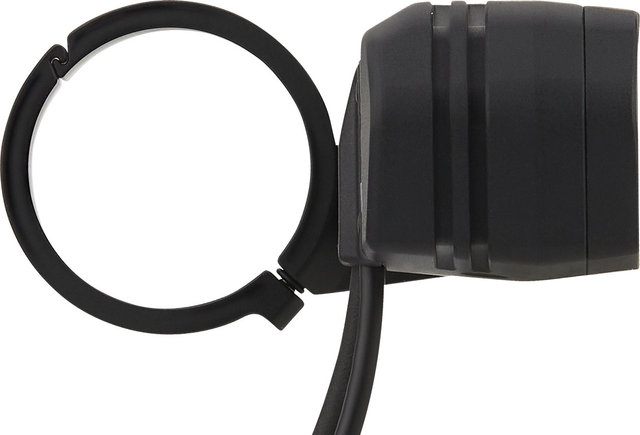

• 1 x Lupine handlebar mount
• 1 x Lupine SmartCore battery, 6.9 Ah

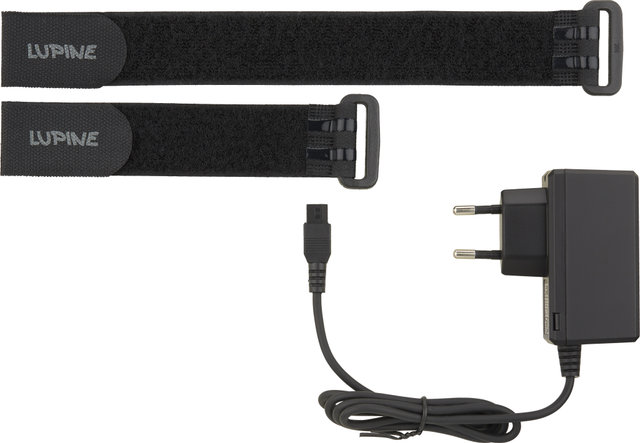

• 1 x short hook-and-loop strap
• 1 x long hook-and-loop strap

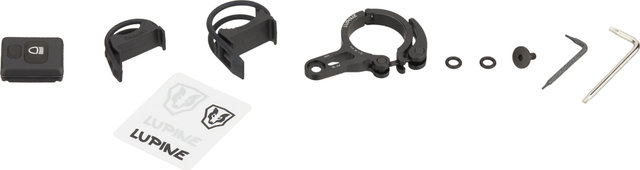

• 1 x Lupine Bluetooth remote control
• 1 x Lupine Peppi V5 remote control mount
• 1 x Lupine Peppi V5 XL remote control mount
• 1 x Lupine Wiesel charger
• 1 x bolt
• 2 x O-ring
