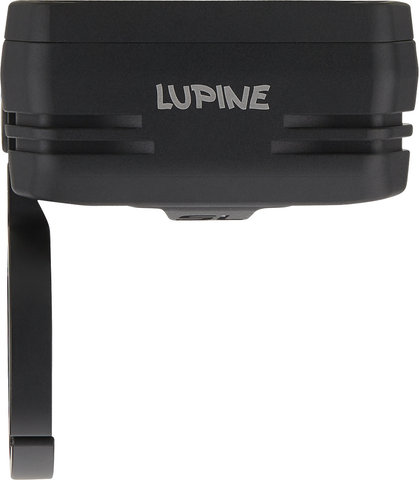

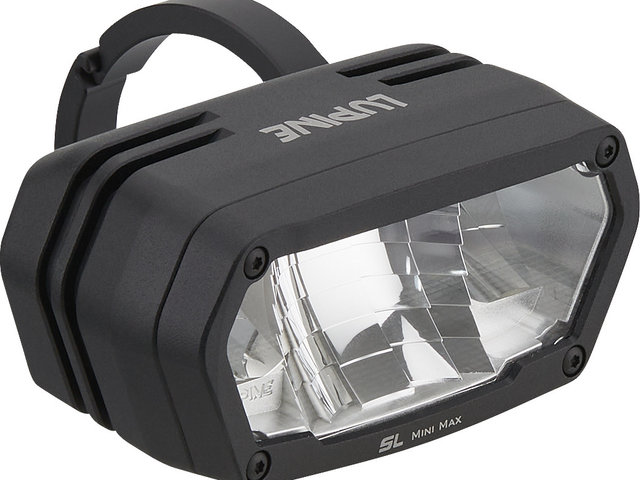

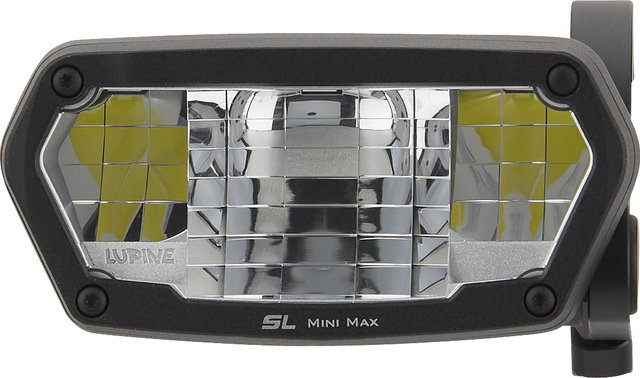

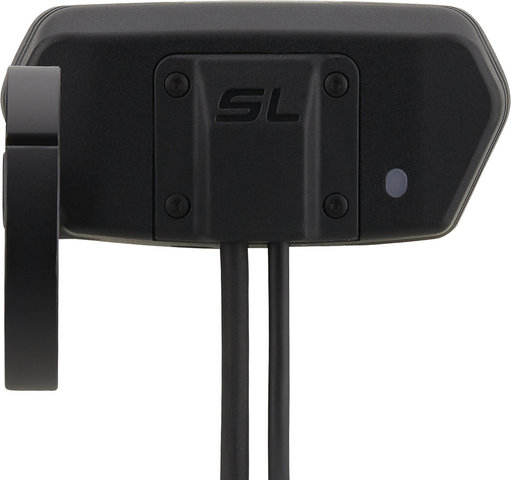

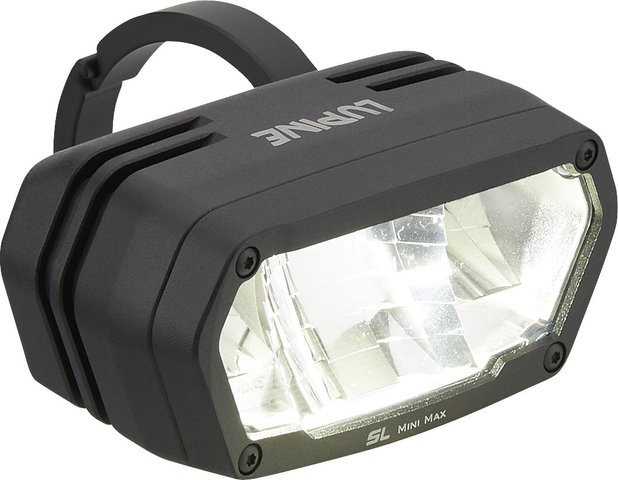

Lupine SL MiniMax E-bike LED Light with StVZO Approval for Shimano

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

3 x LED (Osram Automotive)

Brightness:

2100 lumen, 250 lux

Illumination Range:

210 m

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Daytime running mode (2 W), low beam (8 W), high beam (22 W)

Voltage:

6 - 15 V (DC)

Protection Rating:

IP67, IK09

Dimensions (H x W x D):

34 mm x 69 mm x 37 mm

Material:

aluminium (6061-T6)

Switch:

on / off / mode / sensor

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~2258

Compatibility:

• Shimano STEPS EP6
• Shimano STEPS EP8 / EP801
• Shimano STEPS E5000
• Shimano STEPS E6100
• Shimano STEPS E7000
• Shimano STEPS E8000

Features:

• e-bike front light with automatic sensor for connection to Shimano motors
• large range up to 210 metres with uniform light pattern
• 2100 lumen high beam
• sensor-controlled switch between daytime running mode and low beam
• Bluetooth handlebar remote control lighting up in different colours
• automatic activation together with e-bike motor
• waterproof and impact-resistant according to IP67 and IK09
• CNC-milled and black anodised

Manufacturer Number:
d8850

Contents:

• 1 x Lupine SL MiniMax front light

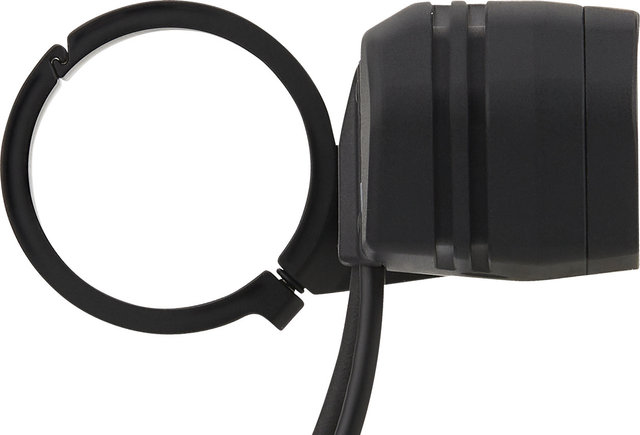

• 1 x Lupine handlebar mount

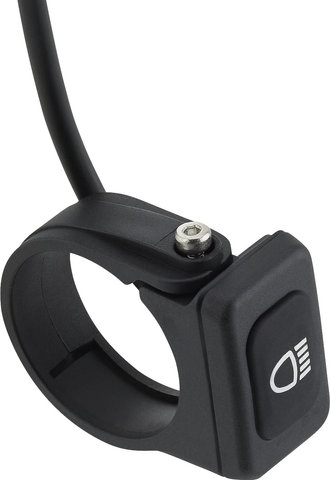

• 1 x Lupine Bluetooth remote control

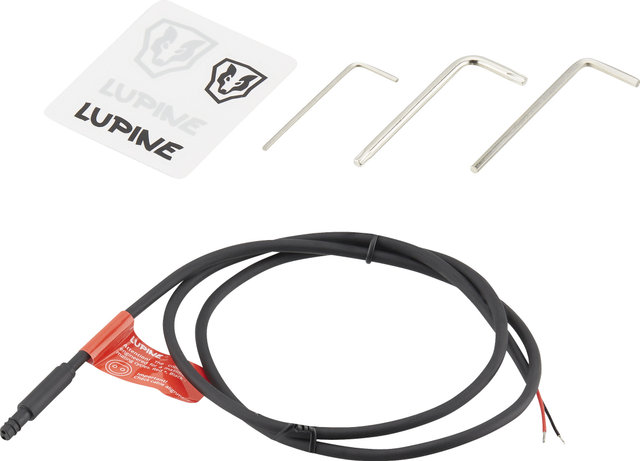

• 1 x Lupine light cable
• 1 x connector
• 1 x mount bolts
• 1 x O-ring
• 1 x dummy plugs
