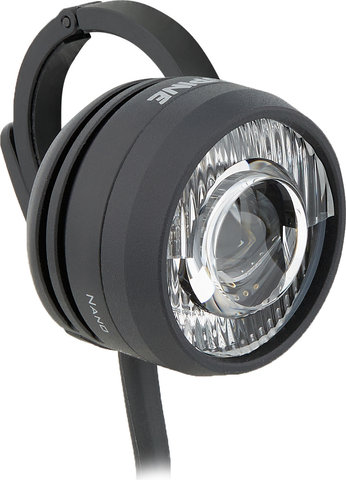

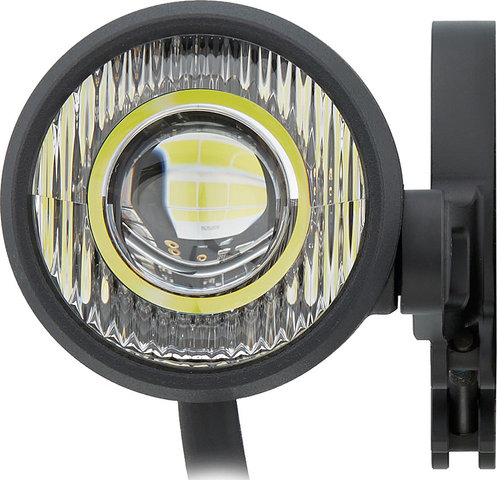

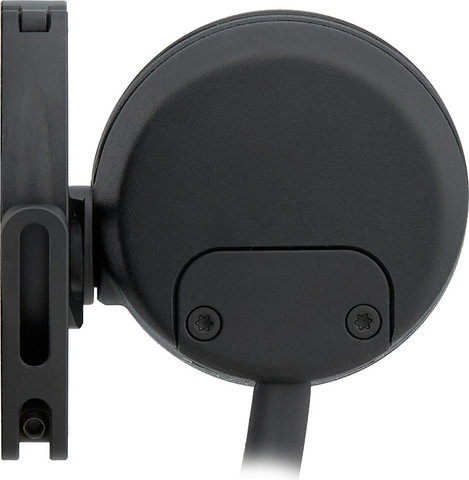

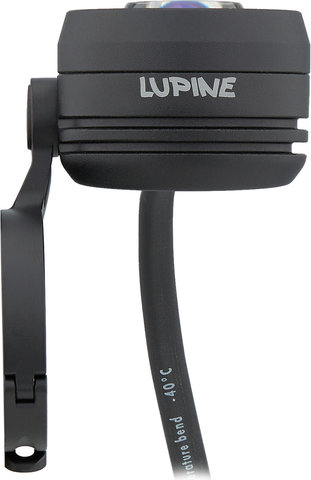

Lupine SL Nano AF 4 LED Front Light - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

handlebars

Light Source:

2 x LED (Osram Compact PL)

Brightness:

1100 lumens

Burn Time:

1:50 (1100 lumens) - 3:10 hours (700 lumens)

Illumination Range:

240 m

Power Source:

battery (lithium-ion)

Technical Information:

Illumination Modes:

daytime running light, low beam, high beam

Power Indicator:

yes

Charge Time:

1:50 hours

Protection Rating:

IP68, IK09

Dimensions (H x W x D):

41 mm x 41 mm x 30 mm

Material:

aluminium (6061)

Switch:

Daytime running mode, low beam, high beam, ECO mode, off

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1797

Features:

• powerful front light with StVZO approval
• waterproof and impact resistant according to IP68 and IK09

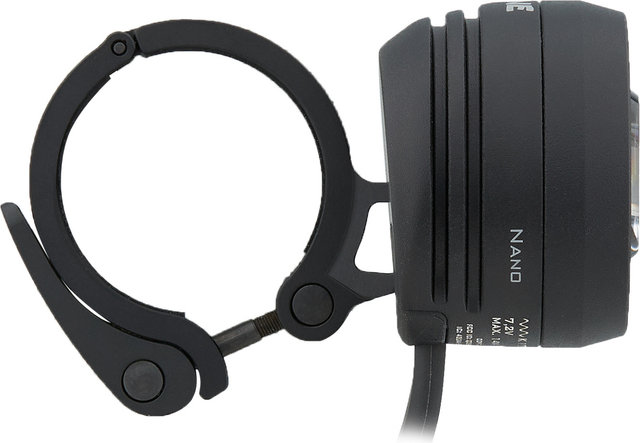

• CNC-milled quick release for handlebar mounting
• handlebar mounts for Bluetooth remote control for 22 mm and 32 mm handlebar diameter

Manufacturer Number:
d7301

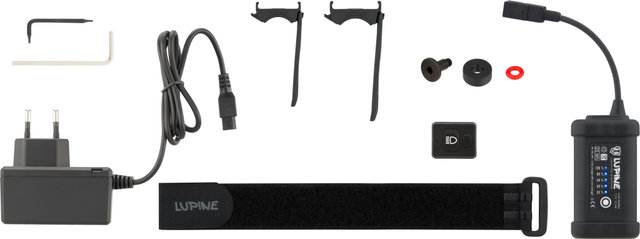

Contents:

• 1 x Lupine SL Nano AF light

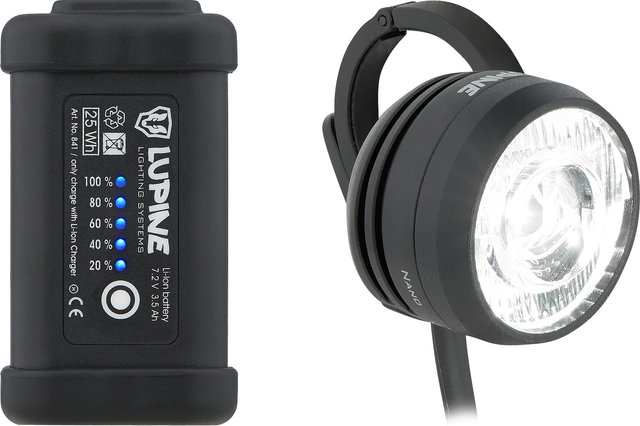

• 1 x Lupine SmartCore 3.5 Ah lithium-ion battery
• 1 x Lupine 31.8 mm quick release
• 1 x Lupine Bluetooth remote control
• 1 x Lupine Peppi V5 handlebar mount for Bluetooth remote control
• 1 x Lupine Peppi XL handlebar mount for Bluetooth remote control
• 2 x Lupine hook & loop fastening strap
• 1 x Lupine Extension Kit 5 mm
• 1 x Lupine Wiesel charger
