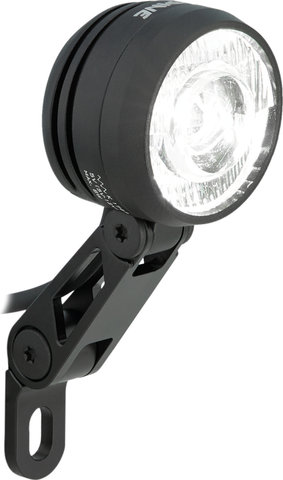

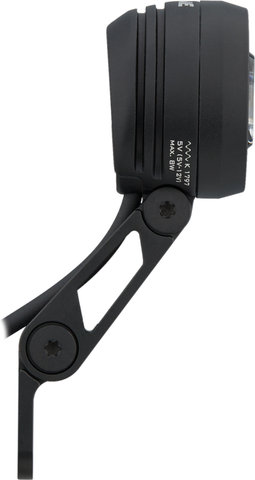

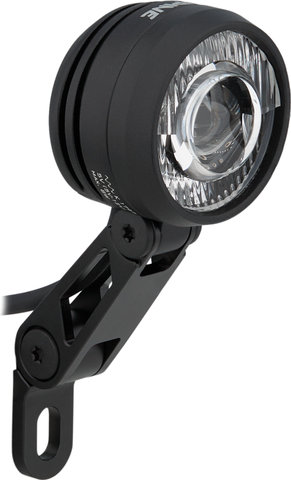

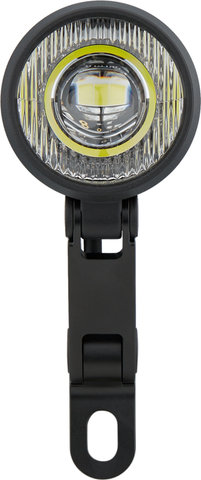

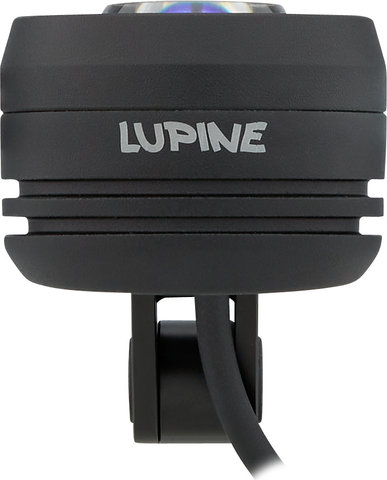

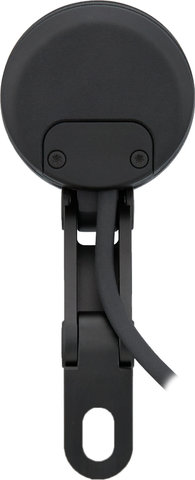

Lupine SL Nano Classic E-Bike LED Front Light - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for replacing E-bike components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

2 x LED (Osram Compact PL)

Brightness:

600 lumens

Illumination Range:

230 m

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Daytime running mode (2 W), low beam (8 W)

Voltage:

6 - 12 V (DC)

Protection Rating:

IP68, IK09

Dimensions (H x W x D):

41 mm x 41 mm x 30 mm

Cable Length:

1150 mm

Material:

aluminium (6061)

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1797

Compatibility:

• Bosch Performance CX
• Bosch Active Line (as of 2017)
• Bosch Active Line Plus
• Bosch Performance CX (Gen3)
• Bosch Performance CX (Gen4)
• Brose Gen1
• Brose S-Drive
• Brose Drive-S Alu
• Brose Drive-S Mag
• Shimano Steps EP8
• Shimano Steps E8000
• Shimano Steps E5000
• Shimano Steps E6100
• Shimano Steps E7000
• Yamaha PW-X
• Yamaha PW-ST
• Yamaha PW-TE
• Yamaha PW-CE
• Yamaha PW-X2
• Yamaha PW-X87 (500 W / 45 km/h)
• Yamaha PW-SE
• Specialized 1.1 SL
• Specialized 1.3
• Specialized 2.1
• Specialized 2.2
• Giant Syncdrive Pro
• Giant Syncdrive Pro 2
• Sachs RS
• Neodrives UR-V10
• Neodrives ZEG MY20
• Neodrives Integrale
• Neodrives UR-V8
• TQ HPR 120S
• Fazua

Features:

• powerful front light with StVZO approval
• low beam with uniform light pattern
• bracket for mounting on the fork crown
• waterproof and impact resistant according to IP68 and IK09
• CNC-milled quick release for handlebar mounting

Note from the manufacturer:

The enclosed light cable is compatible with Shimano motors.

Manufacturer Number:
d7600CL

Contents:

• 1 x Lupine SL Nano Classic light

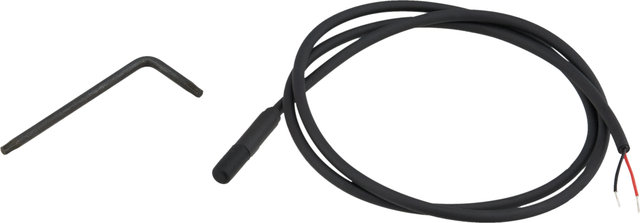

• 1 x Lupine Shimano light cable
• 1 x Lupine TX 15 fastening screw
