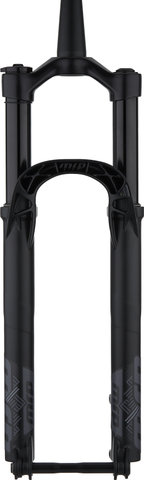

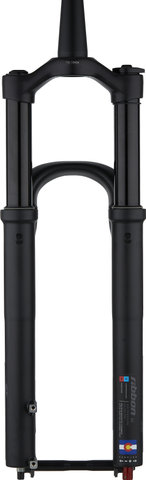

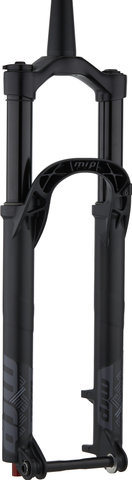

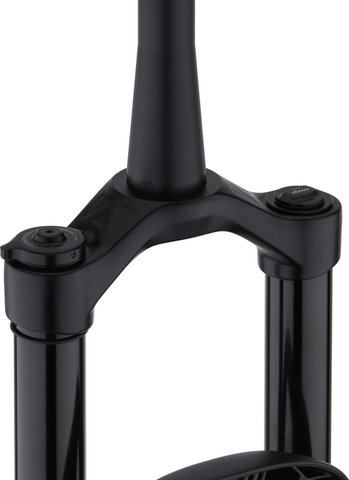

MRP Ribbon Air SL ChocoLUXE Boost 29" Suspension Fork

The Ribbon SL suspension fork from MRP with air suspension for 29" Boost wheels offers a low-friction ChocoLUXE™ interior and separately fillable air chambers, and is intended for Cross Country and All Mountain with 130 mm suspension travel.

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

130 mm

Steerer Tube:

1 1/8 - 1.5" tapered

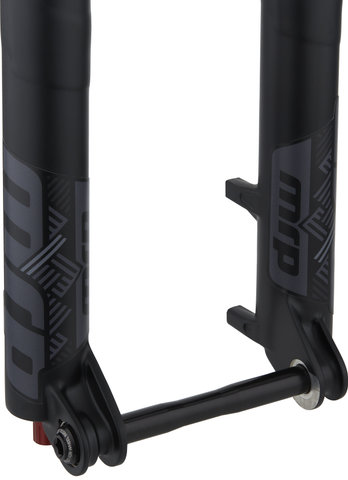

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

46 mm

Steerer Tube Length:

260 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

538 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter mm:

35 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

aluminium

Adjustment Options:

Compression:

low speed (3 positions)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

Yes (internal, up to 110 mm)

Approved For:

Tyre Size (max.):

29 x 2.5" (with 35 mm jaw width)

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 3 mm measured from the fork crown.

Rotor Size (max.):

180 mm

Features:

• FullFill&trade air suspension system with independent positive and negative chamber
• suspension travel can be changed up to 110 mm with spacers
• low-friction ChocoLUXE interior offers stability and is insensitive to temperature or fluctuations in humidity
• damper without bladder with low IFP pressure
• self-lubricating Norglide™ bushings reduce friction losses
• PSST™ valves relieve excessive pressure (e.g. caused by temperature or height differences) quickly and easily

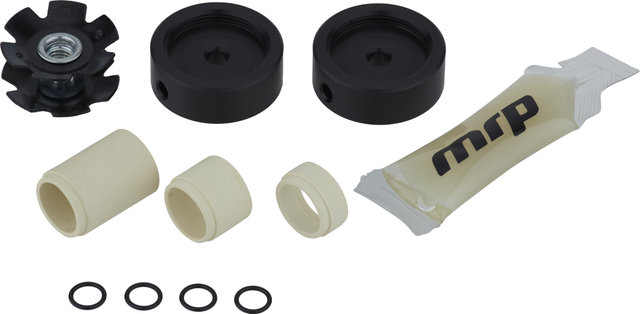

• adjustable volume via Huck Puck Spacer

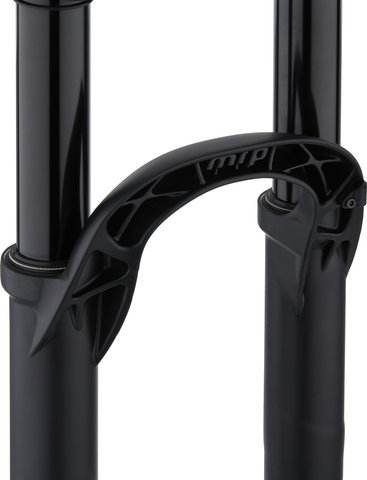

• mud-resistant Outcast™ fork bridge design with weight-reducing cut-outs

Manufacturer Number:

WB-20-2005

Contents:

• 1 x MRP Ribbon Air SL ChocoLuxe Boost 29" Suspension Fork
• 1 x MRP thru-axle
