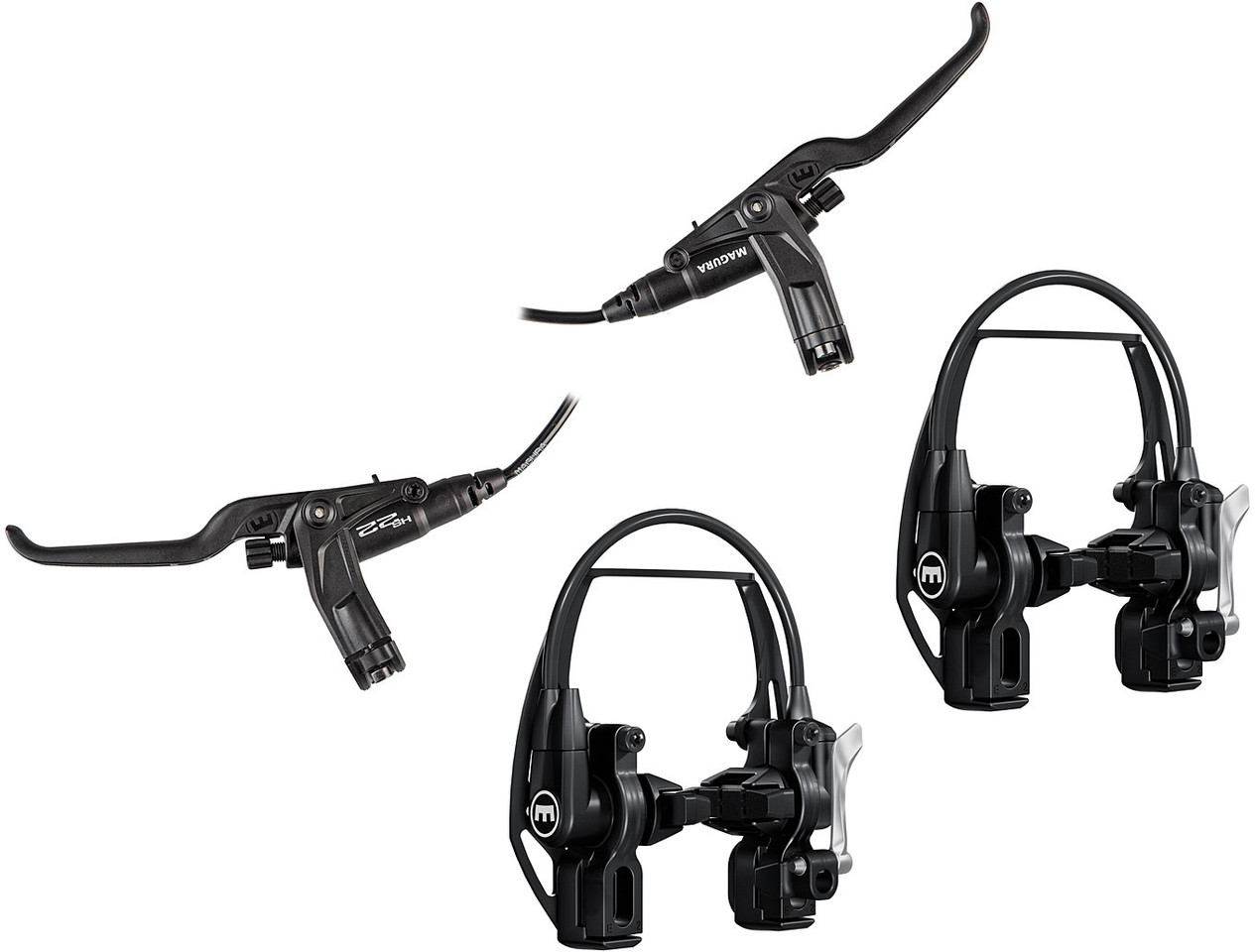

Magura HS 22 EVO2 Rim Brake Set

The HS 22 Rim Brake Set by Magura with EVO2 Mounting - Install and start cycling

The Magura HS 22 with EVO2 mounting in a set for front and rear wheel is a reliable hydraulic rim brake for your city or touring bike, and is also suitable for E-bikes. The EVO2 adapter makes for easy mounting, while the quick-release lever makes changing bikes uncomplicated. The HS 22 brakes safely in all weather conditions and requires very little maintenance due to its closed hydraulic braking system. Thanks to the use of Royal Blood mineral oil, regular brake fluid changes are not necessary. Carbotecture® makes the brake grip and lever particularly light and durable at the same time. The width of the ergonomic 3-finger lever can be adjusted without tools.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Series:

HS 22

Application:

City & Touring

Brake Type:

rim brake, hydraulic / closed, without reservoir

Actuation:

mineral oil (Royal Blood)

Hose Length (Front/Rear):

2000 mm

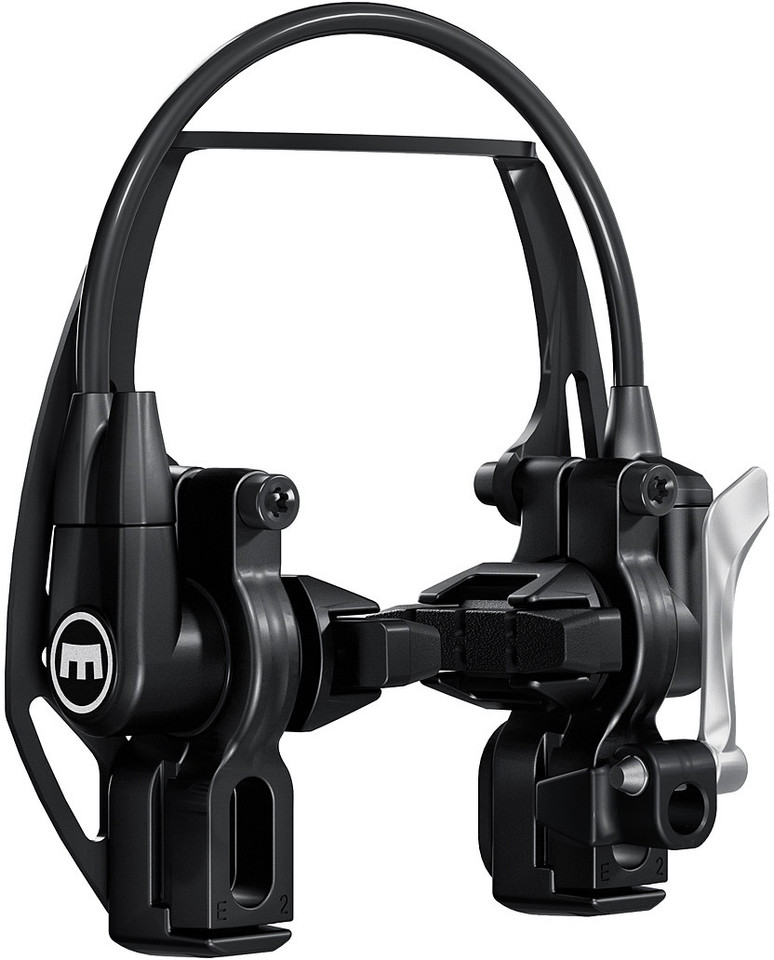

Technical Information - Housing:

Mount:

Canti bosses

Housing Material:

Carbon composite

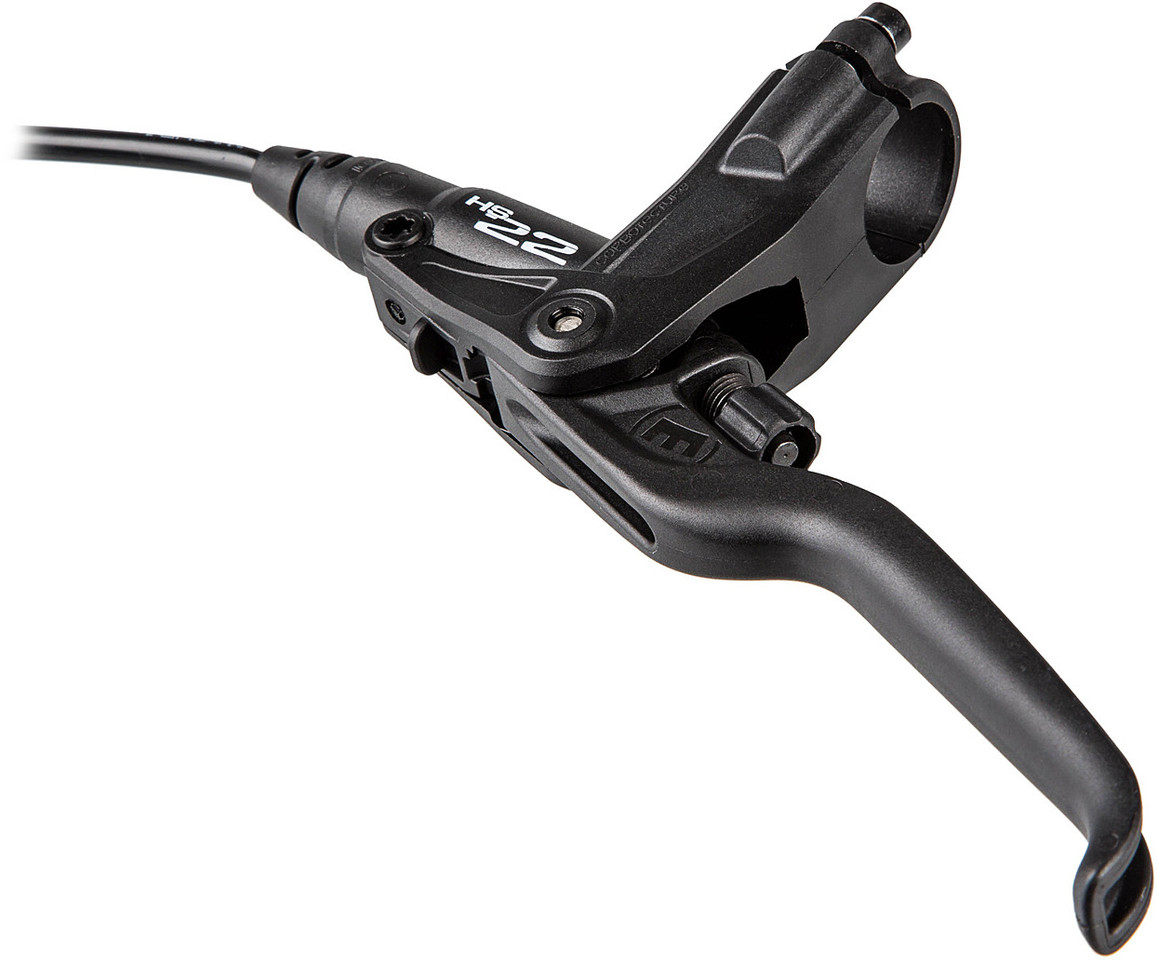

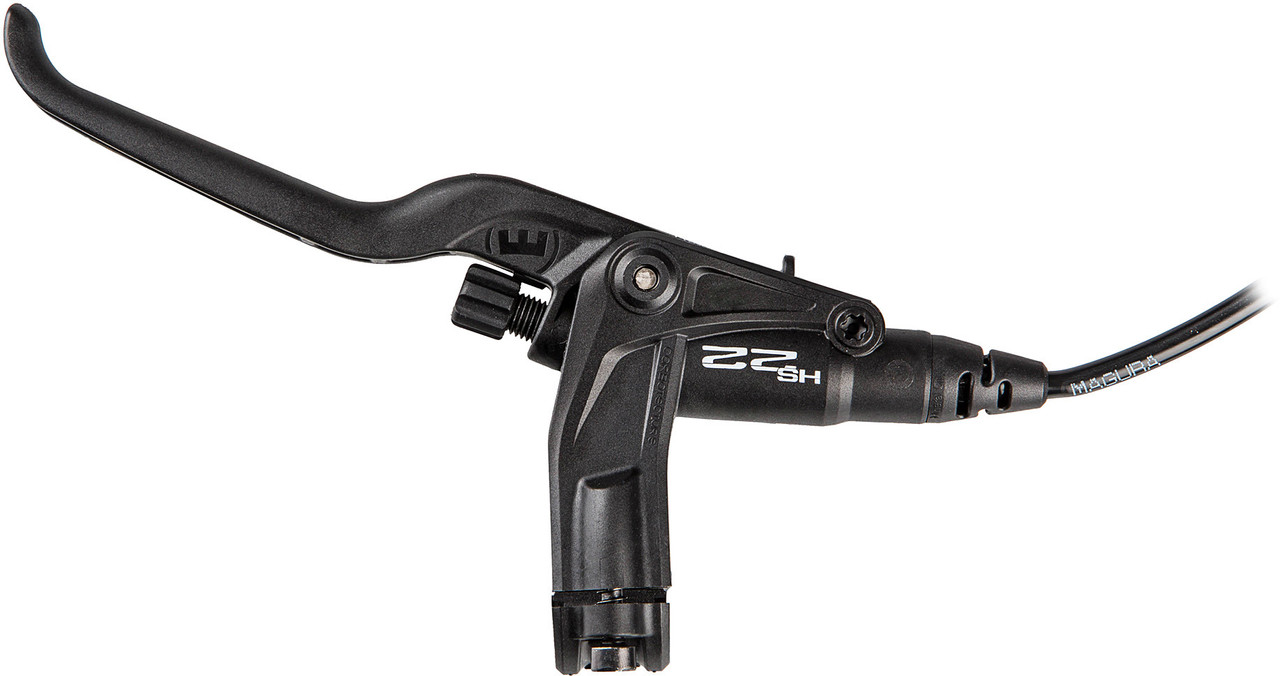

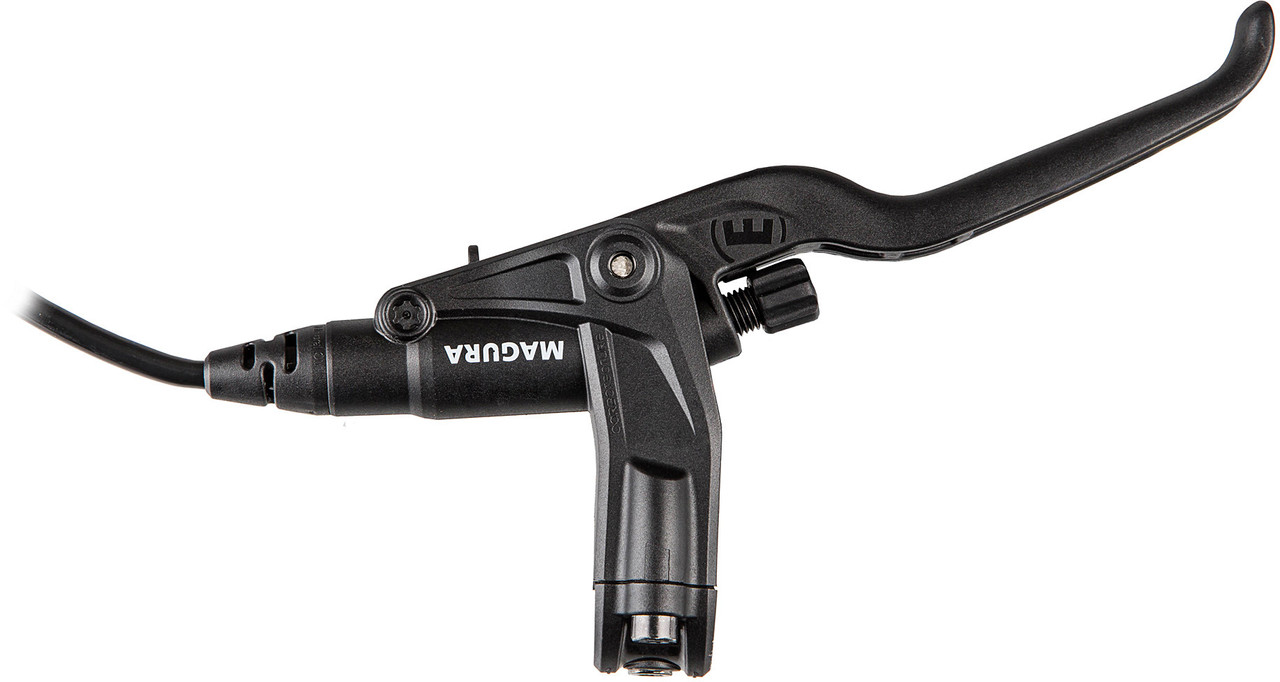

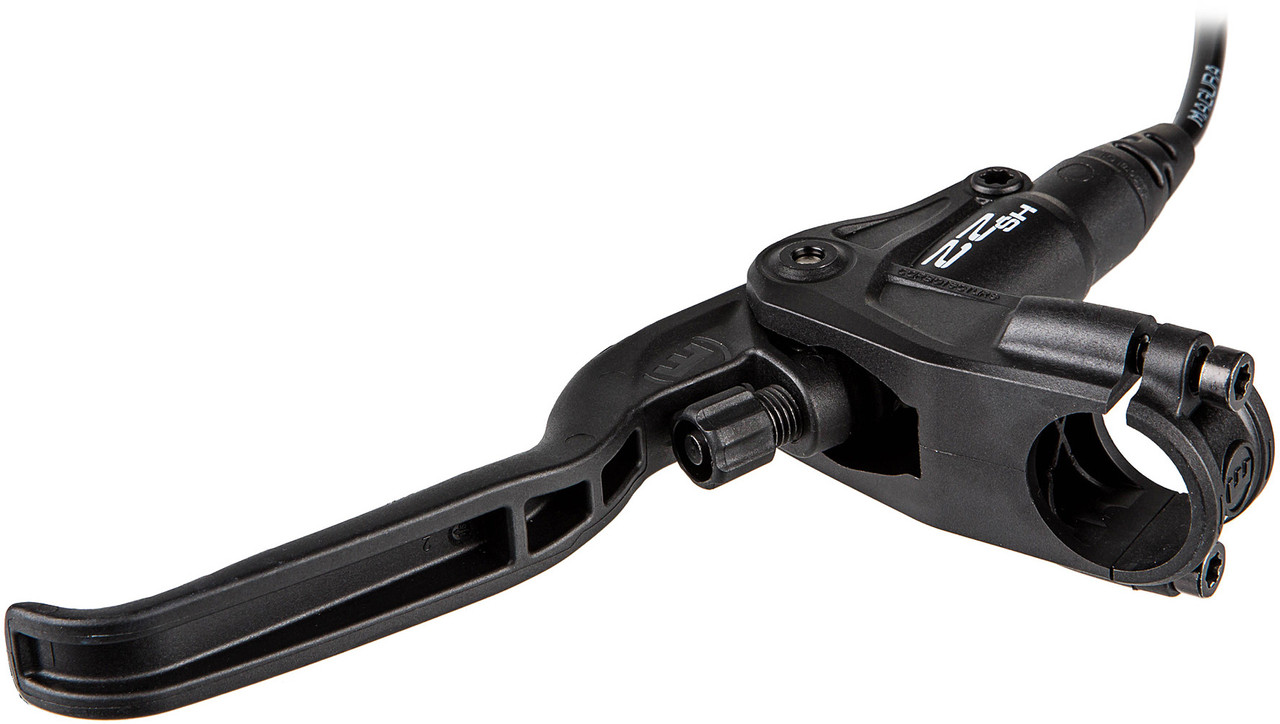

Technical Information - Lever:

Lever Length:

3-finger

Adjustment Options:

Grip width (without tool)

Mount:

clamp (split)

Design:

Flip-Flop (without specific side)

Brake Lever Material:

Carbon composite

Brake Lever Housing Material:

Carbon composite

Features:

• easy mounting with EVO2 adapter, brake cylinder can be aligned in the mount
• brake lever and brake grip made of lightweight Carbotecture
• low maintenance due to closed hydraulic system
• 14 mm hydraulic piston
• tool-free lever width adjustment
• Pad wear compensation via TPA (Turbo Pad Adjuster)

Technology:

Carbotecture®:
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.

Manufacturer Number:

2700845 + 2700845

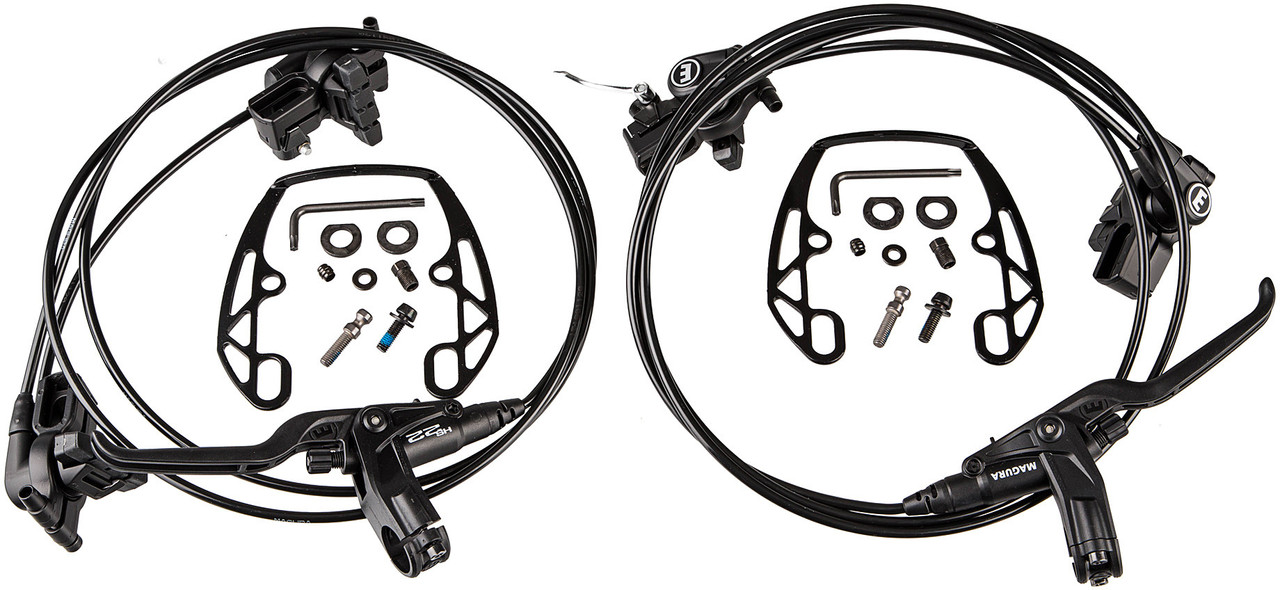

Contents:

• 2 x Magura HS 22 rim brakes
• 2 x pairs Magura brake pads
• 2 x Magura EVO2 mounting plates
• 2 x olives
• 2 x compression hose nut
• 4 x washers
• 4 x spacers for EVO2
• 4 x bolts
• 2 x Torx key
