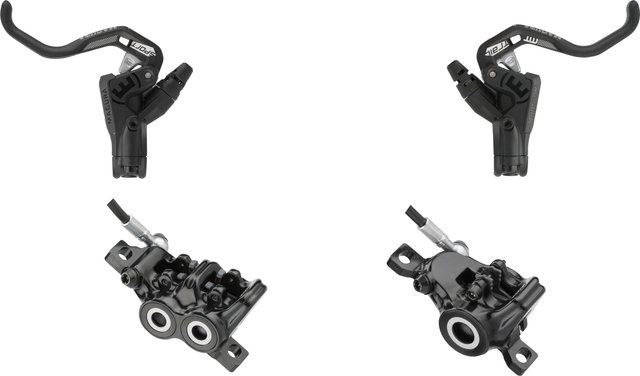

Magura MT Trail Sport Carbotecture® Disc Brake Set
Item number: 57338
Magura's definition of trail braking performance at an affordable price - 4 pistons in the front for maximum braking power, 2 pistons in the rear for perfect dosing. The ergonomics of the shorter 1-finger HC lever allows for full braking power with one finger.
The MT Trail Sport is your introduction to 100% trail performance, and demonstrates that the proven 4/2 piston concept doesn't have to be expensive. High-quality components such as the Carbotecture® brake lever and the 4/2 concept ensure weight reduction, but without sacrificing reliability.
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.
HCT (Hard Core Tech):
Under the HCT program, which at Magura stands for Hard Core Tech and has its origin in Magura Powersport, Magura combines all developments and special detail improvements that are developed for racing or the highest demands. Now Magura brings HCT to the mountain bike.

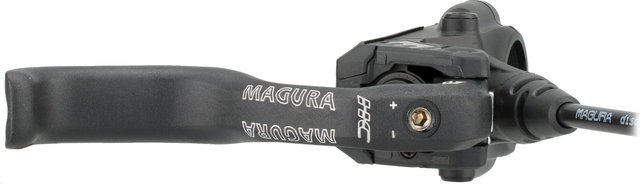

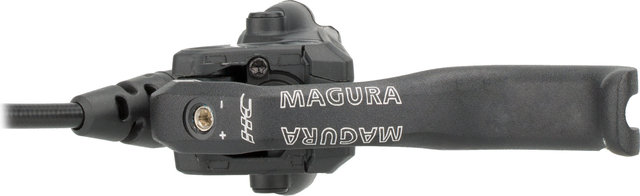

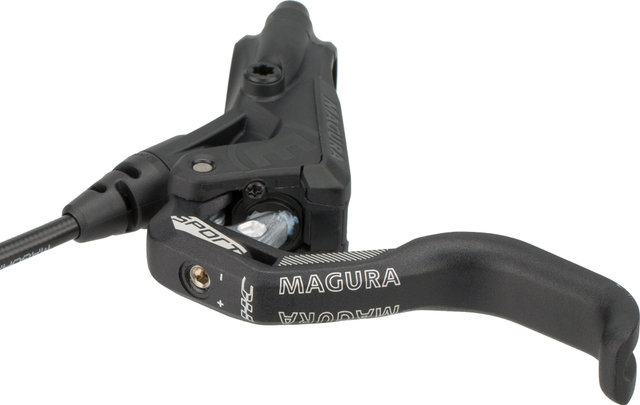

The HC brake lever for MT disc brakes was specially developed for retrofitting to optimise ergonomic performance. The ergonomics of the shorter HC aluminium lever allows full braking power - safely with one finger. The design and new ergonomics of the 12 mm-shorter HC lever also incorporated feedback and experience from Danny MacAskill.
At the same weight as standard 2-finger aluminium levers, the HC technology version improves ergonomics noticeably.
The new brake lever is retrofittable for all Magura MT disc brakes MT6/MT7/MT Trail (possibly MT8) from model year 2015.
The MT Trail Sport is your introduction to 100% trail performance, and demonstrates that the proven 4/2 piston concept doesn't have to be expensive. High-quality components such as the Carbotecture® brake lever and the 4/2 concept ensure weight reduction, but without sacrificing reliability.
Specifications:
- Series:
- MT Trail Series
- Application:
- Trail
- Type:
- hydraulic, 4 pistons (front) / 2 pistons (rear)
- Actuation:
- mineral oil (Royal Blood)
- Hose:
- Magura Disc Tube
- Hose Length (Front/Rear):
- 1000 mm / 2000 mm

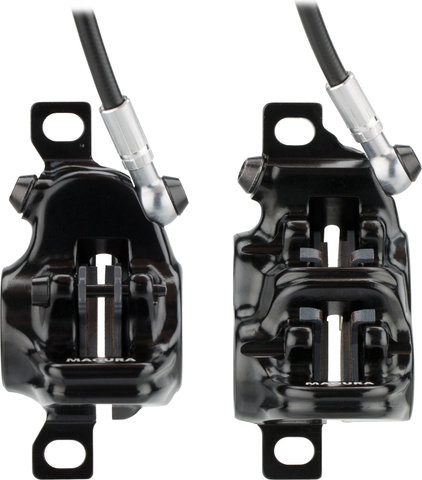

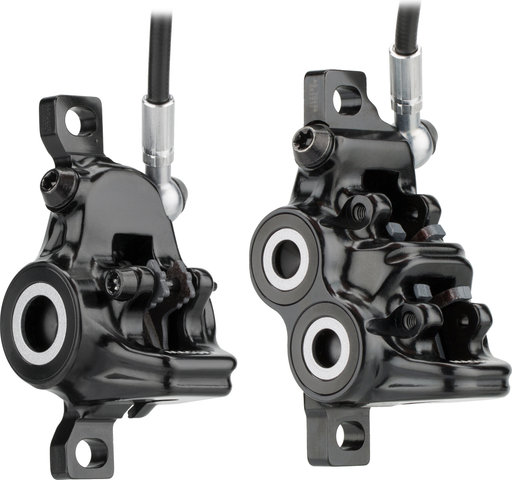

Technical Information - Caliper:
- Mount:
- post mount
- Pistons:
- 4 pistons (front) / 2 pistons (rear)
- Front Brake Pads:
- organic / 9.P Performance (4 piston series / 2 pads) or 8.P Performance (4 pistons / 4 pads)
- Rear Brake Pads:
- organic / 7.P Performance (2 piston series / 2 pads)
- Design:
- one-piece
- Calliper Material:
- Aluminium
- Hose Connection:
- banjo

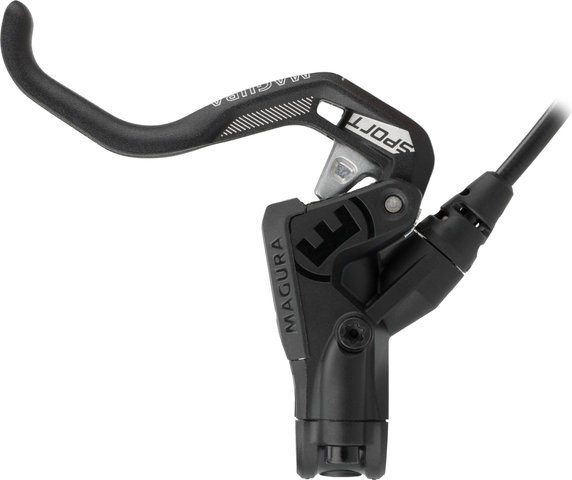

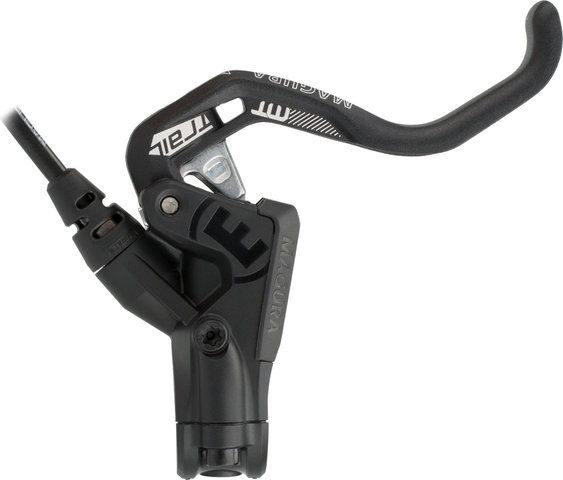

Technical Information - Lever:
- Lever Length:
- 1-finger
- Adjustment Options:
- reach adjust (with tools)
- Mount:
- clamp (split)
- Design:
- Flip-Flop (without specific side)
- Brake Lever Material:
- Aluminium
- Lever Body Material:
- Carbotecture®
- Hose Connection:
- straight
Features:
- Carbotecture® housing
- ergonomic 1-finger HC brake lever made of aluminium
- front forged 4-piston caliper with banjo
- rear forged 2-piston caliper with banjo
- magnetiXchange brake pistons for easy pad replacement
- fully hydraulic four-piston and two-piston fixed caliper
- open brake system with reservoir
- automatic pad wear adjustment
- Disc Tube brake line can be shortened without any problems
- rotatable brake line connection (RHR - Rotatable House Routing)
- Easy-Bleed technology
- two-piece brake lever clamp
- Feel-Safety-Ergonomics
Technology:
Carbotecture®New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.
HCT (Hard Core Tech):
Under the HCT program, which at Magura stands for Hard Core Tech and has its origin in Magura Powersport, Magura combines all developments and special detail improvements that are developed for racing or the highest demands. Now Magura brings HCT to the mountain bike.
The HC brake lever for MT disc brakes was specially developed for retrofitting to optimise ergonomic performance. The ergonomics of the shorter HC aluminium lever allows full braking power - safely with one finger. The design and new ergonomics of the 12 mm-shorter HC lever also incorporated feedback and experience from Danny MacAskill.
At the same weight as standard 2-finger aluminium levers, the HC technology version improves ergonomics noticeably.
The new brake lever is retrofittable for all Magura MT disc brakes MT6/MT7/MT Trail (possibly MT8) from model year 2015.
Manufacturer Number:

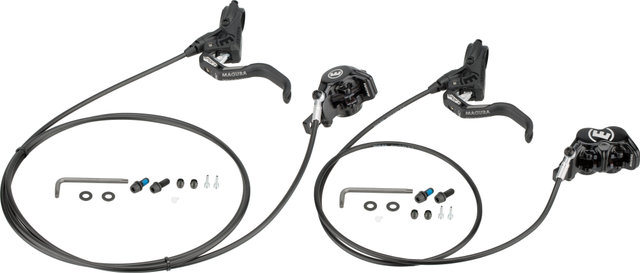

2701389Contents:
- 1 x Magura MT Trail Sport disc brake, mount ready, filled & bled (front, 4 pistons)
- 1 x Magura MT Trail Sport disc brake, mount ready, filled & bled (rear, 2 pistons)
- 1 x pair Magura 9.P Performance brake pads, front
- 1 x pair Magura 7.P Performance brake pads, rear
- without brake rotor (recommended: Storm HC, also compatible with Storm and Storm SL )
- not incl. disc brake adapter
- incl. mounting material
Weight:
- black-mystic grey/set (front+rear): 485 g (VR: 255 g, HR: 230 g)
