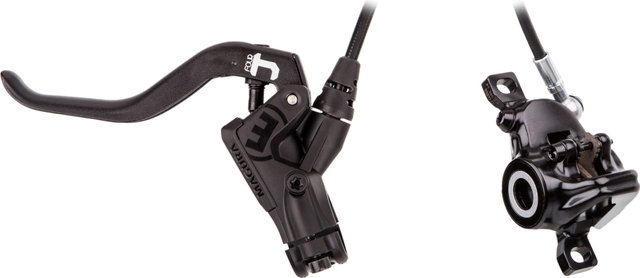

Magura MT4 Carbotecture® Disc Brake

The perfect all-rounder: the MT4 Disc Brake by Magura

The new MT4 has top riding performance and enhanced braking. Innovative technology enables the combination of impeccable braking reliability and control. Precision-controlled brake power is made possible thanks to the adjustable lever width and the ergonomically designed two-finger brake levers. This makes every trail a pleasure to ride. In addition, it accommodates 100% of all demands of pedelecs up to 25 km/h.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Pistons:

2

Mount:

post mount (IS with adapter)

Brake Rotor:

not included (recommended: Storm HC, also compatible w/ Storm & Storm SL)

Actuation:

Royal Blood (mineral oil)

Hose Length:

2200 mm (front/rear)

Pads:

organic / 7.4 Performance (series), 7.2 Endurance

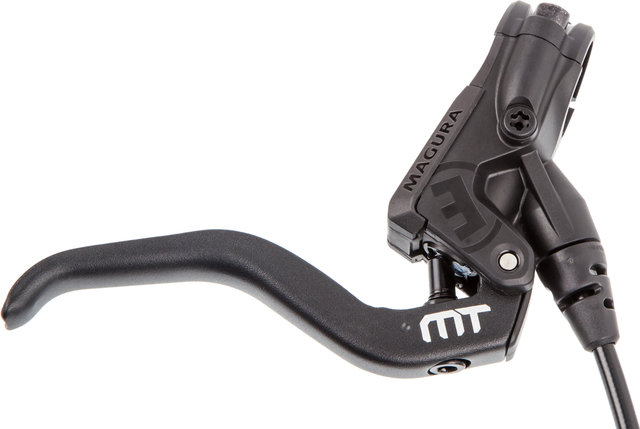

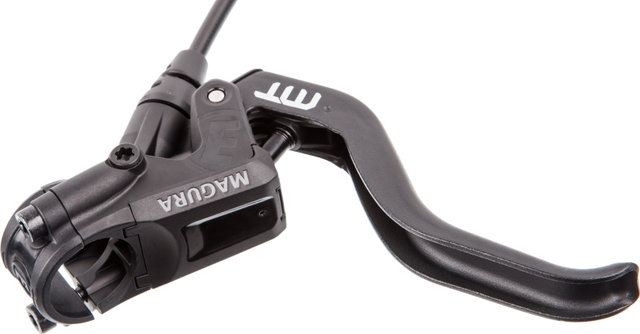

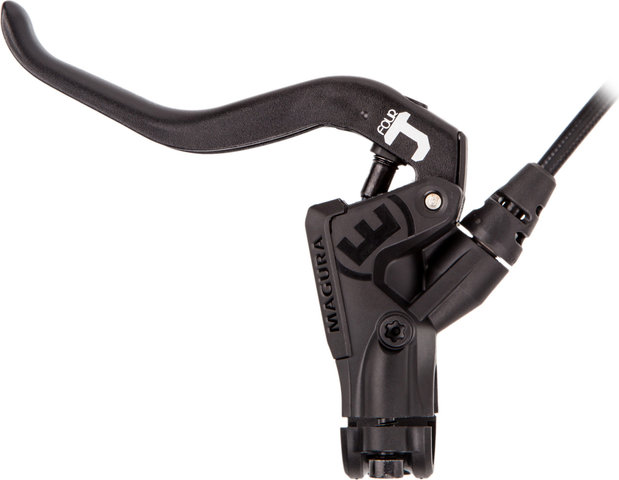

Technical Information - Lever:

Brake Lever Housing Material:

Carbotecture®

Brake Lever Material:

Aluminium

Clamp:

split, carbon

Mount:

both sides (FlipFlop)

Technology:

Carbotecture SL®, Carboflow®, Carbolay®

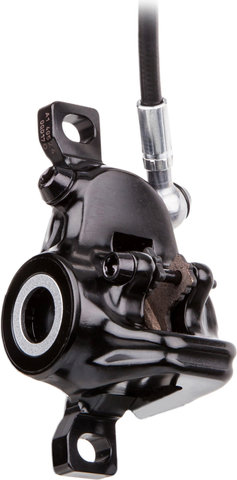

Technical Information - Release Unit:

Material:

Aluminium

Design:

1-piece

Pads:

top load (installation/removal via top, no need to remove wheel)

Features:

• ergonomic 2-finger aluminium brake lever
• Carbotecture® housing and handlebar clamp
• adjustable lever width
• single-piece forged 2-piston caliper with banjo
• all bolts with Torx T25 head
• magnetiXchange brake piston for easy pad change
• fully hydraulic two-piston fixed caliper
• open brake system with reservoir
• automatic pad adjustment
• Disc Tube brake line can be shortened without any problems
• rotatable brake line connection (RHR - Rotatable House Routing)
• reach adjust
• Easy-Bleed technology
• two-piece brake lever clamp
• FlipFlop brake lever
• Feel-Safety-Ergonomics

Technology:

Carbotecture SL®:
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.

Carboflow®:
A process new developed by Magura that allows carbon fibres to be optimally aligned to the direction of force. Produces homogeneous, calculable surfaces. Significant weight savings are possible as oversizing is not necessary. There are hardly any limits to the design.

Carbolay®:
Lever fibres are embroidered on a carrier mass before they are covered with resin and allowed to harden.

Manufacturer Number:

2700476

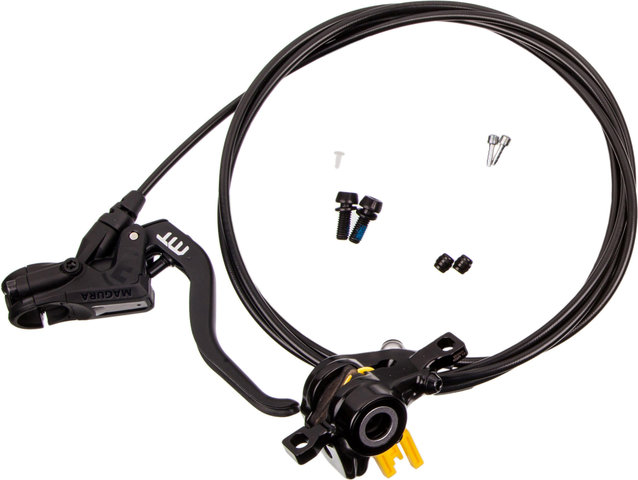

Contents:

• 1 x Magura MT4 disc brake, mount ready, filled & bled
• not incl. brake rotor
• not incl. disc brake adapter
• incl. mounting material
