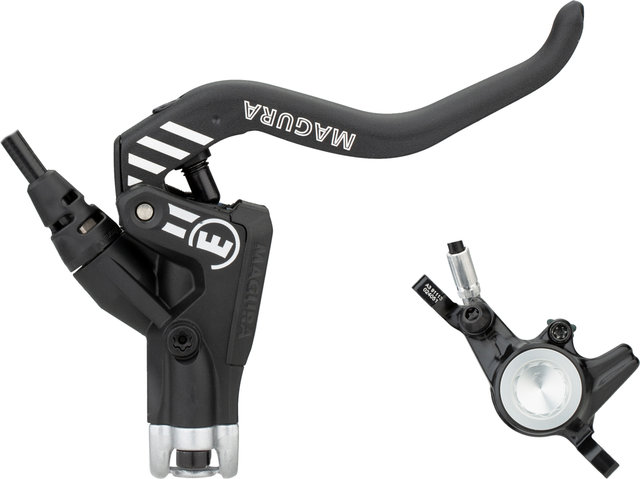

Magura MT4 eSTOP Carbotecture Disc Brake

The MT4 eSTOP Carbotecture Disc Brake by Magura - Perfect for your E-bike

The MT4 eSTOP Carbotecture disc brake from Magura is designed for the demands of modern E-bikes. It provides you with reliable braking power, whether you are riding off-road or in the city. Thanks to optimised, high-quality components, you no longer have to worry about braking. The new eSTOP system is based on the proven features of the MT Series and really blossoms in terms of braking power and durability when combined with SPORT pads and MDR-C or MDR-P brake rotors.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Series:

MT Series

Application:

All Mountain, Touring, City

Type:

hydraulic, 2 pistons

Actuation:

mineral oil (Royal Blood)

Hose:

Magura Disc Tube

Hose Length (Front/Rear):

2200 mm

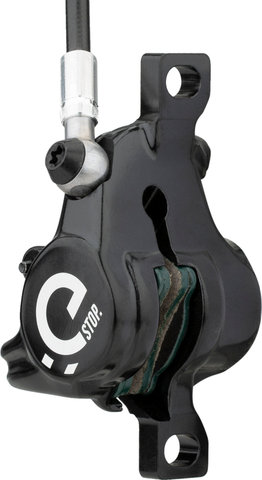

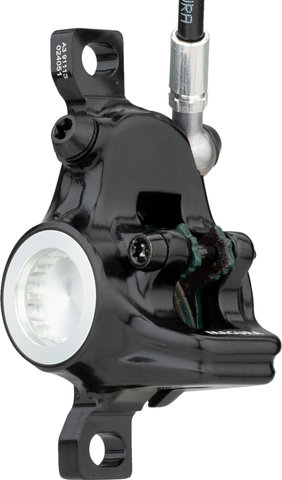

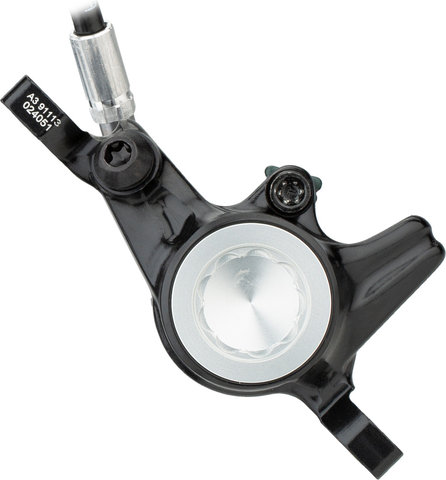

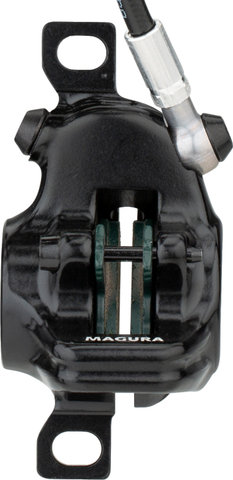

Technical Information - Caliper:

Caliper Mount:

post mount

Pistons:

2 pistons

Pads:

organic / 7.S Sport (2 piston / 2 single pads)

Design:

1-piece

Calliper Material:

Aluminium

Hose Connection:

banjo

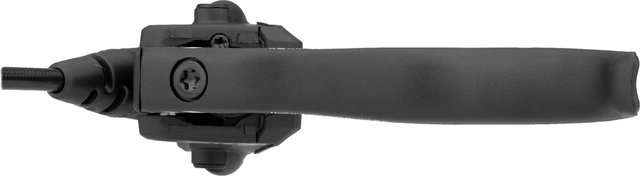

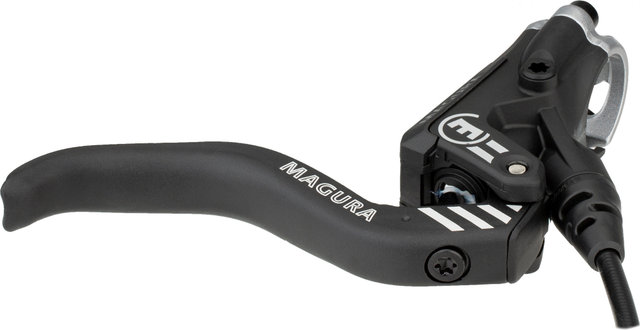

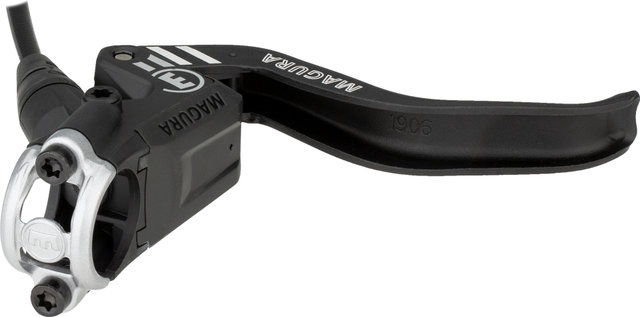

Technical Information - Lever:

Lever Length:

2-finger

Adjustment Options:

reach adjust (with Torx T25 key)

Mount:

clamp (split)

Design:

Flip-Flop (without specific side)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Carbon

Features:

• can be used left and right
• particularly light thanks to Carbotecture brake lever
• magnetiXchange piston for easy pad change

Technology:

Carbotecture®
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.

Manufacturer Number:

2702000

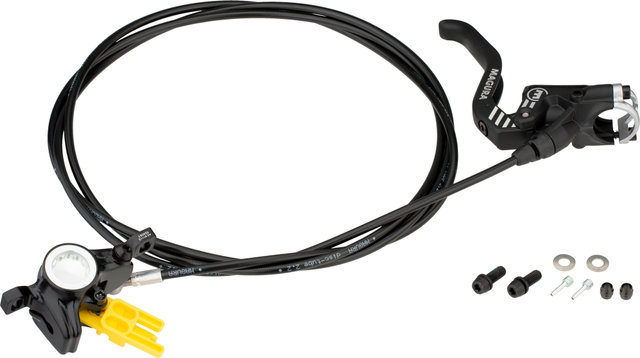

Contents:

• 1 x Magura MT4 eSTOP disc brake, mount ready, filled & bled
• 1 x Magura Disc Tube
• 2 x Magura Type 7.S Sport brake pads
• 2 x inserts
• 2 x olives
• 2 x Magura black brake calliper bolts
• 2 x Magura silver washers
• 1 x hose stopper
• 2 x Magura large decals
• 2 x Magura medium decals
• 2 x Magura small decals

Order Together:

• MDR-C brake rotor
