Magura MT5 / MT4 Carbotecture® Disc Brake Set

Perfect for trail use: the MT5 / MT4 Disc Brake Set by Magura

The combination of the powerful MT5 four-piston brake for the front and the lightweight MT4 for the rear ensures superior performance at an unbeatable price.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications - MT4:

Pistons:

2

Mount:

post mount (IS with adapter)

Brake Rotor:

not included (recommended: Storm HC, also compatible w/ Storm & Storm SL)

Actuation:

Royal Blood (mineral oil)

Hose Length:

2200 mm (front/rear)

Pads:

organic / 7.4 Performance (series), 7.2 Endurance

Specifications - MT5:

Pistons:

4

Mount:

post mount (IS with adapter)

Brake Rotor:

not incl. (only compatible with Storm HC)

Actuation:

Royal Blood (mineral oil)

Hose Length:

2200 mm (front/rear)

Pads:

organic / 9.1 Performance (4 piston series / 2 pads) or 8.1 Performance (4 pistons / 4 pads)

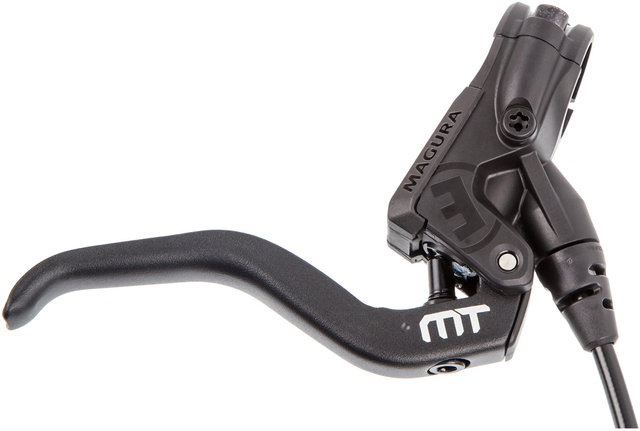

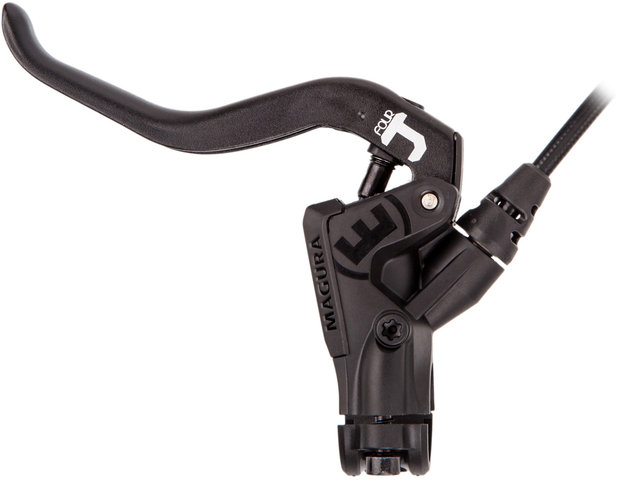

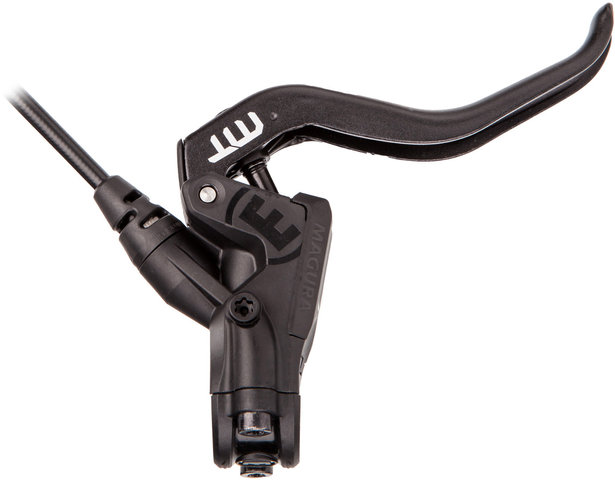

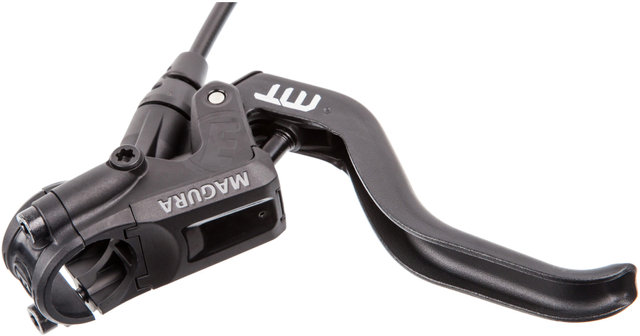

Technical Information - Lever:

Brake Lever Housing Material:

Carbotecture®

Brake Lever Material:

Aluminium

Clamp:

split, carbon

Mount:

both sides (FlipFlop)

Technology:

Carbotecture SL®, Carboflow®, Carbolay®

Technical Information - Release Unit:

Material:

Aluminium

Design:

1-piece

Pads:

top load (installation/removal via top, no need to remove wheel)

Features:

• ergonomic 2-finger aluminium brake lever
• Carbotecture® housing and handlebar clamp
• adjustable lever width

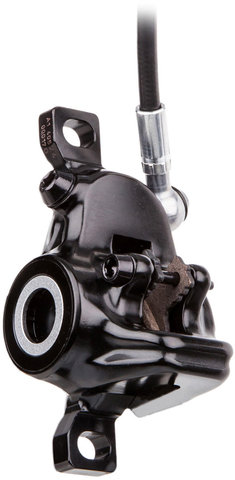

• one-piece forged 2-piston caliper with banjo (on MT4)

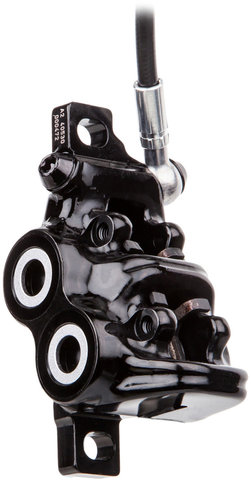

• forged 4-piston caliper with banjo (on MT5)
• all bolts with Torx T25 head
• magnetiXchange brake piston for easy pad change
• fully hydraulic two-piston fixed caliper
• open brake system with reservoir
• automatic pad adjustment
• Disc Tube brake line can be shortened without any problems
• rotatable brake line connection (RHR - Rotatable House Routing)
• grip width adjustment (tool-less on MT5)
• Easy-Bleed technology
• two-piece brake lever clamp
• FlipFlop brake lever
• Feel-Safety-Ergonomics

Technology:

Carbotecture SL®:
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.

Carboflow®:
A process new developed by Magura that allows carbon fibres to be optimally aligned to the direction of force. Produces homogeneous, calculable surfaces. Significant weight savings are possible as oversizing is not necessary. There are hardly any limits to the design.

Carbolay®:
Lever fibres are embroidered on a carrier mass before they are covered with resin and allowed to harden.

Manufacturer Numbers:

MT4:

2700476

MT5:

2700477

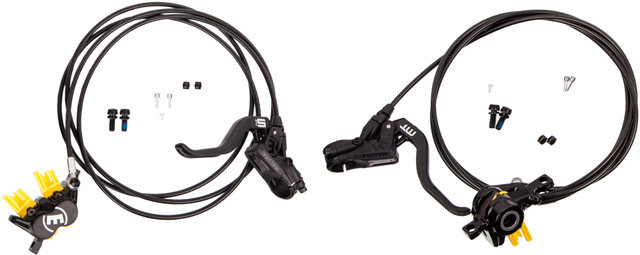

Contents:

• 1 x Magura MT4 disc brake, mount ready, filled & bled
• 1 x Magura MT5 disc brake, mount ready, filled & bled
• 1 x pair Magura 7.4 Performance brake pads
• 1 x pair Magura 9.1 Performance brake pads
• not incl. brake rotors
• not incl. disc brake adapter
• incl. mounting material
