Magura MT5e Carbotecture Disc Brake - black/HIGO-closer

Magura MT5e Carbotecture Disc Brake

Item number: 45434
3
3

The Magura MT5e Carbotecture Disc Brake offers increased safety on S-pedelecs


The Magura MT5e disc brake with Carbotecture® is especially designed for S-pedelecs and ensures that the motor of the E-bike is switched off when braking. A switch attached to the lever is used for this purpose. With the proven 4-piston design, drawn from Magura's experience in motorcycle racing, you always come to a reliable stop. The ball-head lever for 3 fingers is ergonomically optimised, and the brake lever housing is particularly light thanks to Carbotecture. The brake pads are quickly changed with magnetiXchange, so wheel removal is not necessary. The MT5e is based on the MT7 Pro, which is used by mountain bikers on the steepest trails. High braking power combined with perfect dosing, which can't go wrong even in city traffic.

Note from the manufacturer:

The designation " HIGO opener" and " HIGO closer" refers to the circuit - one opens, while the other closes the circuit. In this case, the drivetrain manufacturer must provide information as to which version is the correct one for the drivetrain in question.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Series:
MT5e
Application:
City, Touring, Cross Country, All Mountain, Enduro
Type:
hydraulic, 4 pistons
Actuation:
mineral oil (Royal Blood)
Hose:
Disctube
Hose Length (Front/Rear):
2200 mm

Technical Information - Caliper:

Caliper Mount:
post mount
Pistons:
4
Pads:
9.P Performance
Design:
1-piece
Calliper Material:
Aluminium
Hose Connection:
banjo

Technical Information - Lever:

Lever Length:
3-finger
Adjustment Options:
Grip width (with tool)
Mount:
clamp (split)
Design:
Flip-Flop (without specific side)
Brake Lever Material:
Aluminium
Brake Lever Housing Material:
Carbon composite
Hose Connection:
straight

Features:

  • E-bike switch activates brake light and ensures drivetrain disengagement when braking
  • suitable for S-pedelecs
  • ergonomic 3-finger aluminium lever
  • lever with round ball head to reduce the risk of injury in the event of a fall
  • reduced friction and controlled brake feel due to radial brake lever design
  • brake lever housing and handlebar clamp made of lightweight Carbotecture
  • forged 1-piece caliper
  • lever width adjustable with 3 mm hex tool (not included)
  • magnetiXchange brake piston for easy pad change
  • Topload (disassembly/assembly and wear check from above without wheel removal) when using individual linings
  • automatic pad adjustment
  • with Easy-Bleed technology

Technology:

Carbotecture®:
New material developed by Magura consisting of a high proportion of carbon fibres embedded in a thermoplastic matrix. More powerful, more tensile, more flexible and more break-resistant than conventional, fibre-reinforced plastics or laminated carbon fibre mats. Ideally suited for manufacturing using the Carboflow® process. An artificial word composed of carbon and architecture.

Manufacturer Numbers:

HIGO-Closer:
2700984
HIGO-Opener:
2700985

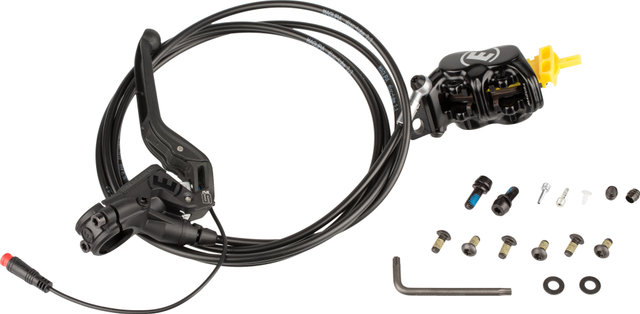

Contents:

  • 1 x Magura Mt5e disc brake, filled and bled ready for installation (HIGO-closer or HIGO-opener)
  • 1 pair of Magura 9.P Performance brake pads
  • 8 x bolts
  • 4 x washers
  • 2 x olives
  • 2 x inserts
  • 1 x plugs
  • 1 x Torx key
  • 1 x pad spacers

Weight:

  • black/HIGO-closer: 275 g
  • 100 day return period
  • Online since 1998

Models:

  • black/HIGO-closer, in stock
    81.35€
  • black/HIGO-opener, in stock
    86.55€
