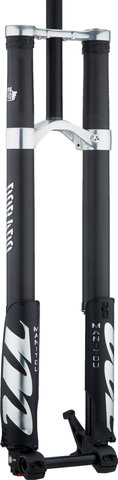

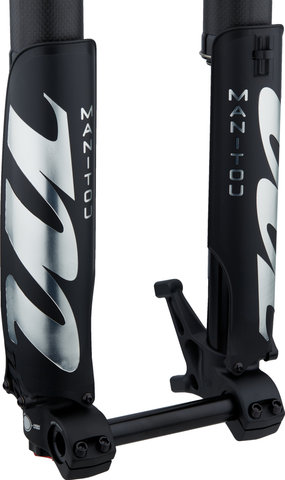

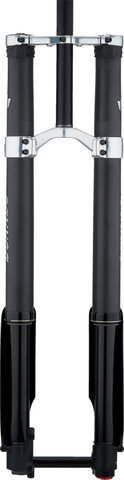

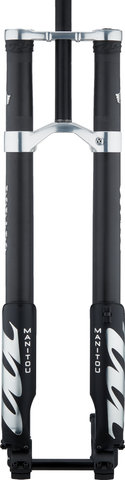

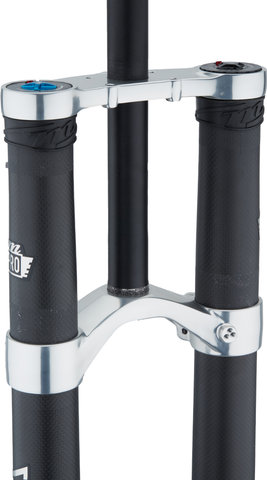

Manitou Dorado Pro 27.5" Suspension Fork

The Manitou Dorado Pro 27.5" suspension fork in an eye-catching Upside-Down design impresses on downhill bikes with a very light and stiff carbon construction with 37 mm stanchions and two positive air chambers for fine tuning.

Specifications:

Application:

Downhill

Wheel Size:

27.5"

Suspension Type:

air

Travel:

203 mm

Steerer Tube:

1 1/8"

Axle Type:

thru-axle

Wheel Standard:

20 x 110 mm (Boost)

Brake Mount:

disc PM8 (direct mount 203 mm)

Technical Information:

Offset:

47 mm

Steerer Tube Length:

270 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

30 mm

Axle to Crown:

582 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

37 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium (6000)

Lower Tube Material:

Carbon

Adjustment Options:

Compression:

High-Speed, Low-Speed

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

yes, internal (180 mm, 190 mm)

Approved For:

Tyre Size (max.):

27.5 x 2.6"

Rotor Size (max.):

223 mm

Features:

• Upside-Down design provides increased stiffness in the longitudinal direction with the same torsional stiffness, thus improved control in rough terrain
• constant lubrication of seals
• lightweight due to carbon lower tubes
• 238 g lighter than Expert variant
• 37 mm chassis with carbon lower tubes 27 % stiffer than previous version
• balancing valve regulates air pressure in positive and negative air chambers during air filling
• Infinite Rate Tune (IRT) with second positive air chamber for independent adjustment of air pressure at the beginning and end of travel
• TPC+ damping increases damping force deeper in the suspension travel
• hydraulic Bottom-Out protection
• consistent damping performance on long downhill runs
• TSR Bleed Buttons for easy pressure equalisation
• fork crown with 47 mm offset intended for 27.5" tyres
• suspension travel internally adjustable (180 mm, 190 mm)
• with stone guard for the stanchion tubes

Manufacturer Number:

191-37419-A101

Contents:

• 1 x Manitou Dorado Pro 27.5" suspension fork
• 1 x Manitou brake rotor adapter
• 1 x SAG measuring bar with 1 x brake hose guide and 2 x spacers (detachable)
• 8 x bolts
