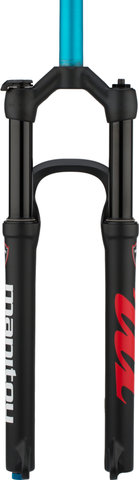

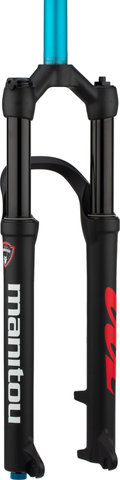

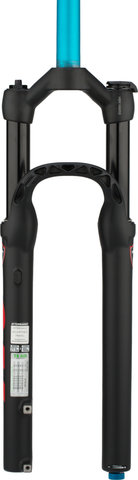

Manitou Markhor 27.5" Suspension Fork

The goal in developing the Manitou Markhor suspension fork (formerly M30) was to pack the outstanding performance of the XC-Race fork Marvel into an affordable overall package. The Markhor is an absolute lightweight in its price class and features the adjustable rebound damping TPC as well as a platform damper that can be ridden in open as well as platform mode. For the air suspension, Manitou uses the TS Air System, a tried-and-tested technology from the Minute and Marvel Comp series.
The Manitou Markhor thus stands for outstanding performance and very low weight at a very aggressive price.

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

100 mm

Steerer Tube:

1 1/8"

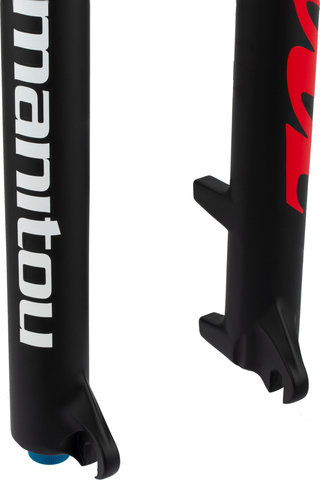

Axle Type:

quick release

Wheel Standard:

9 x 100 (Standard)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

41 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

30 mm

Axle to Crown:

494 mm

Over Locknut Dimension:

100 mm

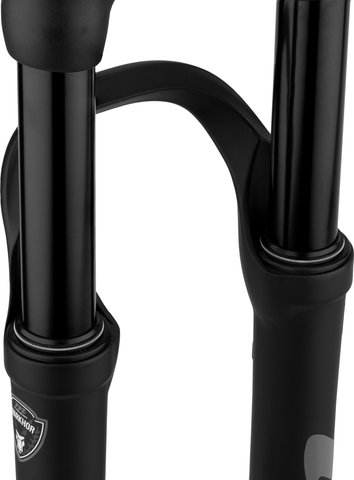

Stanchion Tube Diameter:

30 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

Aluminium

Adjustment Options:

Compression:

no

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

71.4 mm

Note:

The tyre clearance to the fork bridge should be at least 6 mm.

Rotor Size (max.):

203 mm

Features:

• TS Air air coil
• TPC (Twin Piston Chamber Cartridge Rebound) and Kwik Toggle Damping

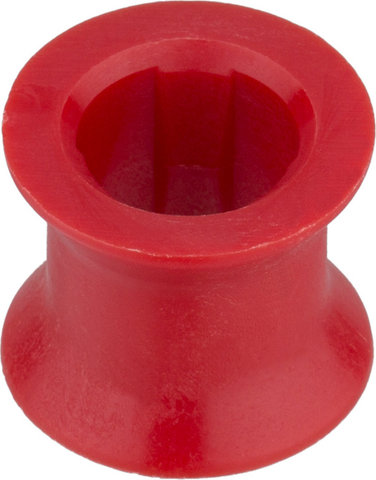

• Progressive Rubber Bumper

Technology:

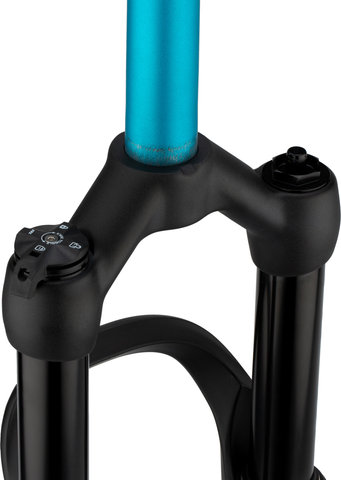

Kwik Toggle
Based on the Absolute+ compression damper, Kwik Toggle achieves simple lockout operation.

Models:

100 mm / 1 1/8 / 9 x 100 mm / 41 mm:

Travel:

100 mm

Steerer Tube:

1 1/8"

Offset:

41 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

quick release

Manufacturer Number:

191-34155-A001

Contents:

• 1 x Manitou Markhor suspension fork
• 1 x star nut
