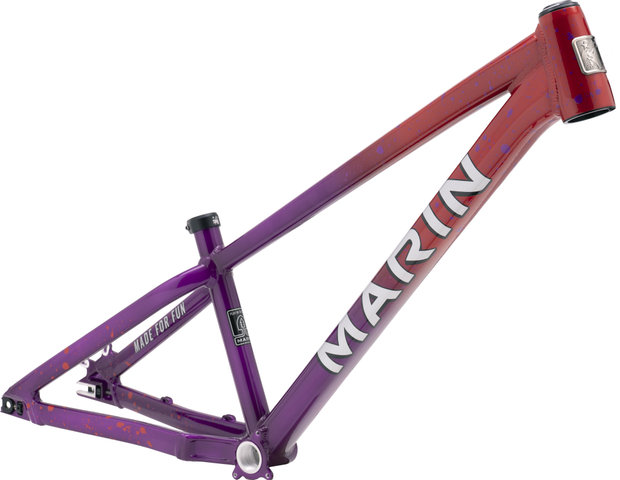

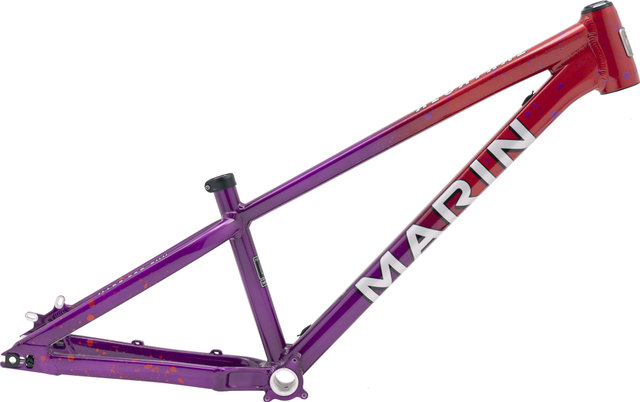

Marin Bikes Alcatraz 26" Frame kit
Unleash your trailblazing spirit with our Marin Alcatraz 26" MTB, Dirtjump, and Slopestyle frame-kit, a versatile powerhouse designed to elevate your off-road adventures. Crafted from durable Aluminum (6061), this frame is engineered to withstand the rigors of the mountain and beyond. Its 73 mm housing width and BSA bottom bracket standard ensure a robust foundation for building a bike that's truly yours. Compatible with 26" wheels and tires up to 26 x 2.4", this frame promises agility and control on diverse terrains. The 10 x 135 mm standard wheel setup aligns with traditional mountain biking standards, offering reliability and ease of maintenance. Designed for disc brakes with a maximum rear disc size of 180 mm and an IS 2000 brake mount, it guarantees powerful stopping power in all conditions. The frame's 30.9 mm seatpost diameter allows for wide compatibility with aftermarket seatposts, enhancing customization options. Whether you're hitting dirt jumps, shredding trails, or mastering slopestyle, this frame is built to push limits. Note that it comes without a front derailleur mount, emphasizing its single-chainring readiness for a streamlined, efficient drivetrain setup. Embrace the freedom and excitement of off-road cycling with a frame that's as adventurous as you are.
Specifications:
- Application:
- Dirtjump, Slopestyle, MTB
- Wheel size:
- 26"
- Brake Type:
- disc
- Housing Width:
- 73 mm
- Frame material:
- Aluminum (6061)
- Gender:
- Women's, Men´s
Technical Information:
- Brake Mount:
- IS 2000
- Wheel Standard:
- 10 x 135 mm (Standard)
- Front Derailleur Mount:
- without
- :
- 30,9 mm
- Chainline:
- 49 - 52 mm
- Belt Compatibility:
- No
- :
- BSA
Approved For:
- Max. Disc Brake Size Rear:
- 180 mm
- Max Tire Size Rear:
- 26 x 2,4"
Features:
- High-performance aluminum (6061) frame designed for MTB, Dirtjump, and Slopestyle applications, accommodating both men and women.
- Compatible with 26" wheels and tires up to 26 x 2.4", perfect for tackling challenging terrains.
- Features a housing width of 73 mm and a BSA bottom bracket standard for robust and reliable performance.
- Designed without a front derailleur mount, emphasizing a streamlined and lightweight build for specialized riding styles.
- Supports disc brakes with a maximum rear disc brake size of 180 mm and an IS 2000 brake mount for superior stopping power.
- Utilizes a 30.9 mm seatpost diameter, allowing for flexible seat height adjustments and enhanced riding comfort.
Geometry:
- Seat Tube Length:
- 320 mm
- Stack:
- 575 mm
- Head Tube Length:
- 115 mm
- Wheelbase:
- 1037 mm
- Recommended Rider Height:
- 155 - 175 cm
- Bottom Bracket Height:
- 317 mm
- BB Drop:
- 22 mm
- Head Tube Angle:
- 69
- Chainstay Length:
- 395 mm
- Reach:
- 385 mm
- Seat Tube Angle:
- 69
- Standover Height:
- 370 mm
- Effective Top Tube Length:
- 600 mm
- Head Tube Angle:
- 69
- Seat Tube Length:
- 320 mm
- Reach:
- 430 mm
- Standover Height:
- 400 mm
- Head Tube Length:
- 115 mm
- Chainstay Length:
- 395 mm
- Stack:
- 580 mm
- Bottom Bracket Height:
- 317 mm
- BB Drop:
- 22 mm
- Wheelbase:
- 1083 mm
- Seat Tube Angle:
- 69
- Recommended Rider Height:
- 165 - 195 cm
- Effective Top Tube Length:
- 646 mm
Manufacturer Number:
- purple fade/S: 739093001
- purple fade/L: 739093002
Contents:
- 1 x Marin Alcatraz 26" Frame Kit
- 1 x Marin Seat Clamp
- 1 x Marin Chain Tension Device
