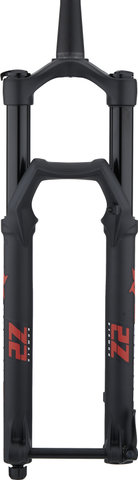

Marzocchi Bomber Z2 E-Optimized 27.5" Boost Suspension Fork

The Marzocchi Bomber Z2 Suspension Fork with Boost installation width for 27.5" tyres is E-optimised for E-mountain bikes

The Marzocchi Bomber Z2 E-Optimised suspension fork for 27.5" wheels is particularly suitable for e-bikes in all-mountain use.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

120 mm, 140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

258 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter mm:

34 mm

Steerer Tube Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

2-position Sweep Adjust (Open, Firm)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

27.5 x 2.6"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

203 mm

Weight Limit:

169 kg (system weight)

Features:

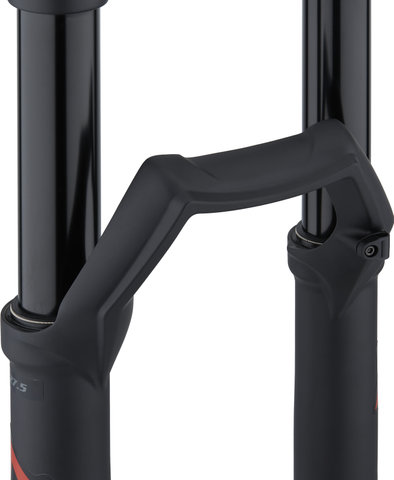

• M-shaped bridge for high tyre clearance
• reliable RAIL cushioning technology for good grip
• 2-Position Sweep Adjust with compression adjustment from Open to Firm

Models:

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Offset:

44 mm

Axle to Crown:

512 mm

Manufacturer Number:

912-01-132

140 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Offset:

44 mm

Axle to Crown:

532 mm

Manufacturer Number:

912-01-106

Contents:

• 1 x Marzocchi Bomber Z2 E-Optimized 27.5" Boost suspension fork
