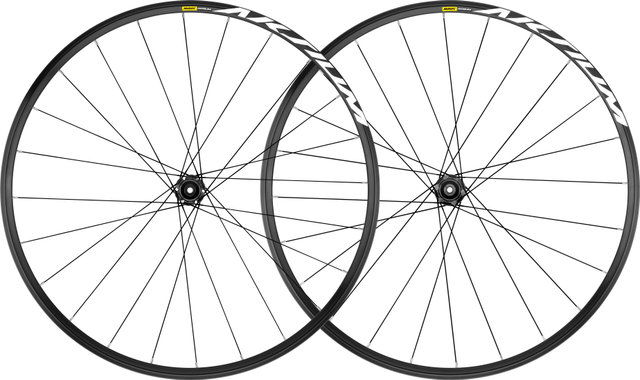

Mavic Aksium Disc Center Lock Wheelset

Designed for the special requirements of disc brakes: the Aksium Disc wheelset by Mavic

The Aksium is made for everyday use on a Road bike - with its balanced combination of high-quality, lightweight materials with a durable construction, it offers Rod bike beginners noticeable performance advantages.
The Aksium Disc is also designed with some special features specifically for disc brakes and their special requirements. Straight spokes provide stiffness and stability - the number of spokes has been increased to 24 at the front and rear.
Thanks to 17 mm inner width, the rims are designed for up to 32 mm tyre width, which ensures versatility and comfort even on rough roads. The special disc brake hubs are equipped with high quality QRM bearings, which combine lowest friction and highest durability without maintenance.

Specifications:

Application:

Road, Cyclocross, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

none

Technical Information - Rim:

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

24 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (S6000)

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 thru-axle, convertible to 9 x 100 mm quick release

Bearings:

cartridge bearings (sealed)

Body Material:

aluminium

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release

Bearings:

cartridge bearings (sealed)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight / round

Spoke Size:

297 mm (front), 297 mm/293 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

self-locking

Nipple Material:

steel

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

8.7 bar (23 mm), 7.7 bar (25/28 mm)

Recommended Tyre Width:

25 - 32 mm

* recommended for increased durability

Features:

• product segment: Endurance
• more confidence and control thanks to powerful disc brakes
• smooth and efficient riding characteristics
• conventional rim drilling
• rim profile optimised for disc brakes
• sleeved rim joint
• self-aligning sealed cartridge bearings
• aluminium axles
• front can be converted to quick release (with supplied adapters)
• rear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

QRM Auto
Qualité de Roulements Mavic Auto. The latest bearing innovation by Mavic. These cartridge bearings (bearing clearance: C3) are of course double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

P8693155

Conversion Options:

To convert to Campagnolo, a Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.

Contents:

• 1 x Mavic Aksium Disc Center Lock wheelset (front and rear)
• 1 x cassette spacer (rear)
• 2 x axle end caps for front quick release
• 2 x 9.5 mm reducers for rear quick release
• 2 x rolls of rim tape
