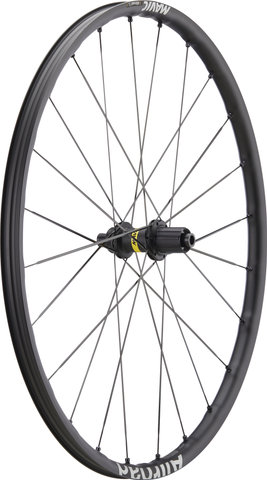

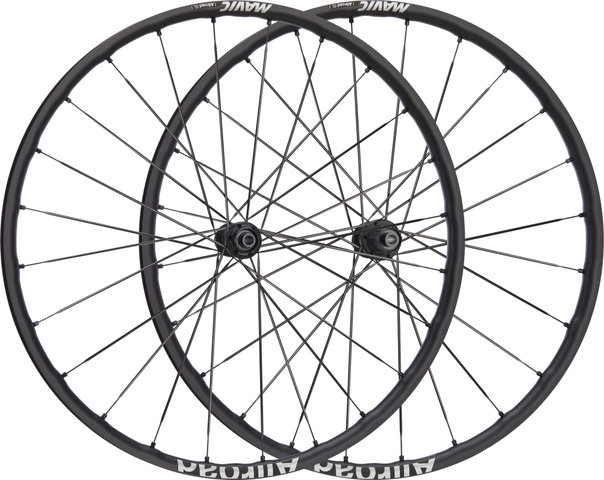

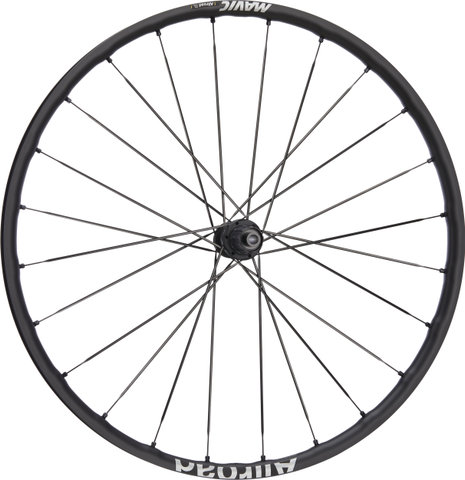

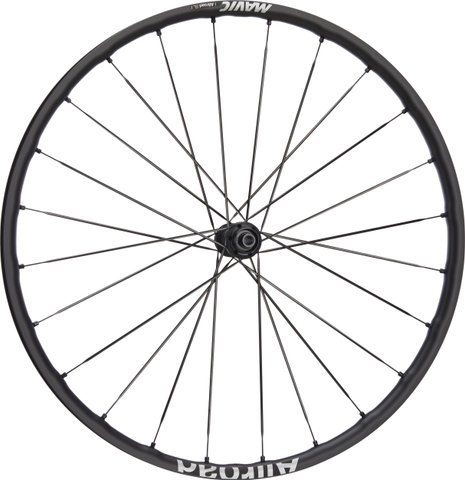

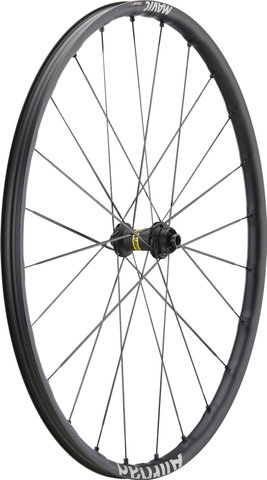

Mavic Allroad SL Center Lock Disc Wheelset - 2024 Model

Mavic Allroad SL wheelset - light and powerful for gravel use

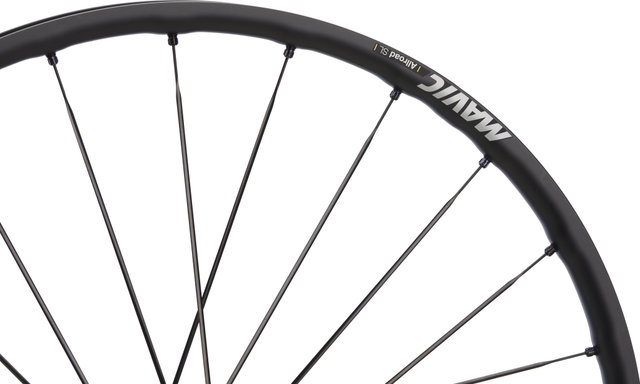

The Mavic Allroad SL is a super light, agile 28" wheelset for use on gravel, dirt roads and cobblestones. It has hookless aluminium rims with a generous jaw width of 25 mm, allowing tyres up to 64 mm wide. You can also run it tubeless, which has advantages such as lower tyre pressure, less weight and more puncture protection. Not even rim tape is required, because the Fore technology keeps the rim completely airtight. Thanks to the ISM-4D milling process, more than 130 grams of weight have been saved compared to the Allroad S model. The rims also impress with their Black Shield finish, which makes them particularly resistant to stone impacts and scratches.

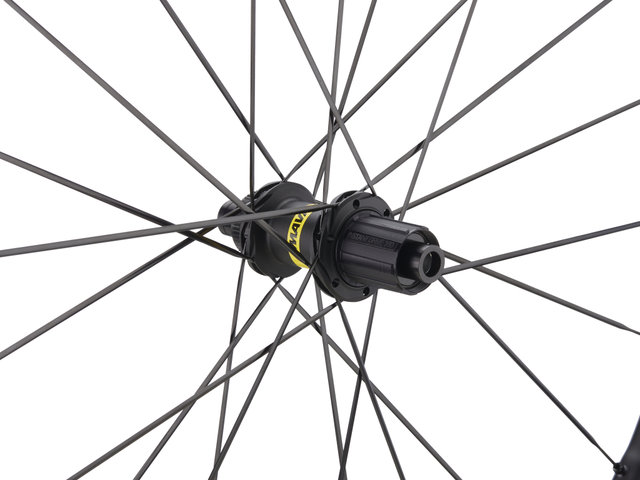

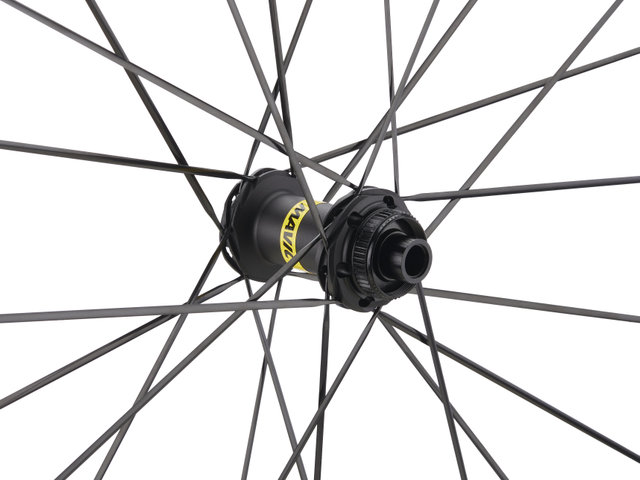

At the centre of the Allroad SL wheels, there are Center Lock Disc hubs with Infinity technology for optimised spoke reception. The QRM auto bearing with automatic preload saves you cumbersome adjustment. At the rear, the Instant Drive 360 freehub ensures fast engagement. Although the wheelset is designed for thru-axles, it can also be converted to quick releases. It was laced with 24 double-butted steel spokes at the front and rear, which are extremely aerodynamic due to their elliptical shape.

Specifications:

Application:

Gravel, Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

UST Tubeless

Technical Information - Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Depth:

22 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

QRM Auto

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

QRM Auto

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

straight pull / elliptical aero / double butted

Spoke Material:

steel

Nipple Type:

Fore, integrated

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

4.05 bars with 30 mm tyres, 2.45 bars with 64 mm tyres

Recommended Tyre Width:

30 - 64 mm (1.2 - 2.5" )

Tyre Type:

Due to its hookless rims, it is only approved for use with UST tubeless tyres and clincher tyres with inner tubes. Follow the tyre manufacturer's instructions for use.

* recommended for increased durability

Features:

• super light 28" aluminium wheelset for gravel use
• 25 mm wide, hookless UST rims for tyres from 30 to 64 mm width
• advantages such as lower tyre pressure, more puncture protection, less friction and less weight due to tubeless mounting
• no rim tape required thanks to Fore rim holes (saves approx. 30 g)
• special milling process for weight reduction
• special rim treatment for more durability
• laterally stiff and vertically compliant for a dynamic ride
• oversize axles and bearings for more lateral stability
• Infinity hub design for optimal lacing
• automatic bearing preload for low maintenance and long durability
• lightweight ID360 freehub for fast engagement
• patented aero spokes with elliptical profile
• rim profile optimised for disc brakes
• rim joint welded (SUP)
• aluminium hub axles
• front can be optionally converted to 9 mm quick release or 15 mm thru-axle (adapter or axle not included)
• rear convertible to 10 mm quick release (adapter and axle not included)
• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

Black Shield Treatment
This innovative surface treatment, first introduced for MTB rims, makes rims twice as resistant to stone impacts and scratches.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

ISM 4D
The ISM 4D (Inter Spoke Milling 4 Dimensions) milling process noticeably reduces weight and inertia without sacrificing durability. Mavic's exclusive patent also provides better aerodynamics with its new rim profile. ISM 4D rims are up to 50 g lighter and therefore offer more climbing performance. Their minimal inertia leads to maximum acceleration. Their extra aerodynamic rim profile results in significantly lower air resistance.

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Manufacturer Number:

P00020003

Conversion Options:

To convert to Campagnolo, a Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.

Contents:

• 1 x Mavic Allroad SL Disc wheelset (front & rear)
• 2 x UST valve with accessories

Order Together:

Optional accessories:

• front adapter for conversion to 9 mm quick release
• front axle for conversion to 15 mm thru-axle
• rear adapter for conversion to 10 mm quick release (axle no. V2373401 also required)
• extra-light freehub body for Shimano Road
