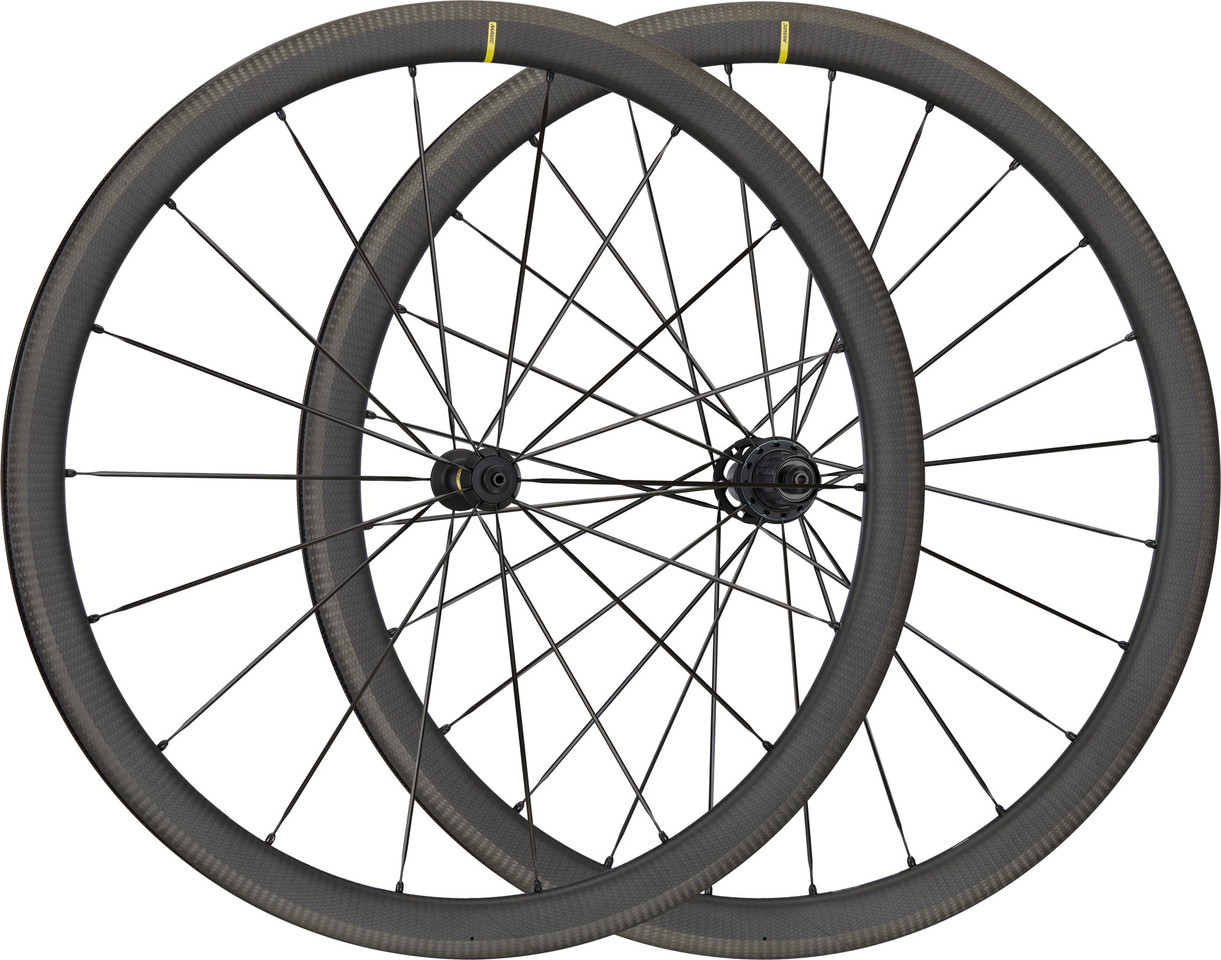

Mavic Cosmic SLR 40 Carbon Wheelset

The Mavic Cosmic SLR 40 Carbon Wheelset - Light, strong, tubeless compatible

The Cosmic SLR 40 wheelset from Mavic is based on 19 mm wide and 40 mm high carbon rims optimised for rim brakes and presents itself as an extra-light, fast and strong all-rounder for all riding and racing situations. Tubeless compatibility opens up further advantages such as more puncture resistance, less rolling resistance and weight savings. Quick-release hubs with self-adjusting bearings and optimised spoke holes are used, with 18 double butted straight pull spokes at the front and 20 at the rear. Due to a special rim bed technology, tubeless rim tape is not necessary.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

18 (front), 20 (rear)

Brake Type:

rim brake

Tubeless System:

UST Road Tubeless

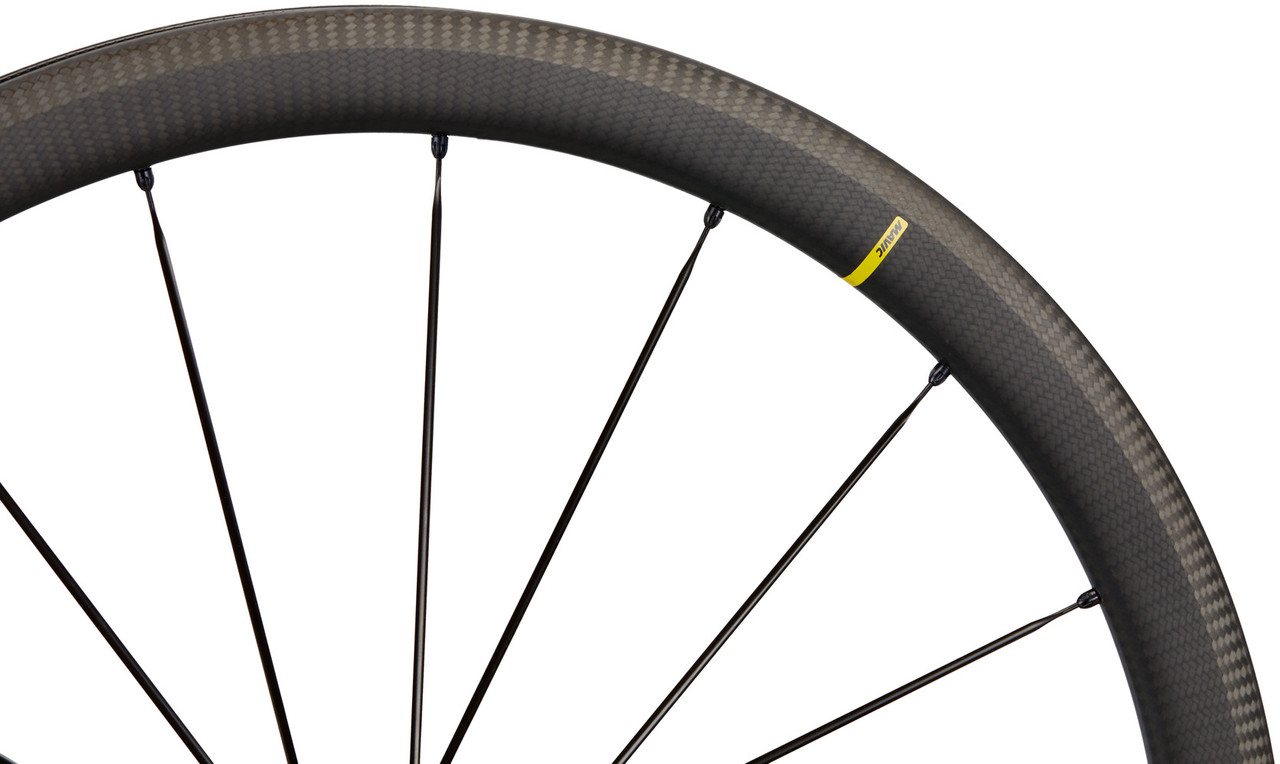

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

26 mm

Depth:

40 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

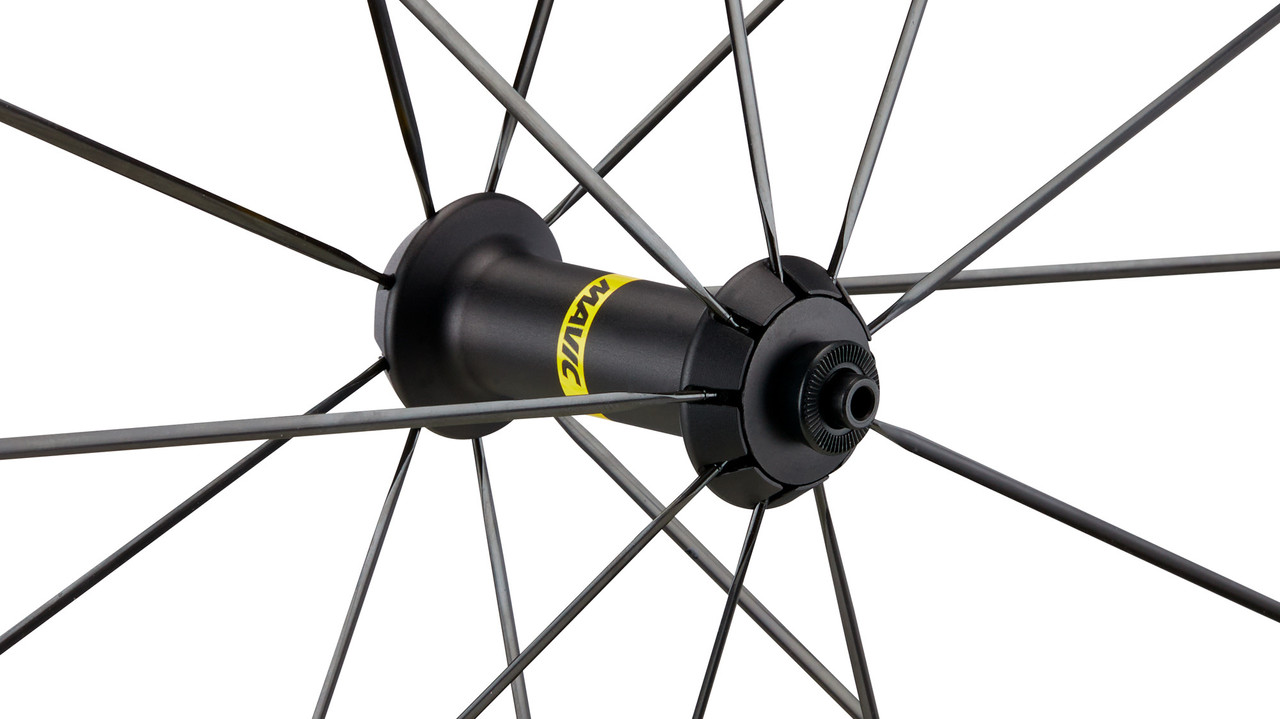

Technical Information - Front Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

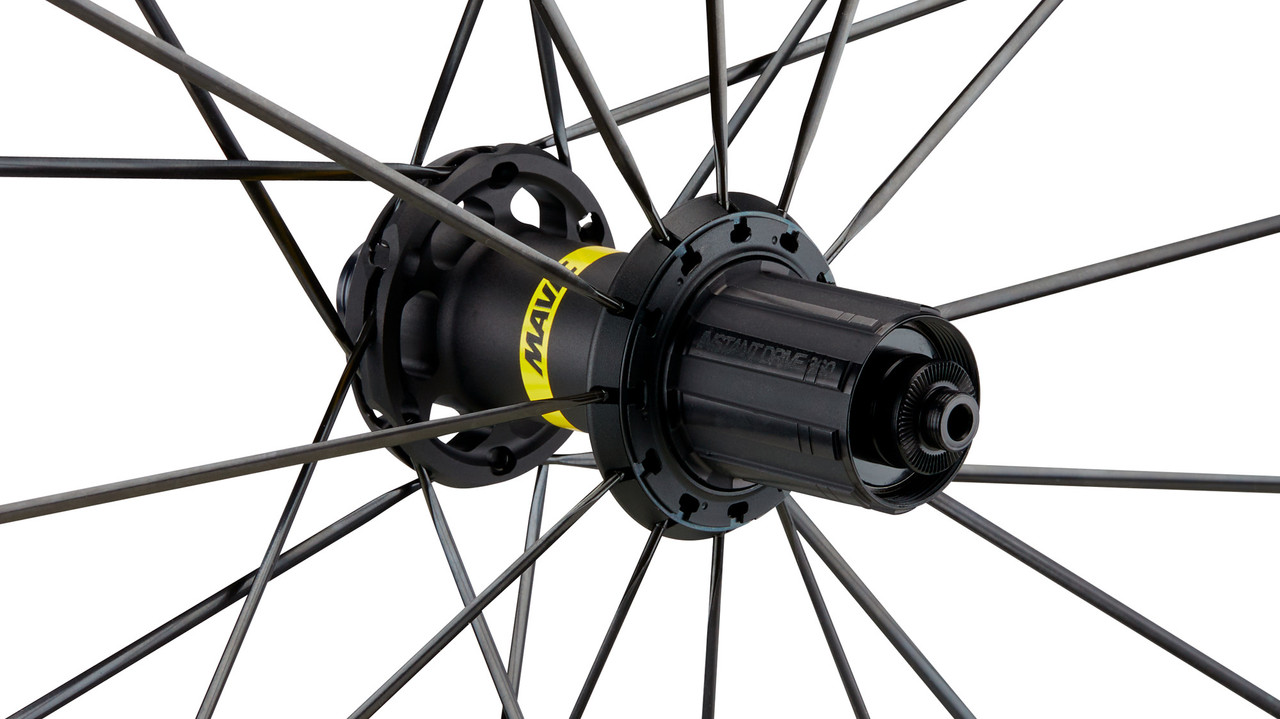

Technical Information - Rear Hub:

Type:

Mavic Infinity

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

self-aligning sealed cartridge bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

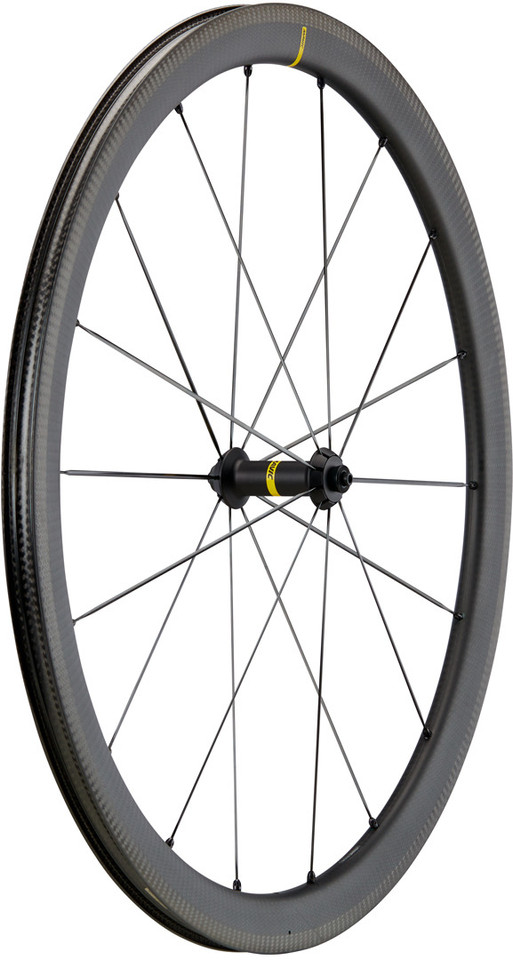

Front Lacing Pattern:

radial

Rear Lacing Pattern:

Isopulse

Spoke Type:

straight pull / double-butted

Spoke Size:

277 mm (front), 285 mm/266 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

Fore, integrated

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg total weight* (rider, gear & bike)

Air Pressure (max.):

see specifications on wheel and tyre (if different take the lower value)

Recommended Tyre Width:

25 - 32 mm

* recommended for increased durability

Features:

• efficient climbing characteristics, fast acceleration, constant speed
• stiffness and special brake flank for superior braking power
• user-friendly UST-Road system for more speed, control and comfort
• Infinity hub design for optimal lacing
• aluminium axles
• extra-light Shimano freehub body optionally available
• no rim tape required thanks to Fore technology
• ASTM category 1: Road only (only for use on asphalt roads and paths)

Technology:

iTgMAX
iTgMAX stands for Integral Glass Transition Temperature and refers to an inner rim bed that has been finished with multiple seamless layers of carbon fibre to achieve a unique one-piece rim shape without having to cut away fibres. The brake track is given a lasered finish to guarantee optimum braking efficiency. The result is consistent, efficient braking and a 50% reduction in deceleration time in wet conditions. iTgMAX rims are Mavic's toughest carbon rims, designed to withstand the hardest use by the most vigorous riders in the worst conditions.

Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures a fast power connection with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

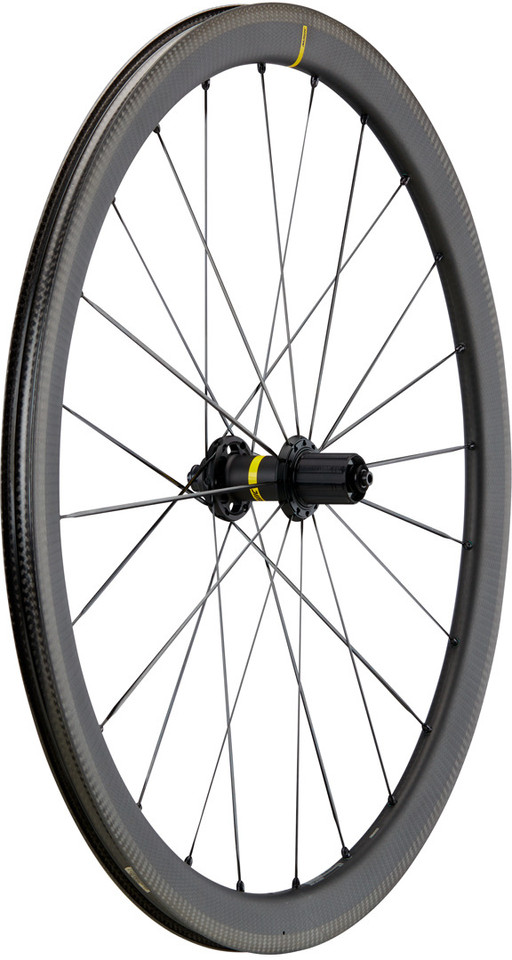

Isopulse (Rear)
This special lacing (right radial, left double-crossed) increases the stability of the wheels and ensures optimal power transmission - thanks to more even spoke tension on the left and right hub flange. Isopulse means higher stiffness under heavy load, resulting in immediate power transmission. Also, sturdier wheels have lower maintenance requirements.

Fore Carbon Tapeless Tubeless
Instead of a rim hole, a metal threaded insert is wrapped in the carbon layers of the lower rim base, into which the spoke nipple can be screwed directly. The outer rim base remains intact, so no rim tape is required for sealing.

Models:

28" set (front 9x100 + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

P1539155

Conversion Options:

To convert to Campagnolo, a separate Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.

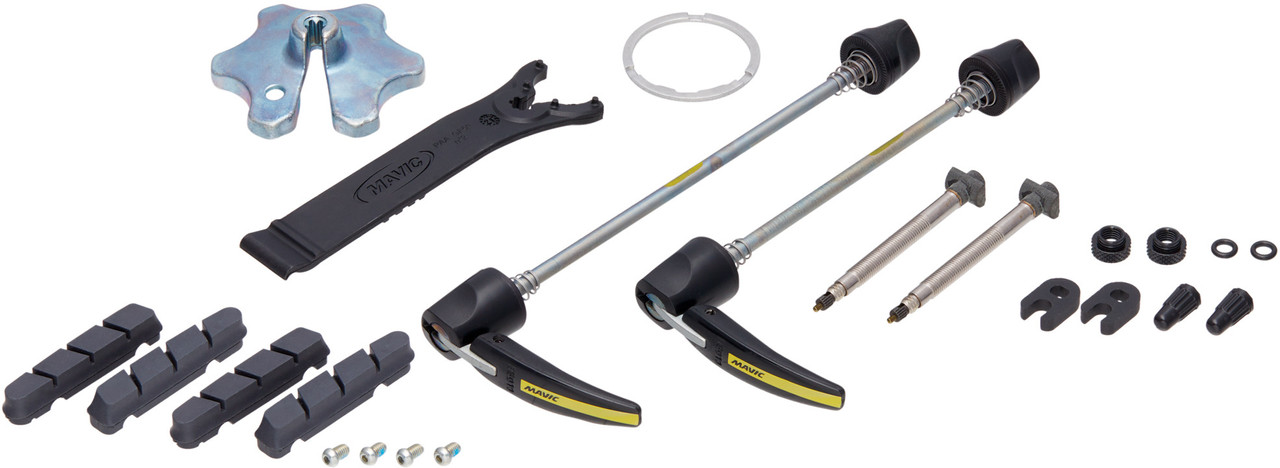

Contents:

• 1 x Mavic Cosmic SLR 40 Carbon wheelset (front and rear)
• 2 x Mavic BR601 Titan quick releases
• 2 x pair Mavic for Carbon brake pads (Shimano)
• 2 x UST valve with accessories
